INSTRUMENT CLUSTER
SPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
INSTRUMENTCLUSTER Drive Mode Integrated Control System
(Type B shown Located below gear shift knob)
The Drive Mode may be selected based on the driver ’s preferences and road conditions
To cycle through the different Drive Modes A, rotate the DRIVE MODE dial B The
instrument cluster LCD will display ECO, SPORT, SMART or SNOW * mode when selected
•ECO – This mode is optimized for eco-friendly driving that increases fuel efficiency
through engine and transmission control
•SPORT – This mode provides enhanced acceleration and dynamic drivability The
electric energy efficiency may decrease in this mode
•SMART – When the SMART mode is activated, the system automatically selects
the drive mode best suited to the current driving style
•SNOW* - Press and hold the DRIVE MODE button to enter Snow Mode Snow mode
automatically changes the vehicle to 2WD (Two-wheel drive) or AWD (All-wheel drive)
depending on the road conditions
Image is for illustrative purposes only and may not reflect actual feature or operation Your vehicle’s but tons may differ from those in the illustrations
Refer to section 6 in the Owner ’s Manual for more information
ECO
SMART
SNOW SPORT
Refer to the inside front cover for more information on QR codes
www youtube com/KiaFeatureVideos
Drive Mode Integrated Control Video
QR CODE
A
REMINDERS:
•
Steering effor t may be slightly increased in SPORT mode
•Fuel economy may decrease in SPORT mode
(Center Console)
AUTO
HOLDEV
HEV
DRIVE MODE
B

17*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS.
HYBRID / PLUG-IN HYBRID SYSTEM
Charging Connector Auto/Lock Mode
(Plug-In Hybrid Only)
The Charging Connector can be set to be locked or unlocked while in the charging inlet and charging. To select the locking mode, go to the Vehicle Settings mode in the Infotainment System. Press the Mode button A on the left side of the Steering Wheel or press the SETUP key on the infotainment system or the SETUP button on the screen. Select VEHICLE, then ECO VEHICLE. Select CHARGING CONNECTOR LOCK.
If the charging connector does not disconnect as needed, open the luggage board in the trunk area, remove the storage box and slightly pull the emergency cable to disconnect the charging connector.
For more information, refer to section 5 in the Owner ’s Manual.
To change the Plug-In Hybrid Mode, press the EV/HEV button A (PHEV only); switch between Automatic mode, Electric (EV) mode and Hybrid (HEV) mode each time the button is pressed. The LCD on the Instrument Cluster will display the mode selected:
•Automatic Mode
•EV Electric Mode - Charge Depleting: The high-voltage (hybrid) battery is being used to drive the vehicle.
•HEV Hybrid mode - Charge Sustaining: The high-voltage (hybrid) battery and gasoline engine are being used to drive the vehicle.
Plug-In Hybrid Modes
(Plug-In Hybrid only)
HYBRID/PLUG-IN SYSTEM
OK
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK OK
OK
OK
•If Charging Connector is in lock mode & the doors are unlocked, the charging connector unlocks, but if the charging cable is not disconnected within 10 seconds, the connector will automatically become locked again
•If the charging connector is unlocked but all the doors are locked again, immediately, the connector will automatically lock
•If charging does not work, disconnect the connector and tr y connecting again
QUICK TIPS
A
(Type B shown. Located below gear shift knob)
(Center Console)
EV
HEV
DRIVE MODE
A
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Hybrid / Plug-In Hybrid Charging & Connector Video
QR CODE

25†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Forward/Reverse Parking Distance Warning (PDW)*†3
REMINDERS:
•
If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
•
When more than t wo objects are sensed at the same time, the closest one will be recognized first
Forward/Reverse Parking Distance Warning (PDW) is a supplemental system that is designed to assist the driver by chiming if
certain objects are detected within the sensing area to the front and rear of the vehicle when moving forward or backing up
PDW is activated when the ignition is ON and the vehicle is in D (Drive) or R (Reverse) To deactivate the system, press the
Parking Safety button A
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Forward/Reverse Parking Distance Warning (PDW) Video
QR CODE
AThe Warning Volume can be adjusted in User Set tings* in the Instrument Cluster or Vehicle Set tings* in the Infotainment System
QUICK TIP
When engaged, For ward/Reverse Parking Distance Warning (PDW) is not a substitute for proper and safe backing-up procedures Always drive safely and use caution when moving the vehicle for ward or in reverse For ward/Reverse Parking Distance Warning (PDW) may not detect ever y object in front of or behind the vehicle
Image is for illustrative purposes only and features or functions may var y on actual vehicle Refer to section 6 in the Owner ’s Manual for more information
(But ton located below gear shift knob)
(Center Console)
AUTO
HOLDEV
HEV
DRIVE MODEA
ADAS

31†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Rear View Monitor is a supplemental system that displays the view behind the vehicle through the infotainment system screen while the vehicle is in Reverse
To turn RVM on/off, press the Parking/ View button A on the center console
RVM User Settings:
• Camera Settings - Go to User Settings* in the Instrument Cluster LCD or press and hold the LCD Mode button B on the right side of the Steering Wheel to go to Vehicle Settings* in the Infotainment System or press the SETUP key/button on the Infotainment System Select VEHICLE, DRIVER ASSISTANCE, PARKING SAFET Y, then CAMER A SETTINGS
The Rear View Monitor activates when the:
• POWER button is in the ON/READY position
• Gear shifter is in the R (Reverse) position
Rear View Monitor (RVM)†3
REMINDERS:
•
The images shown are for illustration purposes only and may not reflect actual operation
•
While camera is active, only the Infotainment System can be operated on the Steering Wheel and Infotainment System All other features are disabled
•
Rear View Monitor may not display ever y object behind the vehicle
When engaged, RVM is not a substitute for proper and safe backing-up procedures Rear View Monitor may not display ever y object behind the vehicle Always drive safely and use caution when backing up
Refer to section 6 in the Owner ’s Manual for more information
Images are for illustrative purposes only and may not reflect actual feature or operation
AUTO
HOLDEV
HEV
DRIVE MODE
(But ton located below gear shift knob)
AOK
MODE
MODE
OK OK
OK
OK
OK
OK
OK
OK OK
OK
OK
(But tons located on steering wheel)
B
ADAS
(Infotainment system display)

32†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
3D Surround View Monitor (SVM) Video
QR CODE
REMINDERS:
•
The SVM camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance
•
While the SVM is active, and Parking Safet y Priorit y is selected in the User Set tings* / Vehicle Set tings*, the volume will be lowered on all audio modes
Surround View Monitor (SVM)*†3
Surround View Monitor (SVM) is a parking support system that shows the areas around the front, rear, left and right sides of the vehicle, as well as a 3D view of the vehicle via four cameras displayed onto the infotainment screen
•Press the Parking/ View button A to turn on Surround View Monitor Press the button again to turn off the function
•Other view modes can be selected by touching the view icons B on the Surround View Monitor screen
•Surround View Monitor Auto On: From the Vehicle Settings* menu, select Driver Assistance → Parking Safety → Surround View Monitor Auto On
To change the SVM settings, press the onscreen settings icon C, while SVM is operating
(But ton located below gear shift knob)
The Front View of SVM will turn off when the gear shift is moved into Park or Reverse or the Parking/ View but ton is pressed
QUICK TIPImages are for illustrative purposes only and may not reflect actual feature or operation
When engaged, Surround View Monitoring (SVM) is only a supplemental device Drivers should not rely solely on the SVM information when parking and backing up Drivers should always pay at tention and directly check the left/right and rear
See section 6 in the Owner ’s Manual for more information
B
C
(Center Console)
AUTO
HOLDEV
HEV
DRIVE MODE
A
ADAS

37†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
DRIVER'S PANEL
DRIVER’SPANEL
For illustrative purposes only Your actual display, but tons and/or features may var y
Refer to section 6 in the Owner ’s Manual for more information
Engine Start/Stop Button*†6
To start the engine:
1 Depress the brake pedal
2
Press the Engine Start/Stop button while the gear shift is in P (Park) or N (Neutral)
To turn the engine OFF, press the Engine Start/Stop button
To use the Engine Start/Stop button, you must have the Smart Key fob on your person or inside the vehicle
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Start/Stop Button Video
QR CODE
REMINDERS:
•
In an emergency situation while the vehicle is in motion, you are able to turn the engine off and to the ACC position by pressing the Engine Start/Stop button for more than 2 seconds or 3 times successively within 3 seconds
•
If Smar t Key fob bat ter y is dead, with the lock but ton facing the Engine Star t/Stop but ton, hold the fob up against the Engine Star t/Stop but ton and press and hold until the engine star ts
•
Do not turn the vehicle off by pushing the Star t/Stop but ton while the vehicle is in motion If the vehicle has been turned off the power brake and power steering system cannot operate
•
With the vehicle off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more dif ficult to control
To use electrical accessories:
ACC position of the Engine Star t/Stop but ton
-When in the OFF position and without depressing the brake pedal, press the Engine Star t/Stop but ton once
On position
-When already in the ACC position and without depressing the brake pedal, press the Engine Star t/Stop but ton again
-When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP but ton t wice
Keeping the vehicle in ACC or the ON position for extended periods of time without turning the engine on may discharge the vehicle’s bat ter y
QUICK TIPS
(But ton located above gear shift)
(Center Console)
ENGINESTART
STOP

40 *IF EQUIPPEDSPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
HOLD
%P
OPU
BEKVTU
UIF
TUFFSJOH
XIFFM
XIJMF
ESJWJOH
BT
UIJT
NBZ
DBVTF
ZPV
UP
MPTF
DPOUSPM
PG
UIF
WFIJDMF
3FGFS
UP
TFDUJPO

JO
UIF
0XOFS sT
.BOVBM
GPS
NPSF
JOGPSNBUJPO
5P
BEKVTU
UIF
4UFFSJOH
8IFFM

QSFTT
UIF
MPDLSFMFBTF
MFWFS
A down
and adjust to the desired angle B and then the distance C
When finished, pull the lock-release lever A up to lock Steering
Wheel in place
REMINDER: If the steering wheel becomes too warm, turn the system off The heated steering wheel may cause burns even at low temperatures, especially if used for long periods of time
Heated Steering Wheel*
While the Engine Start/Stop button is in the ON position, press the Heated Steering Wheel but ton D to turn the steering wheel heater ON/OFF The steering wheel heater will turn off automatically in 30 minutes, or when button D is pressed again to deactivate
Refer to section 5 in the Owner ’s Manual for more information
STEERING WHEEL CONTROLS
Tilt/Telescoping Steering Wheel
A
B
C
If ignition is cycled, the Heated Steering Wheel turns OFF Press but ton again to turn ON
QUICK TIPIt may be helpful to pull/push bot tom of Steering Wheel towards/away from you to adjust desired distance prior to adjusting the angle
QUICK TIP
(Center Console)
D
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Tilt/Telescoping/Heated Steering Wheel Video
QR CODE
For illustrative purposes only Your steering wheel and/or controls may var y
STEERING WHEEL CONTROLS

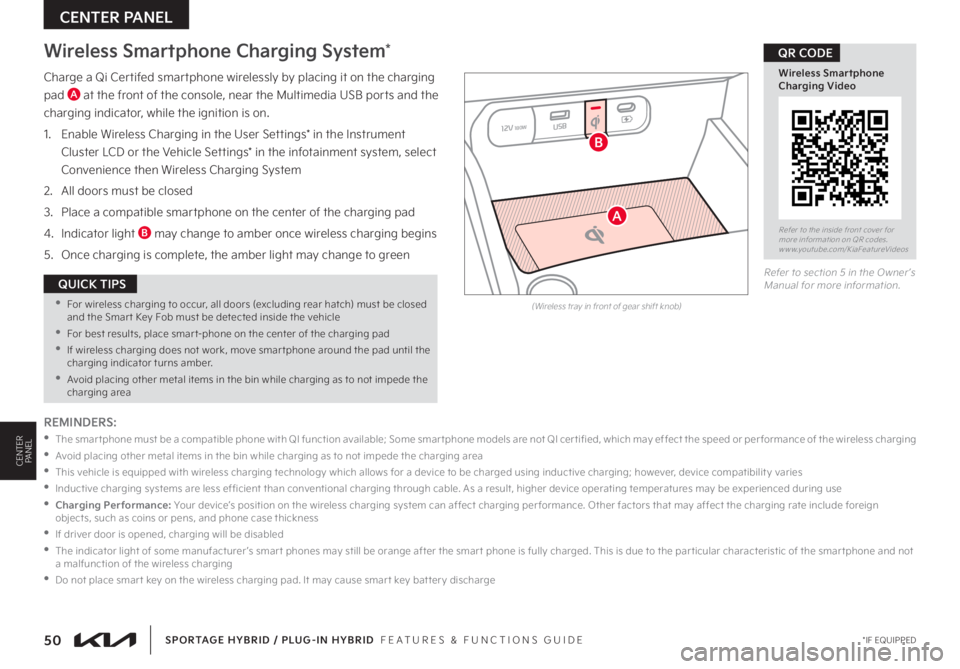

Charge a Qi Certifed smartphone wirelessly by placing it on the charging
