2023 KIA SPORTAGE PHEV center console

51†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
CENTER PANEL
CENTERPANEL
Rotary Dial Shifter†2
P: Park - Press to place in Park
R: Reverse
N: Neutral
D: Drive
Refer to section 6 in the Owner ’s Manual for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Rotary Dial ShifterVideo
QR CODE
REMINDERS:
•
When in P (Park), if the brake pedal is not pressed while shifting, the transmission does not shift
•
If going through a car wash, remind the at tendant to keep the vehicle in Neutral (N) and keep the engine running Also, disable the power liftgate lid control, turn off the auto rain sensing wipers and fold in the mirrors
•Press brake pedal and depress release but ton to move gear shift from N to P, N to R or from P to any gear
•Manual mode downshifts are made automatically when the vehicle slows down When the vehicle stops, 1st gear is automatically selected
QUICK TIPS
P
(Steering Wheel)
(Center Console)
Paddle Shifters*
Paddle Shifters are operable when the shift lever is in the Drive (D) position
Paddle Shifting: Pull the [+] or [-] paddle shifter A once to shift up or down one gear
[+]: Manual Mode Upshift
[–] : Manual Mode Downshift
To change back to automatic shift mode, pull and hold the [+] paddle shifter for at least one second
Automatic shift mode also activates when gently pressing the accelerator for more than approximately six seconds, or when the vehicle speed is slower than 2mph
AA
For illustrative purposes only Your actual steering wheel and/or paddle shifters may var y

52 *IF EQUIPPED
CENTER PANEL
SPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
CENTERPANEL
Driver’s temperature control knobPassenger ’s temperature control knob
Automatic Climate Control but ton
Front windshield defroster but tonMode selection but tonAir conditioning but ton*
SYNC but tonRear window defroster but tonInfotainment/climate control mode switching but ton
Air intake control but ton
Fan speed control but tons
375°F76°FAUTOPWRAUTOCLIMATEA/CSYNCMEDIUMYour Automatic Climate Control system may differ from the illustration
(Type B shown; panel located above center console)
Automatic Climate Control*
Infotainment System / Climate Control mode switching button A - Press to toggle between Infotainment System and Climate Control Modes Press and hold to set the default mode
Climate Control Auto Function
1 Press AUTO to select Full Auto Operation - The Auto setting automatically controls the air flow modes, fan speeds, air intake and air conditioning according to the temperature setting selected and the ambient condition
2 Set desired Temperature
3
Press SYNC to sync the left and right temperature control
Defrost Outside Windshield:
1
Set Temperature to Hot
2
Press the Front Defrost button Defog Inside Windshield:
1
Set Fan Speed to highest position
2
Set Temperature to highest position
3
Press the Front Defrost button Air Flow Modes
To select Air Flow Modes, press the mode selection button to cycle to the desired mode:
Auto Defogging System (ADS):
Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield The system will automatically change to
defrost mode when needed
Auto Defogging is set ON by default and will operate when the Climate Control system is ON To cancel Auto Defogging, press the Front Defrost button for three seconds, when the ignition is in on (ADS OFF icon will illuminate) To turn Auto Defogging on again, press the Front Defrost button for three seconds
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Automatic Climate Control: Touch-Sensitive Control Panel Video
Auto Defogging System (ADS) Video
QR CODE
REMINDERS:
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
•
When in AUTO mode, Air Flow mode and Fan Speed do not display on the Climate Control Display
•
Cold or warm ambient air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
•
Pressing any but ton during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control or SYNC Temperature Control
•Defrost mode activates A /C and opens Fresh Air vent to help dehumidify the air and improve Defroster per formance
•During Auto Operation, the A /C indicator may NOT illuminate The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidity
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
Refer to section 5 in the Owner ’s Manual for more information
A

53 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
CENTER PANEL
CENTERPANEL
(Panel located above center console)

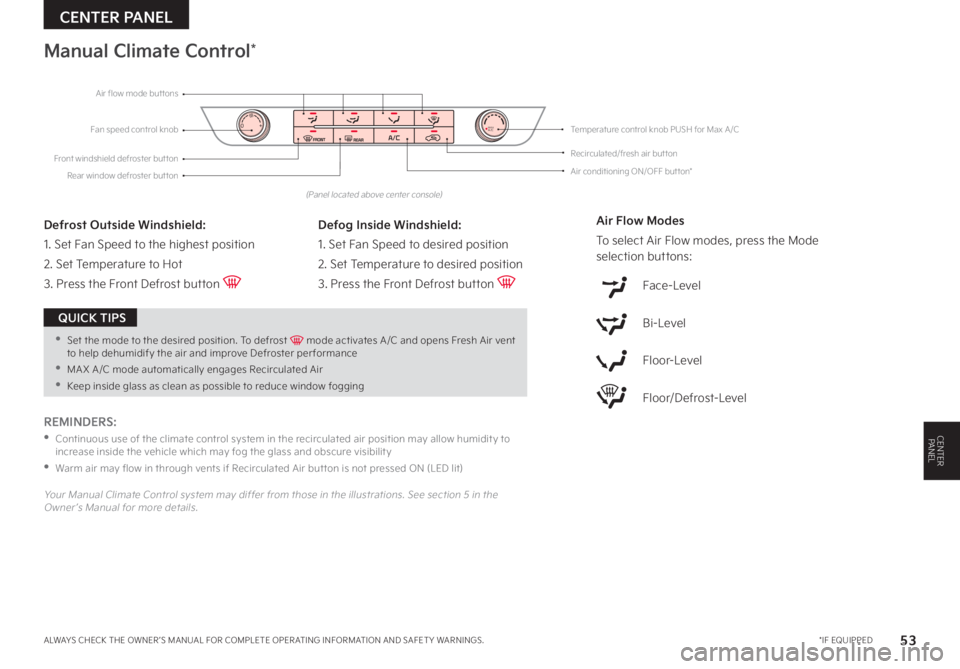

Manual Climate Control*
Defrost Outside Windshield:
1 Set Fan Speed to the highest position
2 Set Temperature to Hot
3 Press the Front Defrost button
Defog Inside Windshield:
1 Set Fan Speed to desired position
2 Set Temperature to desired position
3 Press the Front Defrost button
Air Flow Modes
To select Air Flow modes, press the Mode
selection buttons:
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
REMINDERS:
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
•Warm air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
Your Manual Climate Control system may differ from those in the illustrations See section 5 in the Owner ’s Manual for more details
•Set the mode to the desired position To defrost mode activates A /C and opens Fresh Air vent to help dehumidify the air and improve Defroster per formance
•MA X A /C mode automatically engages Recirculated Air
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
0+MAXA/CFan speed control knob
Front windshield defroster buttonAir conditioning ON/OFF but ton*
Recirculated/fresh air but ton
Rear window defroster but ton
Temperature control knob PUSH for Max A /C
Air flow mode but tons

54*IF EQUIPPED
CENTER PANEL
SPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
CENTERPANEL
The Electronic Parking Brake (EPB) system utilizes an electric motor to engage the parking brake
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch A Ensure that the indicator light is illuminated on the instrument cluster
If parked on a steep incline/decline, pull up the EPB switch for more than 3 seconds for a firmer EPB application
Releasing the Parking Brake
The EPB will automatically release when the brake pedal is engaged and shifter is shifted out of P (Park) to R (Reverse)
or shifted out of N (Neutral) to Reverse or D (Drive) To release EPB manually, depress the brake pedal, then press the EPB switch A, with the ignition switch in the ON position Ensure that the indicator light is OFF
Auto Hold*
Auto Hold temporarily maintains the vehicle at a standstill even though the brake pedal is not depressed after the driver brings the vehicle to a complete stop by depressing the brake pedal Auto Hold can be turned On/Off using the AUTO HOLD button B on the center panel below the gear shift Before Auto Hold will operate, the driver ’s door, engine hood, and liftgate (trunk) must be closed
The AUTO HOLD indicator on the Instrument Cluster has four states:
White: Standby - With vehicle at a standstill and AUTO HOLD button B pressed ON, the indicator will illuminate white While driving the vehicle (vehicle is not at a standstill), the Auto Hold indicator will remain white
Green: Engaged - When coming to a complete stop by depressing the brake pedal, the Auto Hold indicator changes from white to green
Off (not illuminated) - The indicator will turn off when the AUTO HOLD button B is manually pressed off
Yellow: Malfunction - When the indicator is illuminated yellow, there may be a system malfunction Take your vehicle to a local Kia dealer
Electronic Parking Brake (EPB)*
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Electric Parking Brake (EPB) / Auto Hold Video
QR CODE
REMINDERS:
•
To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle
•
Do not solely rely on the Auto Hold system to keep the vehicle stopped Always pay at tention to traf fic and road conditions, and be prepared to depress the brakes
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
Refer to section 5 in the Owner ’s Manual for more information
•When leaving your keys with parking lot at tendants or valet, make sure to inform them how to operate the EPB
•Pull up and hold EPB switch a second time to increase brake pressure if parked on a decline or incline
QUICK TIPS
Refer to page 5 for location of Instrument Cluster indicators
Refer to section 6 in the Owner ’s Manual for more information
AUTO
HOLDOFF
DRIVE MODE
B
HOLD
HOLD"
(Center Console)(Driver ’s Panel)

55†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
CENTER PANEL
CENTERPANEL
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
All Wheel Drive System and AWD Lock Video
QR CODEDownhill Brake Control (DBC)†5AWD (All-Wheel Drive) Lock*
DBC helps drivers maneuver down steep hills by automatically applying braking inputs, allowing drivers to concentrate on steering
Press button A to turn DBC ON/OFF When on, the DBC indicator will illuminate
When you select AWD LOCK mode (indicator is illuminated) by pressing the AWD LOCK button B, the AWD LOCK mode increases the drive power when driving on wet pavement, snow-covered roads and/or on unpaved roads
•This mode is used for climbing or descending sharp grades, driving on unpaved roads, driving on sandy and muddy roads, etc , to improve traction
•This mode automatically begins to deactivate at speeds above 38 mph and
is shifted to AWD AUTO mode at speeds above 38 mph If the vehicle decelerates to speeds below approximately 38 mph, however, the transfer mode is shifted into AWD LOCK mode again
When the AWD LOCK mode is deactivated, a shock may be felt as the drive power is delivered entirely to the front wheels This shock is not a mechanical failure
The DBC system is a supplemental system and does not replace the need for the driver to apply the brakes Pay at tention to road and traf fic conditions and be prepared to depress the brakes
Refer to section 6 in the Owner ’s Manual for more information
REMINDER: DBC defaults to OFF when ignition is cycled
•When on, DBC will turn OFF when vehicle speed is over 38 mph
•If the indicator illuminates red, the DBC system may have malfunctioned Take your vehicle to an authorized Kia dealer and have the system checked
QUICK TIPS
AUTO
HOLDEV
HEV
DRIVE MODE(Center Console)A
B
The AWD system is a supplemental system only It is the driver ’s responsibilit y to drive carefully depending on road and traf fic conditions
Refer to section 5 in the Owner ’s Manual for more information

56†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
CENTER PANEL
CENTERPANEL
(But tons located to the right of gear shift)
Seat Warmers / Ventilated Seats*†1 4
A Seat Warmers:
• Press button once for high setting (3 LEDs lit)
• Press button twice for medium setting (2 LEDs lit)
• Press a third time for low setting (1 LED lit) and again to turn OFF
B Ventilated Seats*:
• Press button once for high setting (3 LEDs lit)
• Press button twice for medium setting (2 LEDs lit)
• Press a third time for low setting (1 LED lit) and again to turn OFFRefer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Seat Warmers/Ventilated Seats Video
QR CODE
REMINDER: Use extreme caution when using the seat warmers to avoid burns
Refer to section 5 in the Owner ’s Manual for more information
•System is OFF by default To turn system ON, press the seat warmer switch
•With the seat warmer switch in the ON position, the heating system in the seat turns off or on automatically depending on the seat temperature
•When the Climate Control System’s temperature is turned up to high heat, the Seat Warmers turn on automatically
•When manually turned on, the seat warmer system automatically controls the seat temperature to help prevent low-temperature burns When manually adjusted to increase heat, soon after, the seat warmer returns to the automatic function
•When pressing and holding the seat warmer but tons, the seat warmer will turn off
QUICK TIPS
(Center Console)AA
BB
