Page 1 of 78
' F B U V S F T ' V O D U J P O T
( V J E F
) Z C S J E 1 M V H * O ) Z C S J E
Page 2 of 78

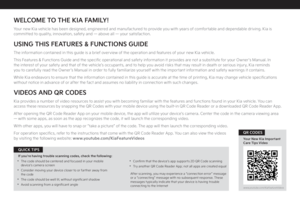

WELCOME TO THE KIA FAMILY!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable and dependable driving. Kia is committed to quality, innovation, safety and — above all — your satisfaction.
USING THIS FEATURES & FUNCTIONS GUIDE
The information contained in this guide is a brief overview of the operation and features of your new Kia vehicle.
This Features & Functions Guide and the specific operational and safety information it provides are not a substitute for your Owner’s Manual. In the interest of your safety and that of the vehicle’s occupants, and to help you avoid risks that may result in death or serious injury, Kia reminds you to carefully read the Owner’s Manual in order to fully familiarize yourself with the important information and safety warnings it contains.
While Kia endeavors to ensure that the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in advance of or after the fact and assumes no liability in connection with such changes.
VIDEOS AND QR CODES
Kia provides a number of video resources to assist you with becoming familiar with the features and functions found in your Kia vehicle. You can access these resources by snapping the QR Codes with your mobile device using the built-in QR Code Reader or a downloaded QR Code Reader App.
After opening the QR Code Reader App on your mobile device, the app will utilize your device’s camera. Center the code in the camera viewing area — with some apps, as soon as the app recognizes the code, it will launch the corresponding video.
With other apps, you will have to snap or “take a picture” of the code. The app will then launch the corresponding video.
For operation specifics, refer to the instructions that come with the QR Code Reader App. You can also view the videos by visiting the following website: www.youtube.com/KiaFeatureVideos
If you’re having trouble scanning codes, check the following:
•
The code should be centered and focused in your mobile device’s camera screen
•
Consider moving your device closer to or far ther away from the code
•
The code should be well lit, without significant shadow
•Avoid scanning from a significant angle
•
Confirm that the device’s app suppor ts 2D QR Code scanning
•
Tr y another QR Code Reader App; not all apps are created equal
After scanning, you may experience a “connection error ” message or a “connecting” message with no subsequent response. These messages t ypically indicate that your device is having trouble connecting to the Internet
QUICK TIPS
www.youtube.com/KiaFeatureVideos
Your New Kia Important Care Tips Video
QR CODES
Page 3 of 78

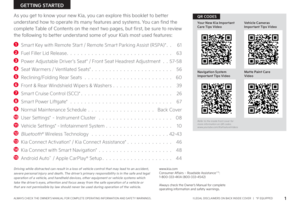

As you get to know your new Kia, you can explore this booklet to better
understand how to operate its many features and systems. You can find the
complete Table of Contents on the next two pages, but first, be sure to review
the following to better understand some of your Kia’s most used features:

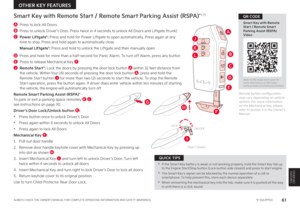

1 Smart Key with Remote Start / Remote Smart Parking Assist (RSPA)* 61
2 Fuel Filler Lid Release 63

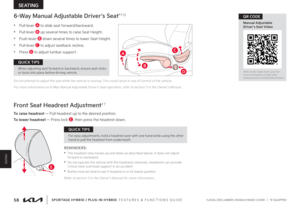

3 Power Adjustable Driver’s Seat* / Front Seat Headrest Adjustment 57-58

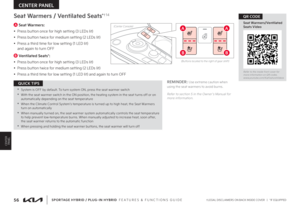

4 Seat Warmers / Ventilated Seats* 56
5 Reclining/Folding Rear Seats 60
6 Front & Rear Windshield Wipers & Washers 39
7 Smart Cruise Control (SCC)* 26

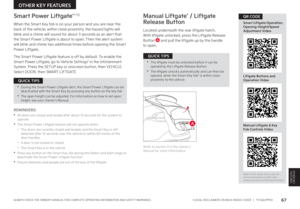

8 Smart Power Liftgate* 67
9 Normal Maintenance Schedule Back Cover
10 User Settings* – Instrument Cluster 08
11 Vehicle Settings* - Infotainment System 10
12 Bluetooth® Wireless Technology 42-43
13 Kia Connect Activation* / Kia Connect Assistance* 46
14 Kia Connect with Smart Navigation* 48
15 Android Auto™ / Apple CarPlay® Setup 44
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS †LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED1
GETTING STARTED
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Matte Paint Care VideoNavigation System Important Tips Video
Vehicle Cameras Important Tips VideoYour New Kia Important Care Tips Video
QR CODES
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
www kia com Consumer Affairs – Roadside Assistance†11: 1-800-333-4KIA (800-333-4542)
Always check the Owner’s Manual for complete operating information and safety warnings
Page 4 of 78
2 *IF EQUIPPEDSPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
TABLE OF CONTENTS
VIDEOS & QR CODES Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview 03Hybrid / Plug-In Hybrid Indicators at Star tup 03Indicators & Warning Lights 04Tire Pressure Monitoring System (TPMS) 05Fuel Economy / Tips for Economical Driving 05Drive Mode Integrated Control System 06

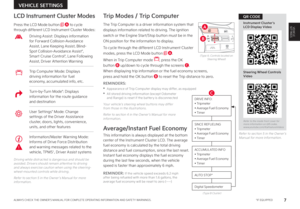

VEHICLE SETTINGSLCD Instrument Cluster Modes 07Trip Modes / Trip Computer 07Average/Instant Fuel Economy 07User Set tings* - Instrument Cluster 08Service Interval Mode 09Vehicle Set tings* - Infotainment System 10

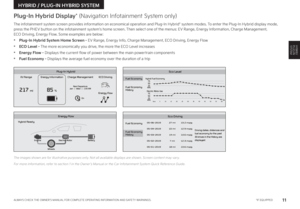

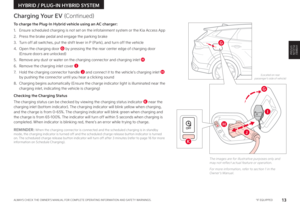

HYBRID / PLUG-IN HYBRID SYSTEMPlug-In Hybrid Display* 11Charging Your EV 12Energy Flow - Instrument Cluster LCD 14Scheduled Charging* (Plug-In Hybrid only) 16Plug-In Hybrid Modes (Plug-In Hybrid only) 17Charging Connector Auto/Lock Mode 17

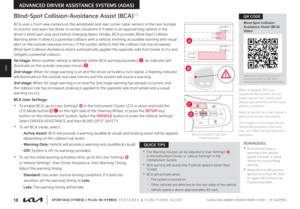

ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Blind-Spot Collision-Avoidance Assist (BCA)* 18Rear Cross-Traffic Collision-Avoidance Assist (RCCA) 19Lane Keeping Assist (LK A) 20Blind-Spot View Monitor (BVM)* 21Safe Exit Warning (SEW)* 21Lane Following Assist (LFA) 22Forward Collision-Avoidance Assist (FCA) 23Highway Driving Assist (HDA)* 24Forward/Reverse Parking Distance Warning (PDW)* 25Smar t Cruise Control (SCC)* 26Cruise Control (CC) 27 Navigation-based Smar t Cruise Control - (NSCC)* 27Driver At tention Warning (DAW) 28Leading Vehicle Depar ture Aler t (LVDA) 29Remote Smar t Parking Assist (RSPA)* 30
ADAS (CONTINUED)Intelligent Speed Limit Assist (ISL A)* 30Rear View Monitor (RVM) 31Surround View Monitor (SVM)* 32Reverse Parking Collision-Avoidance Assist (PCA)* 33
DRIVER’S PANELInstrument Cluster Illumination Control 34Electronic Stability Control (ESC) 34Power Liftgate Open/Close But ton* 34Hill-Star t Assist Control (HAC) 34Power Windows, Window Lock & Central Door Lock 35Automatic Door Lock/Unlock 35Power Outside Mirrors* 36Heated Outside Mirrors 36Manual Folding Mirrors* 36Engine Star t/Stop But ton* 37
STEERING WHEEL CONTROLSHeadlights & High Beams 38High Beam Assist (HBA) 38Turn Signals & Fog Lights* 39Windshield Wipers & Washers 39Rear Wiper & Washer 39Tilt/Telescoping Steering Wheel 40Heated Steering Wheel* 40
INFOTAINMENT SYSTEMSAudio Controls 41Bluetooth® Wireless Technology 42Android Auto™ / Apple CarPlay® Setup 44Standard Audio System* 45Kia Connect Activation* / Kia Connect Assistance* 46Kia Access App Download 47Kia Access App Features Guide 47Kia Connect with Smar t Navigation* 48
CENTER PANELMultimedia USB Por t, Power Outlets & USB Charger Por t 49 Digital Clock 49Wireless Smar tphone Charging System* 50Rotary Dial Shifter Knob 51

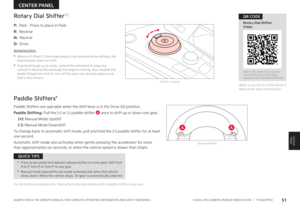

CENTER PANEL (CONTINUED)Paddle Shifters 51Automatic Climate Control* 52Manual Climate Control* 53Electronic Parking Brake (EPB)* / Auto Hold* 54Downhill Brake Control 55AWD (All-Wheel Drive) Lock* 55Seat Warmers / Ventilated Seats* 56
SEATINGPower Adjustable Driver ’s Seat* 57Driver Position Memory System* 576-Way Manual Adjustable Driver ’s Seat* 58Front Seat Headrest Adjustment 58Rear Occupant Aler t (ROA) with Door Monitoring 59Reclining/Folding Rear Seats 60Unfastening Center Seat Belt 60
OTHER KEY FEATURESSmar t Key with Remote Star t / Remote Smar t Parking Assist (RSPA)* 61Remote Keyless Entry (Folding Key)* 62Double-Turn Lock/Unlock All 62Fuel Cap / Malfunction Indicator 63Fuel Filler Lid Release 63HomeLink® with Auto-Dimming Rearview Mirror* 64Power Liftgate* 66Smart Power Liftgate* 67Manual Liftgate / Liftgate Release But ton 67Map/Room Lamps 68Panoramic Sunroof with Power Sunshade* 68Sunvisor 69Hood Release Lever and Latch 69Tire Mobility Kit 70

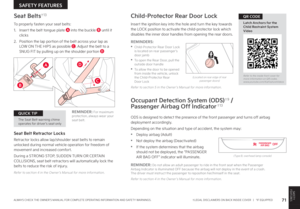

SAFETY FEATURESSeat Belts 71Child-Protector Rear Door Lock 71Occupant Detection System (ODS) / Passenger Airbag Off Indicator 71
LEGAL DISCLAIMERS Inside Back Cover
MAINTENANCE SCHEDULE Back Cover
Page 5 of 78
3 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
A Turn Signal Indicators
B Gear Shift Position, Range, Trip Modes
C Speedometer
D Indicator & Warning Lights
E Tachometer
F Fuel Gauge
Arrow direction indicates
the side of the vehicle the fuel door is located
G Outside Temperature, Odometer
H Hybrid battery State of Charge gauge

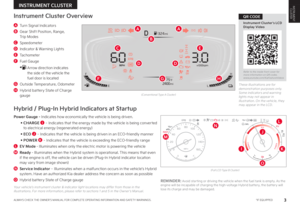

Instrument Cluster Overview
INSTRUMENT CLUSTERINSTRUMENTCLUSTER
(Conventional Type A Cluster)
E
F
LH
324 miD
2
4 00mi x
１ 000 rp m75°F
60 3.0EPB
MPH
E
AA
C
H
DD
B
GF
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Instrument Cluster’s LCD Display Video
QR CODE
EPB
READY
0
E F
１60
20
１40
40
１20
60
１00
80
MPH
EV
CHARGE
ECO
POWER
L H
Hybrid / Plug-In Hybrid Indicators at Startup
REMINDER: Avoid star ting or driving the vehicle when the fuel tank is empt y As the engine will be incapable of charging the high-voltage Hybrid bat ter y, the bat ter y will lose its charge and may be damaged Yo u r vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations For more information, please refer to sections 1 and 5 in the Owner ’s Manual
Power Gauge - Indicates how economically the vehicle is being driven
• CHARGE I – Indicates that the energy made by the vehicle is being converted to electrical energy (regenerated energy)
• ECO J – Indicates that the vehicle is being driven in an ECO-friendly manner
• POWER K – Indicates that the vehicle is exceeding the ECO-friendly range
L EV Mode - Illuminates when only the electric motor is powering the vehicle
M
Ready - Illuminates when the Hybrid system is operational This means that even if the engine is off, the vehicle can be driven (Plug-In Hybrid indicator location may vary from image shown)
N Service Indicator – Illuminates when a malfunction occurs in the vehicle’s Hybrid system Have an authorized Kia dealer address the concern as soon as possible
O Hybrid battery State of Charge gauge
K
O
I
J
L
M
N
These illustrations are for demonstration purposes only Some indicators and warning lights may not appear in illustration On the vehicle, they may appear in the LCD
(Full LCD Type B Cluster)
Page 6 of 78
4 *IF EQUIPPED
INSTRUMENT CLUSTER
SPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
INSTRUMENTCLUSTER
EF
75°F１ 2 .１0 １0 20 30
324mi2400miAUTO
HOLD
MPH
EPB
CHARGE
ECO
POWER
L H
(Full LCD Type B Cluster)
* N N P C J M J [ F S * O E J D B U P S - J H I U
& O H J O F 0 J M 1 S F T T V S F 8 B S O J O H - J H I U
& M F D U S J D 1 B S L J O H # S B L F & 1 #
8 B S O J O H - J H I U
& Y I B V T U 4 Z T U F N ( ' 4
8 B S O J O H - J H I U
5 V S O 4 J H O B M * O E J D B U P S - J H I U T
4 F B U # F M U 8 B S O J O H - J H I U
- & % ) F B E M B N Q 8 B S O J O H - J H I U
" J S C B H 8 B S O J O H - J H I U
$ I B S H J O H 4 Z T U F N 8 B S O J O H - J H I U
. B M G V O D U J P O * O E J D B U P S - J H I U
' S P O U ' P H - J H I U * O E J D B U P S
- J H I U 0 / * O E J D B U P S - J H I U ) J H I # F B N " T T J T U * O E J D B U P S - J H I U
' P S X B S E 4 B G F U Z 8 B S O J O H - J H I U
- B O F ' P M M P X J O H " T T J T U - ' "
* O E J D B U P S - J H I U
- B O F 4 B G F U Z * O E J D B U P S - J H I U
& M F D U S J D 1 P X F S 4 U F F S J O H & 1 4
8 B S O J O H * O E J D B U P S - J H I U
" O U J M P D L # S B L J O H 4 Z T U F N " # 4
8 B S O J O H - J H I U
" 8 % - 0 $ , * O E J D B U P S - J H I U
" M M 8 I F F M % S J W F " 8 %
8 B S O J O H - J H I U
- P X 5 J S F 1 S F T T V S F - J H I U 5 J S F 1 S F T T V S F . P O J U P S J O H
4 Z T U F N 5 1 . 4
. B M G V O D U J P O * O E J D B U P S
& M F D U S P O J D 4 U B C J M J U Z $ P O U S P M & 4 $
* O E J D B U P S - J H I U
& M F D U S P O J D 4 U B C J M J U Z $ P O U S P M & 4 $
0 ' ' * O E J D B U P S - J H I U * D Z 3 P B E 8 B S O J O H * O E J D B U P S - J H I U
. B T U F S 8 B S O J O H - J H I U
- P X ' V F M - F W F M 8 B S O J O H - J H I U
" V U P ) P M E * O E J D B U P S - J H I U
& 7 . P E F * O E J D B U P S - J H I U
4 Q P S U . P E F * O E J D B U P S - J H I U
& $ 0 * O E J D B U P S - J H I U
1 B S L J O H # S B L F # S B L F ' M V J E 8
B S O J O H - J H I U
$ S V J T F * O E J D B U P S - J H I U
% P X O I J M M # S B L F $ P O U S P M % # $
* O E J D B U P S - J H I U
& M F D U S P O J D # S B L F G P S D F % J T U S J C V U J P O & # %
4 Z T U F N
8 B S O J O H - J H I U 5 X P T F Q B S B U F J O E J D B U P S T P O
* O T U S V N F O U $ M V T U F S M J U B U T B N F U J N F
EV
SPORT
ECO

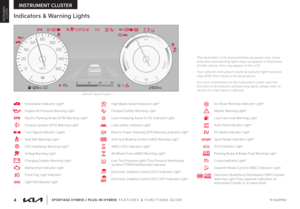

Indicators & Warning Lights
This illustration is for demonstration purposes only Some indicators and warning lights may not appear in illustration On the vehicle, they may appear in the LCD
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations
For more information on the instrument cluster and the function of all indicator and warning lights, please refer to section 5 in the Owner ’s Manual
Page 7 of 78
5 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
INSTRUMENT CLUSTERINSTRUMENTCLUSTER

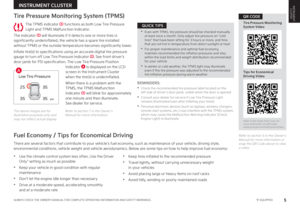

The TPMS indicator functions as both Low Tire Pressure Light and TPMS Malfunction Indicator
The indicator will illuminate if it detects one or more tires is significantly underinflated, the vehicle has a spare tire installed without TPMS or the outside temperature becomes significantly lower
Inflate tire(s) to specifications using an accurate digital tire pressure gauge to turn off Low Tire Pressure Indicator See front driver ’s door jamb for PSI specification The Low Tire Pressure Position Indicator A is displayed on the LCD screen in the Instrument Cluster when the tire(s) is underinflated
When there is a problem with the TPMS, the TPMS Malfunction Indicator will blink for approximately one minute and then illuminate See dealer for service
Tire Pressure Monitoring System (TPMS)
Fuel Economy / Tips for Economical Driving
There are several factors that contribute to your vehicle’s fuel economy, such as maintenance of your vehicle, driving style, environmental conditions, vehicle weight and vehicle aerodynamics Below are some tips on how to help improve fuel economy:
Refer to section 5 in the Owner ’s Manual for more information or snap the QR Code above to view a video
The above images are for illustrative purposes only and may not reflect actual display
Refer to section 7 in the Owner ’s Manual for more information
•Use the climate control system less often Use the Driver Only* setting as much as possible
•Keep your vehicle in good condition with regular maintenance
•Don’t let the engine idle longer than necessary
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicles
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
25
35 35
35
psi
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Tire Pressure Monitoring System Video
Tips for Economical Driving Video
QR CODE
A
REMINDERS:
•
Check the recommended tire pressure label located on the left side of driver ’s door jamb, visible when the door is opened
•
Consult your dealer for ser vice if Low Tire Pressure Light remains illuminated even after inflating your tire(s)
•
Personal electronic devices (such as laptops, wireless chargers, remote star t systems, etc ) may inter fere with the TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate
•Even with TPMS, tire pressure should be checked manually at least once a month Only adjust tire pressure on “cold tires” that have been sit ting for 3 hours or more, and tires that are not hot in temperature from direct sunlight or heat
•For proper maintenance and optimal fuel economy, maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
•In winter or cold weather, the TPMS light may illuminate even if the tire pressure was adjusted to the recommended tire inflation pressure during warm weather
QUICK TIPS
Page 8 of 78
6 *IF EQUIPPED
INSTRUMENT CLUSTER
SPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE

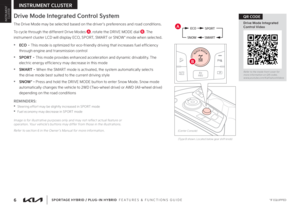

INSTRUMENTCLUSTER Drive Mode Integrated Control System
(Type B shown Located below gear shift knob)
The Drive Mode may be selected based on the driver ’s preferences and road conditions
To cycle through the different Drive Modes A, rotate the DRIVE MODE dial B The
instrument cluster LCD will display ECO, SPORT, SMART or SNOW * mode when selected
•ECO – This mode is optimized for eco-friendly driving that increases fuel efficiency
through engine and transmission control
•SPORT – This mode provides enhanced acceleration and dynamic drivability The
electric energy efficiency may decrease in this mode
•SMART – When the SMART mode is activated, the system automatically selects
the drive mode best suited to the current driving style
•SNOW* - Press and hold the DRIVE MODE button to enter Snow Mode Snow mode
automatically changes the vehicle to 2WD (Two-wheel drive) or AWD (All-wheel drive)
depending on the road conditions
Image is for illustrative purposes only and may not reflect actual feature or operation Your vehicle’s but tons may differ from those in the illustrations
Refer to section 6 in the Owner ’s Manual for more information
ECO
SMART
SNOW SPORT
Refer to the inside front cover for more information on QR codes
www youtube com/KiaFeatureVideos
Drive Mode Integrated Control Video
QR CODE
A
REMINDERS:
•
Steering effor t may be slightly increased in SPORT mode
•Fuel economy may decrease in SPORT mode
(Center Console)
AUTO
HOLDEV
HEV
DRIVE MODE
B
