2023 HYUNDAI VENUE display

05
5-57
Automatic Temperature Control
Mode
The Automatic Climate Control System
is controlled by setting the desired
temperature.
1. Press the AUTO button (3).The modes, fan speeds, air intake and
air-conditioning will be controlled
automatically by the temperature
setting you select.
2. Turn the temperature control knob (2) to the desired temperature. If
the temperature is set to the lowest
setting (Lo), the air conditioning
system will operate continuously.
After the interior has cooled
sufficiently, adjust the knob to
a higher temperature set point
whenever possible.
To turn the automatic operation off,
select any button of the following: - Mode selection button

- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The ‘AUTO’ sign
will illuminate on the information
display once again.)

- Fan speed control button
The selected function will be controlled
manually while other functions operate
automatically.
For your convenience and to improve the
efficiency of the climate control, use the
AUTO button and set the temperature to
72°F (22°C).
To change the temperature unit from °F
to °C or °C to °F:
Press and hold the AUTO and OFF
buttons on the climate control unit for 3
seconds.
OQX059097
NOTICE
Never place anything near the ambient
light/solar sensor to ensure better
control of the heating and cooling
system.

Convenience Features5-78
Bluetooth® Wireless Technology
Hands-Free
OQXI049071
With the Bluetooth® Wireless Technology
in the vehicle, you can use the phone
wireless.
(1) Call / Answer button
(2) Call end button
Detailed information for the Bluetooth®
Wireless Technology hands-free is
described in the Vehicle Infotainment
User’s Manual.
Audio (Display Audio) / Video /
Navigation System (AVN)
(if equipped)
Detailed information for the AVN system
is described in the Vehicle Infotainment
User’s Manual.

6
6. While Driving
Before Driving ........................................................................\
........................... 6-5Before Entering the Vehicle ........................................................................\
.................6-5
Before Starting ........................................................................\
.....................................6-5
Ignition Switch ........................................................................\
.......................... 6-6Key Ignition Switch ........................................................................\
.............................. 6-6
Engine Start/Stop Button ........................................................................\
................... 6-9
Manual Transmission ........................................................................\
............... 6-12Manual Transmission Operation ........................................................................\
........ 6-12
Good Driving Practices ........................................................................\
...................... 6-14
Intelligent Variable Transmission (IVT) ........................................................... 6-15Intelligent Variable Transmission (IVT) Operation .................................................... 6-15
Good Driving Practices ........................................................................\
...................... 6-19
Brake System ........................................................................\
........................... 6-20Power Brakes ........................................................................\
..................................... 6-20
Disc Brakes Wear Indicator......................................................................\
................. 6-20
Rear Drum Brakes .....................................................................\
................................ 6-20
Parking Brake ........................................................................\
...................................... 6-21
Anti-lock Brake System (ABS) ........................................................................\
............ 6-22
Electronic Stability Control (ESC) ........................................................................\
.....6-24
Vehicle Stability Management (VSM) .......................................................................6-26
Hill-Start Assist Control (HAC) ........................................................................\
........... 6-27
Good Braking Practices ................................................................\
............................. 6-27

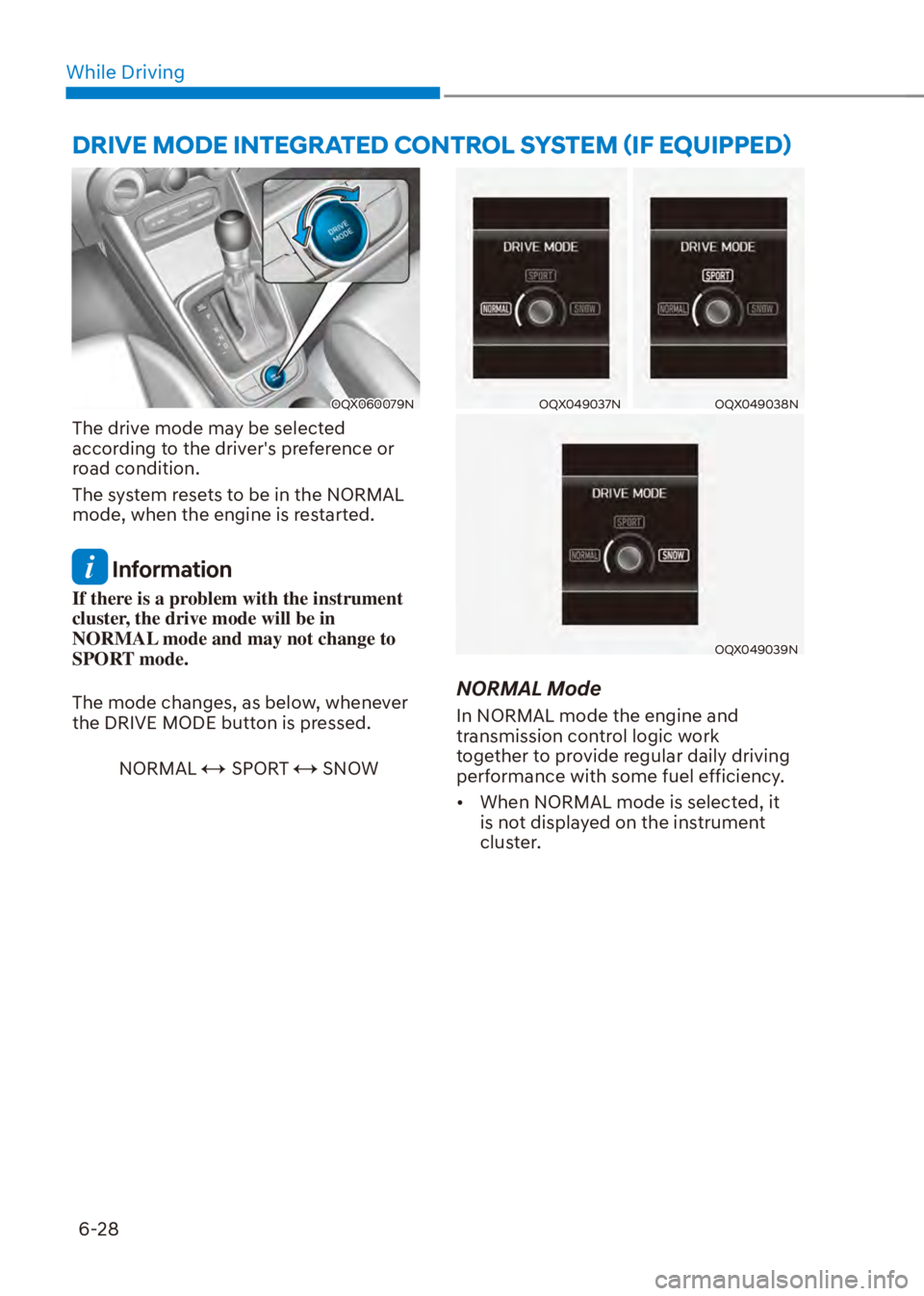

Drive Mode Integrated Control System ......................................................... 6-28LCD Display Message ........................................................................\
........................ 6-30
Blind-Spot Collision Warning (BCW) .............................................................. 6-31System Description ........................................................................\
............................ 6-31
System Setting........................................................................\
.................................... 6-32
Warning and System Control ........................................................................\
.............6-33
Detecting Sensor ........................................................................\
................................6-34
Limitations of the System ........................................................................\
................. 6-36

06
6-5

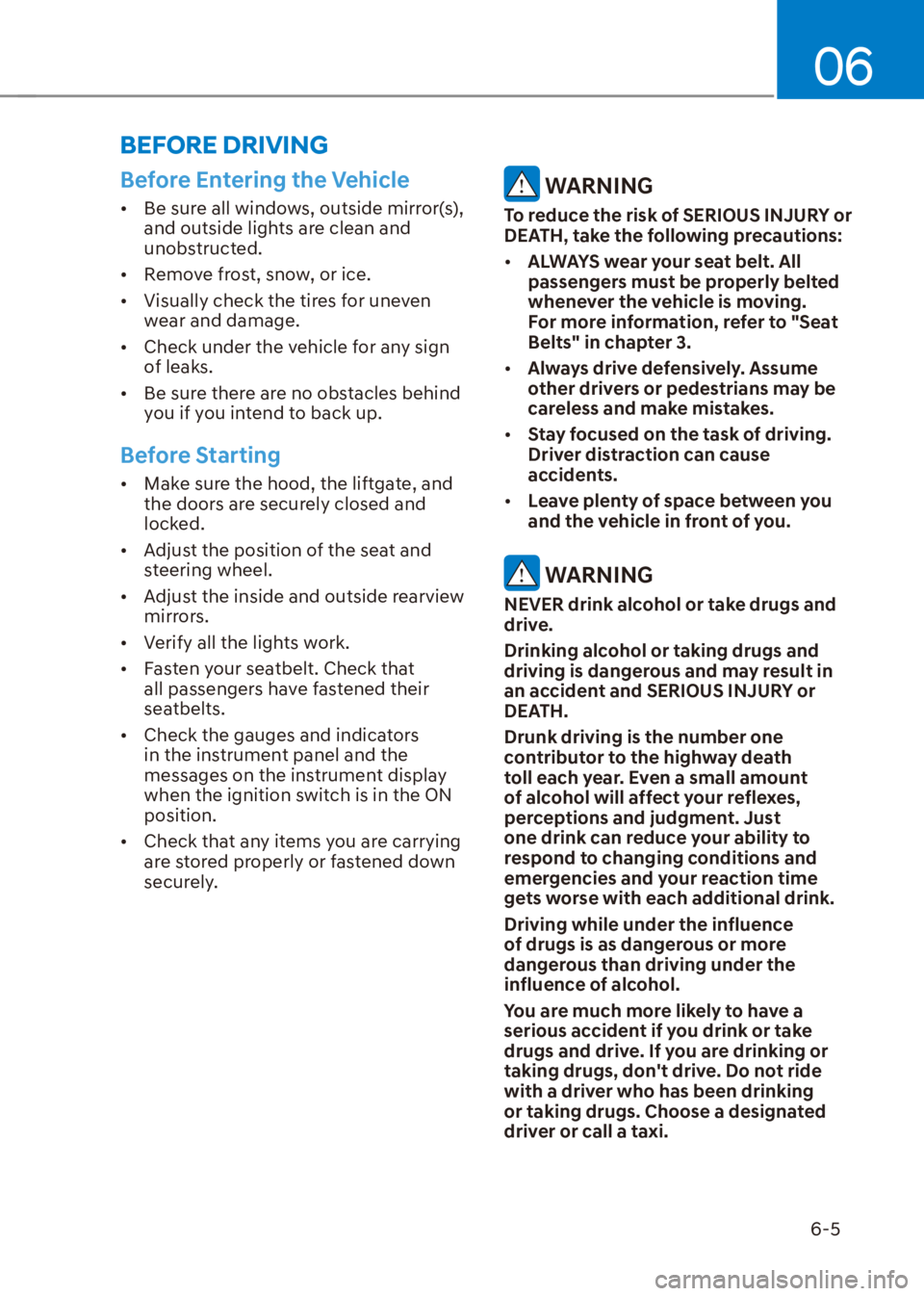

Before Entering the Vehicle

[Be sure all windows, outside mirror(s),
and outside lights are clean and
unobstructed.

[ Remove frost, snow, or ice.

[ Visually check the tires for uneven
wear and damage.

[ Check under the vehicle for any sign
of leaks.

[ Be sure there are no obstacles behind
you if you intend to back up.
Before Starting

[Make sure the hood, the liftgate, and
the doors are securely closed and
locked.

[ Adjust the position of the seat and
steering wheel.

[ Adjust the inside and outside rearview
mirrors.

[ Verify all the lights work.

[ Fasten your seatbelt. Check that
all passengers have fastened their
seatbelts.

[ Check the gauges and indicators
in the instrument panel and the
messages on the instrument display
when the ignition switch is in the ON
position.

[ Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:

[ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to "Seat
Belts" in chapter 3.

[ Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.

[ Stay focused on the task of driving.
Driver distraction can cause
accidents.

[ Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink alcohol or take drugs and
drive.
Drinking alcohol or taking drugs and
driving is dangerous and may result in
an accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don't drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING

While Driving6-16

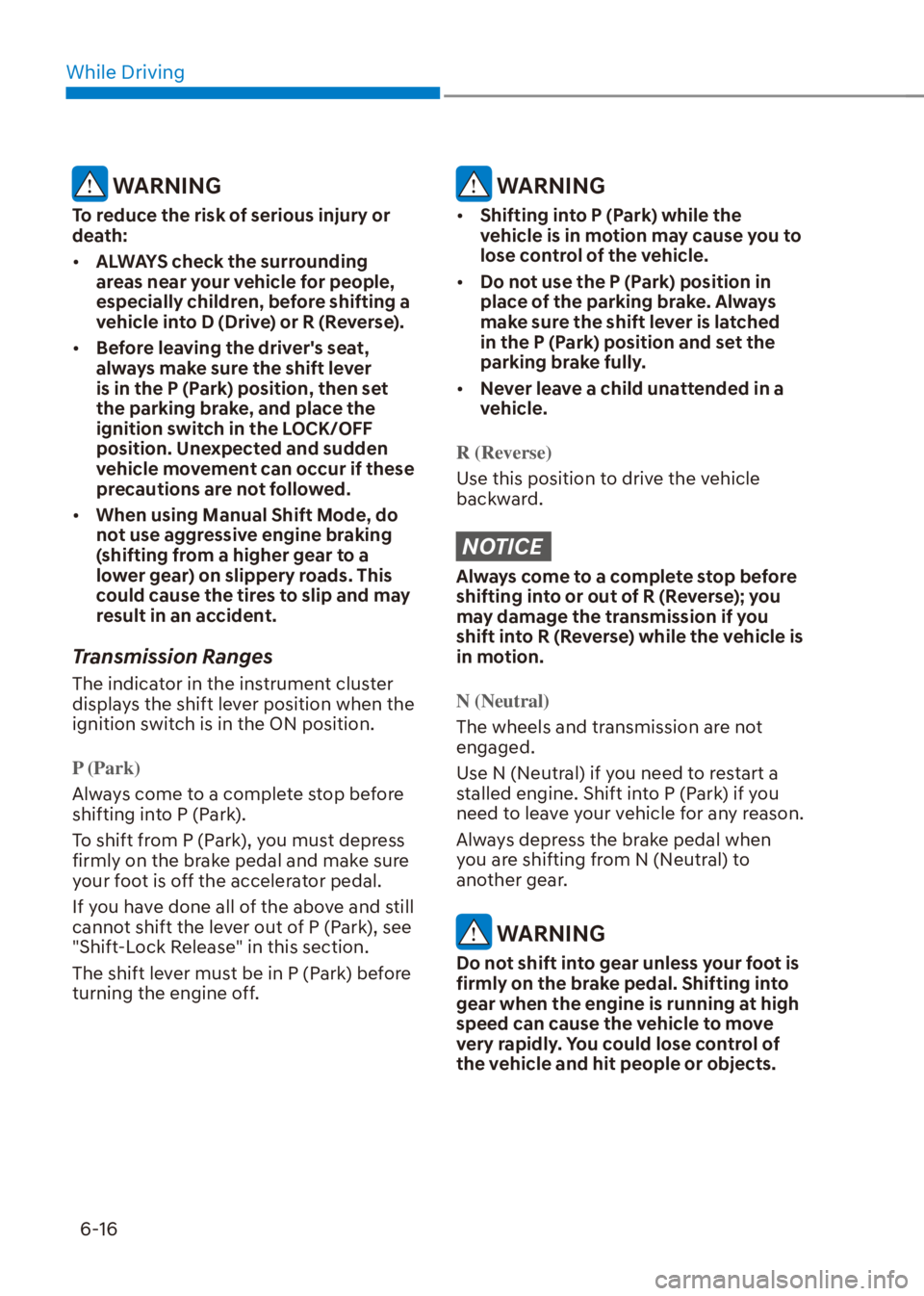

WARNING
To reduce the risk of serious injury or
death:

[ ALWAYS check the surrounding
areas near your vehicle for people,
especially children, before shifting a
vehicle into D (Drive) or R (Reverse).

[ Before leaving the driver's seat,
always make sure the shift lever
is in the P (Park) position, then set
the parking brake, and place the
ignition switch in the LOCK/OFF
position. Unexpected and sudden
vehicle movement can occur if these
precautions are not followed.

[ When using Manual Shift Mode, do
not use aggressive engine braking
(shifting from a higher gear to a
lower gear) on slippery roads. This
could cause the tires to slip and may
result in an accident.
Transmission Ranges
The indicator in the instrument cluster
displays the shift lever position when the
ignition switch is in the ON position.
P (Park)
Always come to a complete stop before
shifting int

o P (Park).
To shift from P (Park), you must depress
firmly on the brake pedal and make sure
your foot is off the accelerator pedal.
If you have done all of the above and still
cannot shift the lever out of P (Park), see
"Shift-Lock Release" in this section.
The shift lever must be in P (Park) before
turning the engine off.
WARNING

[ Shifting into P (Park) while the
vehicle is in motion may cause you to
lose control of the vehicle.

[ Do not use the P (Park) position in
place of the parking brake. Always
make sure the shift lever is latched
in the P (Park) position and set the
parking brake fully.

[ Never leave a child unattended in a
vehicle.
R (Reverse)
Use this position to drive the vehicle
backw
ard.
NOTICE
Always come to a complete stop before
shifting into or out of R (Reverse); you
may damage the transmission if you
shift into R (Reverse) while the vehicle is
in motion.
N (Neutral)
The wheels and transmission are not
engaged.
U

se N (Neutral) if you need to restart a
stalled engine. Shift into P (Park) if you
need to leave your vehicle for any reason.
Always depress the brake pedal when
you are shifting from N (Neutral) to
another gear.
WARNING
Do not shift into gear unless your foot is
firmly on the brake pedal. Shifting into
gear when the engine is running at high
speed can cause the vehicle to move
very rapidly. You could lose control of
the vehicle and hit people or objects.

While Driving6-26

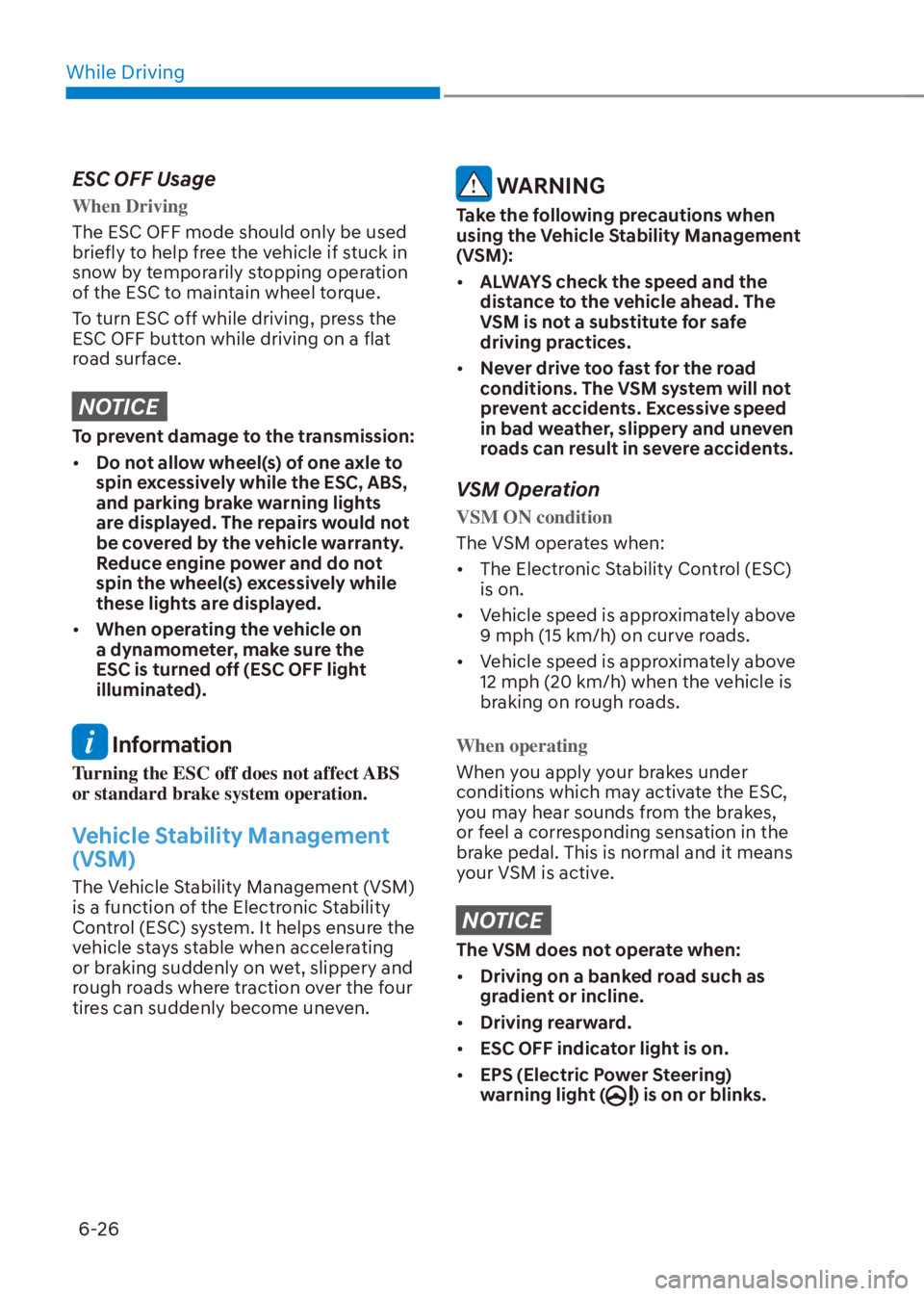

ESC OFF Usage
When Driving
The ESC OFF mode should only be used
brie
fly to help free the vehicle if stuck in
snow by temporarily stopping operation
of the ESC to maintain wheel torque.
To turn ESC off while driving, press the
ESC OFF button while driving on a flat
road surface.
NOTICE
To prevent damage to the transmission:

[ Do not allow wheel(s) of one axle to
spin excessively while the ESC, ABS,
and parking brake warning lights
are displayed. The repairs would not
be covered by the vehicle warranty.
Reduce engine power and do not
spin the wheel(s) excessively while
these lights are displayed.

[ When operating the vehicle on
a dynamometer, make sure the
ESC is turned off (ESC OFF light
illuminated).
Information
Turning the ESC off does not affect ABS
or standard brake system operation.
Vehicle Stability Management
(VSM)
The Vehicle Stability Management (VSM)
is a function of the Electronic Stability
Control (ESC) system. It helps ensure the
vehicle stays stable when accelerating
or braking suddenly on wet, slippery and
rough roads where traction over the four
tires can suddenly become uneven.
WARNING
Take the following precautions when
using the Vehicle Stability Management
(VSM):

[ALWAYS check the speed and the
distance to the vehicle ahead. The
VSM is not a substitute for safe
driving practices.

[ Never drive too fast for the road
conditions. The VSM system will not
prevent accidents. Excessive speed
in bad weather, slippery and uneven
roads can result in severe accidents.
VSM Operation
VSM ON condition
The VSM operates when:

[The Electr

onic Stability Control (ESC)
is on.

[ Vehicle speed is approximately above
9 mph (15 km/h) on curve roads.

[ Vehicle speed is approximately above
12 mph (20 km/h) when the vehicle is
braking on rough roads.
When operating
When you apply your brakes under
conditions which ma
y activate the ESC,
you may hear sounds from the brakes,
or feel a corresponding sensation in the
brake pedal. This is normal and it means
your VSM is active.
NOTICE
The VSM does not operate when:

[ Driving on a banked road such as
gradient or incline.

[ Driving rearward.

[ ESC OFF indicator light is on.

[ EPS (Electric Power Steering)
warning light (
) is on or blinks.

While Driving6-28
OQX060079N
The drive mode may be selected
according to the driver's preference or
road condition.
The system resets to be in the NORMAL
mode, when the engine is restarted.
Information
If there is a problem with the instrument
cluster, the drive mode will be in
NORMAL mode and may not change to
SPORT mode.
The mode changes, as below, whenever
the DRIVE MODE button is pressed. NORMAL SNOW
SPOR
T
OQX049037NOQX049038N
OQX049039N
NORMAL Mode
In NORMAL mode the engine and
transmission control logic work
together to provide regular daily driving
performance with some fuel efficiency.

[When NORMAL mode is selected, it
is not displayed on the instrument
cluster.
'5,9(02'(,17(*5$7('&21752/6<67(0

While Driving6-30

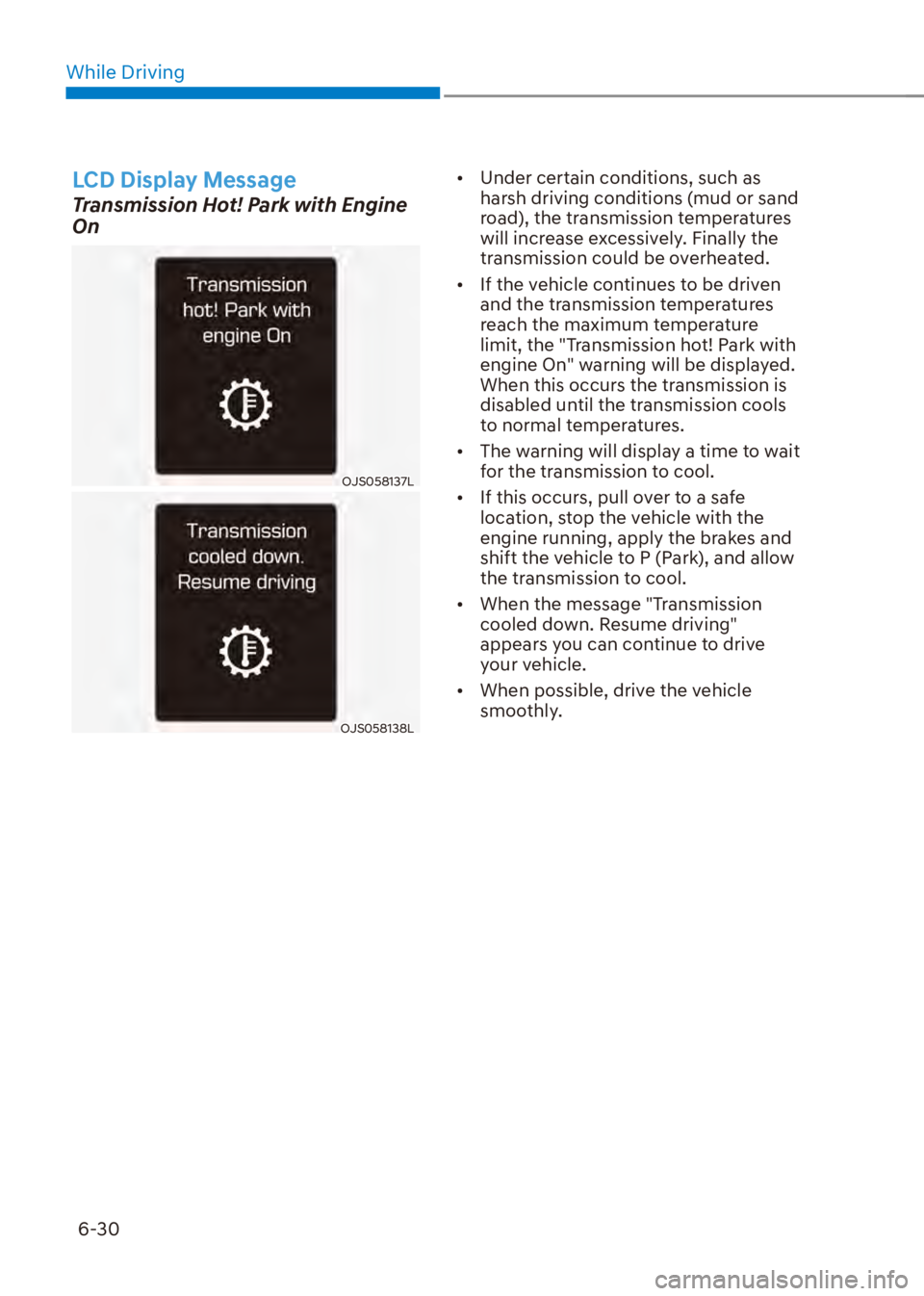

LCD Display Message
Transmission Hot! Park with Engine
On
OJS058137L
OJS058138L

[ Under certain conditions, such as
harsh driving conditions (mud or sand
road), the transmission temperatures
will increase excessively. Finally the
transmission could be overheated.

[ If the vehicle continues to be driven
and the transmission temperatures
reach the maximum temperature
limit, the "Transmission hot! Park with
engine On" warning will be displayed.
When this occurs the transmission is
disabled until the transmission cools
to normal temperatures.

[ The warning will display a time to wait
for the transmission to cool.

[ If this occurs, pull over to a safe
location, stop the vehicle with the
engine running, apply the brakes and
shift the vehicle to P (Park), and allow
the transmission to cool.

[ When the message "Transmission
cooled down. Resume driving"
appears you can continue to drive
your vehicle.

[ When possible, drive the vehicle
smoothly.
