2023 HYUNDAI TUCSON HYBRID inflation pressure

Emergency Situations8-18
Notes on the safe use of the Tire
Mobility Kit

[ Park your car at the side of the road
so that you can work with the Tire
Mobility Kit away from moving traffic.

[ To be sure your vehicle will not move,
even when you’re on fairly level
ground, always set your parking brake.

[ Only use the Tire Mobility Kit for
sealing/inflation passenger car tires.
Only punctured areas located within
the tread region of the tire can be
sealed using the tire mobility kit.

[ Do not use on motorcycles, bicycles
or any other type of tires.

[ When the tire and wheel are
damaged, do not use Tire Mobility Kit
for your safety.

[ Use of the Tire Mobility Kit may not be
effective for tire damage larger than
approximately 4 mm (16 inch).
Please contact the nearest HYUNDAI
dealer if the tire cannot be made
roadworthy with the Tire Mobility Kit.
[
Do not use the Tire Mobility Kit if a tire
is severely damaged by driving run flat
or with insufficient air pressure.

[ Do not remove any foreign objects
such as nails or screws that have
penetrated the tire.

[ Provided the car is outdoors, leave
the vehicle in the ready (
) mode.
Otherwise operating the compressor
may eventually drain the car battery.

[ Never leave the Tire Mobility Kit
unattended while it is being used.

[ Do not leave the compressor running
for more than 10 minutes at a time or
it may overheat.

[ Do not use the Tire Mobility Kit if the
ambient temperature is below -30°C
(-22°F).

[ In case of skin contact with the
sealant, wash the area thoroughly
with plenty of water. If the irritation
persists, seek medical attention.

[ In case of eye contact with the
sealant, flush your eyes for at least 15
minutes. If the irritation persists, seek
medical attention.

[ In case of swallowing the sealant,
rinse the mouth and drink plenty of
water. However, never give anything
to an unconscious person and seek
medical attention immediately.

[ Long time exposure to the sealant
may cause damage to bodily tissue
such as kidney, etc.

08
8-19

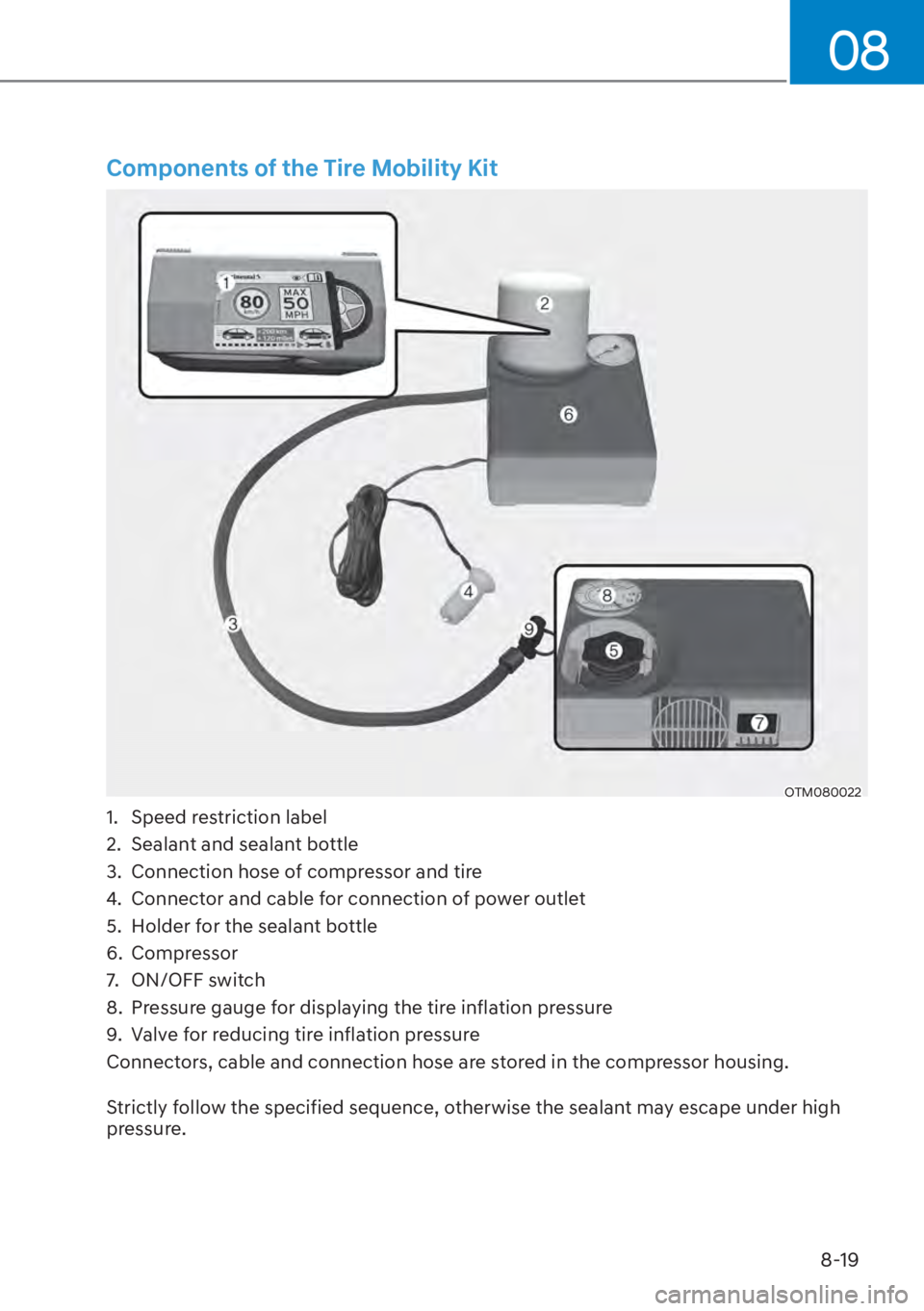

Components of the Tire Mobility Kit
OTM080022
1. Speed restriction label
2. Sealant and sealant bottle
3. Connection hose of compressor and tire
4. Connector and cable for connection of power outlet
5. Holder for the sealant bottle
6. Compressor
7. ON/OFF switch
8. Pressure gauge for displaying the tire inflation pressure
9. Valve for reducing tire inflation pressure
Connectors, cable and connection hose are stored in the compressor housing.
Strictly follow the specified sequence, otherwise the sealant may escape under high
pressure.

08
8-21
OTM080023

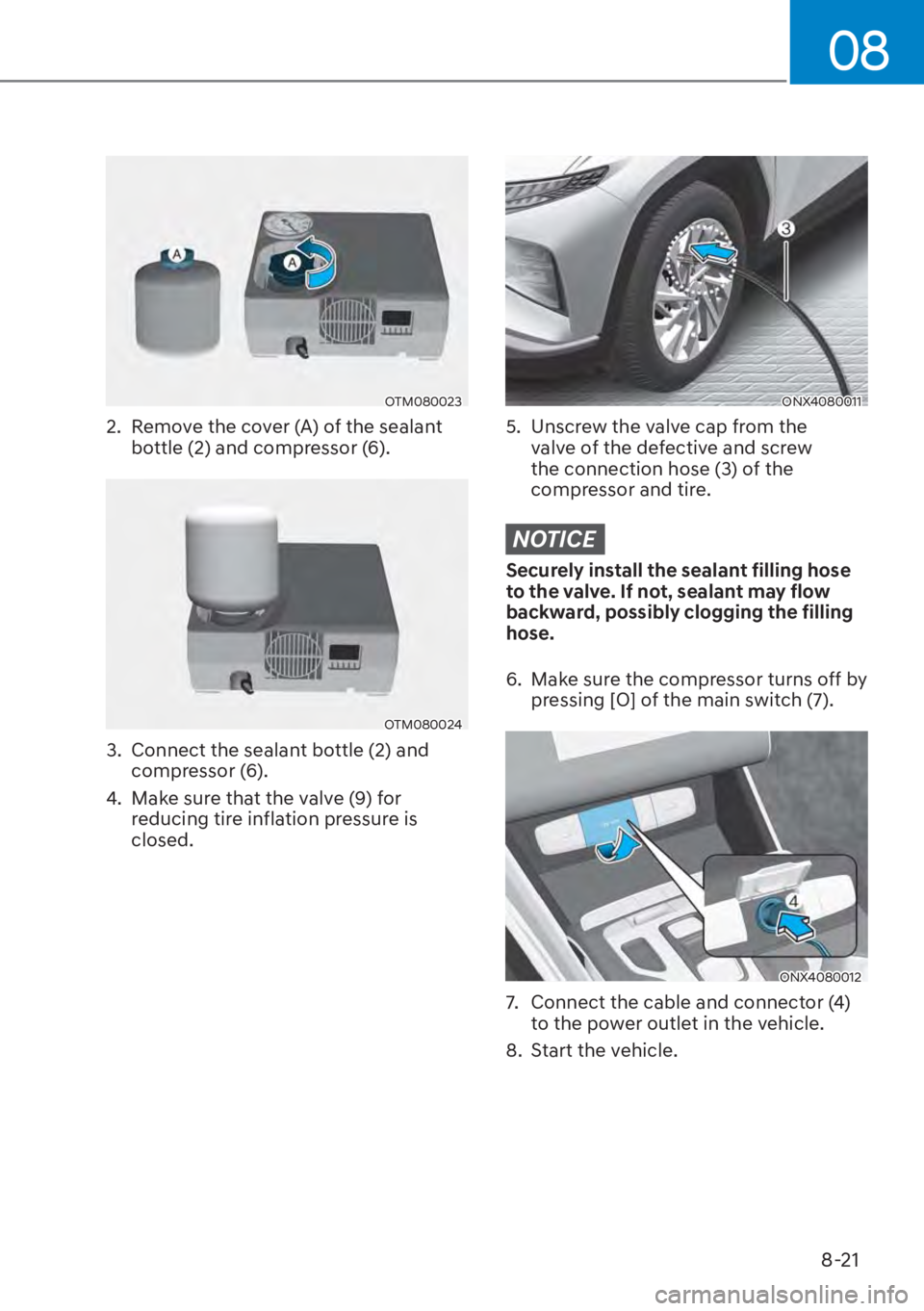

2. Remove the cover (A) of the sealant bottle (2) and compressor (6).
OTM080024
3. Connect the sealant bottle (2) and compressor (6).
4. Make sure that the valve (9) for reducing tire inflation pressure is
closed.
ONX4080011
5. Unscrew the valve cap from the valve of the defective and screw
the connection hose (3) of the
compressor and tire.
NOTICE
Securely install the sealant filling hose
to the valve. If not, sealant may flow
backward, possibly clogging the filling
hose.
6. Make sure the compressor turns off by pressing [O] of the main switch (7).
ONX4080012
7. Connect the cable and connector (4) to the power outlet in the vehicle.
8. Start the vehicle.

Emergency Situations8-22
9. With the vehicle ON ( indicator ON), switch on
the compressor and let it run for
approximately 5~7 minutes to fill
the sealant up to proper pressure.
(Refer to “Tire and Wheels” section
in chapter2). The inflation pressure of
the tire after filling is unimportant and
will be checked/corrected later.
Be careful not to overinflate the tire
and stay away from the tire when
filling it.
CAUTION
Do not attempt to drive your vehicle if
the tire pressure is below 200 kpa (29
psi). This could result in an accident due
to sudden tire failure.
10. Switch off the compressor.
11. Detach the hoses from the sealant bottle connector and from the tire
valve.
Return the Tire Mobility Kit to its storage
location in the vehicle.
WARNING
Do not leave your vehicle running in
a poorly ventilated area for extended
periods of time. Carbon monoxide
poisoning and suffocation can occur.
Distributing the sealant
OOSH079022L
12. Immediately drive approximately 4~6 miles (7~10 km or about 10 minutes)
to evenly distribute the sealant in the
tire.
Do not exceed a speed of 50 mph (80
km/h). If possible, do not fall below a
speed of 12 mph (20 km/h).
While driving, if you experience any
unusual vibration, ride disturbance or
noise, reduce your speed and drive with
caution until you can safely pull off of the
side of the road.
Call for road side service or towing.

08
8-23
13. After driving approximately 4~6 miles (7~10 km or about 10 minutes), stop at
a safe location.
ONX4080011
14. Connect the connection hose (3) of the compressor and tire into the tire
valve.
15. Connect cables (4) to the power outlet.
16. Adjust the tire inflation pressure to the recommended tire inflation.
With the vehicle in the ready (
)
mode, proceed as follows.
- To increase the inflation pressure:
Switch on the compressor.
T
o check the current inflation
pressure setting, briefly switch off
the compressor.
- To reduce the inflation pressure:
Press the button (9) on the
compr
essor.
NOTICE
Do not let the compressor run for more
than 10 minutes, otherwise the device
will overheat and may be damaged.
Checking the Tire Inflation
Pressure
1. After driving approximately 7~10 km (4~6 miles or about 10 minutes), stop
at a safe location.
ONX4080011
2. Connect the connection hose (3) of the compressor and tire into the tire
valve.
3. Connect cables (4) to the power outlet.
4. Adjust the tire inflation pressure to the recommended tire inflation.
With the vehicle in the ready (
)
mode, proceed as follows.
- To increase the inflation pressure:
Switch on the compressor.
T
o check the current inflation
pressure setting, briefly switch off
the compressor.
- To reduce the inflation pressure:
Press the button (9) on the
compr
essor.
NOTICE
Do not let the compressor run for more
than 10 minutes, otherwise the device
will overheat and may be damaged.

Emergency Situations8-24
Information
The pressure gauge may show higher than
actual reading when the compressor is
running. To get an accurate tire pressure,
the compressor needs to be turned off.
CAUTION
If the inflation pressure is not
maintained, drive the vehicle a second
time, refer to Distributing the sealant.
Then repeat steps 11 to 14.
Use of the TMK may be ineffectual for
tire damage larger than approximately
0.16 in (4 mm).
Contact an authorized HYUNDAI dealer
if the tire cannot be made roadworthy
with the Tire Mobility Kit.
WARNING
The tire inflation pressure must be
inflated to the proper pressure (Refer to
“Tire and Wheels” section in chapter 2).
If it is not, do not continue driving.
Call for road side service or towing.
CAUTION
Tire pressure sensor
The sealant on the tire pressure sensor
and wheel should be removed when
you replace the tire with a new one and
inspect the tire pressure sensors. Get
this done at an authorized dealer.
Information
When reinstalling the repaired or replaced
tire and wheel on the vehicle, tighten the
wheel nut to 11~13 kgf·m (79~94 lbf·ft).

08
8-29

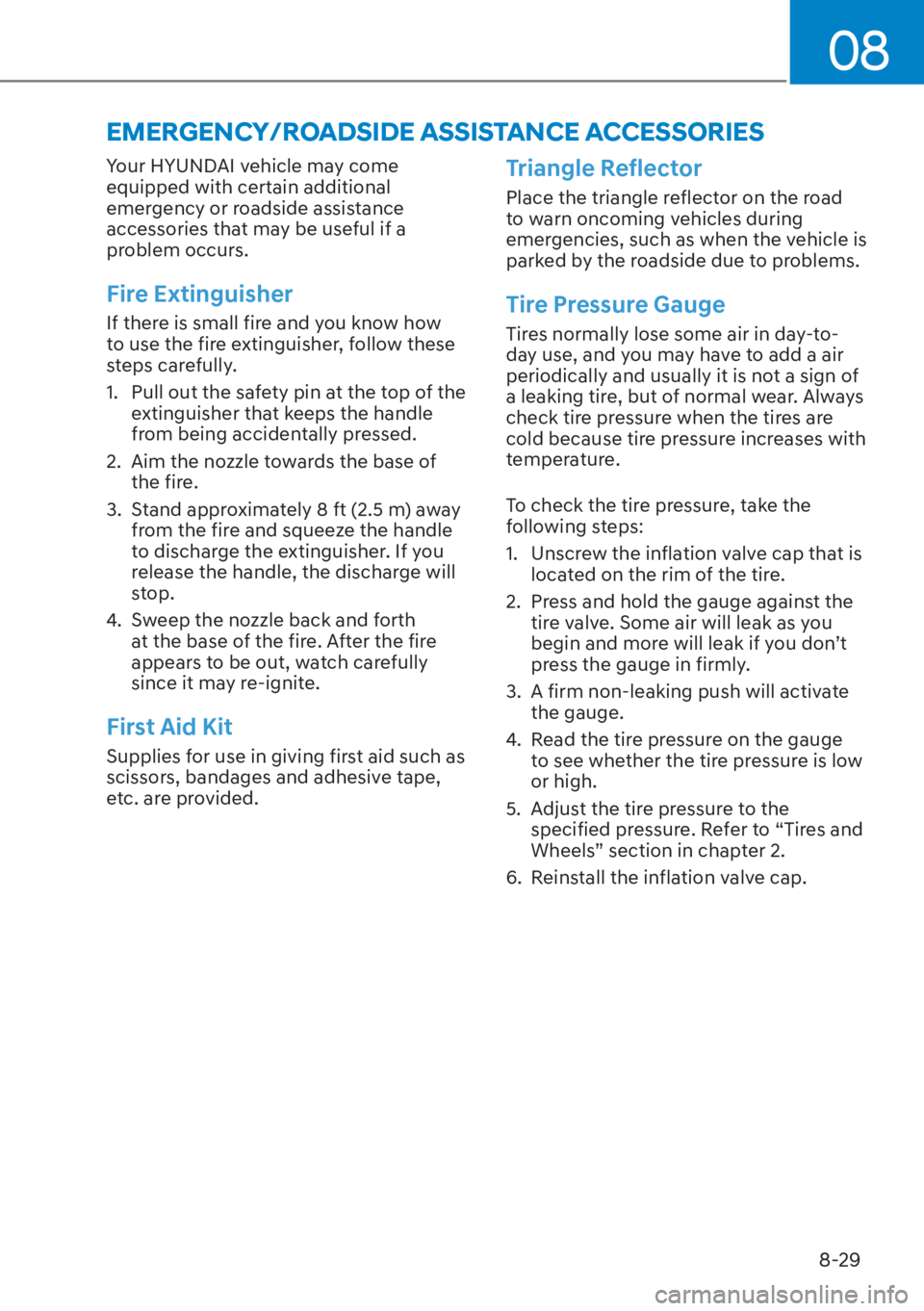

Your HYUNDAI vehicle may come
equipped with certain additional
emergency or roadside assistance
accessories that may be useful if a
problem occurs.
Fire Extinguisher
If there is small fire and you know how
to use the fire extinguisher, follow these
steps carefully.
1. Pull out the safety pin at the top of the extinguisher that keeps the handle
from being accidentally pressed.
2. Aim the nozzle towards the base of the fire.
3. Stand approximately 8 ft (2.5 m) away from the fire and squeeze the handle
to discharge the extinguisher. If you
release the handle, the discharge will
stop.
4. Sweep the nozzle back and forth at the base of the fire. After the fire
appears to be out, watch carefully
since it may re-ignite.
First Aid Kit
Supplies for use in giving first aid such as
scissors, bandages and adhesive tape,
etc. are provided.
Triangle Reflector
Place the triangle reflector on the road
to warn oncoming vehicles during
emergencies, such as when the vehicle is
parked by the roadside due to problems.
Tire Pressure Gauge
Tires normally lose some air in day-to-
day use, and you may have to add a air
periodically and usually it is not a sign of
a leaking tire, but of normal wear. Always
check tire pressure when the tires are
cold because tire pressure increases with
temperature.
To check the tire pressure, take the
following steps:
1. Unscrew the inflation valve cap that is located on the rim of the tire.
2. Press and hold the gauge against the tire valve. Some air will leak as you
begin and more will leak if you don’t
press the gauge in firmly.
3. A firm non-leaking push will activate the gauge.
4. Read the tire pressure on the gauge to see whether the tire pressure is low
or high.
5. Adjust the tire pressure to the specified pressure. Refer to “Tires and
Wheels” section in chapter 2.
6. Reinstall the inflation valve cap.
EMERGENCY/ROADSIDE ASSISTANCE ACCESSORIES

9
Tires and Wheels ........................................................................\
..................... 9-34Tire Care ........................................................................\
..............................................9-34
Recommended Cold Tire Inflation Pressures ...........................................................9-34
Check Tire Inflation Pressure ........................................................................\
.............9-35
Tire Rotation ........................................................................\
.......................................9-36
Wheel Alignment and Tire Balance ........................................................................\
... 9-37
Tire Replacement ........................................................................\
............................... 9-37
Wheel Replacement ........................................................................\
.......................... 9-38
Tire Traction ........................................................................\
....................................... 9-38
Tire Maintenance..................................................................\
..................................... 9-38
Tire Sidewall Labeling ........................................................................\
........................9-39
Tire Terminology and Definitions ........................................................................\
.... 9-42
All Season Tires ........................................................................\
.................................. 9-44
Summer Tires ........................................................................\
.................................... 9-44
Snow Tires......................................................................\
............................................ 9-44
Radial-Ply Tires ........................................................................\
.................................. 9-45
Low Aspect Ratio Tires ........................................................................\
...................... 9-45
Fuses ...................................................................\
............................................. 9-47Instrument Panel Fuse Replacement ....................................................................... 9-48
Engine Compartment Panel Fuse Replacement ..................................................... 9-49
Fuse/Relay Panel Description........................................................................\
........... 9-50
Light Bulbs ........................................................................\
............................... 9-59Headlight, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL)
Replacement .............................................................\
................................................ 9-60
Side Repeater Lamp Replacement ........................................................................\
.. 9-60
Rear Combination Lamp Replacement .................................................................... 9-61
High Mounted Stop Lamp Replacement ................................................................. 9-64
License Plate Lamp Replacement ........................................................................\
.... 9-64
Interior Light Replacement ........................................................................\
............... 9-65
Appearance Care ........................................................................\
.................... 9-67Exterior Care ........................................................................\
.......................................9-67
Interior Care ........................................................................\
.........................................9-71
Emission Control System ........................................................................\
.........9-74
California Perchlorate Notice ........................................................................\
..9-77
