• Situations when detecting are limited
OJX1079181OJX1079181
ONX4070008ONX4070008
In the following cases, some vehicles
in your lane cannot be detected by the
sensor: - Vehicles offset to one side
- Slow-moving vehicles or sudden- decelerating vehicles
- Vehicles with higher ground clearance or vehicles carrying loads
that stick out of the back of the
vehicle
- Vehicles that has the front lifted due
to heavy loads
- Vehicles within approximately 6 feet (2 m) from your vehicle
- Oncoming vehicles
- Stopped vehicles
- Vehicles with small rear profile, such
as trailers
- Narrow vehicles, such as motorcycles or bicycles
- Special vehicles
- Animals and pedestrians Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
In the following cases, the vehicle
in front cannot be detected by the
sensor:
- You are steering your vehicle
- Driving on narrow or sharply curved roads
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
OTM058129OTM058129
• When a vehicle ahead disappears at an intersection, your vehicle may
accelerate.
Always pay attention to road and
driving conditions while driving.
Driver Assistance System7-160
Limitations of Remote Smart Parking
Assist
In the following circumstances, Remote
Smart Parking Assist performance to
park or exit the vehicle may be limited,
there may be a risk of collision, or
Remote Smart Parking Assist may turn
off. Park or exit the vehicle manually if
necessary.
• An object is attached to the steering wheel
• The vehicle is installed with a snow chain, spare tire or different size
wheel
• Tire pressure is lower or higher than the standard tire pressure
• Your vehicle is loaded with cargo longer or wider than your vehicle or a
trailer is connected to your vehicle
• There is a problem with the wheel alignment
• Your vehicle is leaned severely to one side
• Your vehicle is equipped with a trailer hitch
• The license plate is installed differently from the original location
• There is a person, animal or object above or below the ultrasonic sensor
when Remote Smart Parking Assist is
activated
• The parking space is curved or diagonal
• There is an obstacle such as a person, animal or object (trash can, bicycle,
motorcycle, shopping cart, narrow
pillar etc.) near the parking space • There is a circular pillar or narrow
pillar, or a pillar surrounded by objects
such as fire extinguisher, etc. near the
parking space
• The road surface is bumpy (curbstone, speed bump, etc.)
• The road is slippery
• The parking space is near a vehicle with higher ground clearance or big,
such as a truck, etc.
• The parking space is Inclined
• There is heavy wind
• Operating Remote Smart Parking Assist on uneven roads, gravel roads,
bushes, etc.
• The performance of the ultrasonic sensor is affected by extremely hot or
cold weather
• The ultrasonic sensor is covered with snow or water
• An object that generates ultrasonic waves is nearby
• A wireless device with a transmission function operates near the ultrasonic
sensors
• Your vehicle is affected by another vehicle’s Parking Distance Warning
• The sensor is mounted or positioned incorrectly by an impact to the
bumper
• When the ultrasonic sensor cannot detect the following objects:
- Sharp or slim objects, such as ropes,
chains or small poles
- Objects smaller than 10 in. (100 cm) in length and narrower than 6 in. (14
cm) in diameter
- Objects which tend to absorb sensor frequency, such as clothes,
spongy material or snow
07
7-161

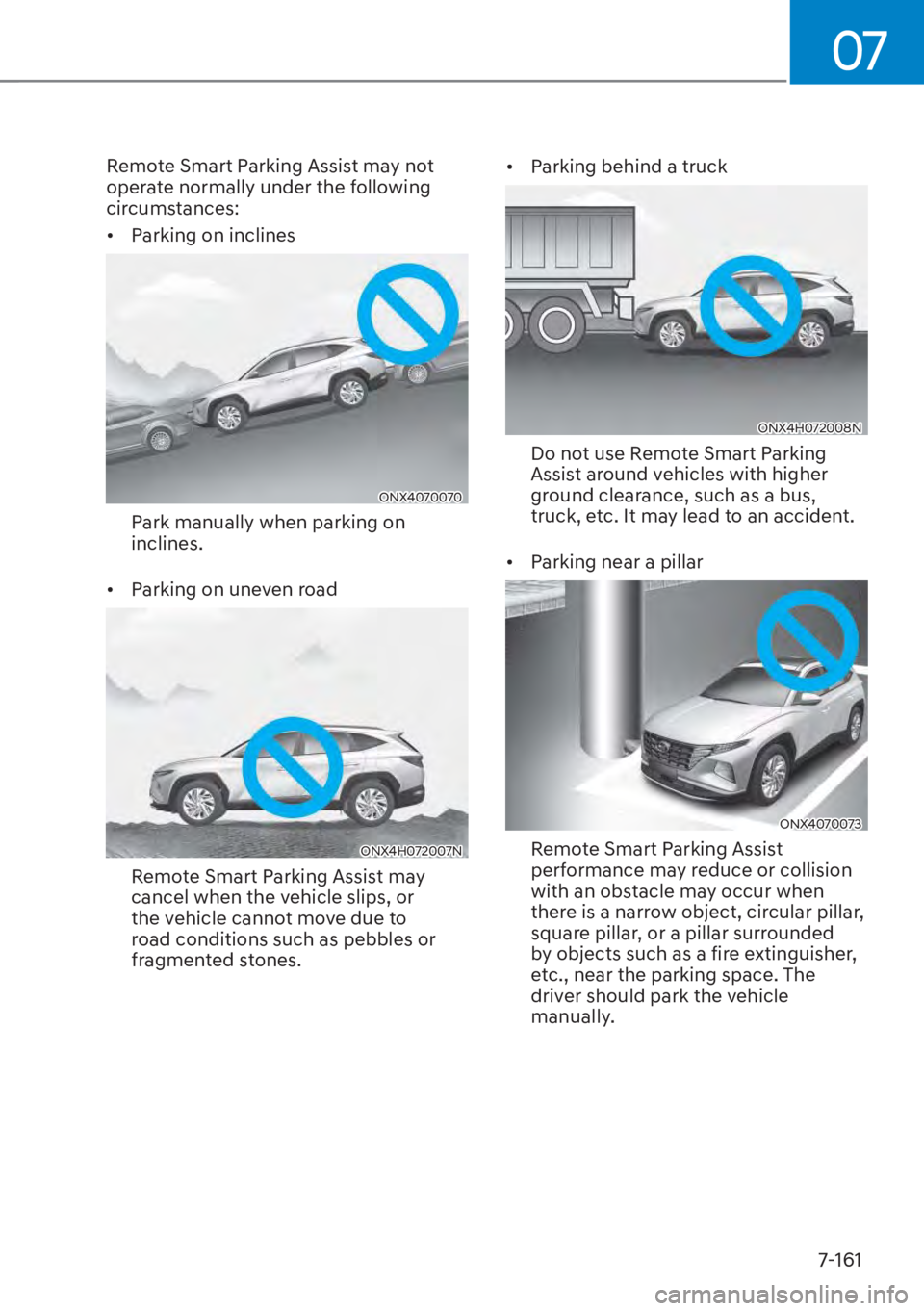

Remote Smart Parking Assist may not
operate normally under the following
circumstances:
• Parking on inclines
ONX4070070ONX4070070
Park manually when parking on
inclines.
• Parking on uneven road
ONX4H072007NONX4H072007N
Remote Smart Parking Assist may
cancel when the vehicle slips, or
the vehicle cannot move due to
road conditions such as pebbles or
fragmented stones. • Parking behind a truck
ONX4H072008NONX4H072008N
Do not use Remote Smart Parking
Assist around vehicles with higher
ground clearance, such as a bus,
truck, etc. It may lead to an accident.
• Parking near a pillar
ONX4070073ONX4070073
Remote Smart Parking Assist
performance may reduce or collision
with an obstacle may occur when
there is a narrow object, circular pillar,
square pillar, or a pillar surrounded
by objects such as a fire extinguisher,
etc., near the parking space. The
driver should park the vehicle
manually.
