2023 HYUNDAI TUCSON HYBRID bulb

09
9-61
Rear Combination Lamp
Replacement
Type A
ONX4090025NONX4090025N
(1) Tail lamp
(2) Tail/Stop lamp
(3) Turn signal lamp
(4) Backup lamp
(5) Rear side marker
ONX4090026ONX4090026
Stop/Tail lamp (Outside), Reverse lamp
1. Turn off the engine.
2.
Open the liftgate.
3. Loosen the lamp assembly retaining screws with a cross-tip screwdriver.
4. Remove the rear combination lamp assembly from the body of the
vehicle.
5. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
ONX4090045ONX4090045
6. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
8. Install the socket into the assembly by aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
9. Reinstall the lamp assembly to the body of the vehicle.

Maintenance9-62
ONX4090027ONX4090027
Tail lamp (Inside)
1. Turn off the engine.
2.
Open the liftgate.
3. Remove the service cover using a flat-blade screwdriver.
4. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
ONX4090028ONX4090028
5. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
6. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
7. Install the socket into the assembly by aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
8. Reinstall the lamp assembly to the body of the vehicle.

09
9-63
Turn signal lamp, Reverse lamp
1. Disconnect the (-) battery terminal (F
or plug-in hybrid vehicle) or battery
connector (For hybrid vehicle).
2. Loosen the retaining clips under the bumper and screws on the wheel
house trim.
3. Prey trim under the bumper toward the vehicle.
„„Turn signal lampTurn signal lamp
ONX4090029ONX4090029
„„Rear fog lamp / Reverse lampRear fog lamp / Reverse lamp
ONX4090030ONX4090030
4. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
5. Remove the bulb by pulling it straight out.
6. Insert a new bulb in the socket.
7. Reinstall the light assembly to the body of the vehicle.
Type B
ONX4090031NONX4090031N
(1) Tail lamp
(2) Tail/Stop lamp
(3) Turn signal lamp
(4) Backup lamp
(5) Rear side marker
Tail / Stop lamp, Tail lamp
If these lamps do not operate, have
the v
ehicle checked by an authorized
HYUNDAI dealer.

Maintenance9-64
High Mounted Stop Lamp
Replacement
ONX4090032ONX4090032
If the LED lamp (1) does not operate,
have the system inspected by an
authorized HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
License Plate Lamp Replacement
ONX4090033ONX4090033
1. Using a flat-blade screwdriver, gently pry the lens cover from the lamp
housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.

09
9-65

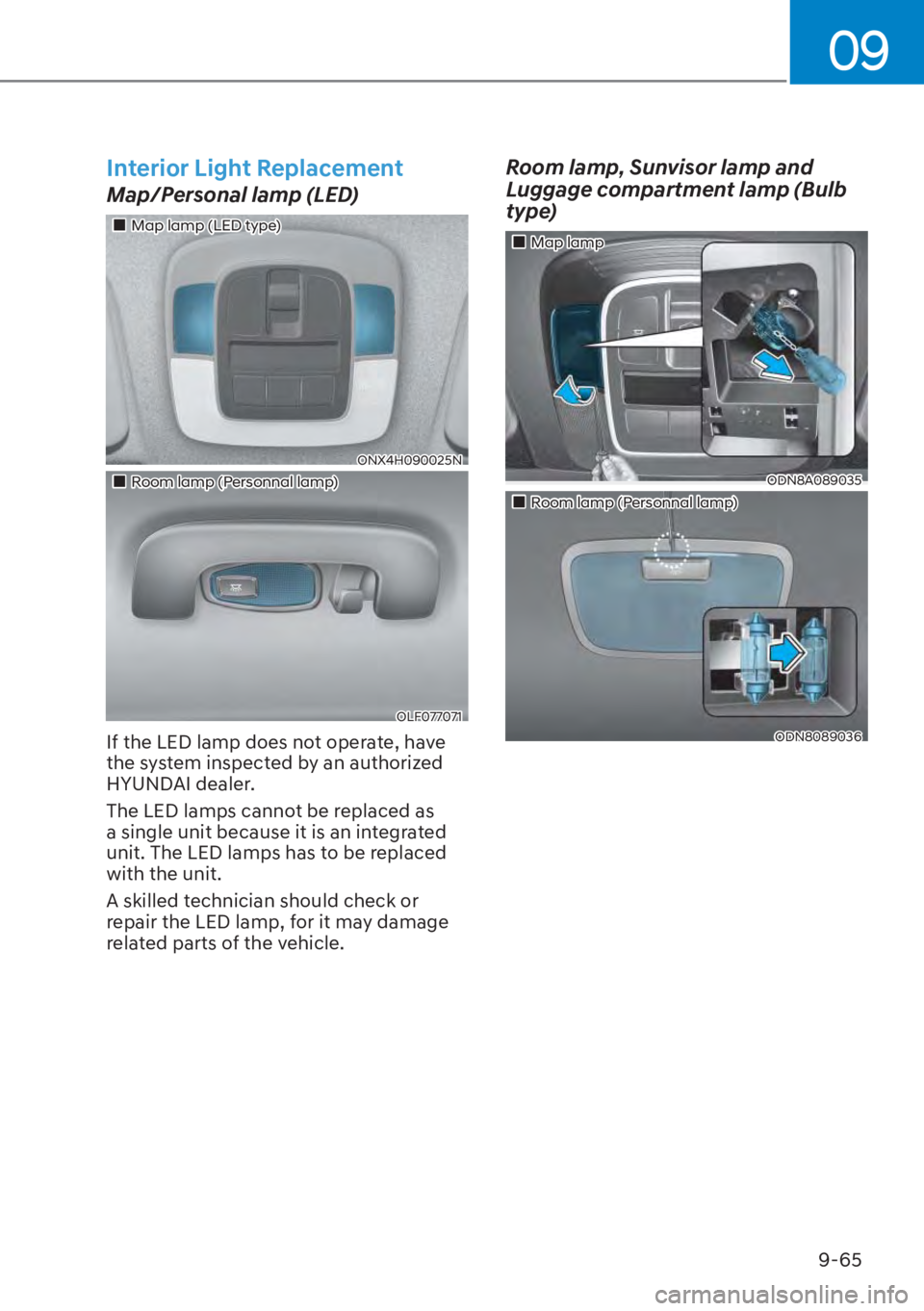

Interior Light Replacement
Map/Personal lamp (LED)
„„Map lamp (LED type)Map lamp (LED type)
ONX4H090025NONX4H090025N
„„Room lamp (Personnal lamp)Room lamp (Personnal lamp)
OLF077071OLF077071
If the LED lamp does not operate, have
the system inspected by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Room lamp, Sunvisor lamp and
Luggage compartment lamp (Bulb
type)
„„Map lamp Map lamp
ODN8A089035ODN8A089035
„„Room lamp (Personnal lamp)Room lamp (Personnal lamp)
ODN8089036ODN8089036

Maintenance9-66

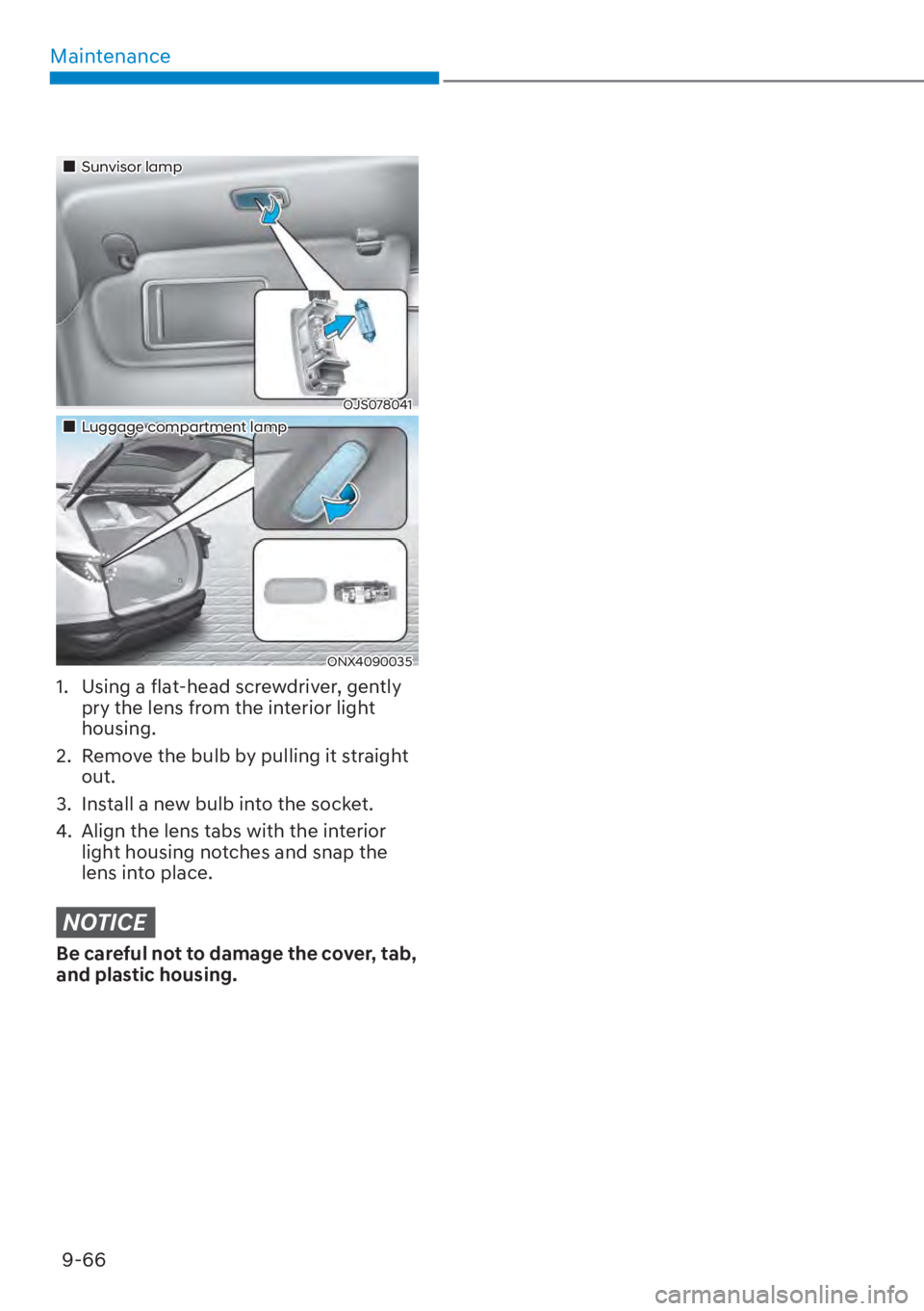

„„Sunvisor lampSunvisor lamp
OJS078041OJS078041
„„Luggage compartment lampLuggage compartment lamp
ONX4090035ONX4090035
1. Using a flat-head screwdriver, gently pry the lens from the interior light
housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb into the socket.
4. Align the lens tabs with the interior light housing notches and snap the
lens into place.
NOTICE
Be careful not to damage the cover, tab,
and plastic housing.
