2023 HYUNDAI SANTA FE Owners Manual

Page 17 of 624

HYUNDAI SANTA FE 2023  Owners Manual 2-4
Vehicle Information, Consumer Information and Reporting Safety Defects

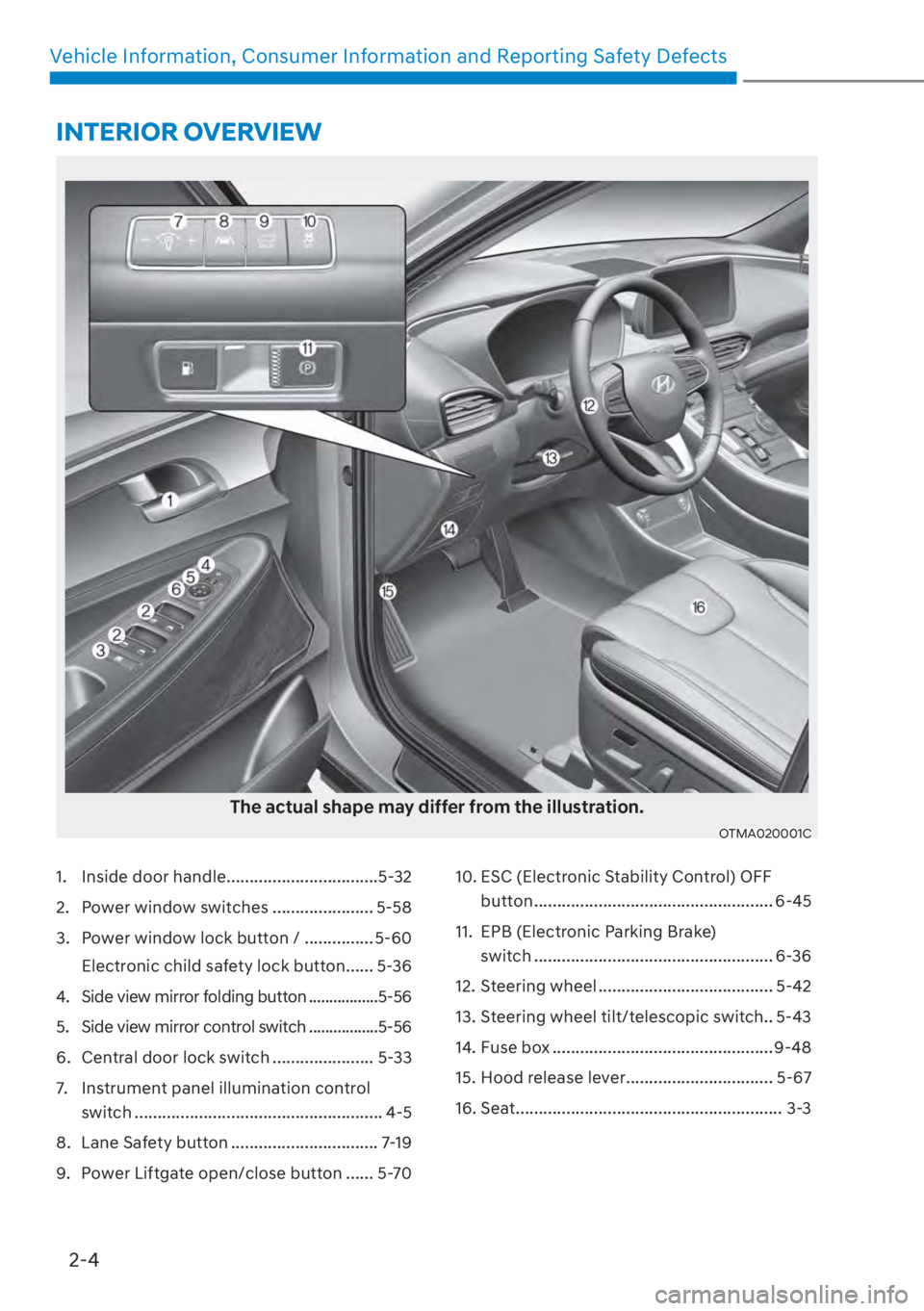

1.  Inside door handle .................................5-32
2.  Power window switches ...................... 5-58
3.  Power

Page 18 of 624

HYUNDAI SANTA FE 2023  Owners Manual 2-5

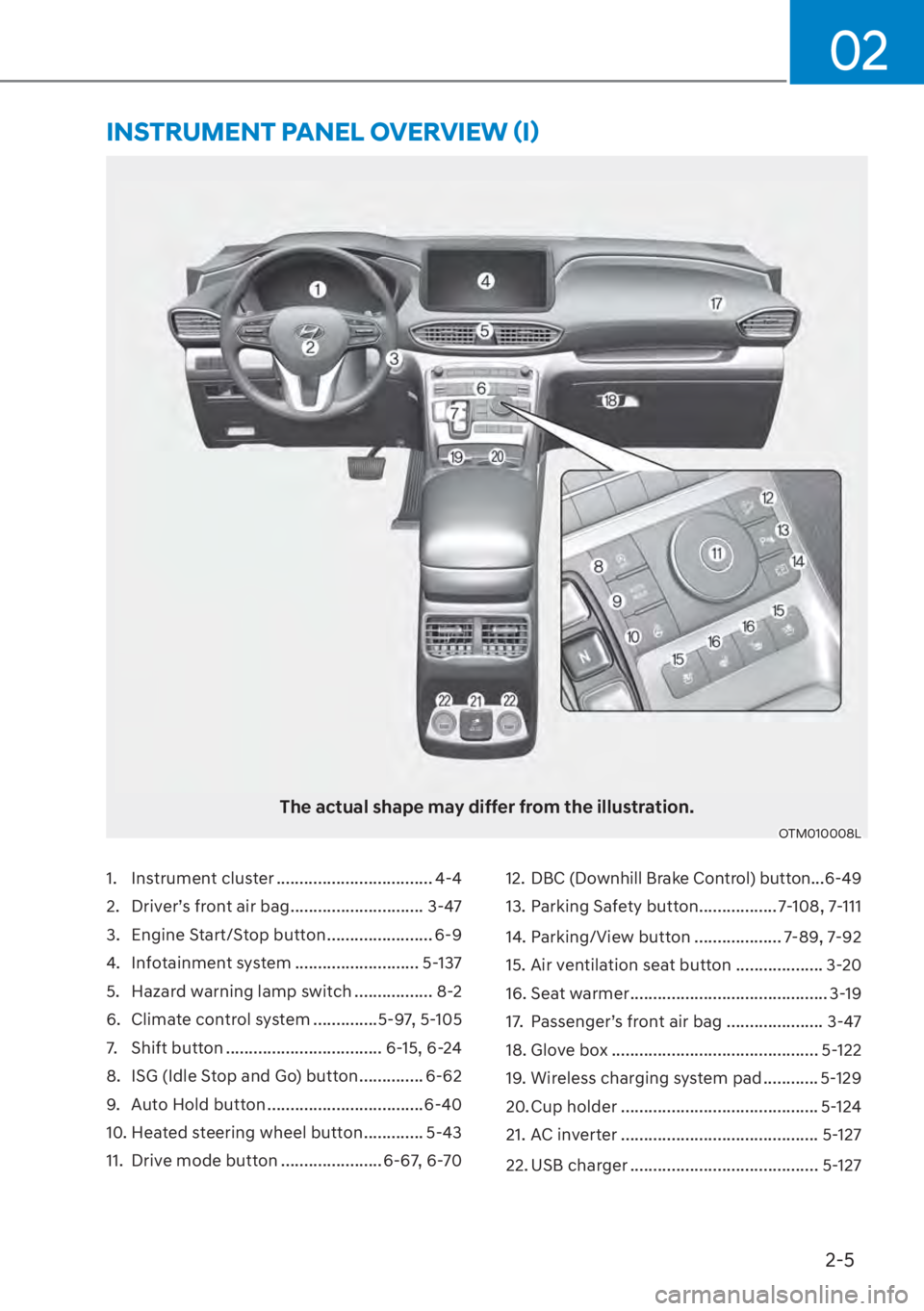

02
1. Instrument cluster .................................. 4-4
2.  Driver’s front air bag ............................. 3-47
3.  Engine Start/Stop button ....................... 6-9
4. Infotain

Page 19 of 624

HYUNDAI SANTA FE 2023  Owners Manual 2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
OTM010005

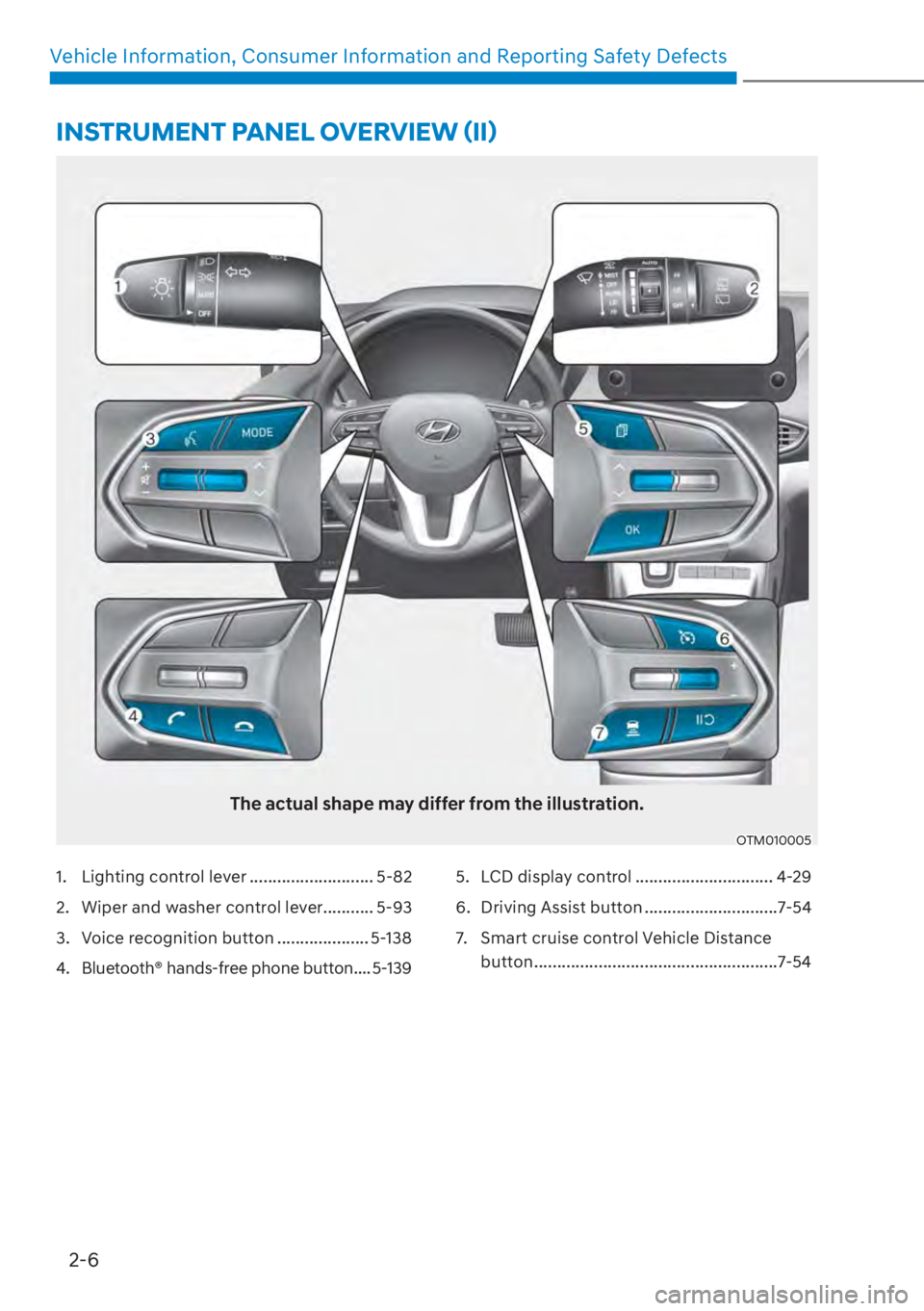

1.  Lighting control lever ........................... 5-82
2.

Page 20 of 624

HYUNDAI SANTA FE 2023  Owners Manual 2-7
02
��„Smartstream G2.5 GDI
��„Smartstream G2.5 T-GDI

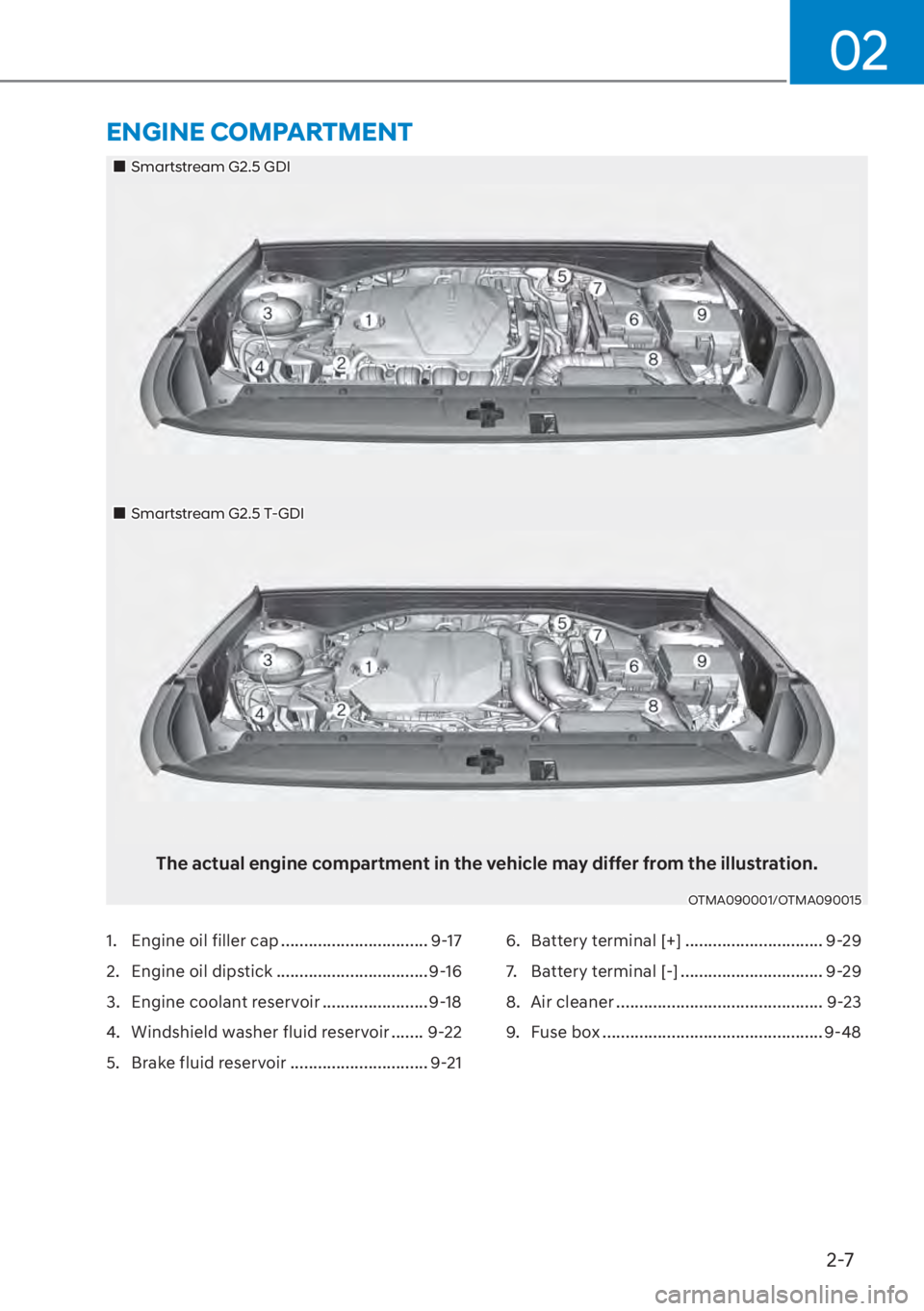

The actual engine compartment in the vehicle may differ from the illustration.
OTMA090001/OTMA090015
1.  Engine oil filler cap ..........

Page 21 of 624

HYUNDAI SANTA FE 2023  Owners Manual Vehicle Information, Consumer Information and Reporting Safety Defects2-8

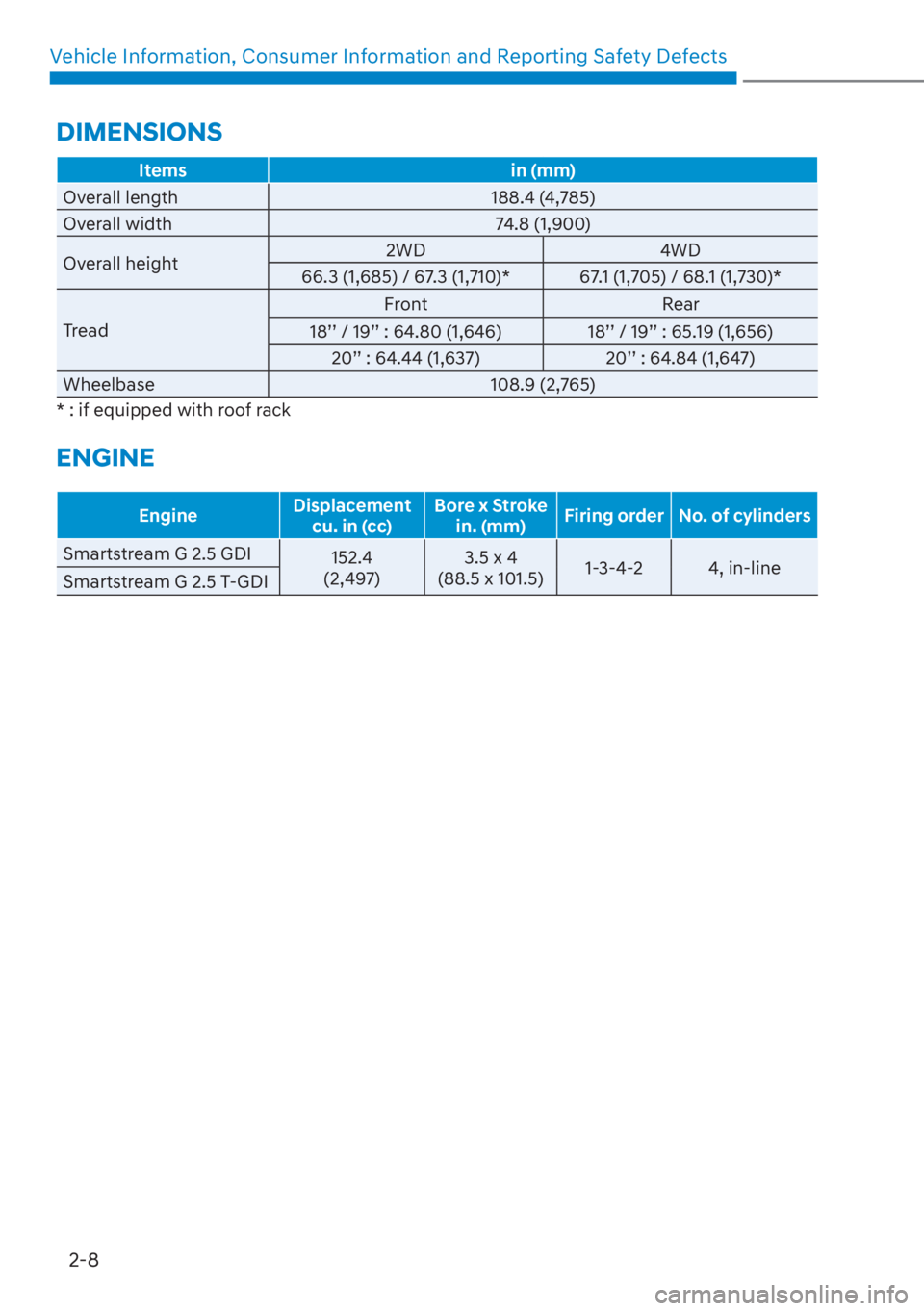

Items in (mm)
Overall length 188.4 (4,785)
O
 verall width 74.8 (1,900)
Overall height 2WD
4WD
66.3 (1,685) / 67.3 (1,710)* 67

Page 22 of 624

HYUNDAI SANTA FE 2023  Owners Manual 02
2-9

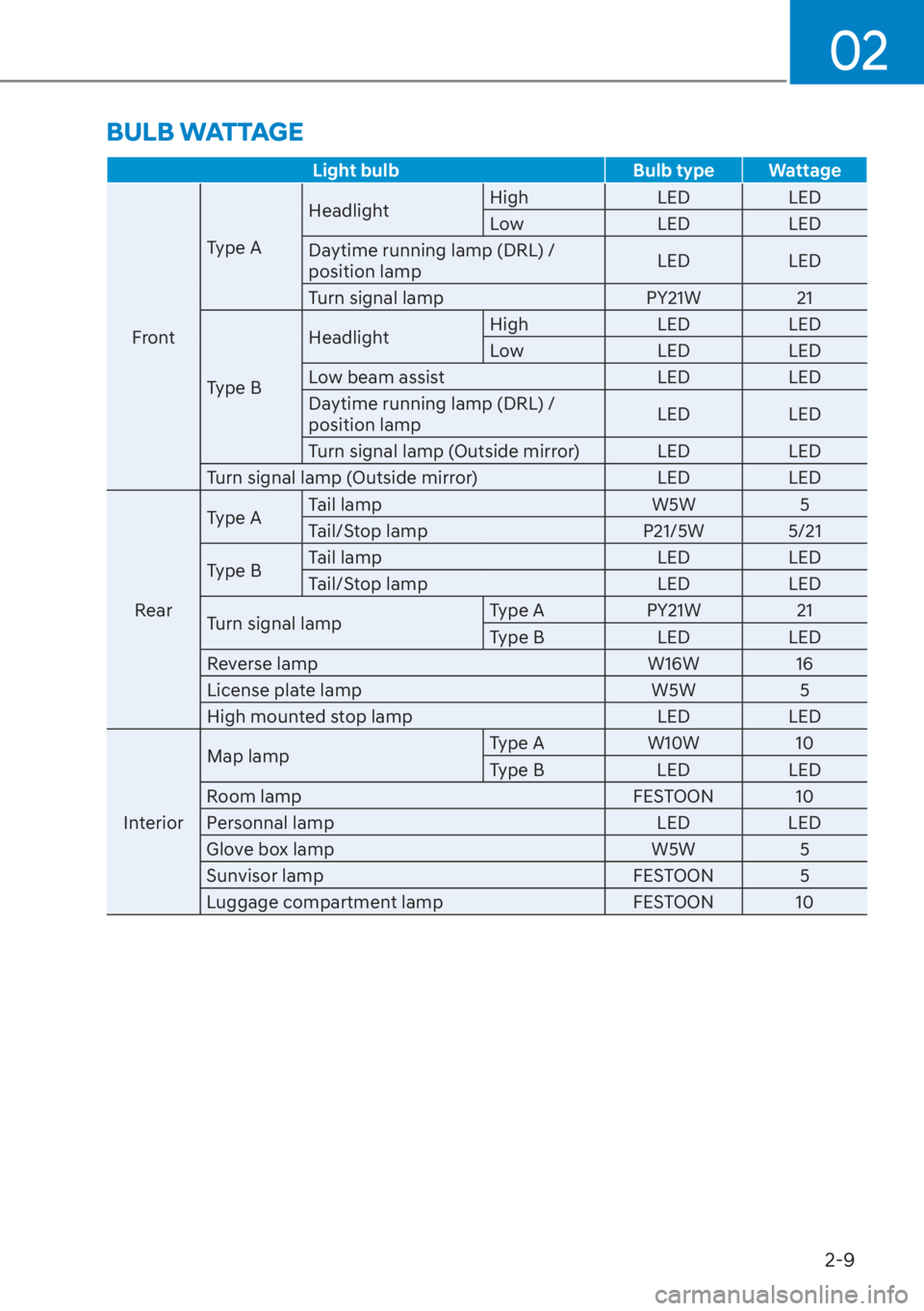

Light bulbBulb type Wattage
Front T
 ype A
Headlight
High
LEDLED
Low LEDLED
Daytime running lamp (DRL) /
position lamp LED
LED
Turn signal lamp PY21W21
Type B Headlight
High
LEDLED
Low LEDLE

Page 23 of 624

HYUNDAI SANTA FE 2023  Owners Manual Vehicle Information, Consumer Information and Reporting Safety Defects2-10

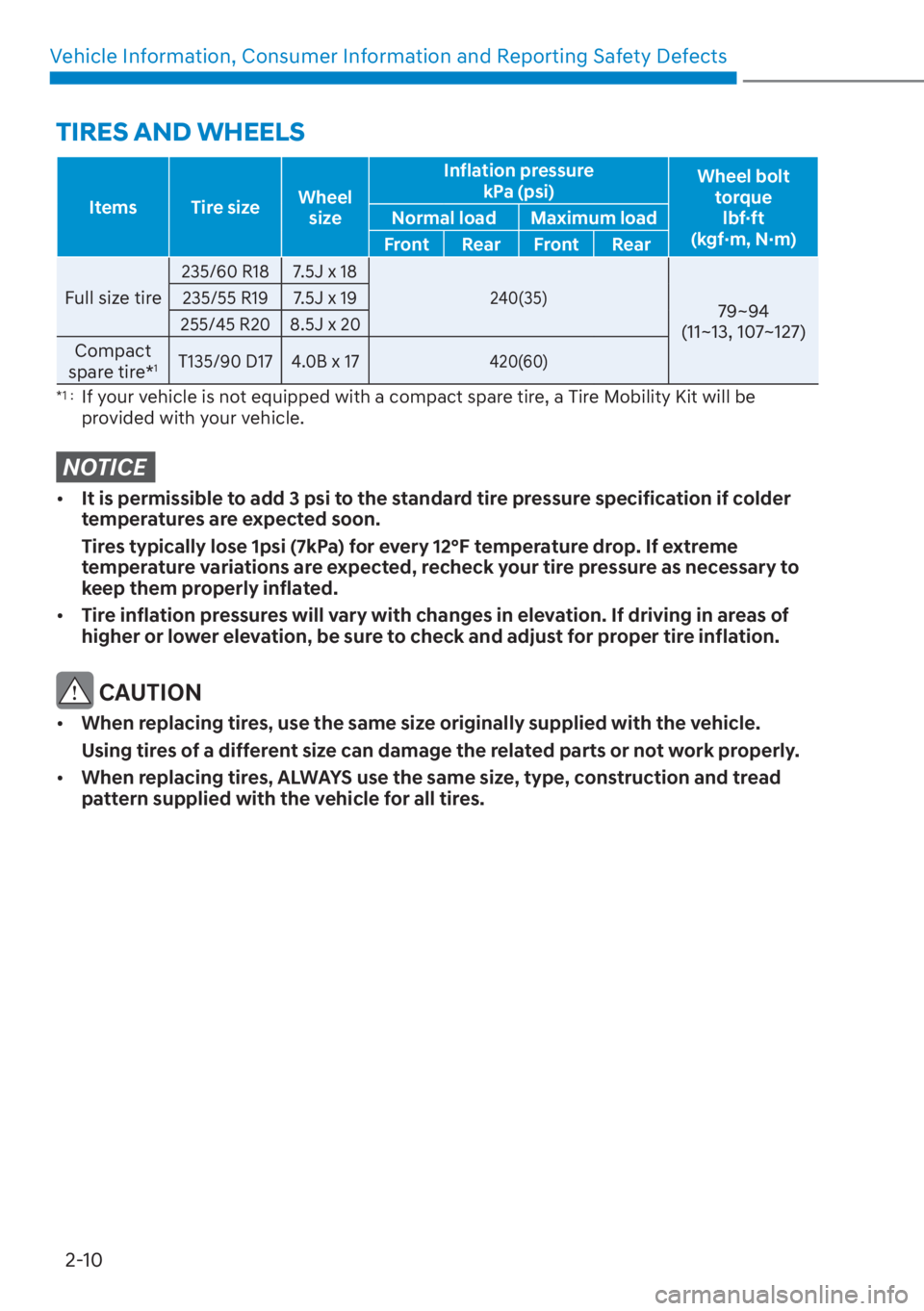

Items Tire size Wheel
size Inflation pressure
kPa (psi) Wheel bolt
torque  lbf·ft
(kgf·m, N·m)
Normal load Maximum l

Page 24 of 624

HYUNDAI SANTA FE 2023  Owners Manual 02
2-11

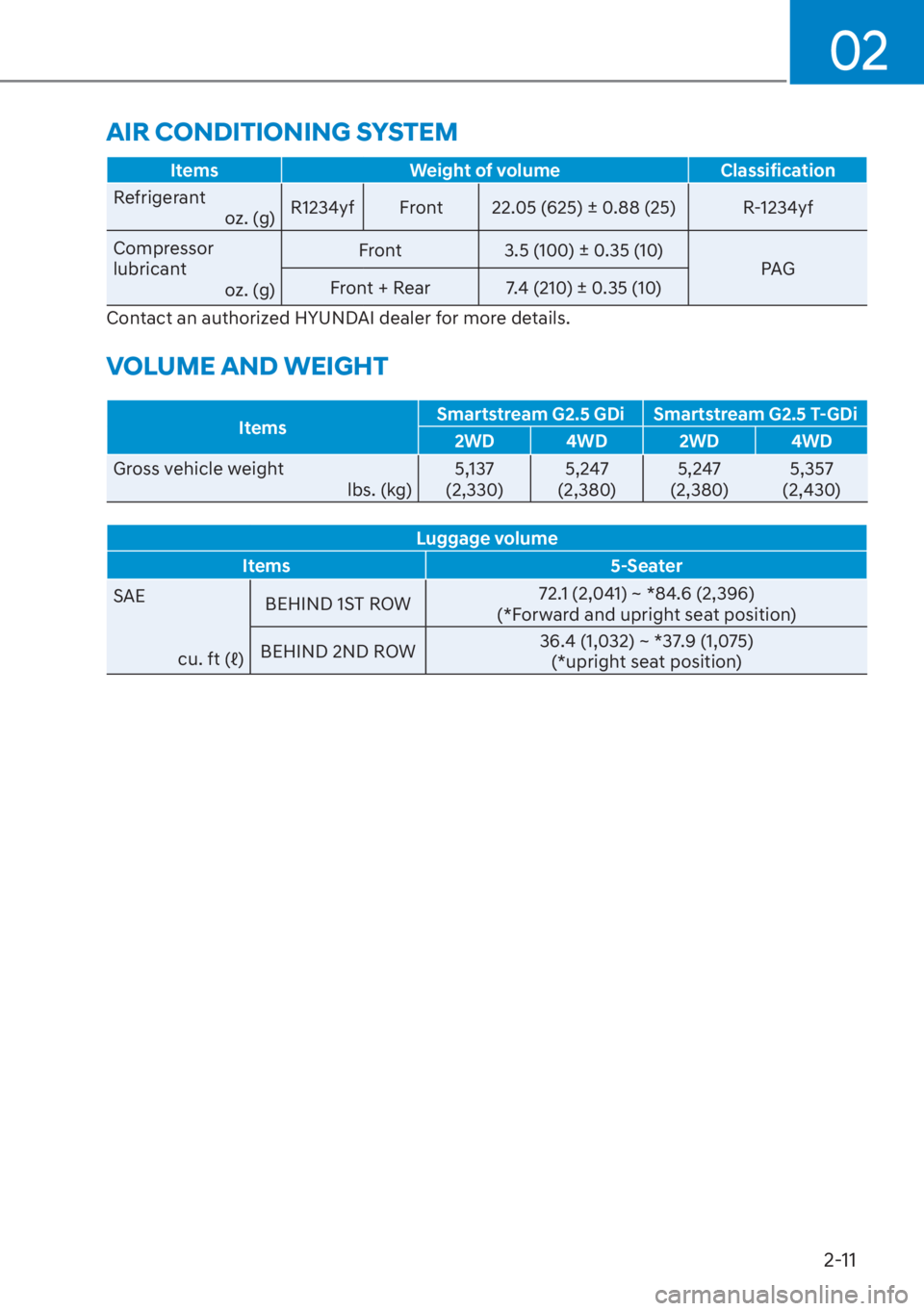

ItemsWeight of volume Classification
Refrigerant o
 z. (g)R1234yf Front 22.05 (625) ± 0.88 (25) R-1234yf
Compressor
lubricant oz. (g) Front
3.5 (100) ± 0.35 (10)
PAG
Front + Rear 7.4 (210)
