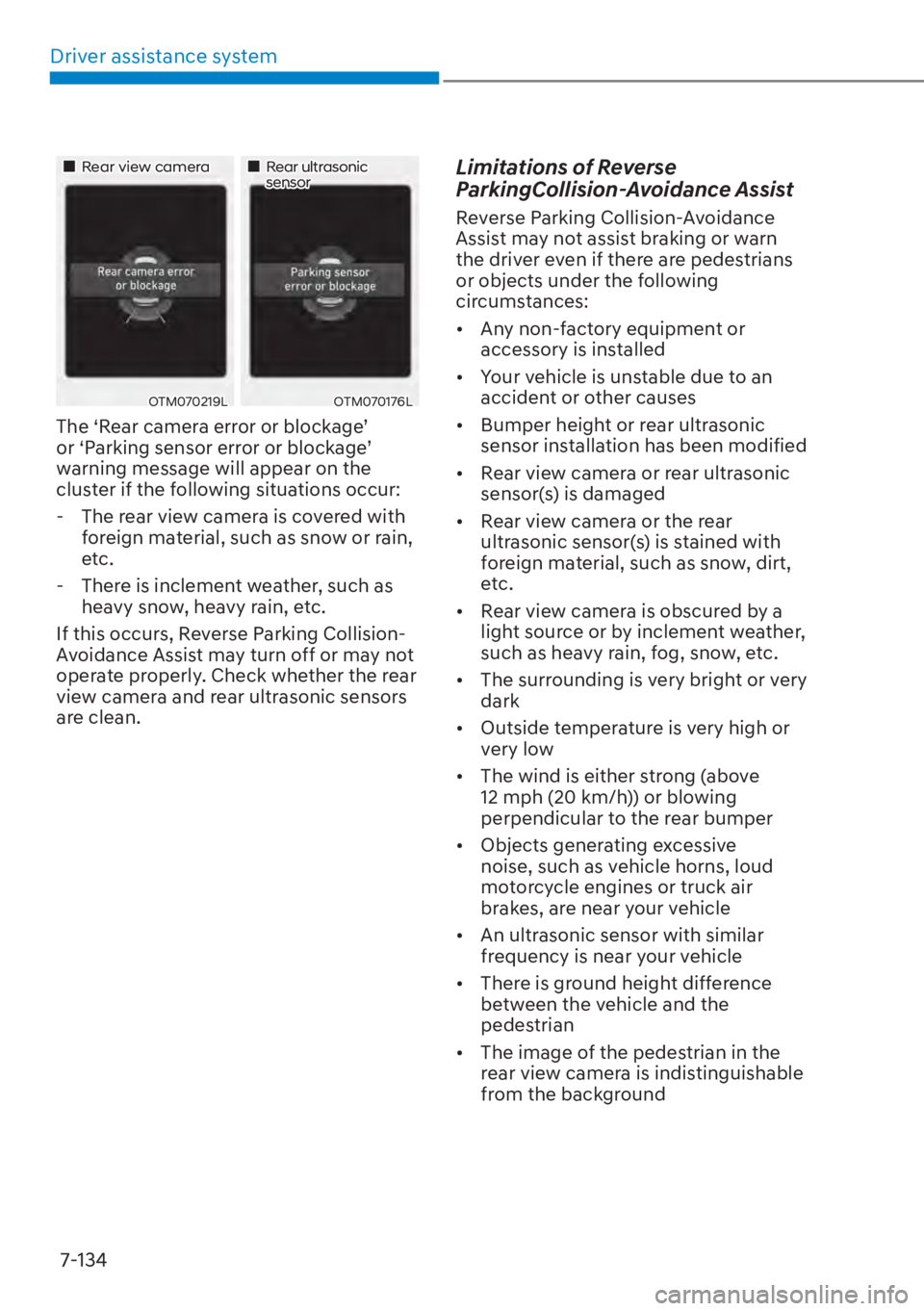

2023 HYUNDAI SANTA FE HYBRID sensor

Driver assistance system7-134
„Rear view camera „Rear ultrasonic sensor
OTM070219LOTM070176L
7KH
S5HDUFDPHUDHUURURUEORFNDJH
T
RU
S3DUNLQJVHQVRUHUURURUEORFNDJH
T
warning message will appear on the
cluster if the following situations occur:
- The rear view camera is covered with foreign material, such as snow or rain,
etc.
- There is inclement weather, such as heavy snow, heavy rain, etc.
If this occurs, Reverse Parking Collision-
Avoidance Assist may turn off or may not
operate properly. Check whether the rear
view camera and rear ultrasonic sensors
are clean.
Limitations of Reverse
ParkingCollision-Avoidance Assist
Reverse Parking Collision-Avoidance
Assist may not assist braking or warn
the driver even if there are pedestrians
or objects under the following
circumstances:

[ Any non-factory equipment or
accessory is installed

[ Your vehicle is unstable due to an
accident or other causes

[ Bumper height or rear ultrasonic
sensor installation has been modified

[ Rear view camera or rear ultrasonic
sensor(s) is damaged

[ Rear view camera or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.

[ Rear view camera is obscured by a
light source or by inclement weather,
such as heavy rain, fog, snow, etc.

[ The surrounding is very bright or very
dark

[ Outside temperature is very high or
very low

[ The wind is either strong (above
12 mph (20 km/h)) or blowing
perpendicular to the rear bumper

[ Objects generating excessive
noise, such as vehicle horns, loud
motorcycle engines or truck air
brakes, are near your vehicle

[ An ultrasonic sensor with similar
frequency is near your vehicle

[ There is ground height difference
between the vehicle and the
pedestrian

[ The image of the pedestrian in the
rear view camera is indistinguishable
from the background

07
7-135

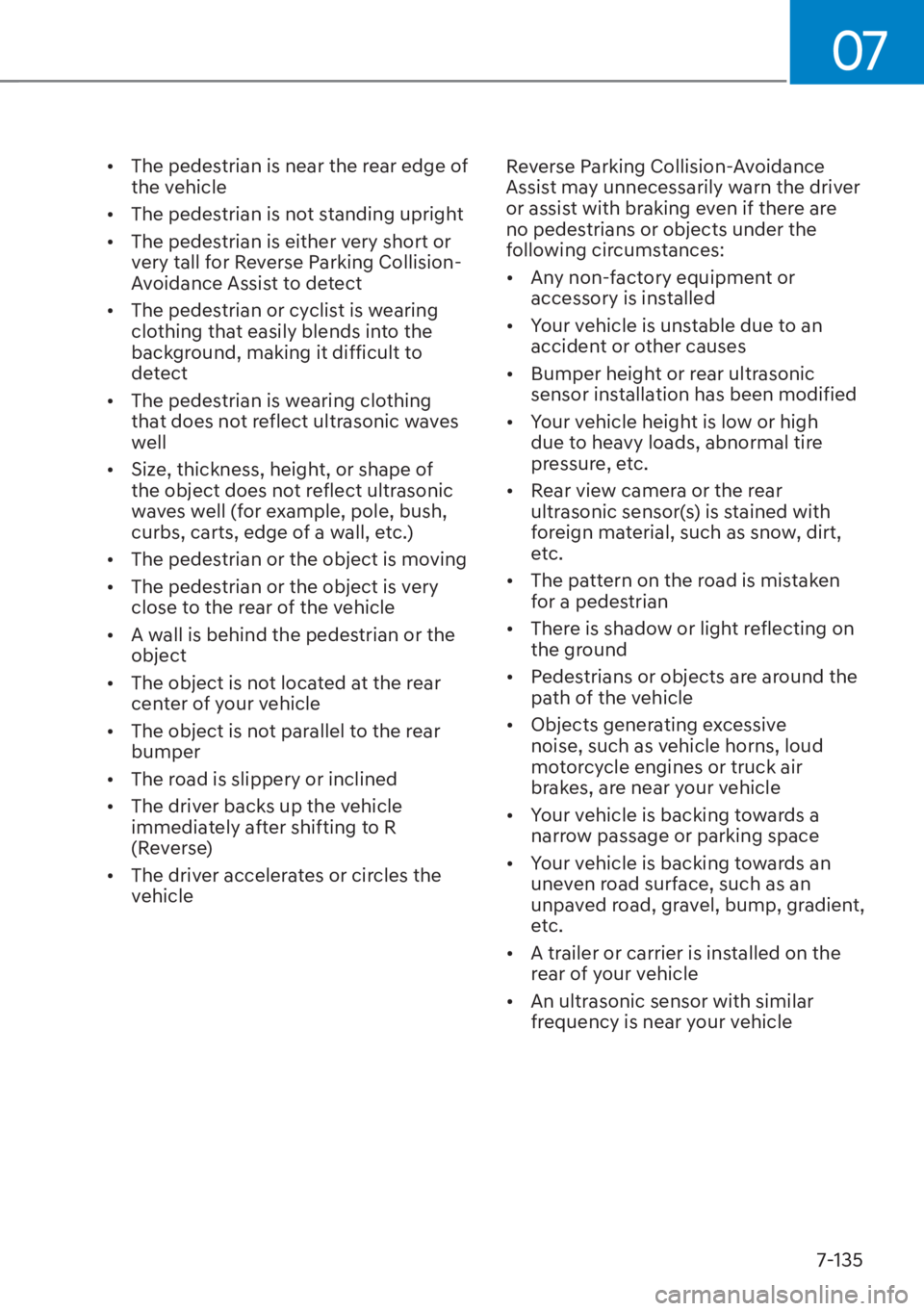

[The pedestrian is near the rear edge of
the vehicle

[ The pedestrian is not standing upright

[ The pedestrian is either very short or
very tall for Reverse Parking Collision-
Avoidance Assist to detect

[ The pedestrian or cyclist is wearing
clothing that easily blends into the
background, making it difficult to
detect

[ The pedestrian is wearing clothing
that does not reflect ultrasonic waves
well

[ Size, thickness, height, or shape of
the object does not reflect ultrasonic
waves well (for example, pole, bush,
curbs, carts, edge of a wall, etc.)

[ The pedestrian or the object is moving

[ The pedestrian or the object is very
close to the rear of the vehicle

[ A wall is behind the pedestrian or the
object

[ The object is not located at the rear
center of your vehicle

[ The object is not parallel to the rear
bumper

[ The road is slippery or inclined

[ The driver backs up the vehicle
immediately after shifting to R
(Reverse)

[ The driver accelerates or circles the
vehicle Reverse Parking Collision-Avoidance
Assist may unnecessarily warn the driver
or assist with braking even if there are
no pedestrians or objects under the
following circumstances:

[
Any non-factory equipment or
accessory is installed

[ Your vehicle is unstable due to an
accident or other causes

[ Bumper height or rear ultrasonic
sensor installation has been modified

[ Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[ Rear view camera or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.

[ The pattern on the road is mistaken
for a pedestrian

[ There is shadow or light reflecting on
the ground

[ Pedestrians or objects are around the
path of the vehicle

[ Objects generating excessive
noise, such as vehicle horns, loud
motorcycle engines or truck air
brakes, are near your vehicle

[ Your vehicle is backing towards a
narrow passage or parking space

[ Your vehicle is backing towards an
uneven road surface, such as an
unpaved road, gravel, bump, gradient,
etc.

[ A trailer or carrier is installed on the
rear of your vehicle

[ An ultrasonic sensor with similar
frequency is near your vehicle

Driver assistance system7-136

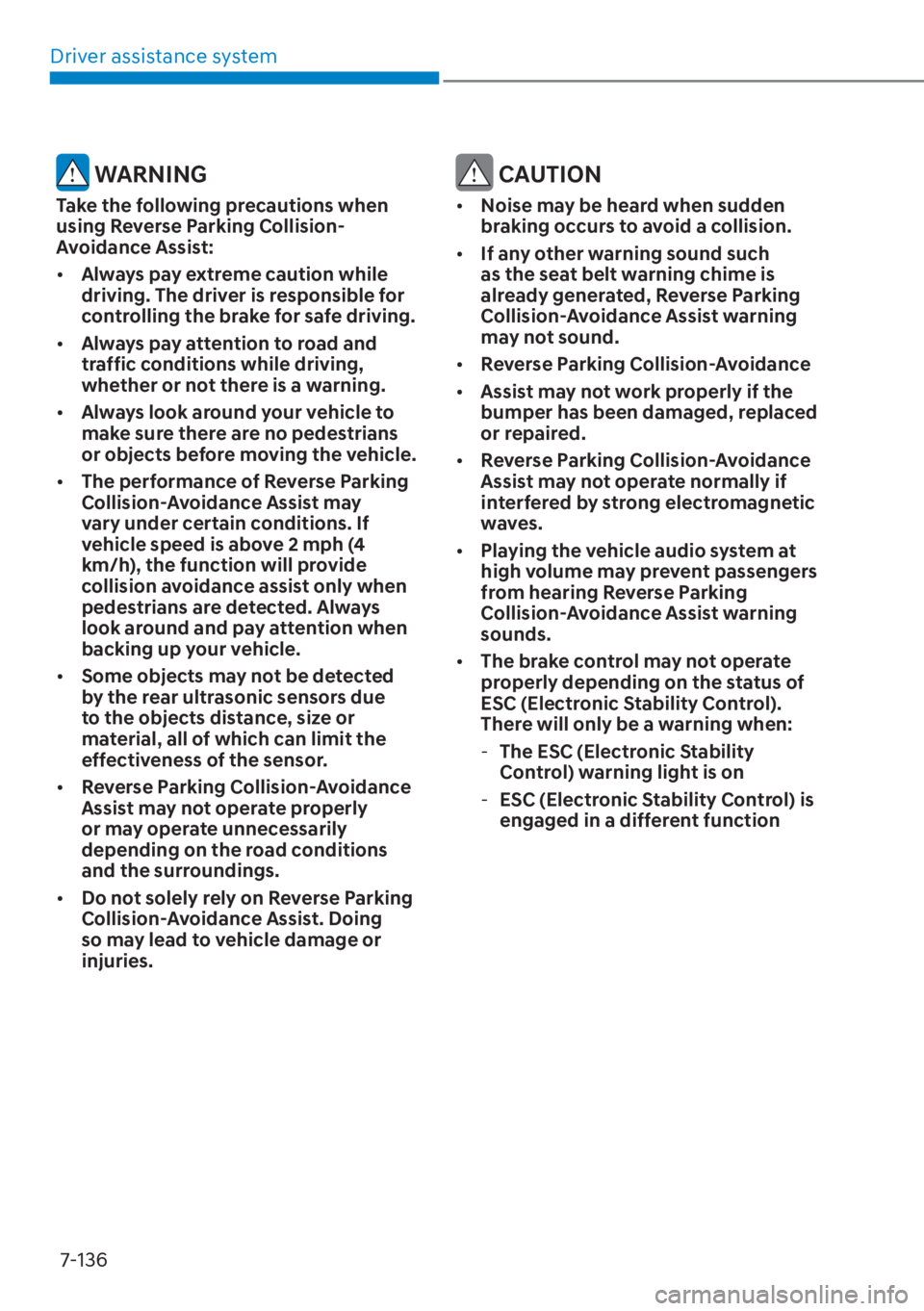

WARNING
Take the following precautions when
using Reverse Parking Collision-
Avoidance Assist:

[ Always pay extreme caution while
driving. The driver is responsible for
controlling the brake for safe driving.

[ Always pay attention to road and
traffic conditions while driving,
whether or not there is a warning.

[ Always look around your vehicle to
make sure there are no pedestrians
or objects before moving the vehicle.

[ The performance of Reverse Parking
Collision-Avoidance Assist may
vary under certain conditions. If
vehicle speed is above 2 mph (4
km/h), the function will provide
collision avoidance assist only when
pedestrians are detected. Always
look around and pay attention when
backing up your vehicle.

[ Some objects may not be detected
by the rear ultrasonic sensors due
to the objects distance, size or
material, all of which can limit the
effectiveness of the sensor.

[ Reverse Parking Collision-Avoidance
Assist may not operate properly
or may operate unnecessarily
depending on the road conditions
and the surroundings.

[ Do not solely rely on Reverse Parking
Collision-Avoidance Assist. Doing
so may lead to vehicle damage or
injuries.
CAUTION

[Noise may be heard when sudden
braking occurs to avoid a collision.

[ If any other warning sound such
as the seat belt warning chime is
already generated, Reverse Parking
Collision-Avoidance Assist warning
may not sound.

[ Reverse Parking Collision-Avoidance

[ Assist may not work properly if the
bumper has been damaged, replaced
or repaired.

[ Reverse Parking Collision-Avoidance
Assist may not operate normally if
interfered by strong electromagnetic
waves.

[ Playing the vehicle audio system at
high volume may prevent passengers
from hearing Reverse Parking
Collision-Avoidance Assist warning
sounds.

[ The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability
Control) warning light is on
- ESC (Electronic Stability Control) is
engaged in a different function

07
7-137

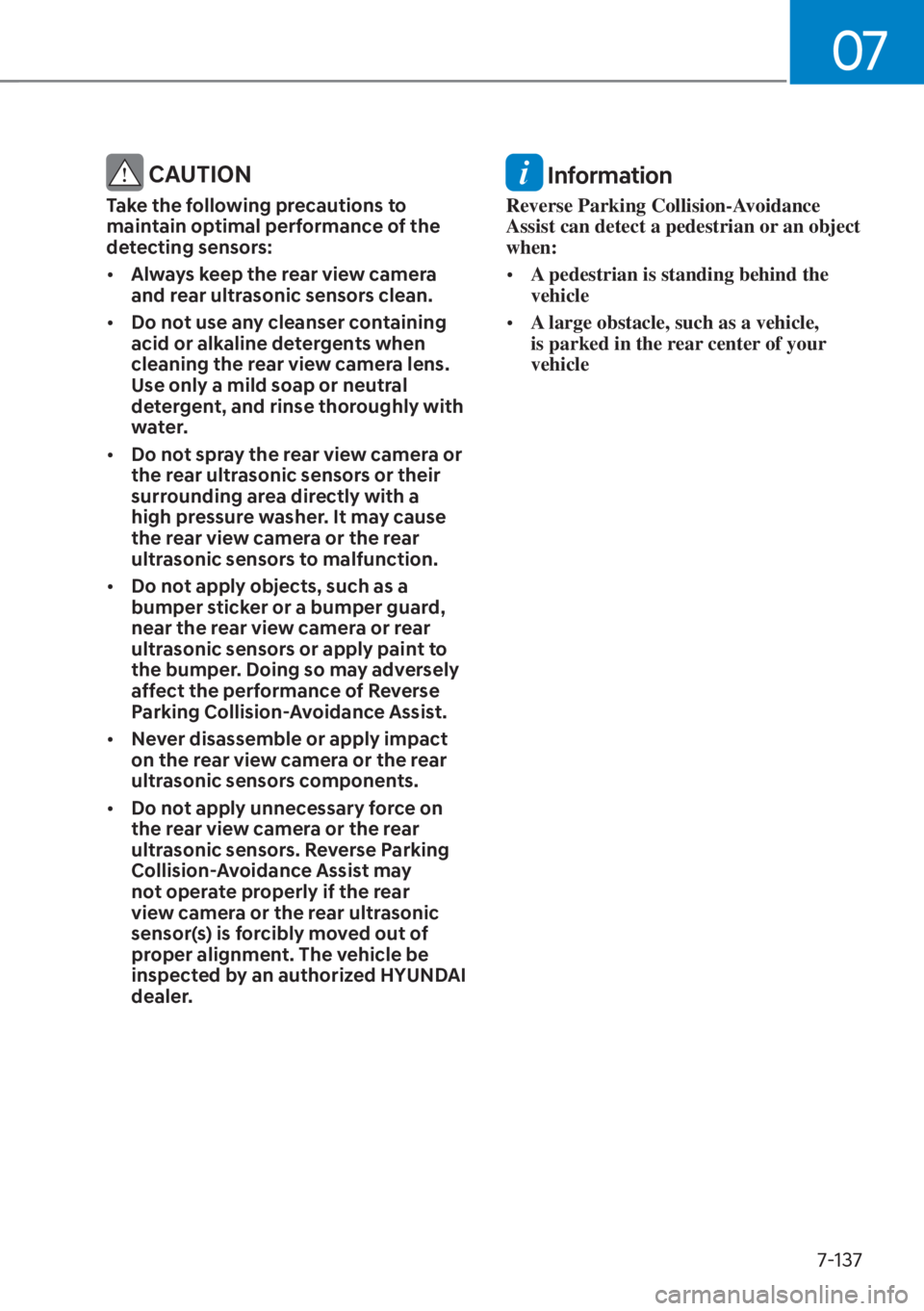

CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensors:

[Always keep the rear view camera
and rear ultrasonic sensors clean.

[ Do not use any cleanser containing
acid or alkaline detergents when
cleaning the rear view camera lens.
Use only a mild soap or neutral
detergent, and rinse thoroughly with
water.

[ Do not spray the rear view camera or
the rear ultrasonic sensors or their
surrounding area directly with a
high pressure washer. It may cause
the rear view camera or the rear
ultrasonic sensors to malfunction.

[ Do not apply objects, such as a
bumper sticker or a bumper guard,
near the rear view camera or rear
ultrasonic sensors or apply paint to
the bumper. Doing so may adversely
affect the performance of Reverse
Parking Collision-Avoidance Assist.

[ Never disassemble or apply impact
on the rear view camera or the rear
ultrasonic sensors components.

[ Do not apply unnecessary force on
the rear view camera or the rear
ultrasonic sensors. Reverse Parking
Collision-Avoidance Assist may
not operate properly if the rear
view camera or the rear ultrasonic
sensor(s) is forcibly moved out of
proper alignment. The vehicle be
inspected by an authorized HYUNDAI
dealer.
Information
Reverse Parking Collision-Avoidance
Assist can detect a pedestrian or an object
when:

[A pedestrian is standing behind the
vehicle

[ A large obstacle, such as a vehicle,
is parked in the rear center of your
vehicle

Driver assistance system7-138

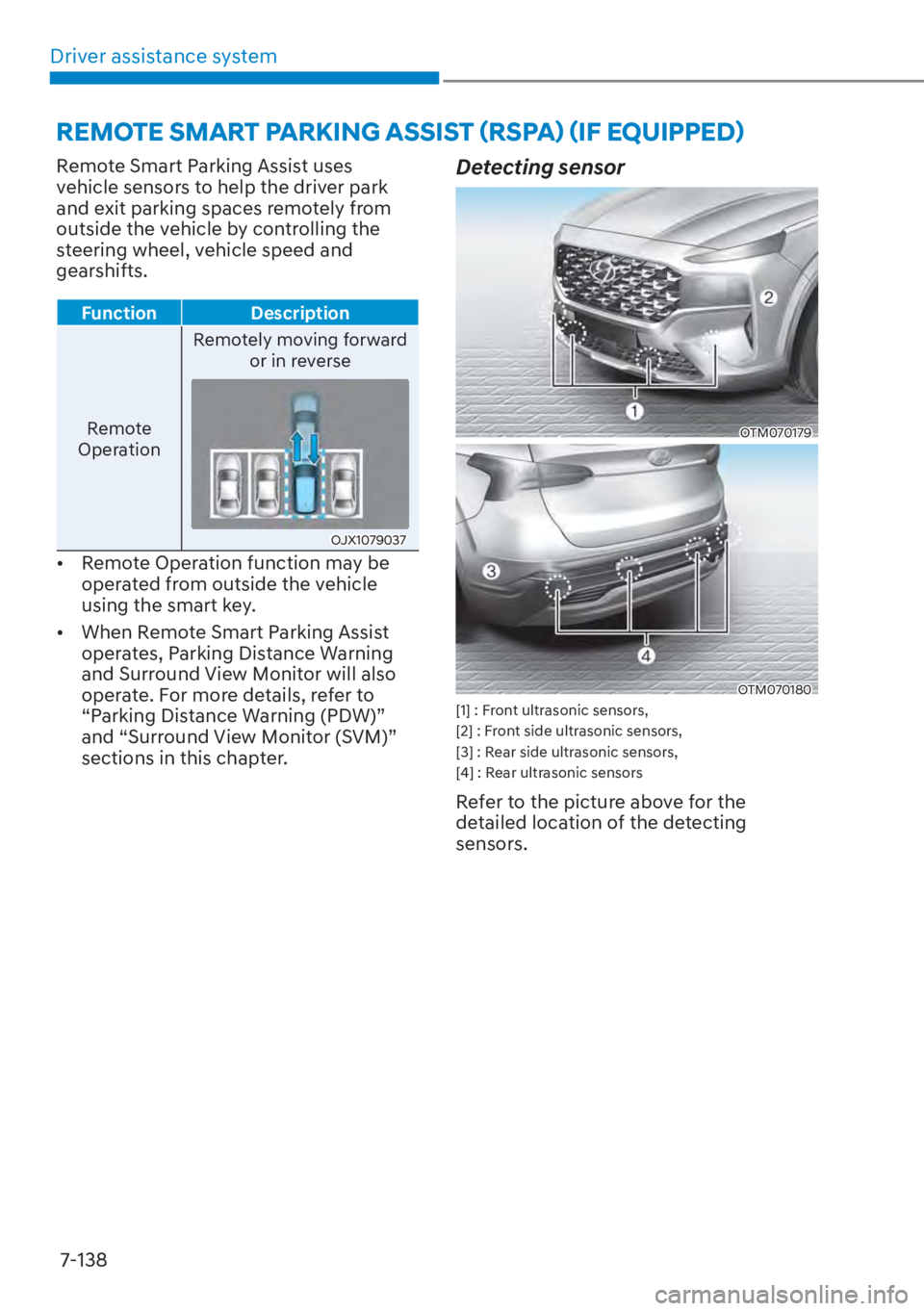

Remote Smart Parking Assist uses
vehicle sensors to help the driver park
and exit parking spaces remotely from
outside the vehicle by controlling the
steering wheel, vehicle speed and
gearshifts.
Function DescriptionRemote
Oper
ation Remotely moving forward
or in reverse
OJX1079037

[Remote Operation function may be
operated from outside the vehicle
using the smart key.

[ When Remote Smart Parking Assist
operates, Parking Distance Warning
and Surround View Monitor will also
operate. For more details, refer to
“Parking Distance Warning (PDW)”
and “Surround View Monitor (SVM)”
sections in this chapter.
Detecting sensor
OTM070179
OTM070180[1] : Front ultrasonic sensors,
[2] : Front side ultrasonic sensors,
[3] : Rear side ultrasonic sensors,
[4] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
5(027(60$573$5.,1*$66,67

07
7-139

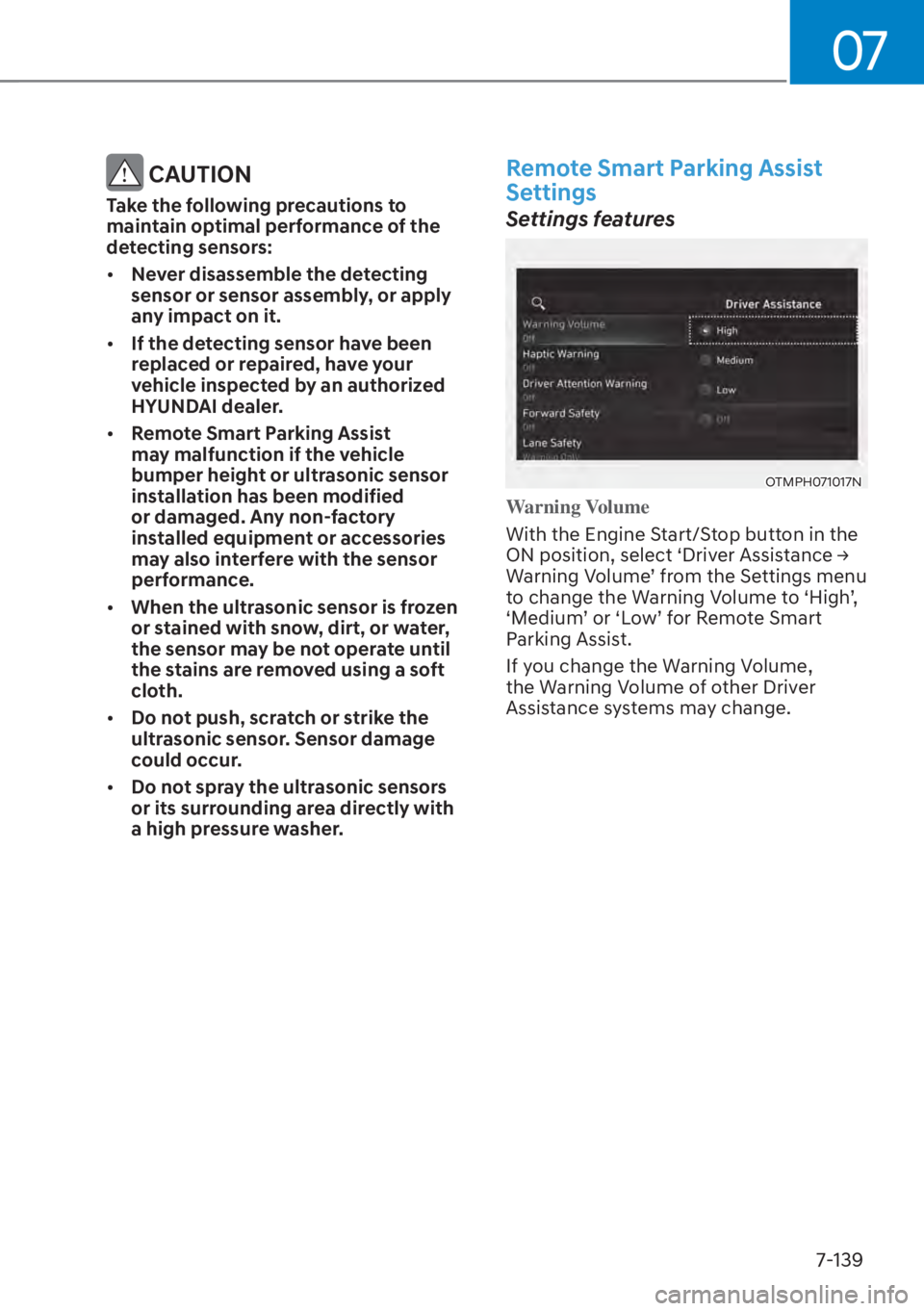

CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensors:

[Never disassemble the detecting
sensor or sensor assembly, or apply
any impact on it.

[ If the detecting sensor have been
replaced or repaired, have your
vehicle inspected by an authorized
HYUNDAI dealer.

[ Remote Smart Parking Assist
may malfunction if the vehicle
bumper height or ultrasonic sensor
installation has been modified
or damaged. Any non-factory
installed equipment or accessories
may also interfere with the sensor
performance.

[ When the ultrasonic sensor is frozen
or stained with snow, dirt, or water,
the sensor may be not operate until
the stains are removed using a soft
cloth.

[ Do not push, scratch or strike the
ultrasonic sensor. Sensor damage
could occur.

[ Do not spray the ultrasonic sensors
or its surrounding area directly with
a high pressure washer.
Remote Smart Parking Assist
Settings
Settings features
OTMPH071017N
Warning Volume
With the Engine Start/Stop button in the
21SRVLWLRQVHOHFW
S'ULY

HU$VVLVWDQFH

07
7-147

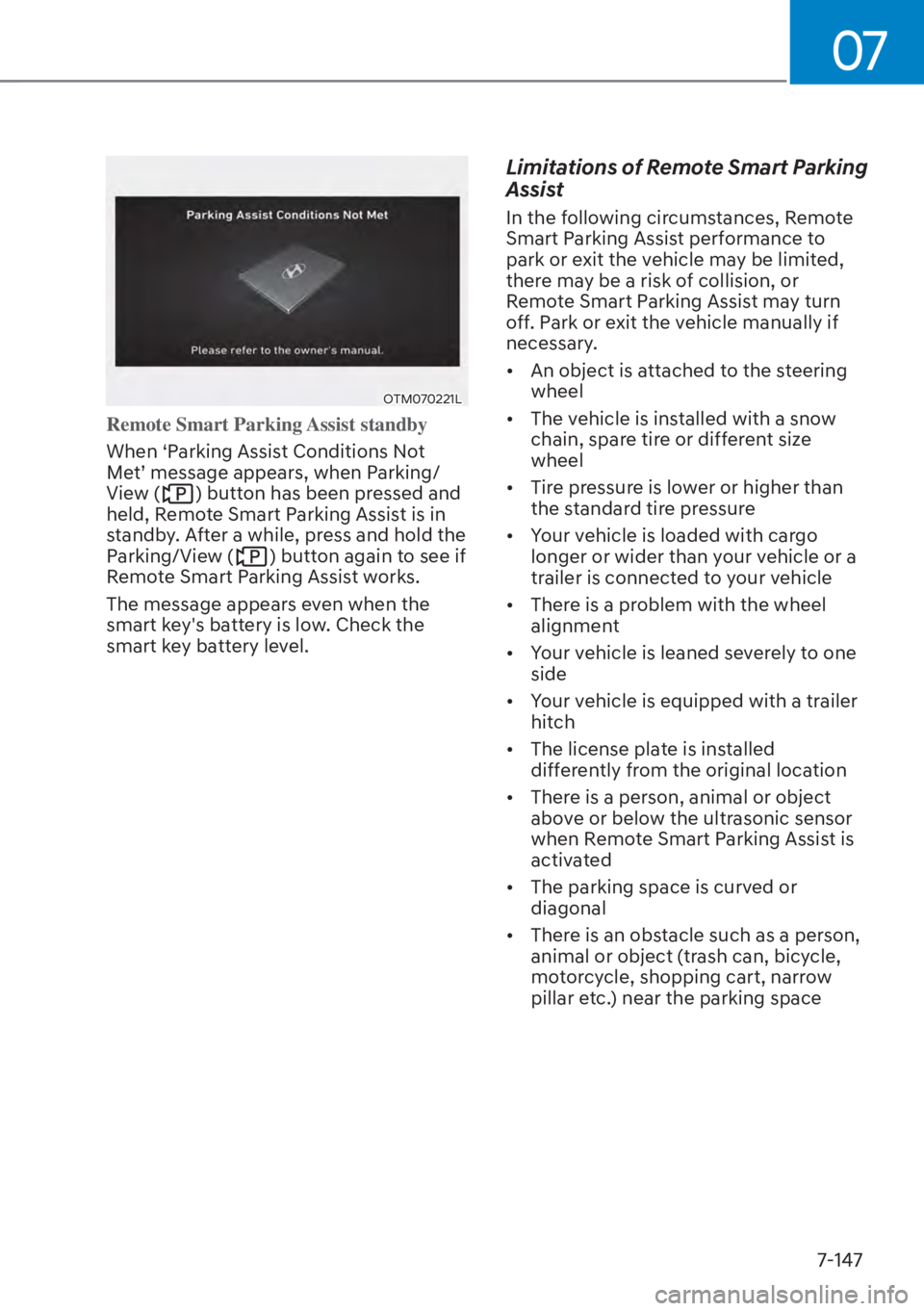

OTM070221L
Remote Smart Parking Assist standby
When ‘Parking Assist Conditions Not
0
HW
TPHVVDJHDSSHDUVZKHQ3DUNLQJ
View (
) button has been pressed and
held, Remote Smart Parking Assist is in
standby. After a while, press and hold the
Parking/View (
) button again to see if
Remote Smart Parking Assist works.
The message appears even when the
smart key's battery is low. Check the
smart key battery level.
Limitations of Remote Smart Parking
Assist
In the following circumstances, Remote
Smart Parking Assist performance to
park or exit the vehicle may be limited,
there may be a risk of collision, or
Remote Smart Parking Assist may turn
off. Park or exit the vehicle manually if
necessary.

[ An object is attached to the steering
wheel

[ The vehicle is installed with a snow
chain, spare tire or different size
wheel

[ Tire pressure is lower or higher than
the standard tire pressure

[ Your vehicle is loaded with cargo
longer or wider than your vehicle or a
trailer is connected to your vehicle

[ There is a problem with the wheel
alignment

[ Your vehicle is leaned severely to one
side

[ Your vehicle is equipped with a trailer
hitch

[ The license plate is installed
differently from the original location

[ There is a person, animal or object
above or below the ultrasonic sensor
when Remote Smart Parking Assist is
activated

[ The parking space is curved or
diagonal

[ There is an obstacle such as a person,
animal or object (trash can, bicycle,
motorcycle, shopping cart, narrow
pillar etc.) near the parking space

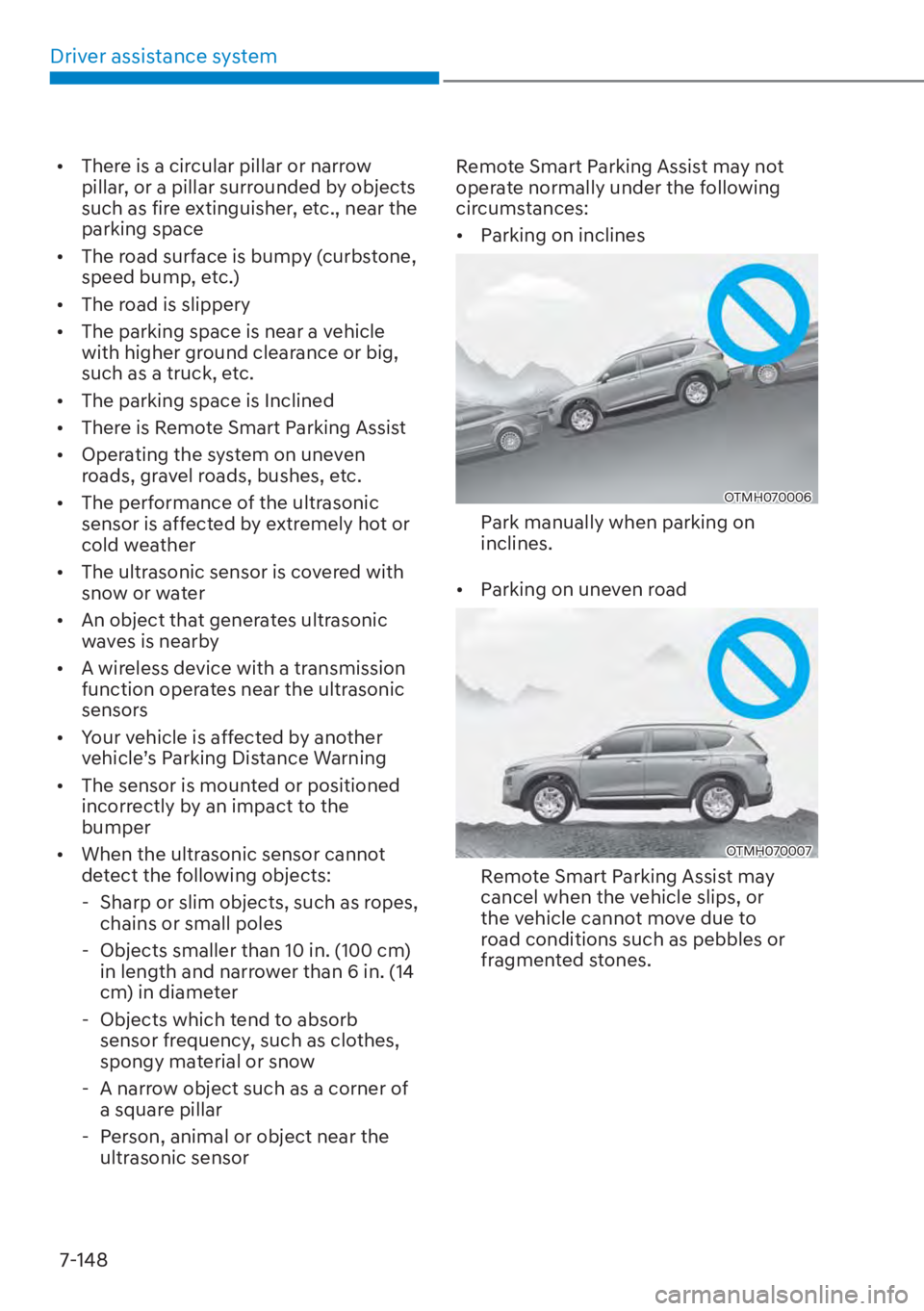

Driver assistance system7-148

[ There is a circular pillar or narrow
pillar, or a pillar surrounded by objects
such as fire extinguisher, etc., near the
parking space

[ The road surface is bumpy (curbstone,
speed bump, etc.)

[ The road is slippery

[ The parking space is near a vehicle
with higher ground clearance or big,
such as a truck, etc.

[ The parking space is Inclined

[ There is Remote Smart Parking Assist

[ Operating the system on uneven
roads, gravel roads, bushes, etc.

[ The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather

[ The ultrasonic sensor is covered with
snow or water

[ An object that generates ultrasonic
waves is nearby

[ A wireless device with a transmission
function operates near the ultrasonic
sensors

[ Your vehicle is affected by another
YHKLFOH
TV3DUNLQJ'LVWDQFH:DUQLQJ

[ The sensor is mounted or positioned
incorrectly by an impact to the
bumper

[ When the ultrasonic sensor cannot
detect the following objects:

- Sharp or slim objects, such as ropes,
chains or small poles
- Objects smaller than 10 in. (100 cm) in length and narrower than 6 in. (14
cm) in diameter
- Objects which tend to absorb sensor frequency, such as clothes,
spongy material or snow
- A narrow object such as a corner of a square pillar
- Person, animal or object near the ultrasonic sensor Remote Smart Parking Assist may not
operate normally under the following
circumstances:

[
Parking on inclines
OTMH070006
Park manually when parking on
inclines.

[ Parking on uneven road
OTMH070007
Remote Smart Parking Assist may
cancel when the vehicle slips, or
the vehicle cannot move due to
road conditions such as pebbles or
fragmented stones.
