2023 HYUNDAI PALISADE climate control

Convenience Features5-148
When the Auto Defogging
System operates, the indicator
will illuminate.
If a high amount of humidity is detected
in the vehicle, the Auto Defogging
System will be enabled. The following
steps will be performed automatically:
Step 1) The A/C button will turn ON and the air intake or icon control will
change to Fresh mode.
Step 2) The mode will be changed to defrost to direct airflow to the
windshield.
Step 3) The fan speed will be rising up to level 3.
If the air conditioning is off or
recirculated air position is manually
selected while Auto Defogging System is
ON, the Auto Defogging System Indicator
will blink 3 times to signal that the
manual operation has been canceled.To cancel or reset the Auto Defogging
System
Press the front windshield defroster
butt
on for 3 seconds when the ignition
switch is in the ON position. When the
Auto Defogging System is canceled, the
ADS OFF symbol will blink 3 times and
ADS OFF will be displayed on the climate
control information screen.
When the Auto Defogging System is
reset, the ADS OFF symbol will blink 6
times without a signal.
Information
To maintain the effectiveness and
efficiency of the Auto Defogging System,
do not select Recirculation mode while the
system is operating.
NOTICE
Do not remove the sensor cover located
on the upper end of the windshield
glass.
Damage to system parts could occur
and may not be covered by your vehicle
warranty.

05
5-151

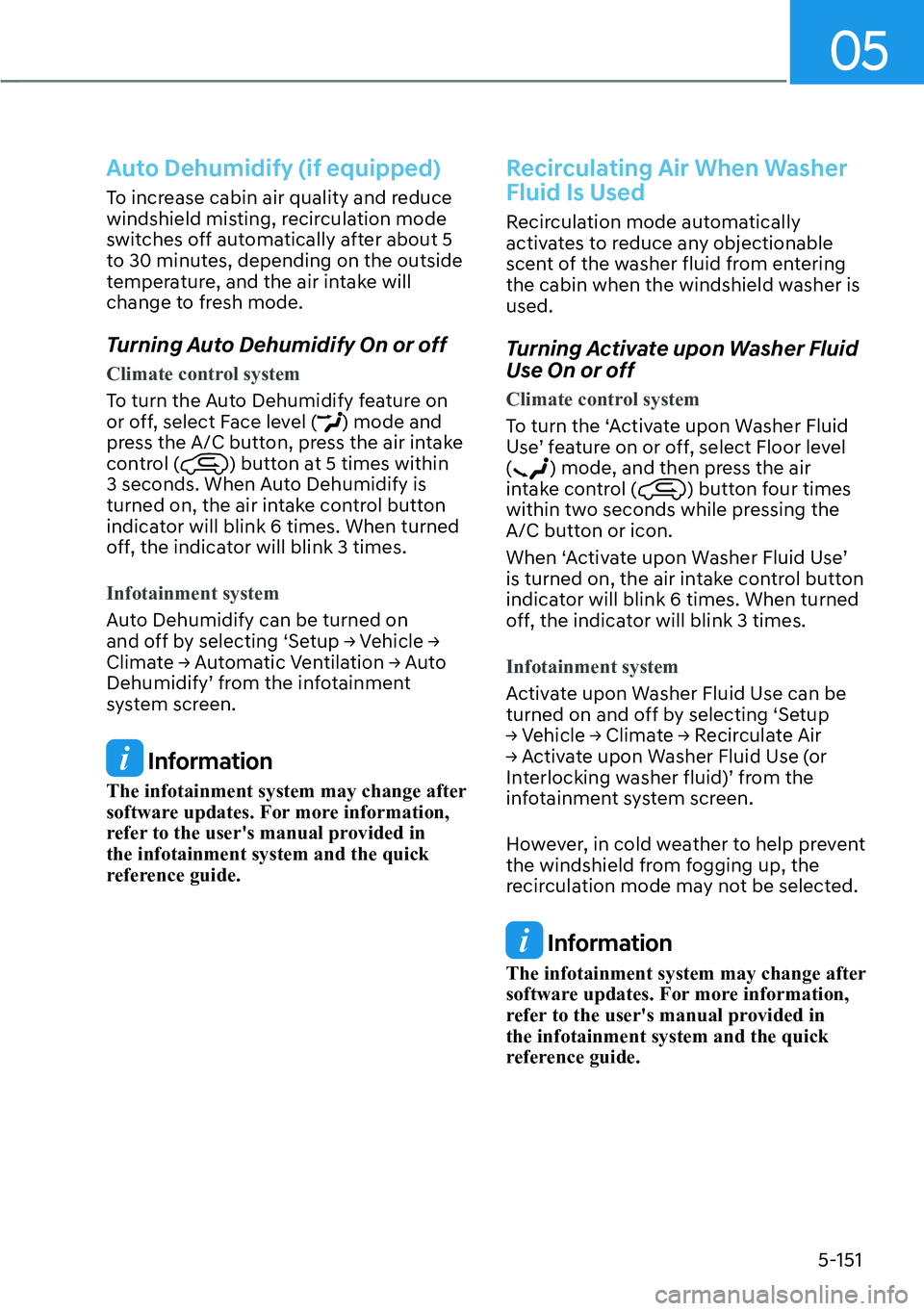

Auto Dehumidify (if equipped)
To increase cabin air quality and reduce
windshield misting, recirculation mode
switches off automatically after about 5
to 30 minutes, depending on the outside
temperature, and the air intake will
change to fresh mode.
Turning Auto Dehumidify On or off
Climate control system
To turn the Auto Dehumidify feature on
or o
ff, select Face level () mode and
press the A/C button, press the air intake
control (
) button at 5 times within
3 seconds. When Auto Dehumidify is
turned on, the air intake control button
indicator will blink 6 times. When turned
off, the indicator will blink 3 times.
Infotainment system
Auto Dehumidify can be turned on
DQGR
IIE\VHOHFWLQJ
S6HWXS

06
6-27
Power-Assist Brakes
Your vehicle has power-assisted brakes
that adjust automatically through normal
usage.
If the engine is not running or is turned
off while driving, the power assist for
the brakes will not work. You can still
stop your vehicle by applying greater
force to the brake pedal than typical.
The stopping distance, however, will be
longer than with power brakes.
When the engine is not running, the
reserve brake power is partially depleted
each time the brake pedal is applied.
Do not pump the brake pedal when the
power assist has been interrupted.
WARNING
Take the following precautions:

[Do not drive with your foot resting
on the brake pedal. This will create
abnormal high brake temperatures,
excessive brake lining and pad wear,
and increased stopping distances.

[ When descending down a long or
steep hill, use the paddle shifter
and manually downshift to a
lower gear in order to control your
speed without using the brake
pedal excessively. Applying the
brakes continuously will cause
the brakes to overheat and could
result in a temporary loss of braking
performance.

[Wet brakes may impair the vehicle's
ability to safely slow down; the
vehicle may also pull to one side
when the brakes are applied.
Applying the brakes lightly will
indicate whether they have been
affected in this way. Always test your
brakes in this fashion after driving
through deep water. To dry the
brakes, lightly tap the brake pedal to
heat up the brakes while maintaining
a safe forward speed until brake
performance returns to normal.
Avoid driving at high speeds until the
brakes function correctly.
Disc Brakes Wear Indicator
When your brake pads are worn and new
pads are required, you will hear a high
pitched warning sound from your front
or rear brakes. You may hear this sound
come and go or it may occur whenever
you depress the brake pedal.
Note that some driving conditions or
climates may cause a brake squeal
when you first apply (or lightly apply)
the brakes. This is normal and does not
indicate a problem with your brakes.
NOTICE
To avoid costly brake repairs, do not
continue to drive with worn brake pads.
Information
Always replace brake pads as complete
front or rear axle sets.
BRAKING SYSTEM

Driving Your Vehicle6-52
Idle Stop and Go helps reduce fuel
consumption by automatically shutting
down the engine, when the vehicle is
at a standstill (for example, red stop
light, stop sign, and traffic jam) subject
to certain prerequisite conditions being
satisfied as listed below.
The engine is automatically started upon
satisfying the starting conditions.
ISG system is always active, when the
engine is running.
Information
When the engine is automatically started
by ISG system, warning lights (for
example, ABS, ESC, ESC OFF, MDPS,
and parking brake warning light) may
illuminate for a few seconds due to low
battery voltage.
However, it does not indicate a
malfunction with ISG system.
ISG System Operation
Prerequisite for activation
ISG system operates in the following
situations.

[ The driver's seatbelt is fastened

[ The driver's door and hood are closed

[ The brake vacuum pressure is
adequate

[ The battery sensor is activated and
the battery is sufficiently charged

[ Outside temperature is not too low or
too high

[ The vehicle is driven over a constant
speed and stops

[ The climate control system satisfies
the conditions
[
The vehicle is sufficiently warmed up

[ ISG related parts are working properly

[ The incline is gradual

[ The steering wheel is turned less than
180 degrees and then the vehicle
stops
Information
ISG system is not activated, when the
prerequisites to activate the ISG system
are unsatisfied.
Auto stop
When ISG is on the engine will be
stopped automatically when both of the
following occurs:
1. Vehicle speed decreases to 0 mph
(0 km/h) full stop condition.
2. Brake pedal is depressed and gear is in D (Drive) or N (Neutral).
The Auto Stop (
) indicator illuminates
in green on the instrument cluster, when
the engine stops.
Information
Idle stop cannot reoccur again until the
vehicle speed goes above 3 mph (5 km/h)
and then returns again to the automatic
stop conditions as previously mentioned.
,'/(6723$1'*2

06
6-55
Forced to Restart Engine
The engine is automatically restarted in
the following situations.

[The brake vacuum pressure is low

[ The engine has stopped for about 5
minutes

[ The air conditioning is ON with the fan
speed set to a certain high level

[ The front defroster is ON

[ The battery is weak

[ The cooling and heating performance
of the climate control system is
unsatisfactory

[ The vehicle is shifted to P (Park) or R
(Reverse)

[ The door is opened or the seatbelt is
unfastened

[ The EPB switch is pressed when Auto
Hold is activated
The Auto Stop (
) indicator blinks in
green for 5 seconds on the instrument
cluster when the engine is restarted.
WARNING
When the engine is in Idle Stop mode,
the engine may restart without the
driver taking any action. Before leaving
the vehicle or working on the engine
compartment, turn off the engine by
placing the ignition switch to the LOCK/
OFF position.
ISG Malfunction
ISG system may not operate when there
is a malfunction with the ISG sensors or
ISG system.
The following will occur, when there is a
malfunction with the ISG system:

[ The Auto Stop (
) indicator will
illuminate in yellow on the instrument
cluster.

[ The light on the ISG OFF button will
illuminate.
Contact an authorized HYUNDAI dealer.
Calibrating the Battery Sensor
If the AGM battery is reconnected or
replaced, ISG system will not operate
immediately. If you want to use the
system, the battery sensor needs to
be calibrated following the below
procedure.
B0288KO01
A: Battery sensor
1. Turn off the engine.
2. Disconnect all electronic devices that were additionally installed after
the vehicle was delivered, such as
navigation, dashcam, etc.
3. After 4 hours with the engine off, turn the engine on and off 3 to 4 times.

07
7-5
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[Never disassemble the detecting
sensor or sensor assembly, or cause
any damage to it.

[ If the detecting sensors have been
replaced or repaired, have the
vehicle inspected by an authorized
HYUNDAI dealer.

[ Never install any accessories or
stickers on the front windshield, or
tint the front windshield.

[ Exercise extreme caution to keep the
front view camera dry.

[ Never place any reflective objects
(for example, white paper, mirror)
over the dashboard.

[ Do not place any objects near the
front windshield or install any
accessories on the front windshield.
It can affect the performance of the
defogging and defrosting function
of the climate control system, which
may prevent the Driver Assistance
systems from operating.

[ Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard, near the
front radar cover.

[ Do not change the position of the
license plate. The front radar’s
detection and control performance
may be affected.

[ Always keep the front radar and
cover clean and free of dirt and
debris.
Use only a soft cloth to wash the
vehicle. Do not spray pressurized
water directly on the sensor or
sensor cover.
[
If the radar or around the radar has
been damaged or impacted in any
way, Forward Collision-Avoidance
Assist may not properly operate even
though a warning message does
not appear on the cluster. Have the
vehicle inspected by an authorized
HYUNDAI dealer.

[ Use only genuine HYUNDAI parts to
repair or replace a damaged front
radar cover. Do not apply paint to the
front radar cover.

[ Vehicles equipped with front corner
radar and/or rear corner radar
- Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard, near the
front corner radar or rear corner
radar.
- The function may not work
properly when the bumper has
been replaced, or the surroundings
of the front corner radar or rear
corner radar has been damaged or
paint has been applied.
- If a trailer, carrier, etc., is installed,
it may adversely affect the
performance of the rear corner
radar or Forward Collision-
Avoidance Assist may not operate
properly.

Maintenance9-22
WASHER FLUID
Checking the Washer Fluid Level
B0439KO01
Check the fluid level in the washer fluid
reservoir and add fluid if necessary. Plain
water may be used if washer fluid is not
available. However, use washer solvent
with antifreeze characteristics in cold
climates to prevent freezing.
WARNING
To prevent serious injury or death, take
the following safety precautions when
using washer fluid:

[ Do not use engine coolant or
antifreeze in the washer fluid
reservoir. Engine coolant can
severely obscure visibility when
sprayed on the windshield and
may cause loss of vehicle control
resulting in an accident or damage to
paint and body trim.

[ Do not allow sparks or flame to
contact the washer fluid or the
washer fluid reservoir. Washer fluid
may contain alcohol and can be
flammable.

[ Do not drink washer fluid and avoid
contact with skin. Washer fluid is
harmful to humans and animals.

[ Keep washer fluid away from
children and animals.

Maintenance9-30
NOTICE
AGM battery (if equipped)

[ Absorbent Glass Matt (AGM)
batteries are maintenance-free and
have the AGM battery be serviced
by an authorized HYUNDAI dealer.
For charging your AGM battery, use
only fully automatic battery chargers
that are specially developed for AGM
batteries.

[ When replacing the AGM battery,
have you use parts for replacement
from an authorized HYUNDAI dealer.

[ Do not open or remove the cap on
top of the battery. This may cause
leaks of internal electrolyte that
could result in severe injury.
By jump starting
After a jump start from a good battery,
drive the vehicle for 20-30 minutes
before it is shutoff. The vehicle may
not restart if you shut it off before the
battery had a chance to adequately
recharge. See “Jump Starting” in chapter
8 for more information on jump starting
procedures.
Information
An inappropriately disposed
battery can be harmful to the
environment and human health.
Dispose of the battery according
to your local law(s) or regulation.
Reset Items
The following items may need to be reset
after the battery has been discharged or
the battery has been disconnected.

[Driving info/Since refueling/
Accumulated info (see chapter 4)

[ Integrated memory system (see
chapter 5)

[ Power window (see chapter 5)

[ Sunroof (see chapter 5)

[ Climate control system (see chapter 5)

[ Clock (see Infotainment system
manual)
