2023 HYUNDAI PALISADE climate control

Convenience Features5-136

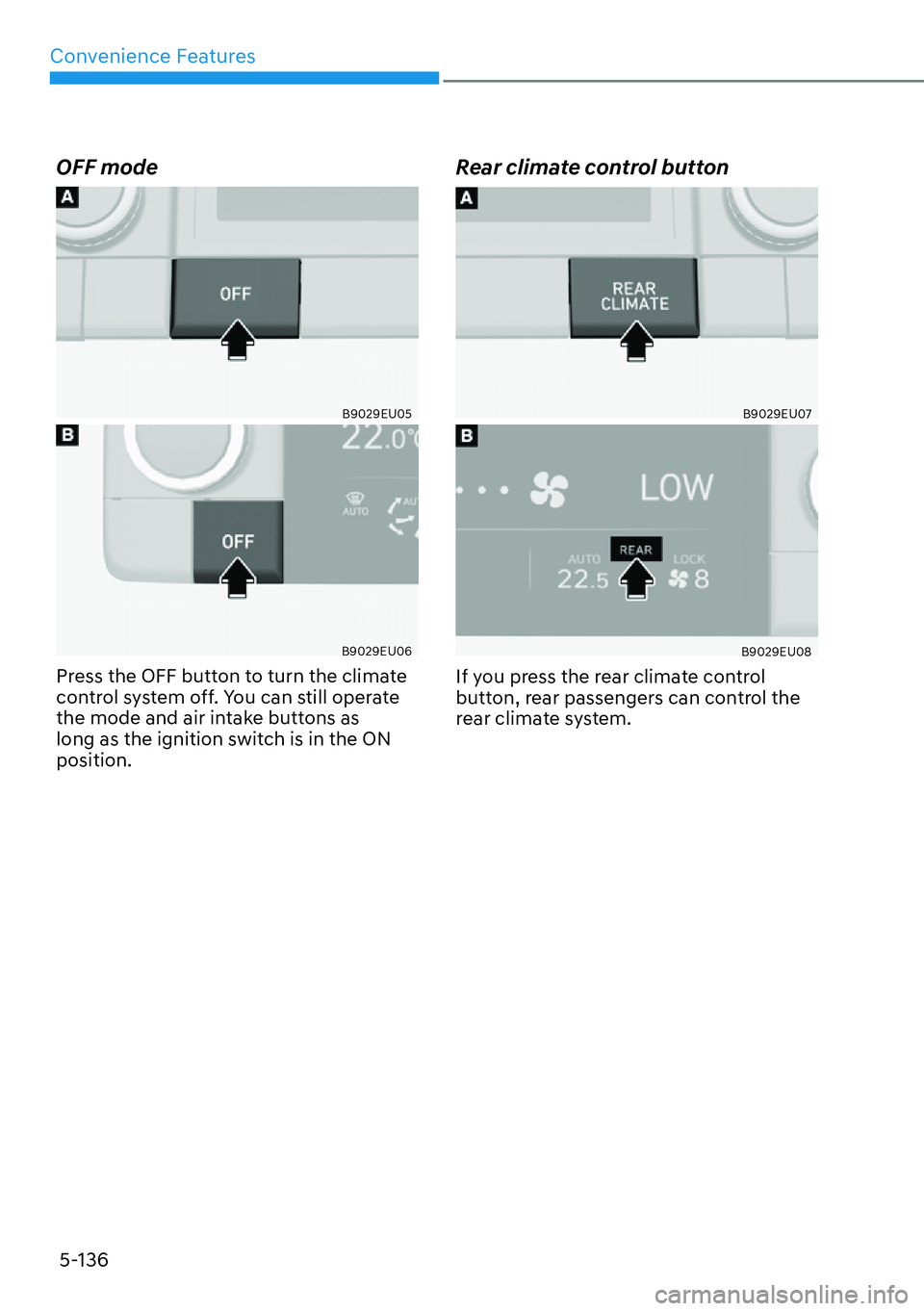

OFF mode
B9029EU05
B9029EU06
Press the OFF button to turn the climate
control system off. You can still operate
the mode and air intake buttons as
long as the ignition switch is in the ON
position.
Rear climate control button
B9029EU07
B9029EU08
If you press the rear climate control
button, rear passengers can control the
rear climate system.

05
5-137

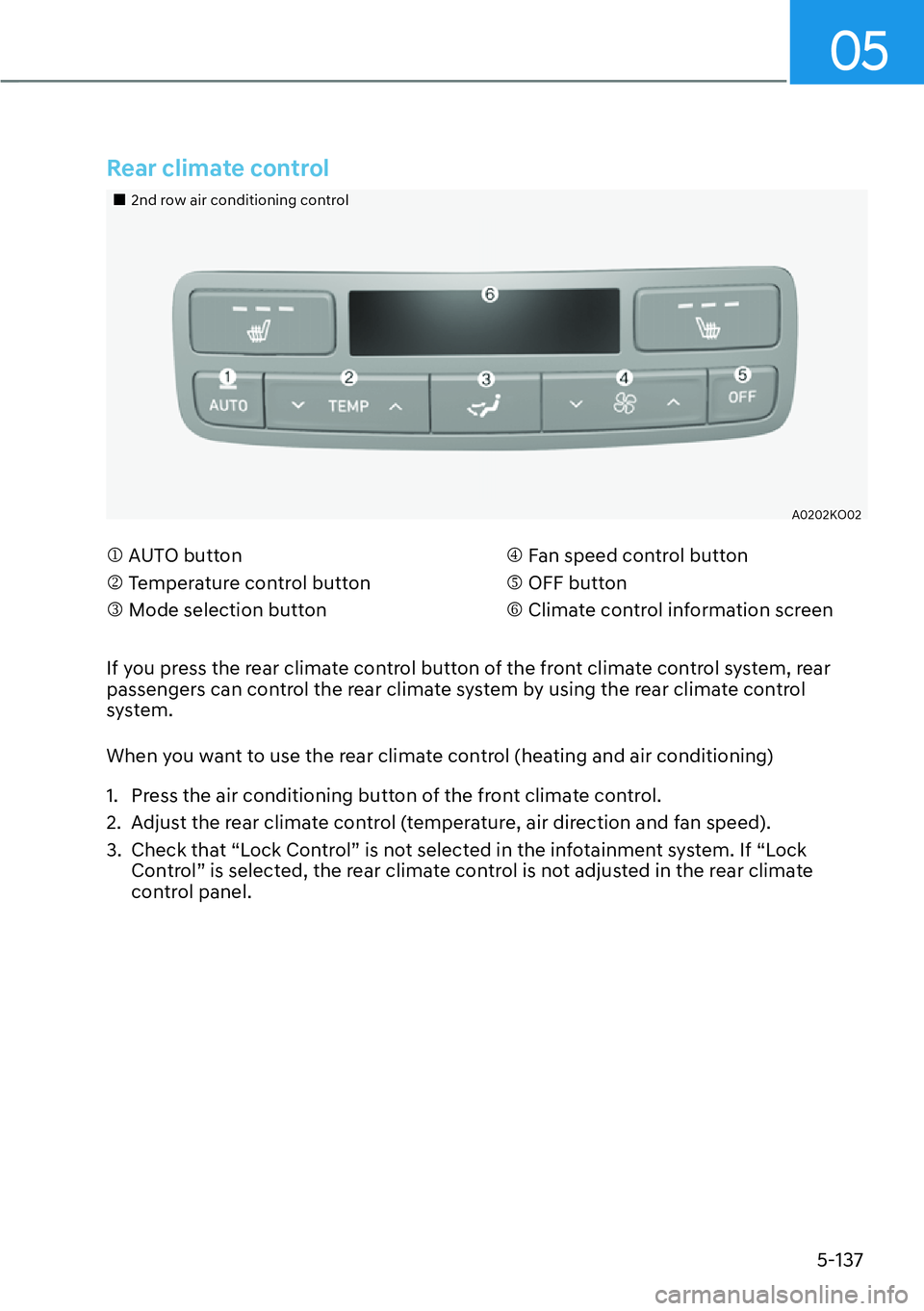

Rear climate control
„2nd row air conditioning control
A0202KO02
M AUTO button
N Temperature control button
O Mode selection buttonP Fan speed control button
Q OFF button
R Climate control information screen
If you press the rear climate control button of the front climate control system, rear
passengers can control the rear climate system by using the rear climate control
system.
When you want to use the rear climate control (heating and air conditioning)
1. Press the air conditioning button of the front climate control.
2. Adjust the rear climate control (temperature, air direction and fan speed).
3. Check that “Lock Control” is not selected in the infotainment system. If “Lock Control” is selected, the rear climate control is not adjusted in the rear climate
control panel.

Convenience Features5-138

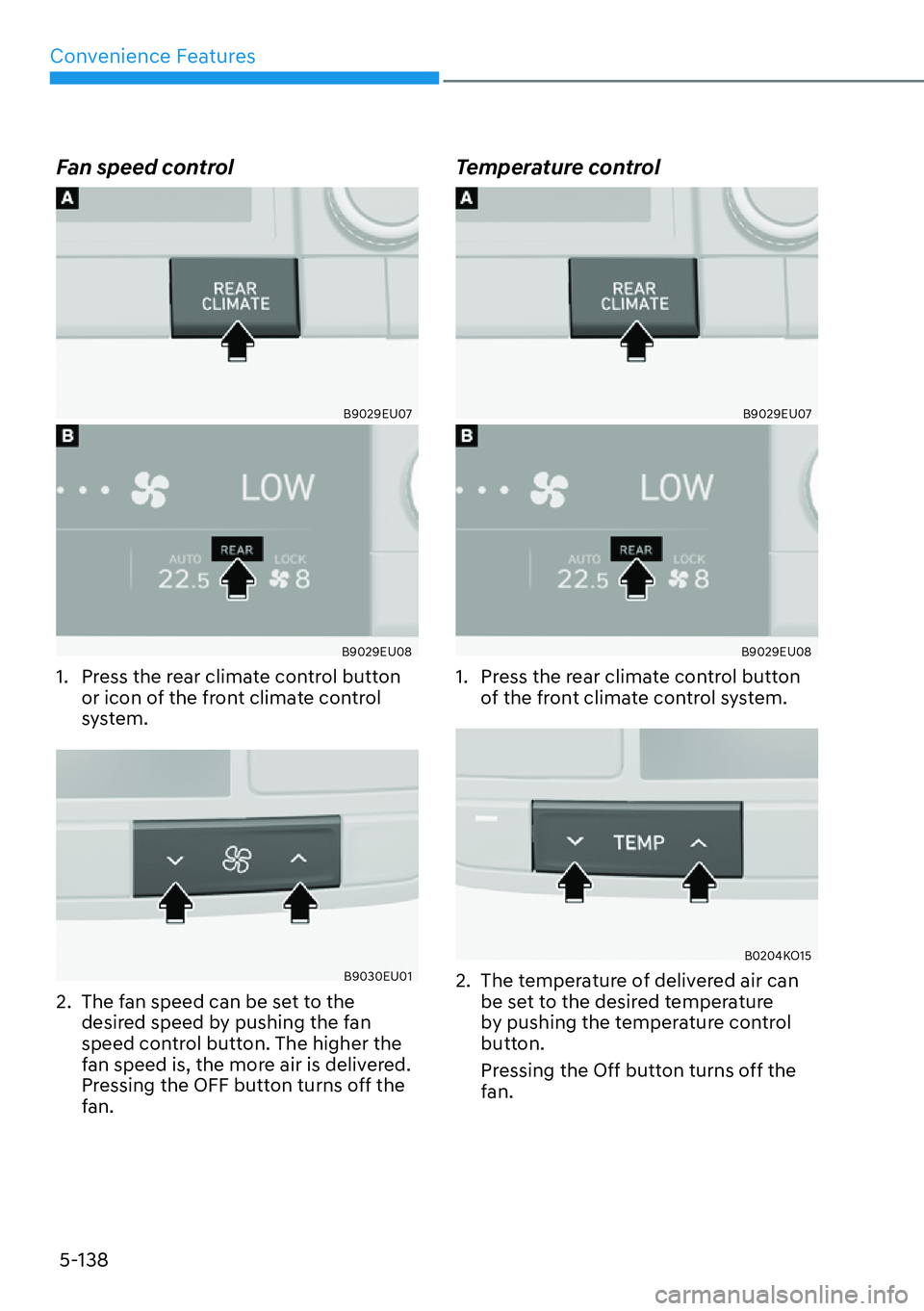

Fan speed control
B9029EU07
B9029EU08
1. Press the rear climate control button or icon of the front climate control
system.
B9030EU01
2. The fan speed can be set to the desired speed by pushing the fan
speed control button. The higher the
fan speed is, the more air is delivered.
Pressing the OFF button turns off the
fan.
Temperature control
B9029EU07
B9029EU08
1. Press the rear climate control button of the front climate control system.
B0204KO15
2. The temperature of delivered air can be set to the desired temperature
by pushing the temperature control
button.
Pressing the Off button turns off the
fan.

05
5-139

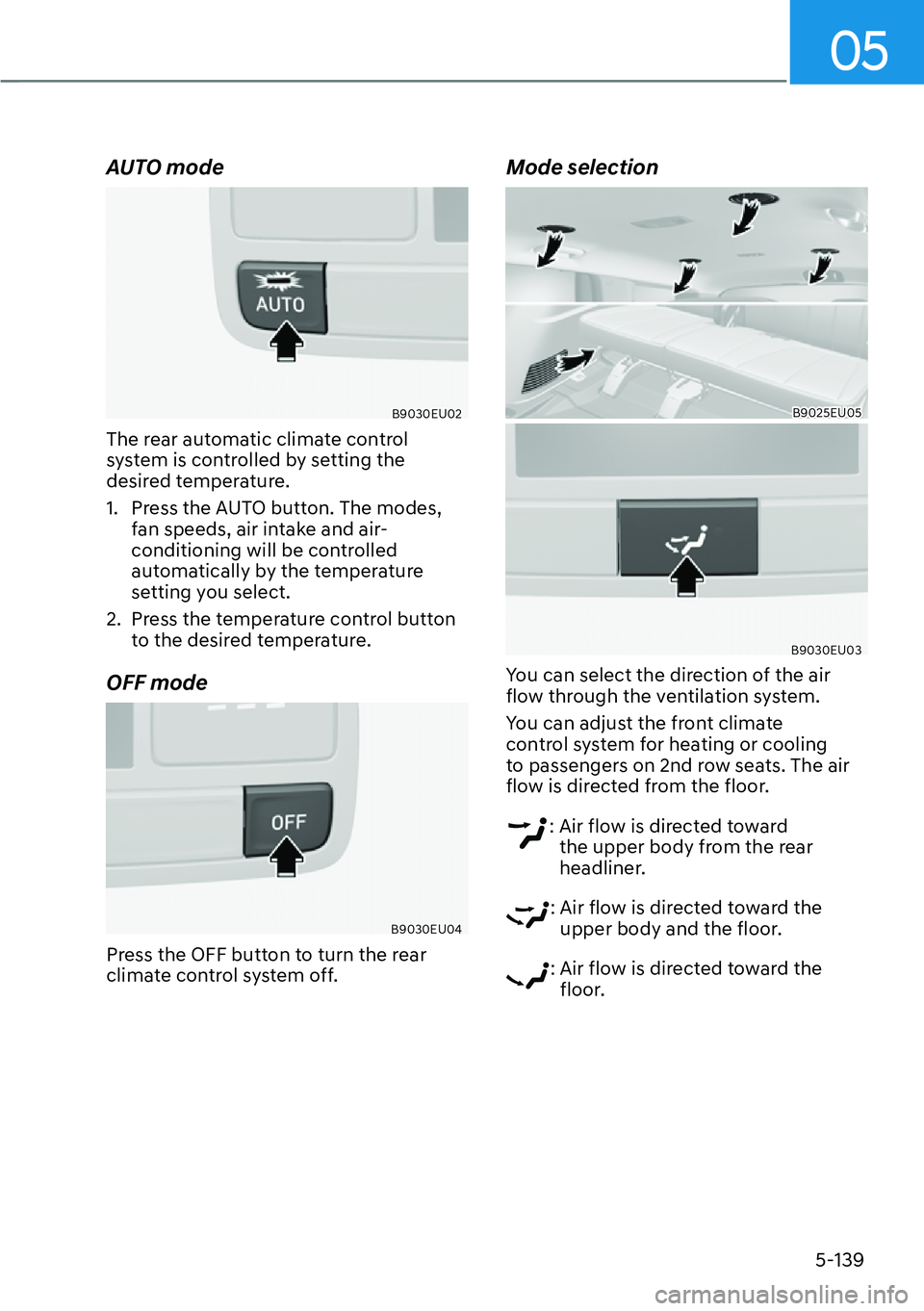

AUTO mode
B9030EU02
The rear automatic climate control
system is controlled by setting the
desired temperature.
1. Press the AUTO button. The modes, fan speeds, air intake and air-
conditioning will be controlled
automatically by the temperature
setting you select.
2. Press the temperature control button to the desired temperature.
OFF mode
B9030EU04
Press the OFF button to turn the rear
climate control system off.
Mode selection
B9025EU05
B9030EU03
You can select the direction of the air
flow through the ventilation system.
You can adjust the front climate
control system for heating or cooling
to passengers on 2nd row seats. The air
flow is directed from the floor.
: Air flow is directed toward the upper body from the rear
headliner.
: Air flow is directed toward the upper body and the floor.
: Air flow is directed toward the floor.

Convenience Features5-140

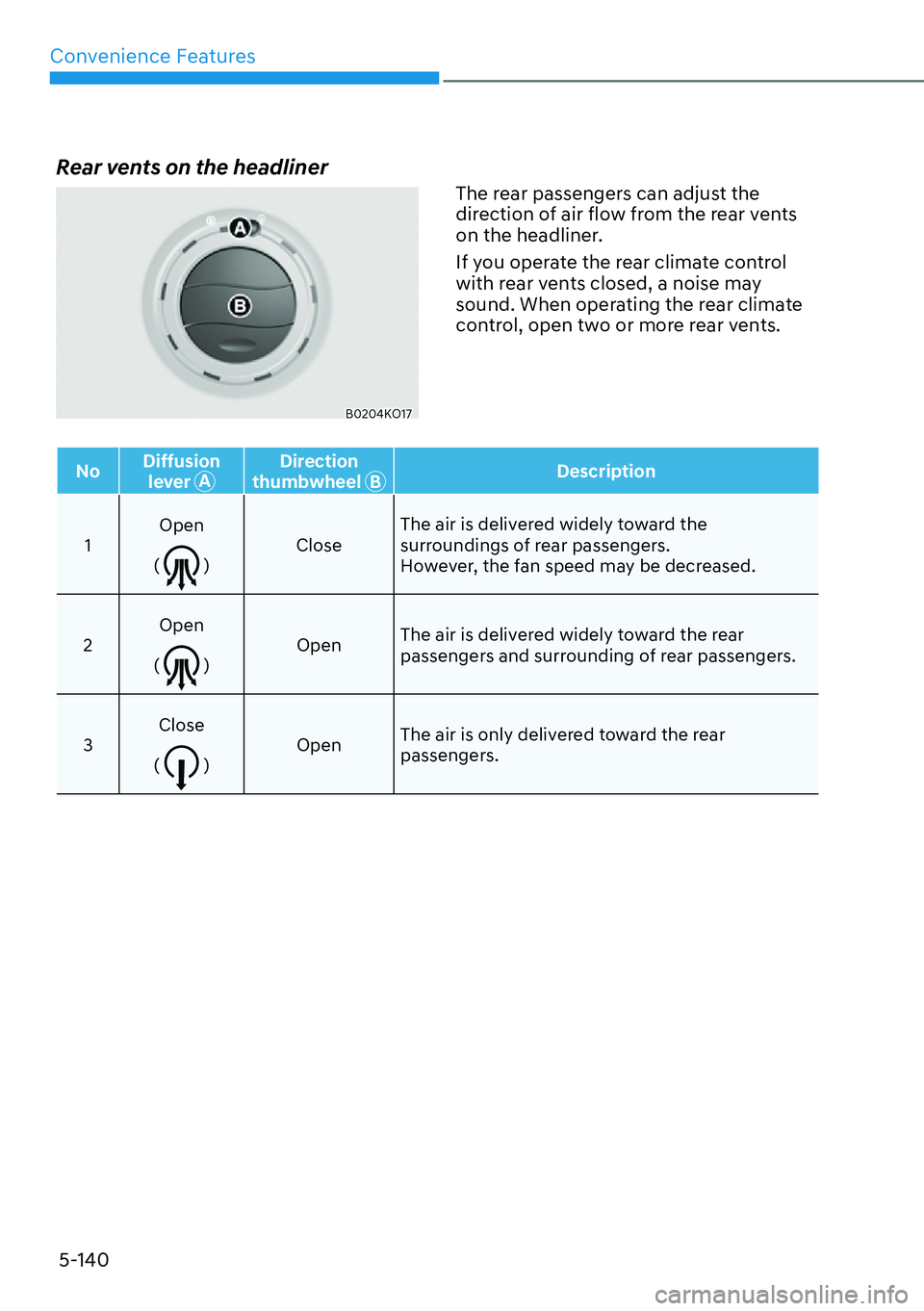

Rear vents on the headliner
B0204KO17
The rear passengers can adjust the
direction of air flow from the rear vents
on the headliner.
If you operate the rear climate control
with rear vents closed, a noise may
sound. When operating the rear climate
control, open two or more rear vents.
No Diffusion
lever ADirection
thumbwheel BDescription
1 Open
(
) Close The air is delivered widely toward the
surroundings of rear passengers.
However, the fan speed may be decreased.
2 Open
(
) Open
The air is delivered widely toward the rear
passengers and surrounding of rear passengers.
3 Close
(
) Open
The air is only delivered toward the rear
passengers.

Convenience Features5-142
Air conditioning system operation tips

[ If the v
ehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.

[ After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.

[ To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.

[ Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.

[ If you operate air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield
to fog up, causing loss of visibility. In
this case, set the mode selection knob
or button to the
position and fan
speed control to the lower speed.
System Maintenance
Cabin air filter
OIK047401L
A: Outside air, B: Recirculated air
C: Climate control air filter, D: Blower
E: Evaporator core, F: Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions
such as dusty or rough roads and/or if
transporting pets or occupants smoke
inside the vehicle, then more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.

05
5-145
WARNING
Windshield heating
Do not use the
or position during
cooling operation in extremely humid
weather. The difference between the
temperature of the outside air and that
of the windshield could cause the outer
surface of the windshield to fog up,
causing loss of visibility could cause
an accident resulting in serious injury
or death. In this case, set the mode
selection knob or button to the

position and fan speed control knob or
button to a lower speed.

[ For maximum defrost performance,
set the temperature control knob
to the highest temperature setting
(rotated all the way to the right) and
the fan speed control to the highest
setting.

[ If warm air to the floor is desired while
defrosting or defogging, set the mode
to the floor-defrost position.

[ Before driving, clear all snow and ice
from the windshield, rear window,
side view mirrors, and all side
windows.

[ Clear all snow and ice from the
hood and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up the inside of
the windshield.
NOTICE
If the engine temperature is still cold
after starting, then a brief engine warm
up period may be required for the
vented air flow to become warm or hot.
Manual Climate Control System
B9031EU01
To defog inside windshield
1. Select any fan speed except “0”
position.
2.

Select the desired temperature.
3. Select the
or position.
4. Fresh mode will be selected automatically. Additionally, the
air conditioning will automatically
operate if the mode is selected to the
position.
Check to make sure the A/C is ON. If
the A/C ON indicator is not illuminated,
press the A/C button once to turn the air
conditioner ON.
Check to make sure the air intake control
is in Fresh mode. If the air intake control
indicator is illuminated, press the button
once to enable Fresh mode (indicator
OFF).
:,1'6+,(/''()5267,1*$1''()2**,1*

05
5-147
B0209KO01

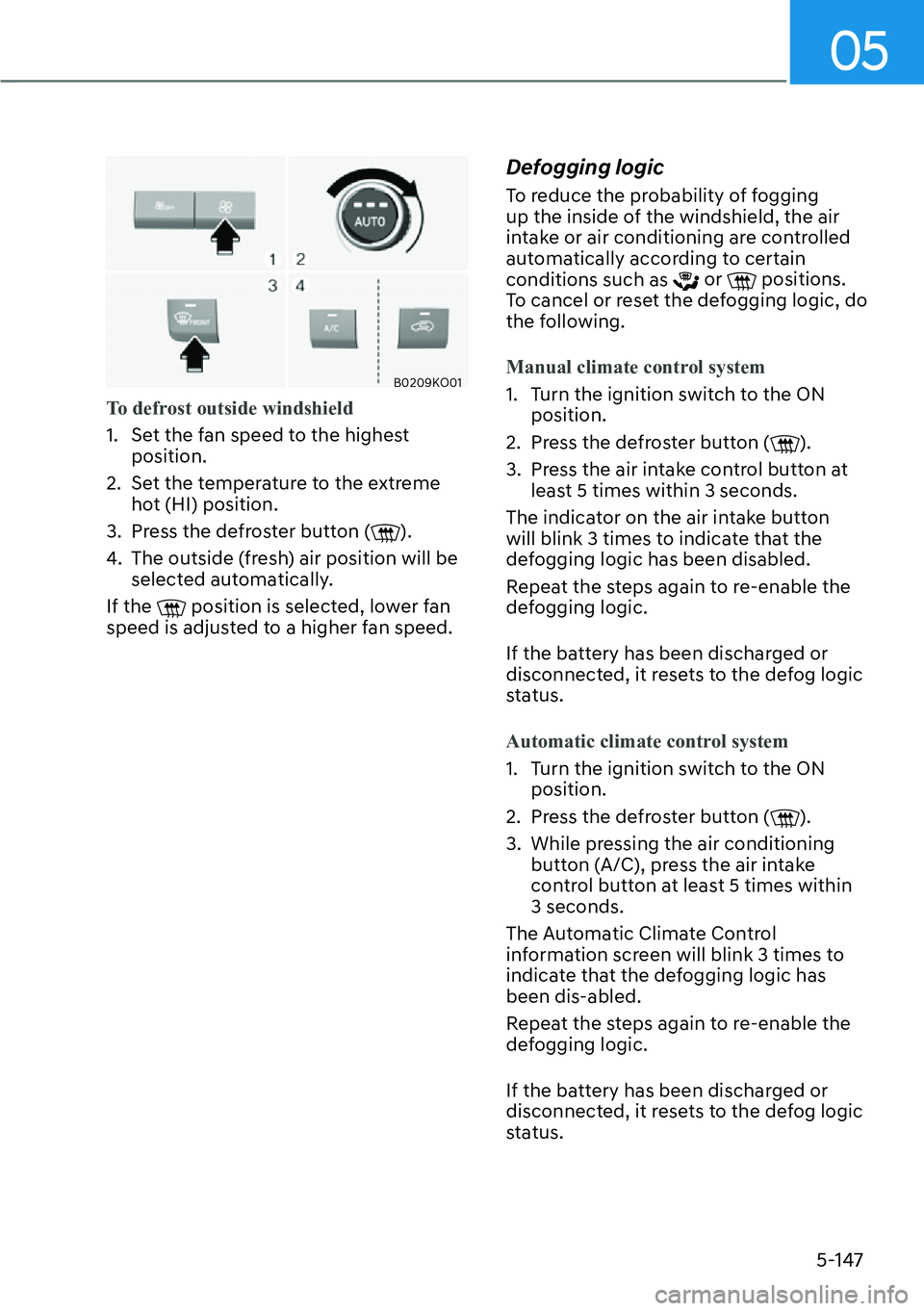

To defrost outside windshield
1. Set the fan speed to the highest position.
2.

Set the temperature to the extreme
hot (HI) position.
3. Press the defroster button (
).
4. The outside (fresh) air position will be selected automatically.
If the
position is selected, lower fan
speed is adjusted to a higher fan speed.
Defogging logic
To reduce the probability of fogging
up the inside of the windshield, the air
intake or air conditioning are controlled
automatically according to certain
conditions such as
or positions.
To cancel or reset the defogging logic, do
the following.
Manual climate control system
1. Turn the ignition switch to the ON position.
2.

Press the defroster button (
).
3. Press the air intake control button at least 5 times within 3 seconds.
The indicator on the air intake button
will blink 3 times to indicate that the
defogging logic has been disabled.
Repeat the steps again to re-enable the
defogging logic.
If the battery has been discharged or
disconnected, it resets to the defog logic
status.
Automatic climate control system
1. Turn the ignition switch to the ON position.
2.

Press the defroster button (
).
3. While pressing the air conditioning button (A/C), press the air intake
control button at least 5 times within
3 seconds.
The Automatic Climate Control
information screen will blink 3 times to
indicate that the defogging logic has
been dis-abled.
Repeat the steps again to re-enable the
defogging logic.
If the battery has been discharged or
disconnected, it resets to the defog logic
status.
