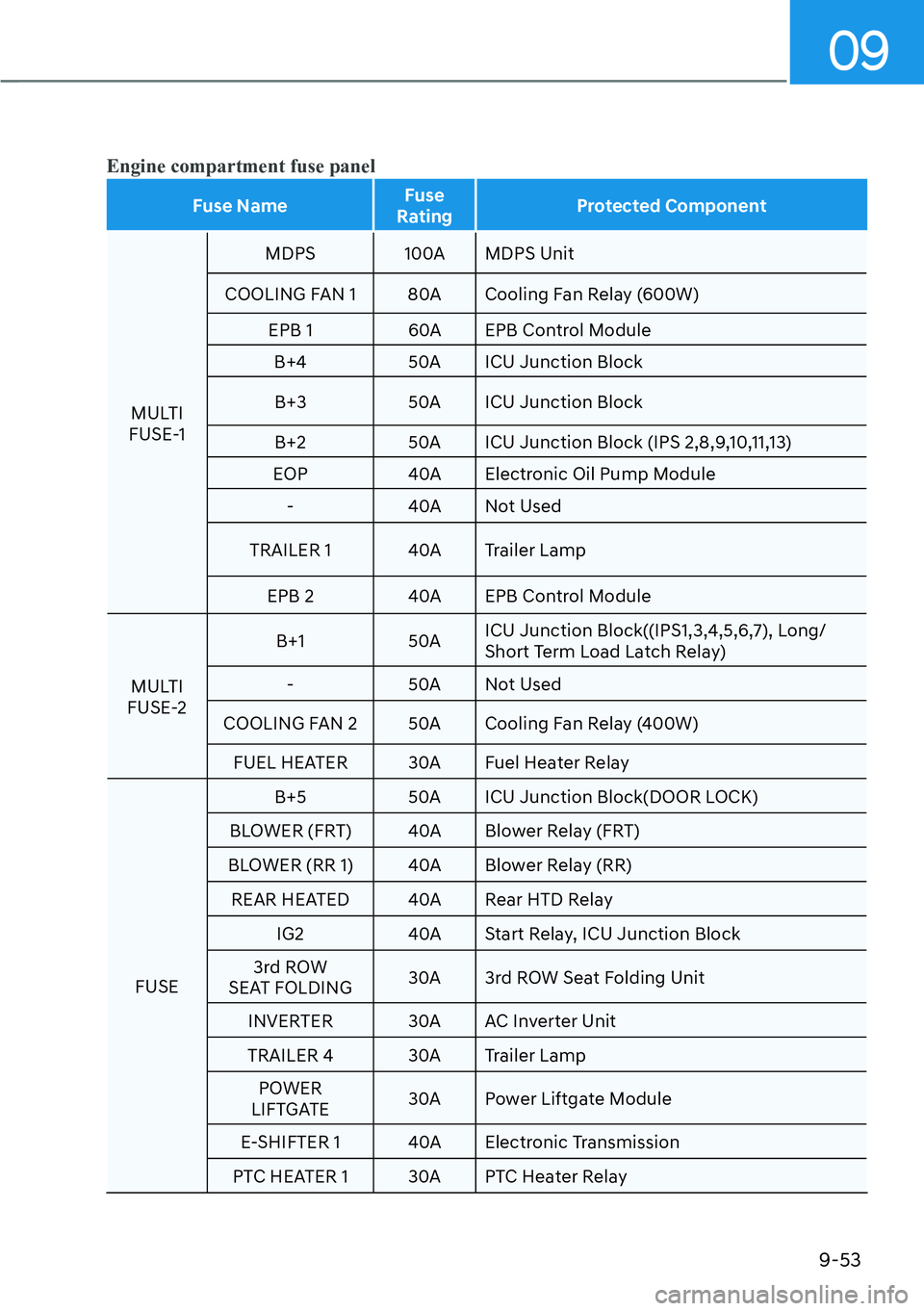

Engine compartment fuse panel
Fuse NameFuse
Rating Protected Component
MULTI
FUSE
-1 MDPS 100A MDPS Unit
COOLING FAN 1 80A Cooling Fan Relay (600W) EPB 1 60A EPB Control ModuleB+4 50A ICU Junction Block
B+3 50A ICU Junction BlockB+2 50A ICU Junction Block (IPS 2,8,9,10,11,13)
EOP 40A Electronic Oil Pump Module
- 40A Not Used
TRAILER 1 40A Trailer Lamp
EPB 2 40A EPB Control Module
MULTI
FUSE-2 B+1 50A
ICU Junction Block((IPS1,3,4,5,6,7), Long/
Short Term Load Latch Relay)
- 50A Not Used
COOLING FAN 2 50A Cooling Fan Relay (400W) FUEL HEATER 30A Fuel Heater Relay
FUSE B+5
50A ICU Junction Block(DOOR LOCK)
BLOWER (FRT) 40A Blower Relay (FRT)
BLOWER (RR 1) 40A Blower Relay (RR) REAR HEATED 40A Rear HTD Relay IG2 40A Start Relay, ICU Junction Block
3rd ROW
SEAT FOLDING 30A 3rd ROW Seat Folding Unit
INVERTER 30A AC Inverter Unit
TRAILER 4 30A Trailer Lamp POWER
LIFTGATE 30A Power Liftgate Module
E-SHIFTER 1 40A Electronic Transmission
PTC HEATER 1 30A PTC Heater Relay

Maintenance9-54
Fuse Name Fuse
Rating Protected Component
FUSE PT
C HEATER 2 30A PTC Heater Relay
PTC HEATER 3 30A PTC Heater Relay TRAILER 5 30A Trailer Lamp
FUEL PUMP 20A Fuel Pump Relay AWD 20A AWD ECM
HEATED NOZZLE 10A Heated Nozzle Unit B/ALARM HORN 15A Burglar Alarm Horn Relay
ACC 3 15A 2ND USB Charger
TCU 1 15A TCM
TRAILER 2 15A Trailer Lamp
TRAILER 3 15A Trailer Lamp ECU 6 15A ECM
AMS 10A Battery Sensor
A/C 2 10A Front A/C Control Module (Auto)
HEATED
MIRROR 10ADriver/Passenger Power Side view Mirror,
Front A/C Control Module
BLOWER (RR 2) 10A Rear A/C Control Module
E-SHIFTER 2 10A Electronic Transmission
WIPER (FRT) 2 10A IBU, ECM - 10A Not Used
PCB ACC 1
40A PCB Block (ACC1 Relay)
ACC 2 40A PCB Block (ACC2 Relay) ECU 5 30A ECM (Main Relay)
DCU 4 40A Doosing Control Unit (DCU Relay)
IG1 40A PCB Block (IG1 Relay)
WIPER 1 (FRT) 30A PCB Block (Wiper Main Relay) HORN 15A PCB Block (Horn Relay)
A/C 1 10A PCB Block (A/CON Relay)
ACC 4 10A USB Charger_luggage_LH/RH

09
9-55
Fuse NameFuse
Rating Protected Component
PCB POWER
OUTLET 2 20
A 2ND POWER OUTLET#2
POWER
OUTLET 1 20A 2ND POWER OUTLET#1
ICU 10A PCB Block (ACC FUSE - AMP, ETC)
SENSOR 1 10A Fuel Pump Relay
SENSOR 2 10A [L3.8 GDI] A/C Comp Relay, Variable Intake
Solenoid Valve #1/#2, Oil Pump Solenoid
Valve, Oxygen Sensor Down #1/#2, Oil
Control Valve #1/#2(Intake/Exhaust),
Electronic Thermostat Heater, Purge Control
Solenoid Valve
SENSOR 5 10A Oxygen Sensor Up #1/#2, CCV
DCU 1 20A Doosing Control Unit
DCU 2 20A Doosing Control Unit
DUC 3 15A Doosing Control Unit
TCU 2 10A TCM, Electronic Transmission
POWER
OUTLET 3 20A LUGGAGE POWER OUTLET
POWER
OUTLET 4 20A 1ST POWER OUTLET
SENSOR 4 15A [L3.8 GDI] Cooling Fan Controller ECU 1 20A ECM
PCB ECU 2 20A [L3.8 GDI] ECM
ECU 3 20A [L3.8 GDI] ECM
IGN COIL 20A [L3.8 GDI] Ignition Coil #1/#2/#3/#4/#5/#6 EPB 3 10A EPB Control Module
SENSOR 6 10A Electronic Oil Pump ECU 4 10A ECM
