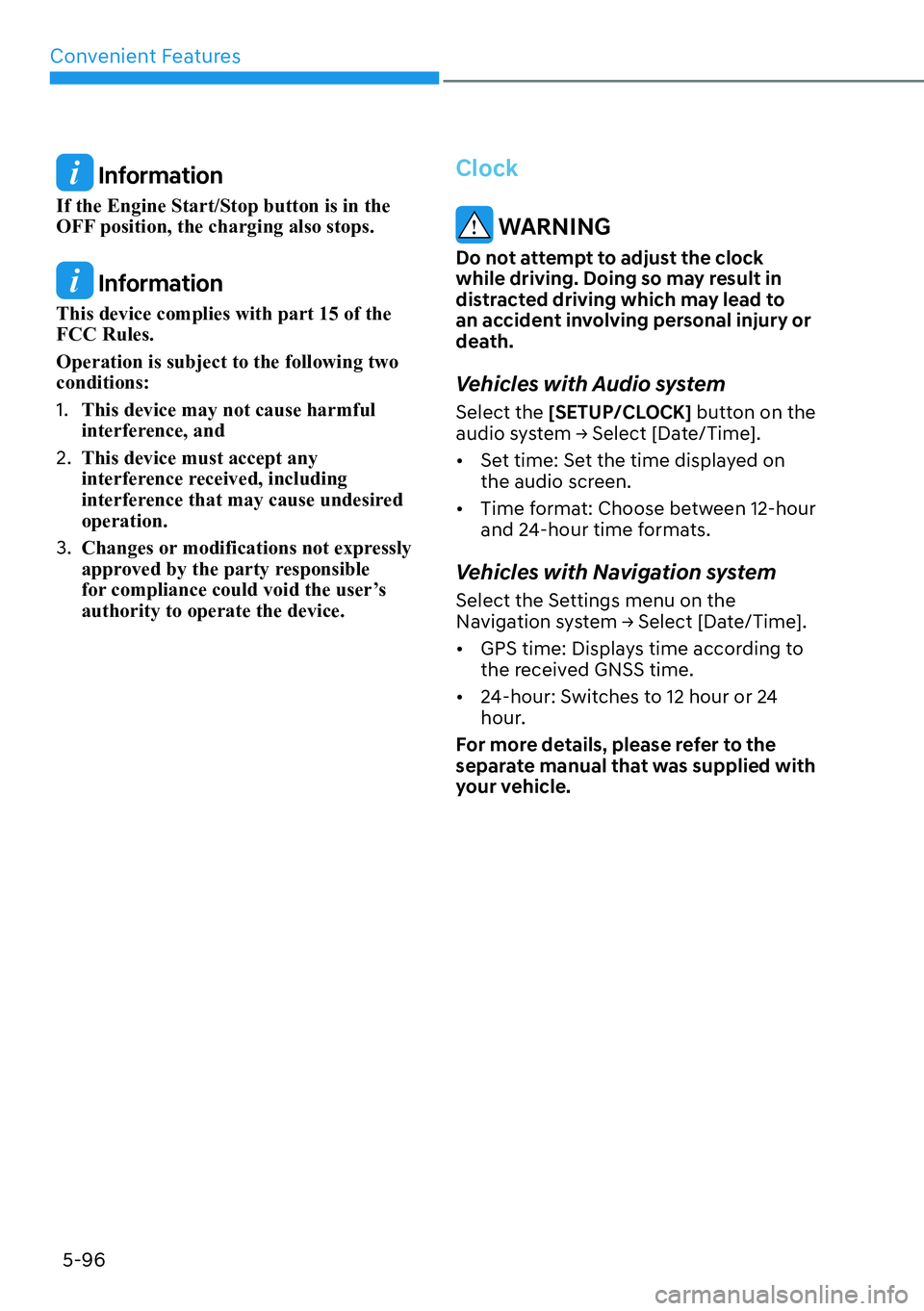

Convenient Features5-96
Information
If the Engine Start/Stop button is in the
OFF position, the charging also stops.
Information
This device complies with part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.
Clock
WARNING
Do not attempt to adjust the clock
while driving. Doing so may result in
distracted driving which may lead to
an accident involving personal injury or
death.
Vehicles with Audio system
Select the [SETUP/CLOCK] button on the
DXGLRV\VWHP

6

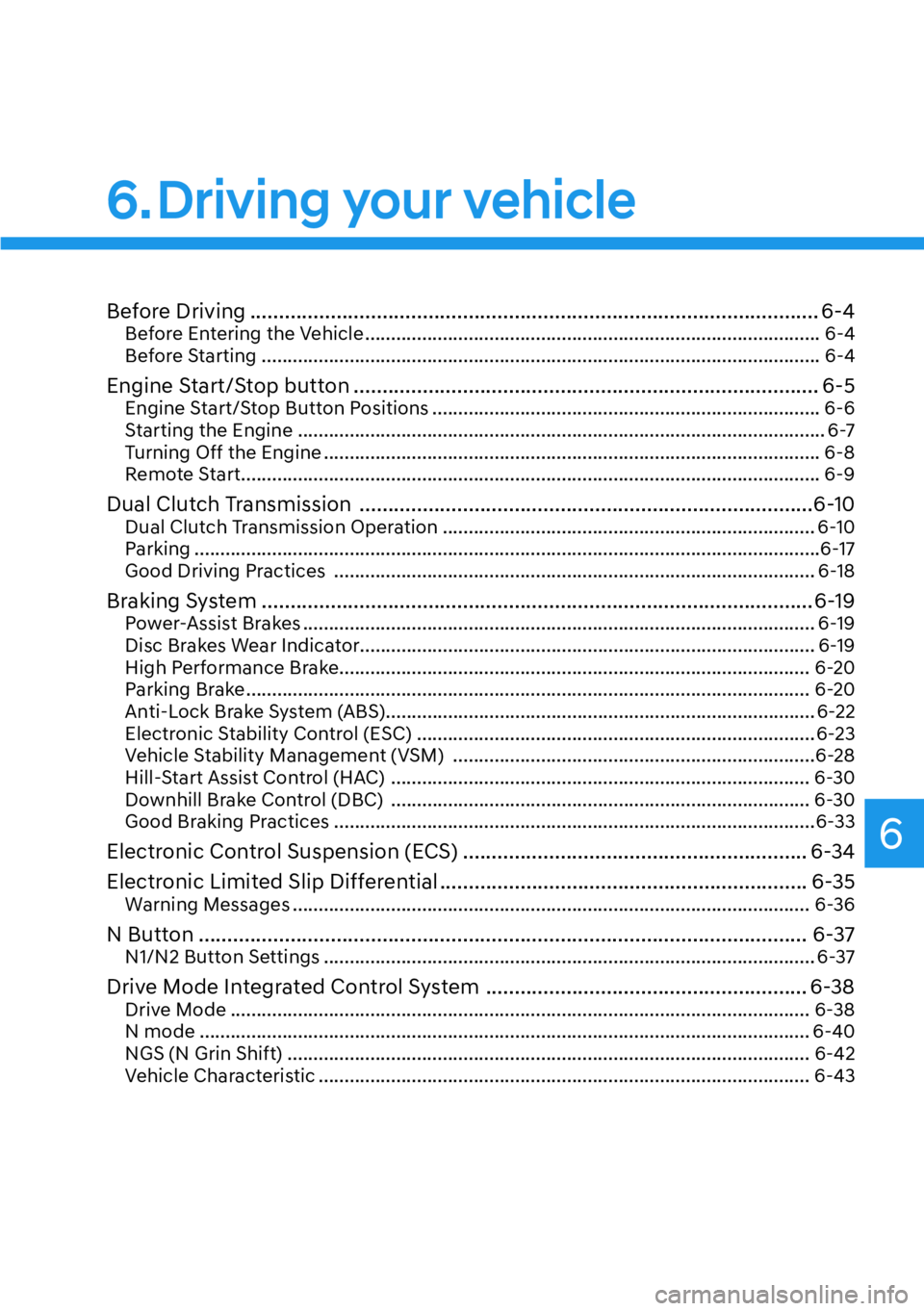

Before Driving ........................................................................\
........................... 6-4Before Entering the Vehicle ........................................................................\
................ 6-4
Before Starting ........................................................................\
.................................... 6-4
Engine Start/Stop button ........................................................................\
......... 6-5Engine Start/Stop Button Positions ........................................................................\
... 6-6
Starting the Engine ........................................................................\
.............................. 6-7
Turning Off the Engine ........................................................................\
........................ 6-8
Remote Start ........................................................................\
........................................ 6-9
Dual Clutch Transmission ........................................................................\
.......6-10Dual Clutch Transmission Operation ........................................................................\
6-10
Parking .................................................................\
........................................................6-17
Good Driving Practices ........................................................................\
..................... 6-18
Braking System ........................................................................\
........................6-19Power-Assist Brakes ........................................................................\
........................... 6-19
Disc Brakes Wear Indicator......................................................................\
.................. 6-19
High Performance Brake.......................................................................\
.................... 6-20
Parking Brake ........................................................................\
..................................... 6-20
Anti-Lock Brake System (ABS) ........................................................................\
........... 6-22
Electronic Stability Control (ESC) ........................................................................\
..... 6-23
Vehicle Stability Management (VSM) ......................................................................6-28
Hill-Start Assist Control (HAC) ........................................................................\
......... 6-30
Downhill Brake Control (DBC) ........................................................................\
......... 6-30
Good Braking Practices ................................................................\
.............................6-33
Electronic Control Suspension (ECS) ............................................................ 6-34
Electronic Limited Slip Differential ................................................................ 6-35
Warning Messages ........................................................................\
............................ 6-36
N Button ........................................................................\
.................................. 6-37N1/N2 Button Settings ........................................................................\
....................... 6-37
Drive Mode Integrated Control System ........................................................ 6-38Drive Mode ........................................................................\
........................................ 6-38
N mode ........................................................................\
.............................................. 6-40
NGS (N Grin Shift) .....................................................................\
................................ 6-42
Vehicle Characteristic ........................................................................\
....................... 6-43
6. Driving your vehicle

Driving your vehicle6-4

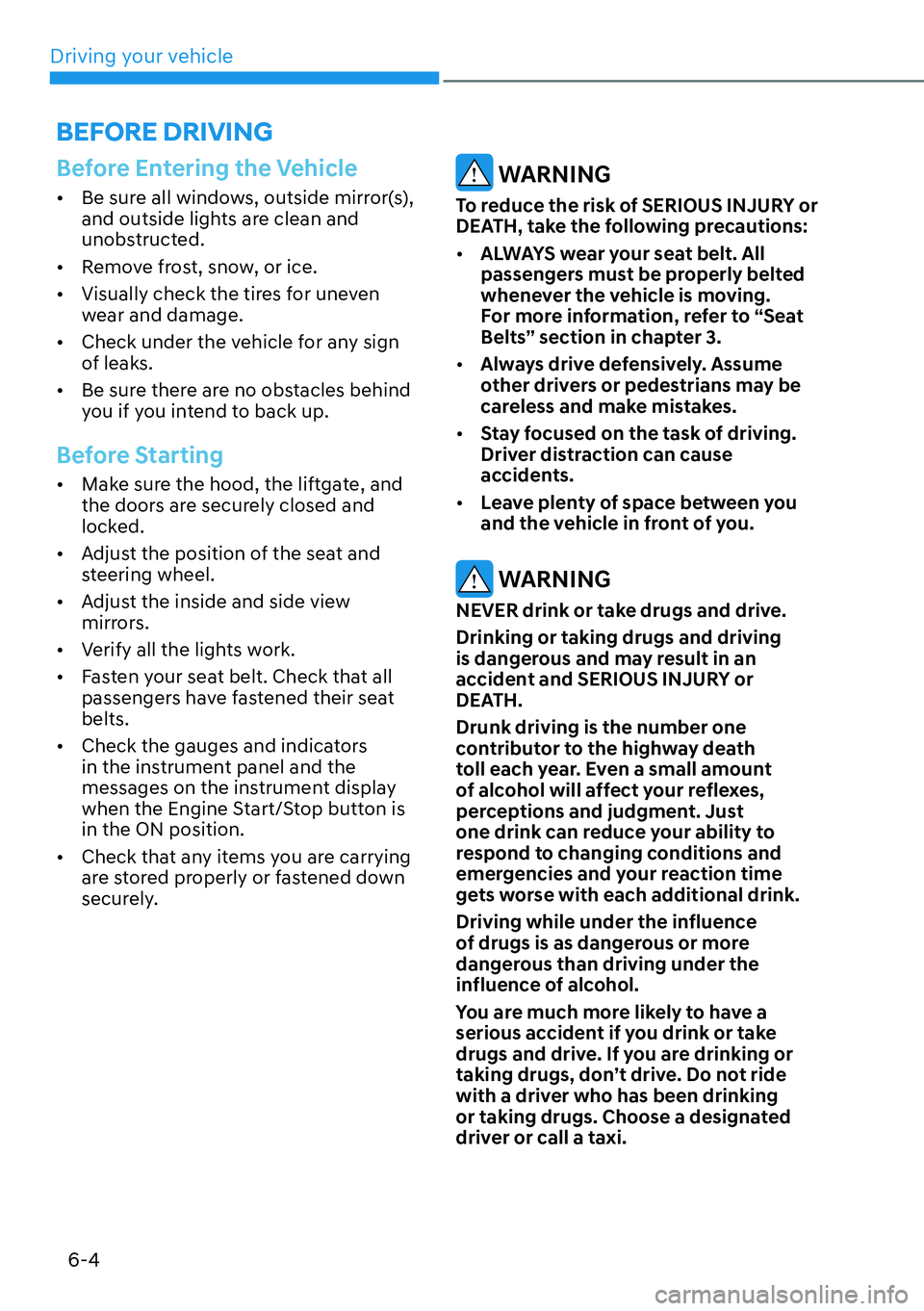

Before Entering the Vehicle

[ Be sure all windows, outside mirror(s),
and outside lights are clean and
unobstructed.

[ Remove frost, snow, or ice.

[ Visually check the tires for uneven
wear and damage.

[ Check under the vehicle for any sign
of leaks.

[ Be sure there are no obstacles behind
you if you intend to back up.
Before Starting

[Make sure the hood, the liftgate, and
the doors are securely closed and
locked.

[ Adjust the position of the seat and
steering wheel.

[ Adjust the inside and side view
mirrors.

[ Verify all the lights work.

[ Fasten your seat belt. Check that all
passengers have fastened their seat
belts.

[ Check the gauges and indicators
in the instrument panel and the
messages on the instrument display
when the Engine Start/Stop button is
in the ON position.

[ Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:

[ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to “Seat
Belts” section in chapter 3.

[ Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.

[ Stay focused on the task of driving.
Driver distraction can cause
accidents.

[ Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING

06
6-5

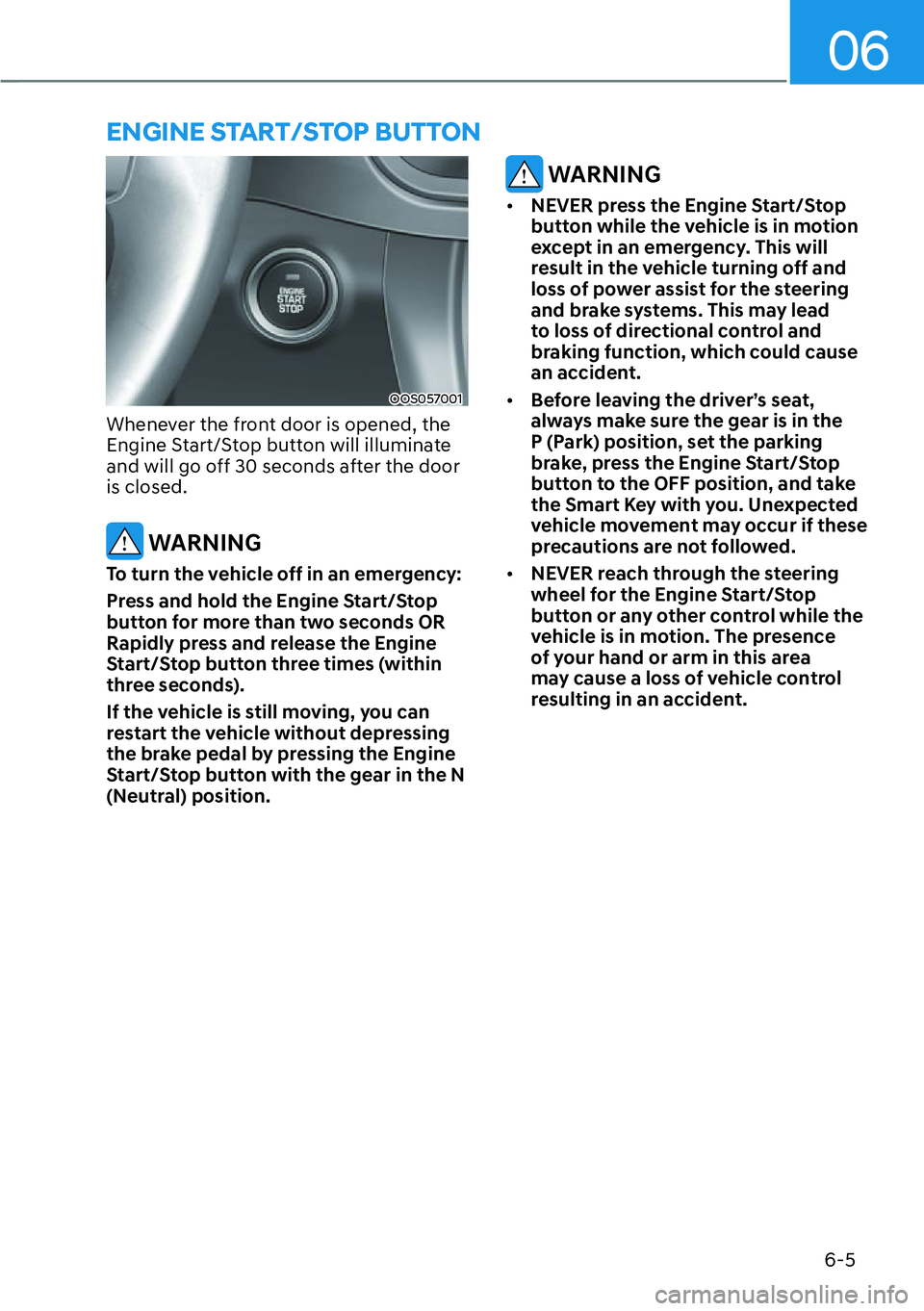

ENGINE START/STOP BUTTON
OOS057001
Whenever the front door is opened, the
Engine Start/Stop button will illuminate
and will go off 30 seconds after the door
is closed.
WARNING
To turn the vehicle off in an emergency:
Press and hold the Engine Start/Stop
button for more than two seconds OR
Rapidly press and release the Engine
Start/Stop button three times (within
three seconds).
If the vehicle is still moving, you can
restart the vehicle without depressing
the brake pedal by pressing the Engine
Start/Stop button with the gear in the N
(Neutral) position.
WARNING

[NEVER press the Engine Start/Stop
button while the vehicle is in motion
except in an emergency. This will
result in the vehicle turning off and
loss of power assist for the steering
and brake systems. This may lead
to loss of directional control and
braking function, which could cause
an accident.

[ Before leaving the driver’s seat,
always make sure the gear is in the
P (Park) position, set the parking
brake, press the Engine Start/Stop
button to the OFF position, and take
the Smart Key with you. Unexpected
vehicle movement may occur if these
precautions are not followed.

[ NEVER reach through the steering
wheel for the Engine Start/Stop
button or any other control while the
vehicle is in motion. The presence
of your hand or arm in this area
may cause a loss of vehicle control
resulting in an accident.

Driving your vehicle6-6

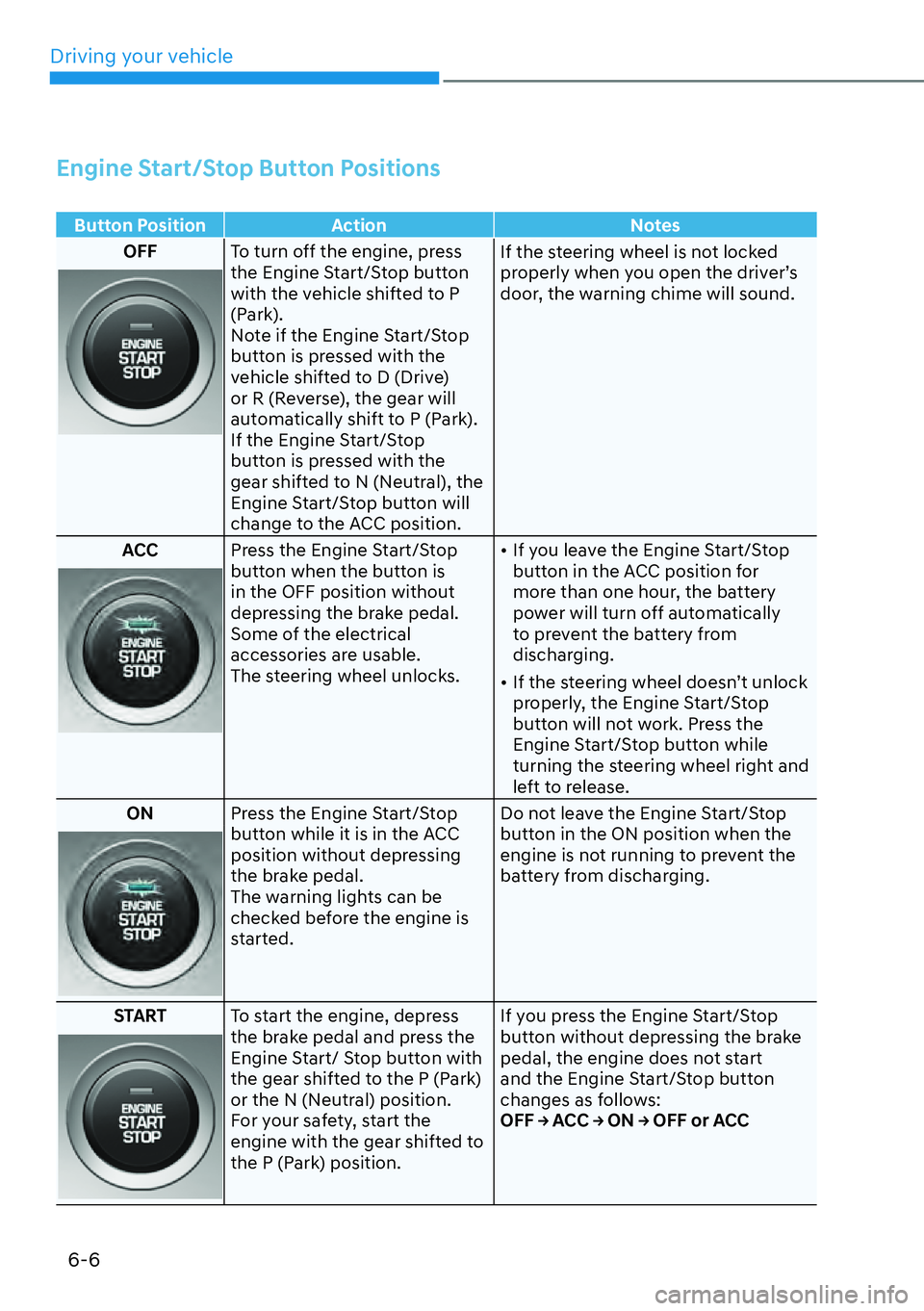

Engine Start/Stop Button Positions
Button Position Action Notes
OFF T
o turn off the engine, press
the Engine Start/Stop button
with the vehicle shifted to P
(Park).
Note if the Engine Start/Stop
button is pressed with the
vehicle shifted to D (Drive)
or R (Reverse), the gear will
automatically shift to P (Park).
If the Engine Start/Stop
button is pressed with the
gear shifted to N (Neutral), the
Engine Start/Stop button will
change to the ACC position. If the steering wheel is not locked
properly when you open the driver’s
door, the warning chime will sound.
ACC
Press the Engine Start/Stop
button when the button is
in the OFF position without
depressing the brake pedal.
Some of the electrical
accessories are usable.
The steering wheel unlocks.
[
If you leave the Engine Start/Stop
button in the ACC position for
more than one hour, the battery
power will turn off automatically
to prevent the battery from
discharging.

[ If the steering wheel doesn’t unlock
properly, the Engine Start/Stop
button will not work. Press the
Engine Start/Stop button while
turning the steering wheel right and
left to release.
ON Press the Engine Start/Stop
button while it is in the ACC
position without depressing
the brake pedal.
The warning lights can be
checked before the engine is
started. Do not leave the Engine Start/Stop
button in the ON position when the
engine is not running to prevent the
battery from discharging.
START
To start the engine, depress
the brake pedal and press the
Engine Start/ Stop button with
the gear shifted to the P (Park)
or the N (Neutral) position.
For your safety, start the
engine with the gear shifted to
the P (Park) position. If you press the Engine Start/Stop
button without depressing the brake
pedal, the engine does not start
and the Engine Start/Stop button
changes as follows:
2))

06
6-7

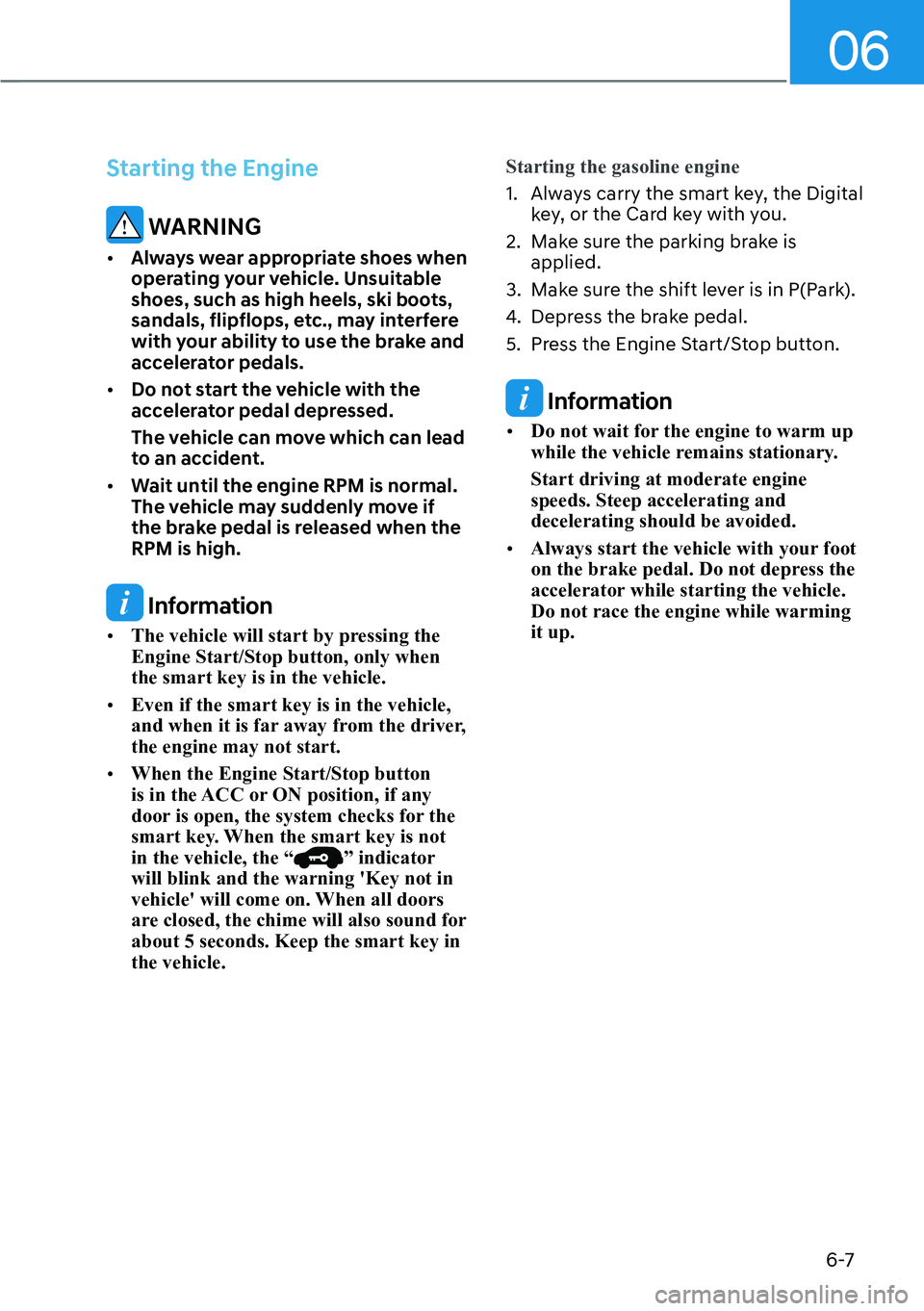

Starting the Engine
WARNING

[Always wear appropriate shoes when
operating your vehicle. Unsuitable
shoes, such as high heels, ski boots,
sandals, flipflops, etc., may interfere
with your ability to use the brake and
accelerator pedals.

[ Do not start the vehicle with the
accelerator pedal depressed.
The vehicle can move which can lead
to an accident.

[ Wait until the engine RPM is normal.
The vehicle may suddenly move if
the brake pedal is released when the
RPM is high.
Information

[The vehicle will start by pressing the
Engine Start/Stop button, only when
the smart key is in the vehicle.

[ Even if the smart key is in the vehicle,
and when it is far away from the driver,
the engine may not start.

[ When the Engine Start/Stop button
is in the ACC or ON position, if any
door is open, the system checks for the
smart key. When the smart key is not
in the vehicle, the “
” indicator
will blink and the warning 'Key not in
vehicle' will come on. When all doors
are closed, the chime will also sound for
about 5 seconds. Keep the smart key in
the vehicle. Starting the gasoline engine
1. Always carry the smart key, the Digital
k
ey, or the Card key with you.
2. Make sure the parking brake is applied.
3. Make sure the shift lever is in P(Park).
4. Depress the brake pedal.
5. Press the Engine Start/Stop button.
Information

[ Do not wait for the engine to warm up
while the vehicle remains stationary.
Start driving at moderate engine
speeds. Steep accelerating and
decelerating should be avoided.

[ Always start the vehicle with your foot
on the brake pedal. Do not depress the
accelerator while starting the vehicle.
Do not race the engine while warming
it up.

Driving your vehicle6-8
NOTICE
To prevent damage to the vehicle:

[ If the engine stalls while you are in
motion, do not attempt to shift the
gear to the P (Park) position.
If traffic and road conditions permit,
you may put the gear in N (Neutral)
while the vehicle is still moving and
press the Engine Start/Stop button in
an attempt to restart the engine.

[ Do not push or tow your vehicle to
start the vehicle.
NOTICE
To prevent damage to the vehicle:
Do not press the Engine Start/Stop
button for more than 10 seconds except
when the stop lamp fuse is blown.
When the stop lamp fuse is blown,
you cannot normally start the engine.
Replace the fuse with a new one. If you
are not able to replace the fuse, you
can start the engine by pressing and
holding the Engine Start/Stop button
for 10 seconds with the Engine Start/
Stop button in the ACC position.
For your safety always depress the
brake pedal before starting the vehicle.
OOS057003
Information
If the smart key battery is weak or the
smart key does not work correctly, you
can start the vehicle by pressing the
Engine Start/Stop button with the smart
key in the direction of the picture above.
Turning Off the Engine
1. Stop the vehicle and depress the
brake pedal fully.
2. Make sure the shift lever is in P(Park).
3. Press the Engine Start/Stop button to the OFF position and apply the
parking brake.
Information
If the Engine Start/Stop button is pressed
for a few seconds, the engine will turn off
even if the vehicle is in motion.

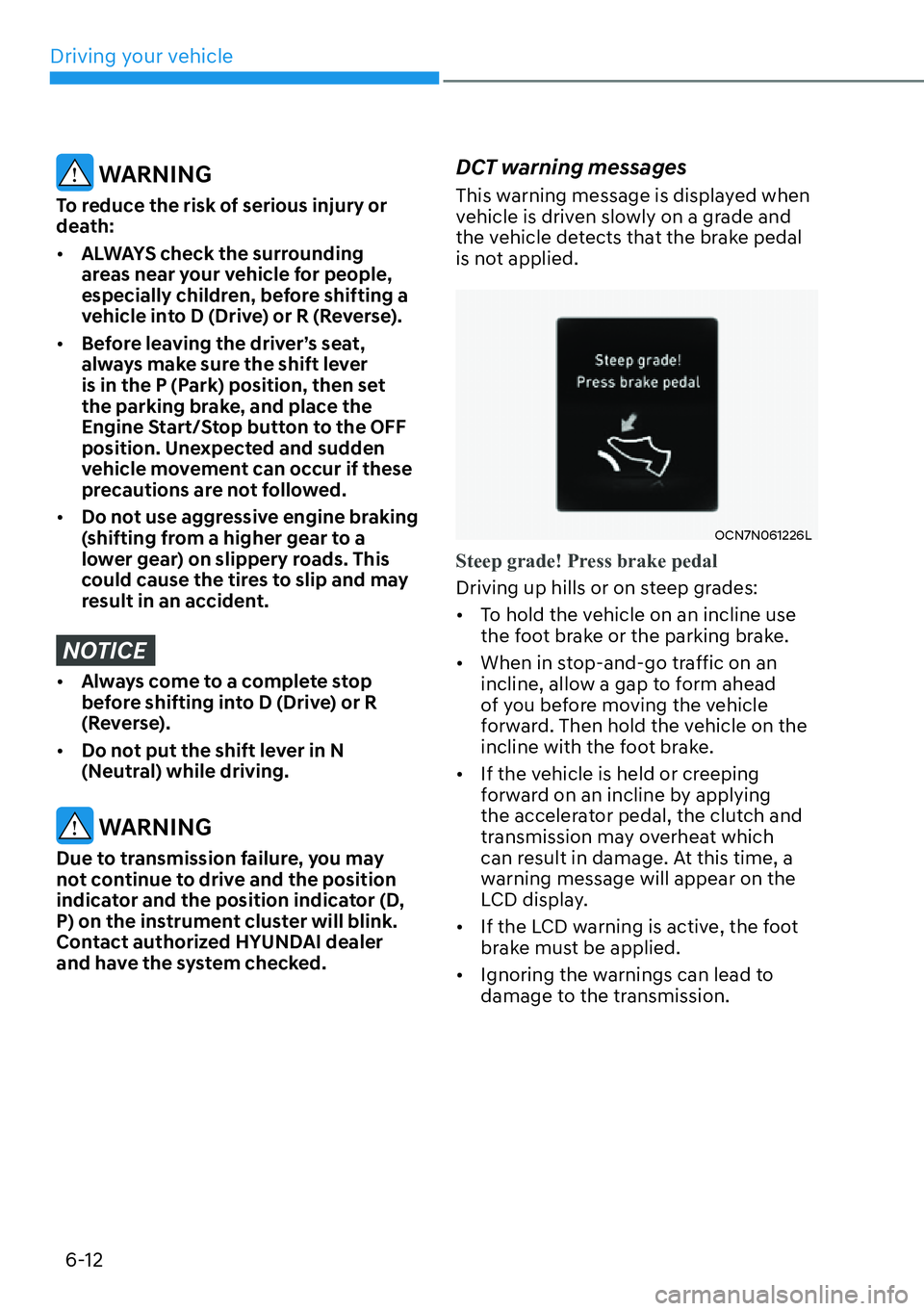

Driving your vehicle6-12
WARNING
To reduce the risk of serious injury or
death:

[ ALWAYS check the surrounding
areas near your vehicle for people,
especially children, before shifting a
vehicle into D (Drive) or R (Reverse).

[ Before leaving the driver’s seat,
always make sure the shift lever
is in the P (Park) position, then set
the parking brake, and place the
Engine Start/Stop button to the OFF
position. Unexpected and sudden
vehicle movement can occur if these
precautions are not followed.

[ Do not use aggressive engine braking
(shifting from a higher gear to a
lower gear) on slippery roads. This
could cause the tires to slip and may
result in an accident.
NOTICE

[Always come to a complete stop
before shifting into D (Drive) or R
(Reverse).

[ Do not put the shift lever in N
(Neutral) while driving.
WARNING
Due to transmission failure, you may
not continue to drive and the position
indicator and the position indicator (D,
P) on the instrument cluster will blink.
Contact authorized HYUNDAI dealer
and have the system checked.
DCT warning messages
This warning message is displayed when
vehicle is driven slowly on a grade and
the vehicle detects that the brake pedal
is not applied.
OCN7N061226L
Steep grade! Press brake pedal
Driving up hills or on steep grades:

[T

o hold the vehicle on an incline use
the foot brake or the parking brake.

[ When in stop-and-go traffic on an
incline, allow a gap to form ahead
of you before moving the vehicle
forward. Then hold the vehicle on the
incline with the foot brake.

[ If the vehicle is held or creeping
forward on an incline by applying
the accelerator pedal, the clutch and
transmission may overheat which
can result in damage. At this time, a
warning message will appear on the
LCD display.

[ If the LCD warning is active, the foot
brake must be applied.

[ Ignoring the warnings can lead to
damage to the transmission.
