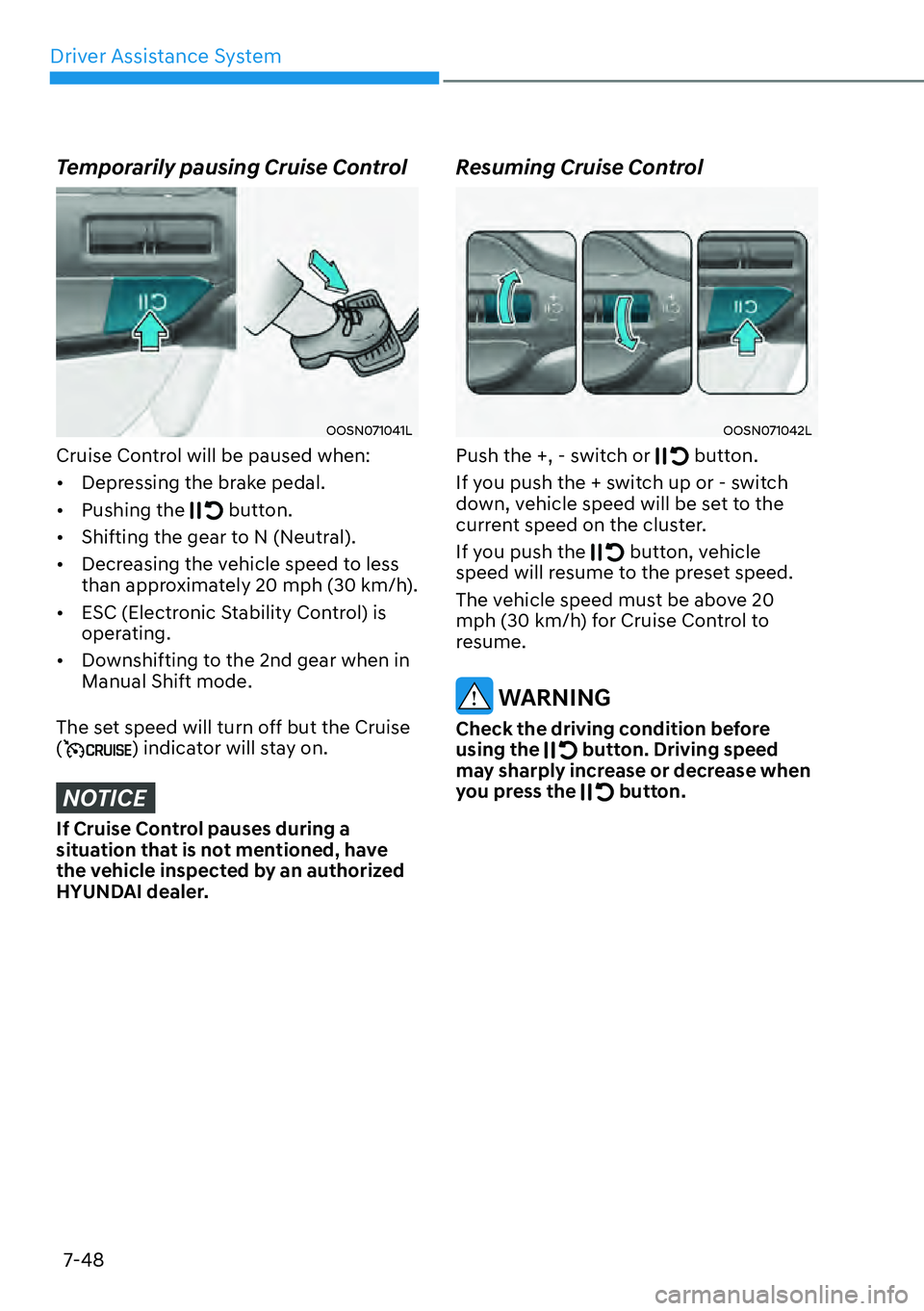

Driver Assistance System7-48
Temporarily pausing Cruise Control
OOSN071041L
Cruise Control will be paused when:

[ Depressing the brake pedal.

[ Pushing the
button.

[ Shifting the gear to N (Neutral).

[ Decreasing the vehicle speed to less
than approximately 20 mph (30 km/h).

[ ESC (Electronic Stability Control) is
operating.

[ Downshifting to the 2nd gear when in
Manual Shift mode.
The set speed will turn off but the Cruise
(
) indicator will stay on.
NOTICE
If Cruise Control pauses during a
situation that is not mentioned, have
the vehicle inspected by an authorized
HYUNDAI dealer.
Resuming Cruise Control
OOSN071042L
Push the +, - switch or button.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
button, vehicle
speed will resume to the preset speed.
The vehicle speed must be above 20
mph (30 km/h) for Cruise Control to
resume.
WARNING
Check the driving condition before
using the button. Driving speed
may sharply increase or decrease when
you press the
button.

9
9. Maintenance
Engine Compartment ........................................................................\
............... 9-3
Maintenance Services ........................................................................\
.............. 9-4
Owner’s Responsibility ........................................................................\
....................... 9-4
Owner Maintenance Precautions ........................................................................\
....... 9-4
Owner Maintenance ........................................................................\
................. 9-5Owner Maintenance Schedule ........................................................................\
........... 9-6
Scheduled Maintenance Services ....................................................................9-7Normal Maintenance Schedule ........................................................................\
.......... 9-9
Maintenance Under Severe Usage Conditions ........................................................ 9-12
Explanation of Scheduled Maintenance Items .............................................. 9-14Fuel Filter (for gasoline engine) ........................................................................\
......... 9-14
Parking Brake ........................................................................\
...................................... 9-15
Propeller Shaft ........................................................................\
.................................... 9-15
Engine Oil ........................................................................\
.................................9-16Checking the Engine Oil Level ........................................................................\
........... 9-16
Checking the Engine Oil and Filter ........................................................................\
....9-17
Engine Coolant ........................................................................\
.........................9-19Checking the Coolant Level......................................................................\
................. 9-19
Changing Coolant ........................................................................\
.............................. 9-21
Brake Fluid ........................................................................\
............................... 9-22Checking the Brake Fluid Level ........................................................................\
......... 9-22
Washer Fluid ........................................................................\
............................ 9-23Checking the Washer Fluid Level ........................................................................\
...... 9-23
Parking Brake ........................................................................\
.......................... 9-23
Checking the Parking Brake ........................................................................\
.............. 9-23
Air Cleaner ........................................................................\
............................... 9-24Filter Replacement ........................................................................\
............................9-24
Climate Control Air Filter ........................................................................\
........ 9-25Filter Inspection........................................................................\
.................................. 9-25
Wiper Blades ........................................................................\
........................... 9-26Blade Inspection ........................................................................\
................................9-26
Blade Replacement ........................................................................\
............................9-26
For Best Battery Service ........................................................................\
.................... 9-31
Battery Capacity Label ........................................................................\
....................... 9-31
Battery Recharging ........................................................................\
............................ 9-32
Reset Items ........................................................................\
.........................................9-33

Maintenance9-8
Information

[ As it is normal for engine oil to be consumed during driving, the engine oil level should
be checked on regular basis.

[ The engine oil change interval for normal operating conditions is based on the use of
the recommended engine specification. If the recommended engine oil specification
is not used, then replace the engine oil according to the maintenance schedule under
severe operating conditions.

[ The vehicle may be equipped with the Oil Life Management System that predicts
engine oil life based on the driver’s driving history and alerts the driver to change
engine oil.
- If the deterioration of the engine oil increases depending on the driver’s driving
severity, the remaining oil life alert appears on the instrument cluster before the
normal engine oil replacement interval. Have the engine oil and filter changed by an
authorized HYUNDAI dealer.
- Oil Life Management System works when the recommended engine oil is used.
So, if recommended engine oil is not used, replace the engine oil according to the
maintenance schedule under severe usage condition. Also, check the amount of
engine oil regularly as this system assumes that the engine oil is being filled normally.
- Always reset the remaining engine oil life whenever the engine oil is changed.
Otherwise, the indication of remaining Oil life in the Oil Life Management System
may not be accurate. To reset the Oil Life Management System, select ‘RESET’ from
the infotainment system screen. Then, select ‘Yes’ when the message “Has the engine
oil been changed? Press [Yes] to reset the oil life.” appears on the screen.
- If there is no alert until the maximum maintenance interval, have the vehicle
checked by an authorized HYUNDAI dealer.

09
9-33
By jump starting
After a jump start from a good battery,
drive the vehicle for 20-30 minutes
before it is shutoff. The vehicle may
not restart if you shut it off before the
battery had a chance to adequately
recharge. See “Jump Starting” in chapter
8 for more information on jump starting
procedures.
Information
An inappropriately disposed
battery can be harmful to the
environment and human health.
Dispose of the battery according
to your local law(s) or regulation.
Reset Items
The following items may need to be reset
after the battery has been discharged or
the battery has been disconnected.

[Auto up/down window (see chapter 5)

[ Trip computer (see chapter 5)

[ Climate control system (see chapter 5)

[ Clock (see chapter 5)

[ Infotainment system (see
infotainment system manual)

09
9-37

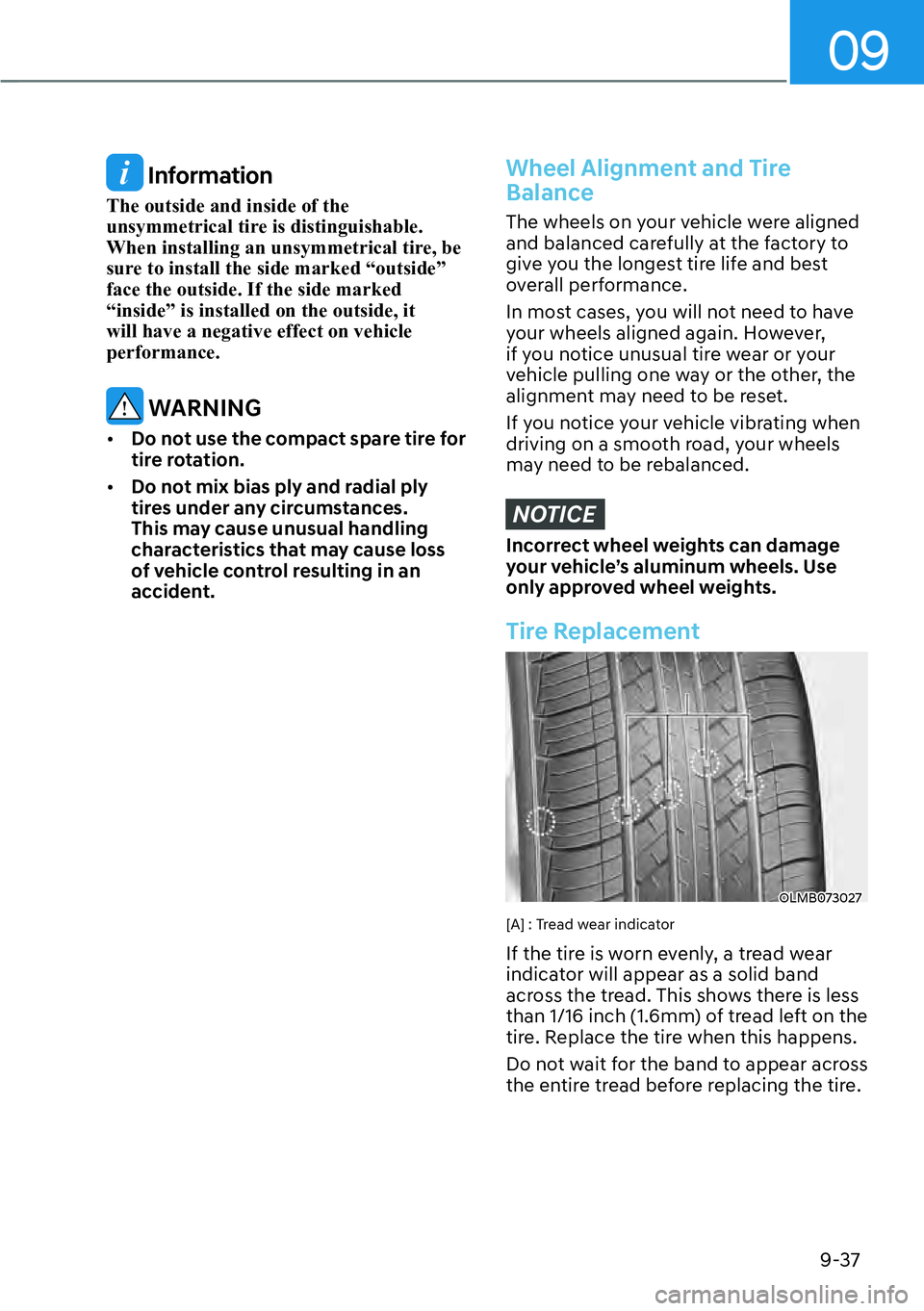

Information
The outside and inside of the
unsymmetrical tire is distinguishable.
When installing an unsymmetrical tire, be
sure to install the side marked “outside”
face the outside. If the side marked
“inside” is installed on the outside, it
will have a negative effect on vehicle
performance.
WARNING

[Do not use the compact spare tire for
tire rotation.

[ Do not mix bias ply and radial ply
tires under any circumstances.
This may cause unusual handling
characteristics that may cause loss
of vehicle control resulting in an
accident.
Wheel Alignment and Tire
Balance
The wheels on your vehicle were aligned
and balanced carefully at the factory to
give you the longest tire life and best
overall performance.
In most cases, you will not need to have
your wheels aligned again. However,
if you notice unusual tire wear or your
vehicle pulling one way or the other, the
alignment may need to be reset.
If you notice your vehicle vibrating when
driving on a smooth road, your wheels
may need to be rebalanced.
NOTICE
Incorrect wheel weights can damage
your vehicle’s aluminum wheels. Use
only approved wheel weights.
Tire Replacement
OLMB073027
[A] : Tread wear indicator
If the tire is worn evenly, a tread wear
indicator will appear as a solid band
across the tread. This shows there is less
than 1/16 inch (1.6mm) of tread left on the
tire. Replace the tire when this happens.
Do not wait for the band to appear across
the entire tread before replacing the tire.

09
9-49
Fuse switch
OOSN091013L
Always, place the fuse switch to the ON
position.
If you move the switch to the OFF
position, some items such as the audio
system and digital clock must be reset
and the smart key may not work properly.
Information
OOSN081019N
If the fuse switch is OFF, the above
message will appear.
NOTICE

[Always place the fuse switch in the
ON position while driving the vehicle.

[ Do not move the fuse switch
repeatedly. The fuse switch may be
damaged.
Engine Compartment Panel Fuse
Replacement
Blade fuse / Cartridge fuse
„Blade type fuse
OOS090031L
„Cartridge type fuse
OOS090032L
1. Turn the vehicle off.
2. Turn all other switches off.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert the
fuse, use the fuse puller in the engine
compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.

Index
I-12
V
Vehicle break-in process
........................................................................\
................1-7
Vehicle Certification Label
........................................................................\
..........2-13
Vehicle data collection and event data recorders
...................................................1-8
Vehicle Identification Number (Vin)
...................................................................2-13
Vehicle Load Limit
........................................................................\
......................6-60
The Loading Information Label .......................................................................6-61
Vehicle modifications
........................................................................\
....................1-7
Vehicle settings (infotainment system)
................................................................4-36
Setting Your Vehicle ........................................................................\
................4-36
Volume and Weight
........................................................................\
......................2-10
W
Washer Fluid
........................................................................\
................................9-23
Checking the Washer Fluid Level ....................................................................9-23
Windows
........................................................................\
......................................5-50
Power Windows ........................................................................\
........................5-51
Windshield Defrosting and Defogging
................................................................5-83
Auto Defogging System (only for automatic climate control system) .............5-84
Automatic Climate Control System .................................................................5-83
Defroster ........................................................................\
...................................5-86
Winter Driving
........................................................................\
.............................6-55
Snow or Icy Conditions ........................................................................\
............6-55
Winter Precautions ........................................................................\
...................6-58
Wiper Blades
........................................................................\
................................9-26
Battery Capacity Label ........................................................................\
.............9-31
Battery Rechar ging ........................................................................\
...................9-32
Blade Inspection ........................................................................\
.......................9-26
Blade Replacement ........................................................................\
...................9-26
For Best Battery Service ........................................................................\
..........9-31
Reset Items ........................................................................\
...............................9-33
Wipers and Washers
........................................................................\
.....................5-70
Front Windshield Washers ........................................................................\
........5-72
Rear Window Wiper and Washer .....................................................................5-73
Windshield Wipers ........................................................................\
...................5-70
