2023 HYUNDAI KONA relay

09
9-57

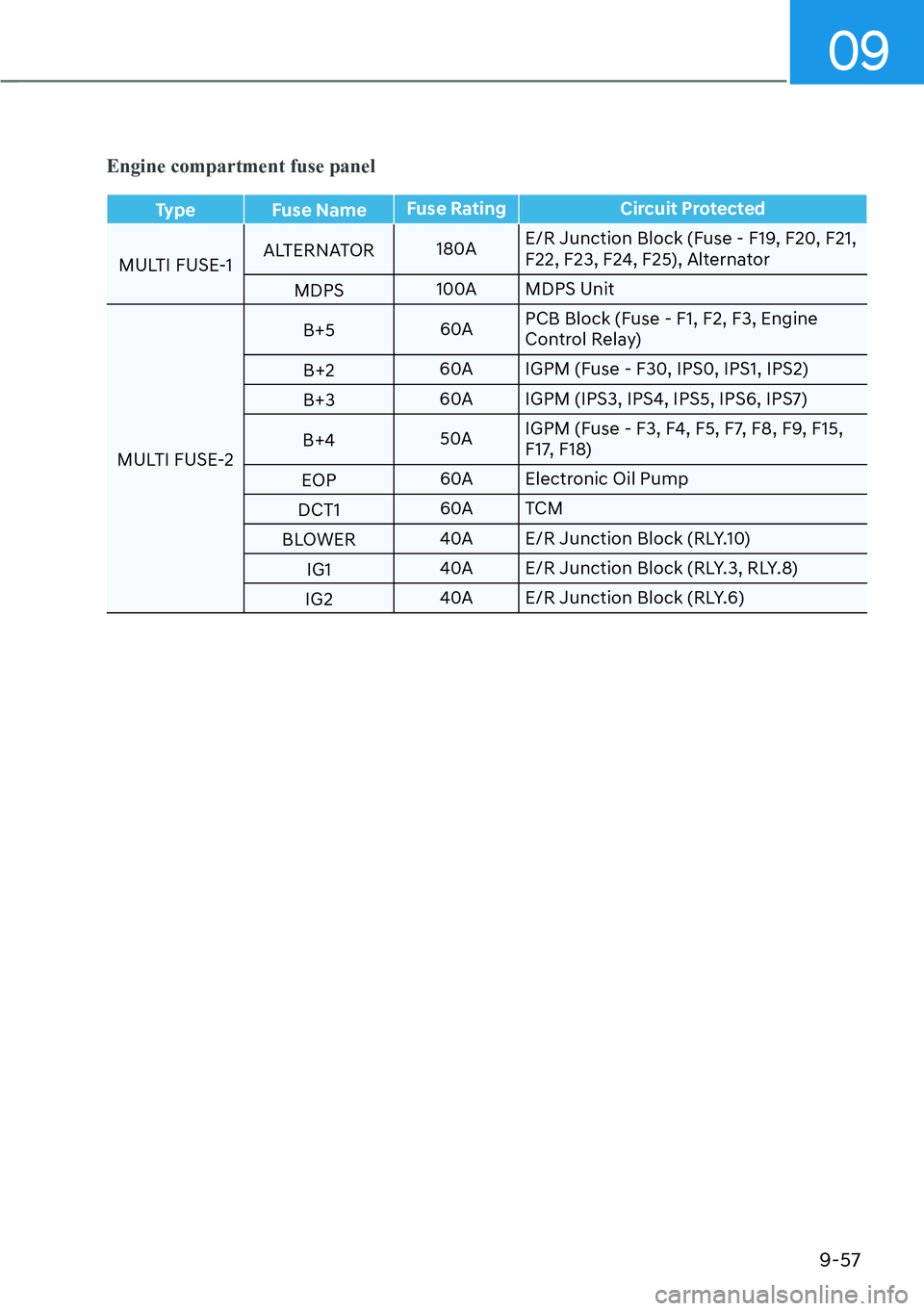

Engine compartment fuse panel
Type Fuse NameFuse Rating Circuit Protected
MULTI FUSE-1 AL
TERNATOR
180AE/R Junction Block (Fuse - F19, F20, F21,
F22, F23, F24, F25), Alternator
MDPS 100A MDPS Unit
MULTI FUSE-2 B+5
60APCB Block (Fuse - F1, F2, F3, Engine
Control Relay)
B+2 60A IGPM (Fuse - F30, IPS0, IPS1, IPS2)
B+3 60A IGPM (IPS3, IPS4, IPS5, IPS6, IPS7)
B+4 50AIGPM (Fuse - F3, F4, F5, F7, F8, F9, F15,
F17, F18)
EOP 60A Electronic Oil Pump
DCT1 60A TCM
BLOWER 40A E/R Junction Block (RLY.10)
IG1 40A E/R Junction Block (RLY.3, RLY.8)
IG2 40A E/R Junction Block (RLY.6)

09
9-59

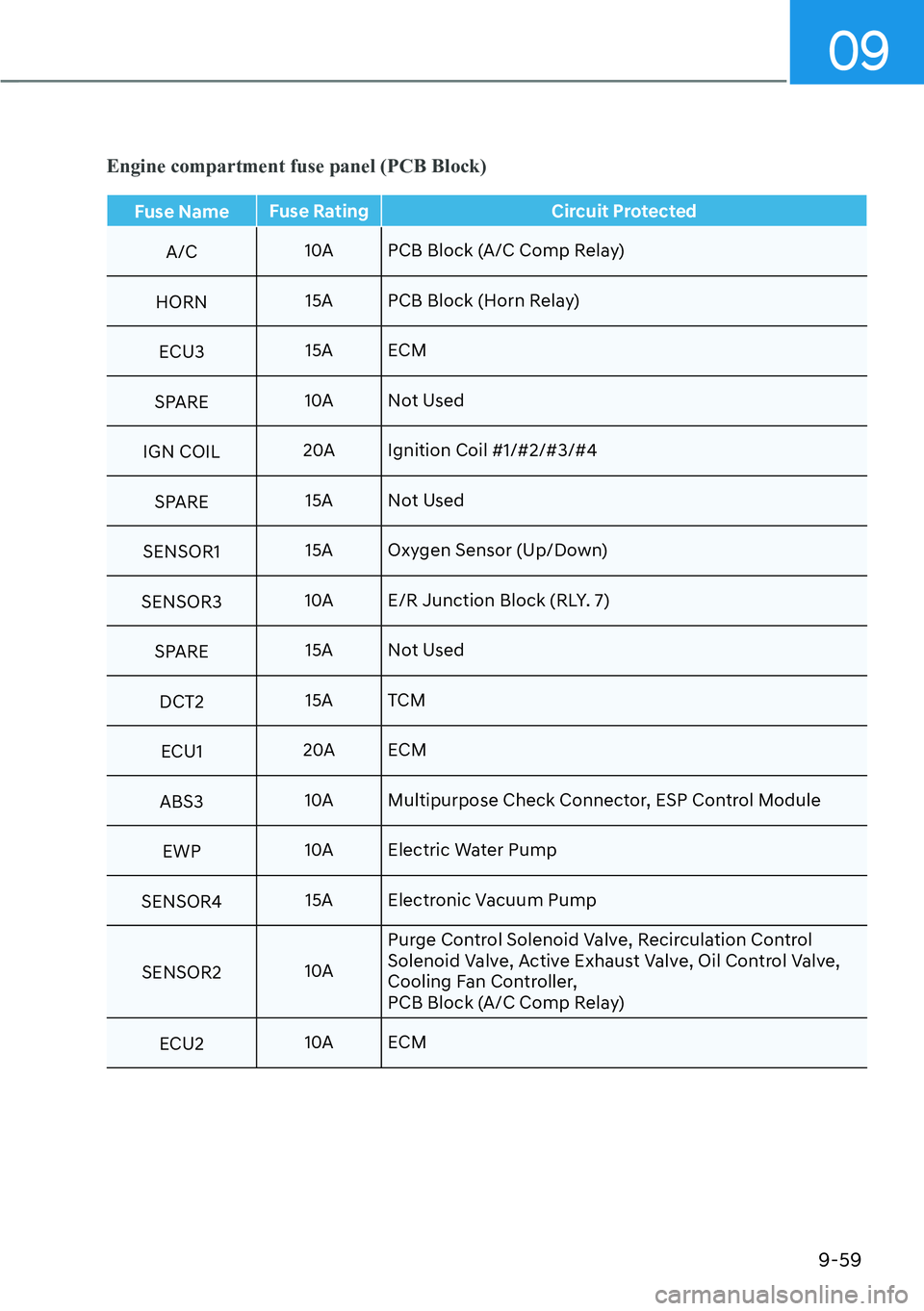

Engine compartment fuse panel (PCB Block)
Fuse NameFuse Rating Circuit Protected
A/C 10
A PCB Block (A/C Comp Relay)
HORN 15A PCB Block (Horn Relay)
ECU3 15A ECM
SPARE 10A Not Used
IGN COIL 20A Ignition Coil #1/#2/#3/#4
SPARE 15A Not Used
SENSOR1 15A Oxygen Sensor (Up/Down)
SENSOR3 10A E/R Junction Block (RLY. 7)
SPARE 15A Not Used
DCT2 15A TCM
ECU1 20A ECM
ABS3 10A Multipurpose Check Connector, ESP Control Module
EWP 10A Electric Water Pump
SENSOR4 15A Electronic Vacuum Pump
SENSOR2 10APurge Control Solenoid Valve, Recirculation Control
Solenoid Valve, Active Exhaust Valve, Oil Control Valve,
Cooling Fan Controller,
PCB Block (A/C Comp Relay)
ECU2 10A ECM

Maintenance9-60
NOTICE
After checking the fuse panel in the engine compartment, securely install the cover.
If it is not securely latched, electrical failure may occur from water contact.

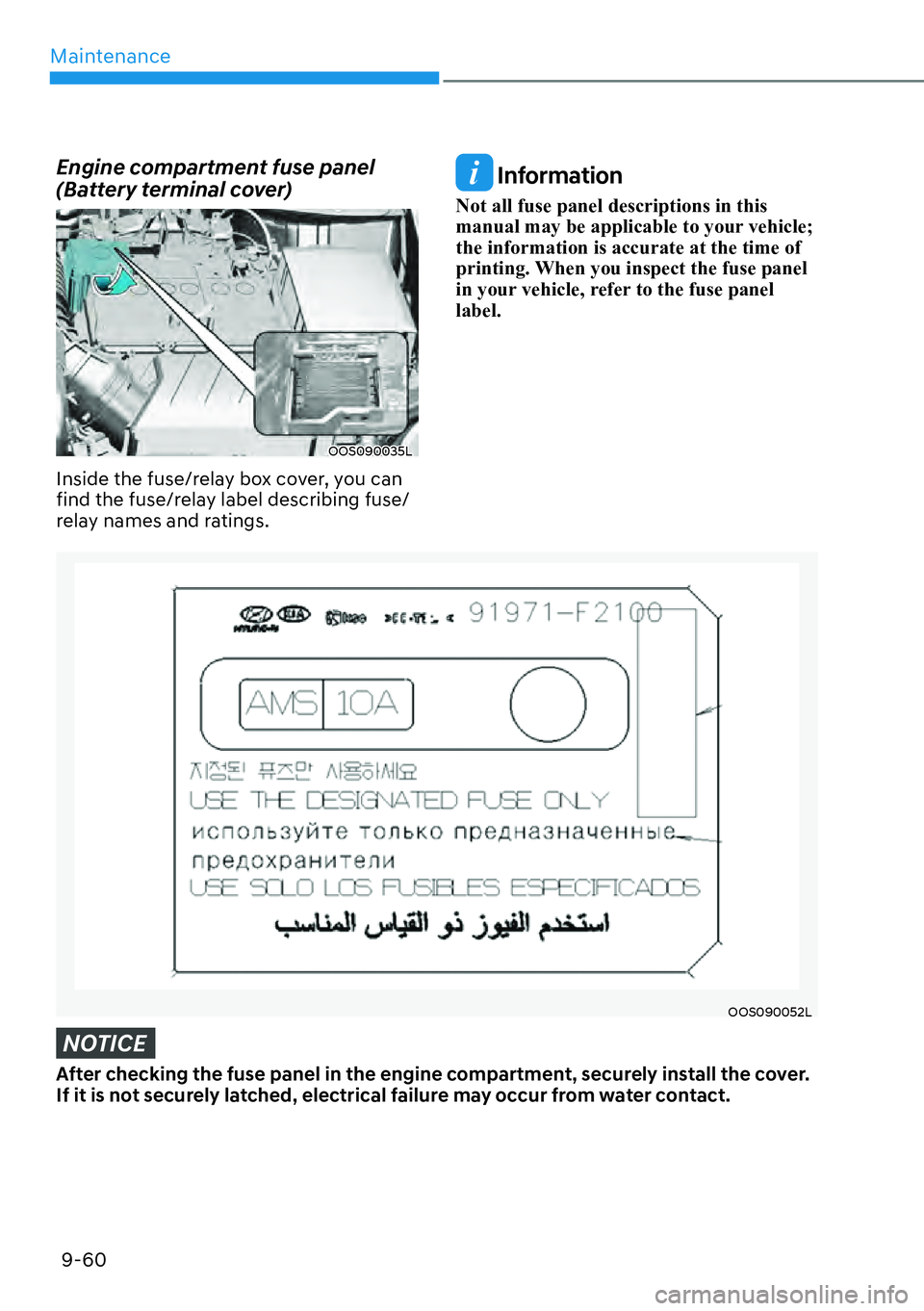

Engine compartment fuse panel
(Battery terminal cover)
OOS090035L
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
OOS090052L
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
