2023 HYUNDAI KONA instrument cluster

1
2
3
4
5
6
7
9
I
8
Maintenance
Index Emergency Situations Driver Assistance System
Driving Your Vehicle
Convenient Features
Instrument Cluster
Seats & Safety System Vehicle Information, Consumer Information and
Reporting Safety Defects Foreword

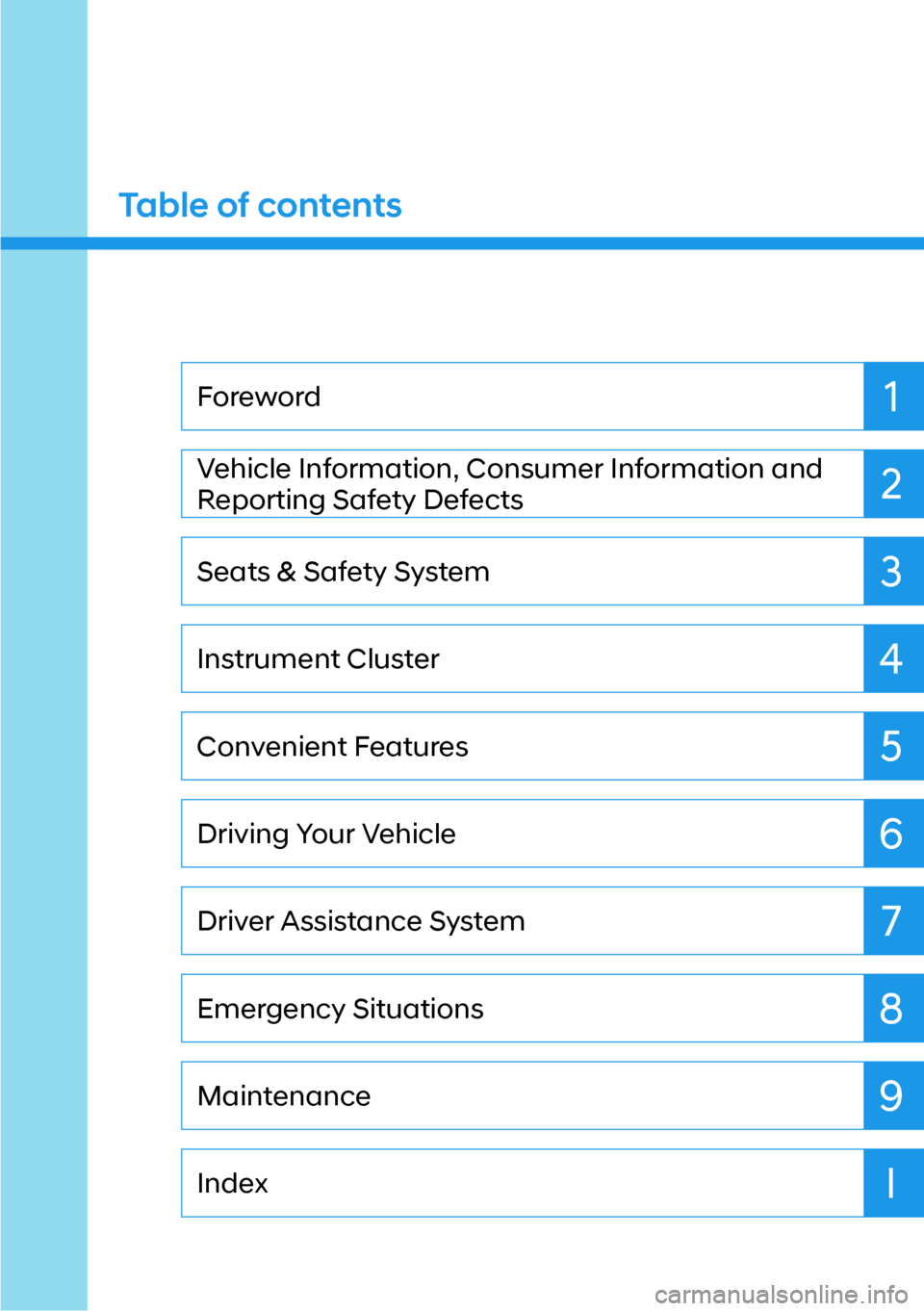

Table of contents

2-5
02
1. Instrument cluster .................................. 4-4
2. Horn ....................................................... 5-35
3. Driver’s front air bag .............................. 3-41
4. Engine Start/Stop button ....................... 6-5
5. Light control/Turn signals .................... 5-60
6. Wiper/Washer ....................................... 5-70
7. Infotainment system ........................... 5-101
8. Hazard warning flasher switch .............. 8-2
9. Automatic climate control system ....... 5-74
10. Passenger’s front air bag ...................... 3-41
11. Glove box .............................................. 5-88
12. USB Charger ......................................... 5-93
13. USB Port ............................................... 5-101
14. Power outlet .......................................... 5-92
15. Dual clutch transmission shift lever .....6-10 16. Drive mode knob .................................. 6-38
17. Seat warmer ........................................... 3-16
18. ESC off button ...................................... 6-23
19. Parking Safety button ........................... 7-68
20. Parking/ View button ............................7-55
21. Wireless Smart Phone Charging
System .................................................. 5-94
22. Cup holder ............................................. 5-91
23. Steering wheel audio controls/ Bluetooth® wireless technology
hands-free controls ......................5-102/103
24. Driving Assist button/ Lane Driving Assist button .................... 7-15
The actual shape may differ from the illustration.
OOSN011004N
,17(5,2529(59,(:

03
3-19
Seat Belt Warning Light
Seat belt warning
„Instrument cluster
OAM032161L
Driver’s seat belt warning
As a reminder to the driver, the seat
belt w
arning light will illuminate for
approximately 6 seconds each time the
Engine Start/Stop button is in the ON
position regardless of belt fastening. If
the driver’s seat belt is not fastened, the
warning chime will sound for about 6
seconds.
If you continue not to fasten the seat belt
and you drive over 6 mph (9 km/h), the
warning light will stay illuminated.
If you continue not to fasten the seat
belt and you drive over 12 mph (20 km/h)
the seat belt warning chime will sound
for approximately 100 seconds and the
corresponding warning light will blink.
If you unfasten the seat belt while driving
under 12 mph (20 km/h), the seat belt
warning light will illuminate until the seat
belt is fastened.
If you unfasten the seat belt while
driving over 12 mph (20 km/h), the
seat belt warning chime will sound for
approximately 100 seconds and the
corresponding warning light will blink.
OOSN031025L
Front passenger’s seat belt warning
As a reminder to the front passenger,
the fr
ont passenger’s seat belt warning
light will illuminate for approximately 6
seconds each time you turn the Engine
Start/Stop button is in the ON position
regardless of belt fastening.
If you continue not to fasten the seat belt
and you drive over 6 mph (9 km/h), the
warning light will stay illuminated.
If you continue not to fasten the seat
belt and you drive over 12 mph (20 km/h)
the seat belt warning chime will sound
for approximately 100 seconds and the
corresponding warning light will blink.
If you unfasten the seat belt while driving
under 12 mph (20 km/h), the seat belt
warning light will illuminate until the seat
belt is fastened.
If you unfasten the seat belt while
driving over 12 mph (20 km/h), the
seat belt warning chime will sound for
approximately 100 seconds and the
corresponding warning light will blink.

Seats & Safety System3-24
WARNING

[ Always wear your seat belt and sit
properly in your seat.

[ Do not use the seat belt if it is loose
or twisted. A loose or twisted seat
belt will not protect you properly in
an accident.

[ Do not place anything near the
buckle. This may adversely affect
the buckle and cause it to function
improperly.

[ Always replace your pre-tensioners
after activation or an accident.

[ NEVER inspect, service, repair or
replace the pre-tensioners yourself.
Have the pre-tensioners inspected,
serviced, repaired or replaced by an
authorized HYUNDAI dealer.

[ Do not hit the seat belt assemblies.
WARNING
Do not touch the pre-tensioner seat
belt assemblies for several minutes
after they have been activated. When
the pre-tensioner seat belt mechanism
deploys during a collision, the pre-
tensioner can become hot and can burn
you.
CAUTION
Body work on the front area of the
vehicle may damage the pre-tensioner
seat belt system. Therefore, have the
system to be serviced by an authorized
HYUNDAI dealer.
OHI038175L
The Pre-Tensioner Seat Belt System
consists mainly of the following
components. Their locations are shown
in the illustration above:
(1) SRS air bag warning light
(2) Retractor pre-tensioner
(3) SRS control module
NOTICE
The sensor that activates the SRS
control module is connected with the
pre–tensioner seat belts. The SRS air
bag warning light on the instrument
cluster will illuminate for approximately
3~6 seconds after the Engine Start/Stop
button is in the ON position, and then it
should turn off.
If the pre-tensioner is not working
properly, the warning light will
illuminate even if the SRS air bag is not
malfunctioning. If the warning light
does not illuminate, stays illuminated
or illuminates when the vehicle is
being driven, have the pre-tensioner
seat belts and/or SRS control module
inspected by an authorized HYUNDAI
dealer as soon as possible.

03
3-47
„Driver’s front air bag (3)
ODN8039079L
„Passenger’s front air bag
ODN8039080L
After complete inflation, the air bag
immediately starts deflating, enabling
the driver to maintain forward visibility
and the ability to steer or operate other
controls.
WARNING
To prevent objects from becoming
dangerous projectiles when the
passenger’s air bag inflates:

[Do not install or place any objects
(drink holder, CD holder, stickers,
etc.) on the front passenger’s panel
above the glove box where the
passenger’s air bag is located.

[ Do not install a container of liquid
air freshener near the instrument
cluster or on the instrument panel
surface.
What to Expect After an Air Bag
Inflates
After a frontal or side air bag inflates, it
will deflate very quickly. Air bag inflation
will not prevent the driver from seeing
out of the windshield or being able
to steer. Curtain air bags may remain
partially inflated for some time after they
deploy.
WARNING
After an air bag inflates, take the
following precautions:

[Open your windows and doors as
soon as possible after impact to
reduce prolonged exposure to the
smoke and powder released by the
inflating air bag.

[ Do not touch the air bag storage
area’s internal components
immediately after an air bag has
inflated. The parts that come into
contact with an inflating air bag may
be very hot.

[ Always wash exposed skin areas
thoroughly with cold water and mild
soap.

[ Always have an authorized
HYUNDAI dealer replace the air bag
immediately after deployment. Air
bags are designed to be used only
once.

4
Instrument Cluster ........................................................................\
.................... 4-4Instrument Cluster Control ........................................................................\
..................4-5Instrument panel illumination ........................................................................\
...........4-5
Gauges and Meters ........................................................................\
............................. 4-6 Speedometer .....................................................................\
....................................... 4-6
Tachometer .....................................................................\
........................................... 4-7
Engine coolant temperature gauge ........................................................................\
.. 4-7
Fuel gauge ........................................................................\
......................................... 4-8
Outside temperature gauge ........................................................................\
............. 4-9
Odometer .....................................................................\
............................................. 4-9
Distance to empty ........................................................................\
........................... 4-10
CUSTOM mode settings ........................................................................\
................. 4-10
Transmission Shift Indicator ........................................................................\
............... 4-11
Warning and Indicator Lights ........................................................................\
............ 4-12 Seat belt warning light ........................................................................\
.................... 4-12
Air bag warning light ........................................................................\
....................... 4-12
Parking brake & Brake fluid warning light .............................................................. 4-12
Anti-lock Brake System (ABS) warning light .......................................................... 4-13
Electronic Brake Force Distribution (EBD) system warning light ......................... 4-13
Electric Power Steering (EPS) warning light .......................................................... 4-14
Charging system warning light ........................................................................\
....... 4-14
Engine oil pressure warning light ........................................................................\
... 4-15
Engine Oil Level Warning Light ........................................................................\
..... 4-15
Low fuel level warning light ........................................................................\
............ 4-16
Malfunction Indicator Lamp (MIL) ........................................................................\
.. 4-16
Low tire pressure warning light ......................................................................\
........ 4-16
Forward Safety warning light ........................................................................\
...........4-17
Lane Safety indicator light ........................................................................\
...............4-17
LED headlight warning light ........................................................................\
.............4-17
Electronic Stability Control (ESC) indicator light ................................................... 4-18
Electronic Stability Control (ESC) OFF indicator light .......................................... 4-18
Immobilizer Indicator Light (with smart key) ........................................................ 4-18
Downhill Brake Control (DBC) indicator light ....................................................... 4-19
Turn signal indicator light ........................................................................\
................ 4-19
High beam indicator light ........................................................................\
............... 4-19
Low Beam Indicator Light ........................................................................\
...............4-20
Light ON Indicator Light ........................................................................\
..................4-20
High Beam Assist indicator light ........................................................................\
.....4-20
Cruise Indicator Light ........................................................................\
.....................4-20
SPORT Mode Indicator Light ........................................................................\
...........4-20
4. Instrument Cluster

4
4. Instrument Cluster
LCD Display ........................................................................\
............................. 4-28LCD Display Control ........................................................................\
...........................4-28
View Modes ........................................................................\
........................................4-29Trip computer mode ........................................................................\
....................... 4-30
Turn By Turn (TBT) mode ........................................................................\
................ 4-30
Driving Assist mode ........................................................................\
........................ 4-30
Sport view........................................................................\
......................................... 4-31
Master warning group ........................................................................\
.....................4-33
Trip Computer......................................................................\
.......................................4-34 Trip modes ........................................................................\
........................................4-34
Vehicle Settings (infotainment system) ........................................................ 4-36Setting Your Vehicle ........................................................................\
..........................4-36

4-4
Instrument Cluster
„Normal mode
„N mode
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to “Gauges and meters” section in this chapter.
OOSN041052N/OOSN041053N
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge 4. Fuel gauge
5. Shift light
INSTRUMENT CLUSTER
