2023 HYUNDAI KONA EV Owners Manual

05
5-25
4) Canadian Programming
Canadian radio-frequency laws require
transmitter remote signals to "time-
out" (or quit) after a couple seconds of
transmission, which may not be long
enough for HomeLink to pick up the signal
during programming.
If you live in Canada or you are having
difficulties programming a gate operator
or garage door opener by using the
programming procedures, replace
"Programming a New HomeLink Button"
step 3 with the following:
While the HomeLink indicator light (7) is
flashing orange, press and release ("cycle")
your device's handheld remote every two
seconds until the HomeLink indicator light
(7) changes from orange to green. You may
now release the hand-held remote button.
Then proceed with "Programming a New
HomeLink Button" step 4.
2. Operating HomeLink
®
1) Operating HomeLink®
OOS040095N
1. Press and release the desired programmed HomeLink button (1, 2
or 3).
Information
The HomeLink indicator (7) should
light green, solid or flashing, and your
programmed device should operate.
If your device does not operate, the
HomeLink programming was not
successful, and you'll need to reprogram the button.
2) Two-Way Communication Display Behavior
OOS047099N
1. Press and release one of the programmed HomeLink buttons (1, 2
or 3).
OOS047411N
2. The indicator (4) and (6) operates as below, if your garage door opener
has Two-Way Communication
functionality.

Convenient features
5-26
•
If the indicator (4) flashes in Orange,
it indicates that the garage door is "Closing".
• The indicator (4) turns solid green
once the garage door has closed.
• If the indicator (6) flashes in Orange,
it indicates that the garage door is "Opening".
• The indicator (6) turns solid green
once the garage door has fully opened.
• If the indicator (4) or (6) does not
turn to green, it indicates that the
last status of garage door was not
received properly. The HomeLink
mirror tries to receive the last known
status of the garage door for a few seconds.
3) Recalling Garage Door Status
HomeLink mirror with Two-Way
Communication provides a way to view
the last stored message from the garage
door opener. In order to recall the last
known status of the last activated device,
press the buttons "1 and 2" OR "2 and 3"
simultaneously. • If the indicator (4) appears solid
Green, it indicates that the last
activated device was "closed"
properly.
• If the indicator (6) appears solid
Green, it indicates that the last
activated device was "open" properly.
3. Erasing HomeLink ®
Buttons
1) Erasing and Reprogramming a Single
HomeLink® Button:
1. Press and hold the desired HomeLink button you want to re-program. DO
NOT release the button.
2. The HomeLink indicator light (7) will illuminate solid green. Release the
button as soon as the HomeLink
indicator light (7) begins to flash
orange, usually about 20 seconds.
3. Proceed with the steps in the "Programming a New HomeLink
Button" section.
Information
If you do not complete the re-
programming of a new device to the
button, it will revert to the previously
stored programming.

05
5-27
2) The following instructions will erase
ALL HomeLink® programming from
ALL buttons:
OOS040098N
1. Press and hold the buttons (1) and (3) simultaneously
2. The HomeLink indicator light (7) will illuminate solid Orange for about 10 seconds
3. Release the buttons once the HomeLink indicator light (7) changes
to Green and flashes rapidly
4. Now all three HomeLink buttons
(1), (2) and (3) are cleared of any
programming
Information
HomeLink ®
and the HomeLink ®
House
logo are registered trademarks of Gentex Corporation.
The myQ logo is a registered trademark of
The Chamberlain Group, Inc. FCC (USA) and ISED (Canada)
This device complies with FCC rules
part 15 and Innovation, Science, and
Economic Development Canada RSS-
210. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) This
device must accept any interference that
may be received including interference
that may cause undesired operation.
WARNING: The transmitter has been
tested and complies with FCC and
ISED rules. Changes or modifications
not expressly approved by the party
responsible for compliance could void
the user's authority to operate the
device.
This equipment complies with FCC
and ISED radiation exposure limits set
forth for an uncontrolled environment.
End Users must follow the specific
operating instructions for satisfying RF
exposure compliance. This transmitter
must be at least 20cm from the user and
must not be co-located or operating in
conjunction with any other antenna or
transmitter.

Convenient features
5-28

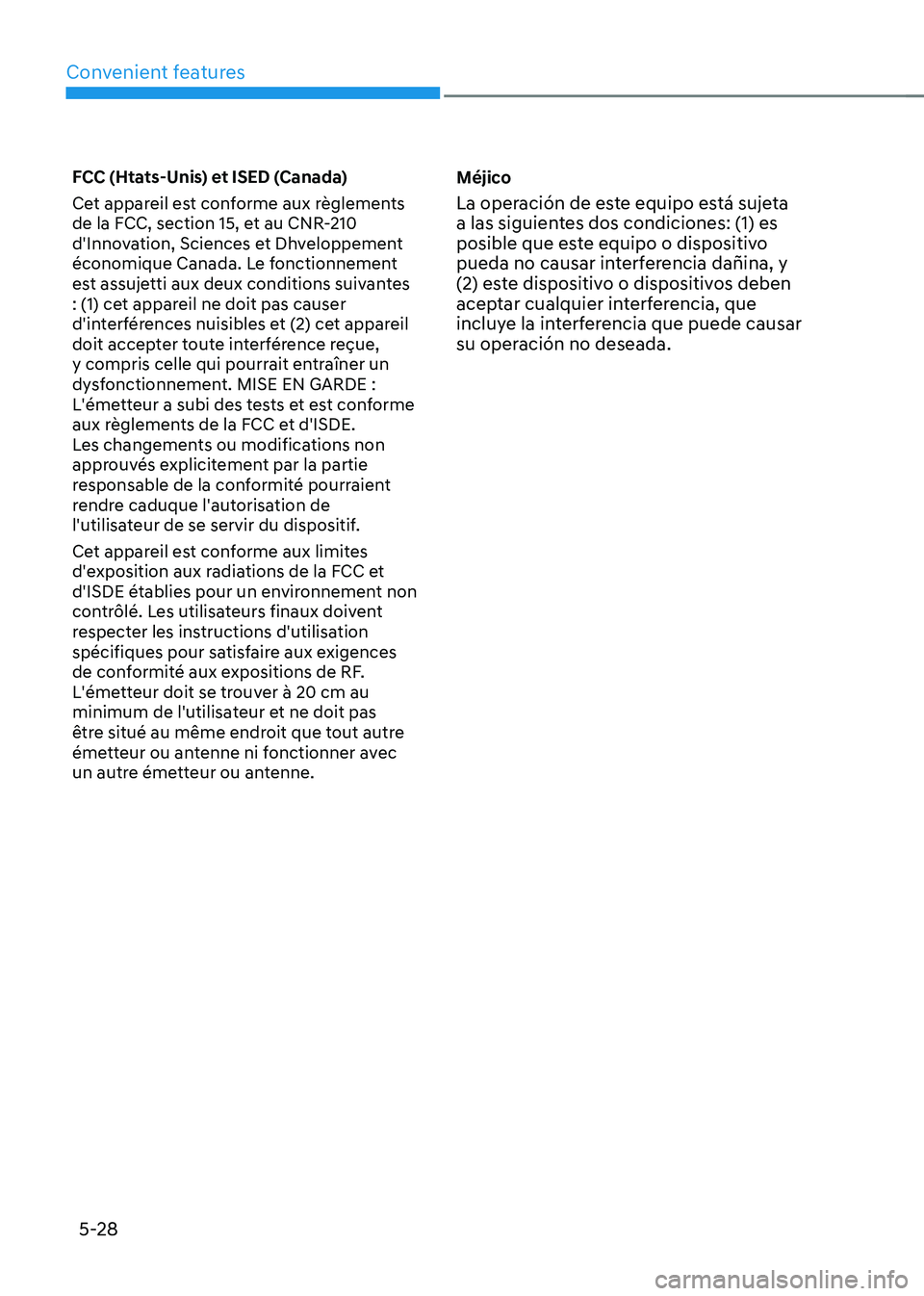

FCC (Htats-Unis) et ISED (Canada)
Cet appareil est conforme aux règlements
de la FCC, section 15, et au CNR-210
d'Innovation, Sciences et Dhveloppement
économique Canada. Le fonctionnement
est assujetti aux deux conditions suivantes
: (1) cet appareil ne doit pas causer
d'interférences nuisibles et (2) cet appareil
doit accepter toute interférence reçue,
y compris celle qui pourrait entraîner un
dysfonctionnement. MISE EN GARDE :
L'émetteur a subi des tests et est conforme
aux règlements de la FCC et d'ISDE.
Les changements ou modifications non
approuvés explicitement par la partie
responsable de la conformité pourraient
rendre caduque l'autorisation de
l'utilisateur de se servir du dispositif.
Cet appareil est conforme aux limites
d'exposition aux radiations de la FCC et
d'ISDE établies pour un environnement non
contrôlé. Les utilisateurs finaux doivent
respecter les instructions d'utilisation
spécifiques pour satisfaire aux exigences
de conformité aux expositions de RF.
L'émetteur doit se trouver à 20 cm au
minimum de l'utilisateur et ne doit pas
être situé au même endroit que tout autre
émetteur ou antenne ni fonctionner avec
un autre émetteur ou antenne.
Méjico
La operación de este equipo está sujeta
a las siguientes dos condiciones: (1) es
posible que este equipo o dispositivo
pueda no causar interferencia dañina, y
(2) este dispositivo o dispositivos deben
aceptar cualquier interferencia, que
incluye la interferencia que puede causar
su operación no deseada.

05
5-29
HomeLink 5 Programing Flow Chart
OOS040475N

Convenient features
5-30
Outside rearview mirror
OOS047012
Be sure to adjust mirror angles before driving.
Your vehicle is equipped with both left-
hand and right-hand outside rearview
mirrors.
The mirror can be adjusted remotely with
the remote switch.
The mirror heads can be folded to
prevent damage during an automatic car
wash or when passing through a narrow
street.
WARNING
• The right outside rearview mirror
is convex. In some countries, the
left outside rearview mirror is also
convex. Objects seen in the mirror
are closer than they appear.
• Use your interior rearview mirror or
turn your head and look to determine
the actual distance of following
vehicles when changing lanes.
WARNING
Do not adjust or fold the outside
rearview mirrors while driving. This may
cause loss of vehicle control resulting in
an accident.
NOTICE
• Do not scrape ice off the mirror face;
this may damage the surface of the glass.
• If the mirror is jammed with ice, do
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.

05
5-31

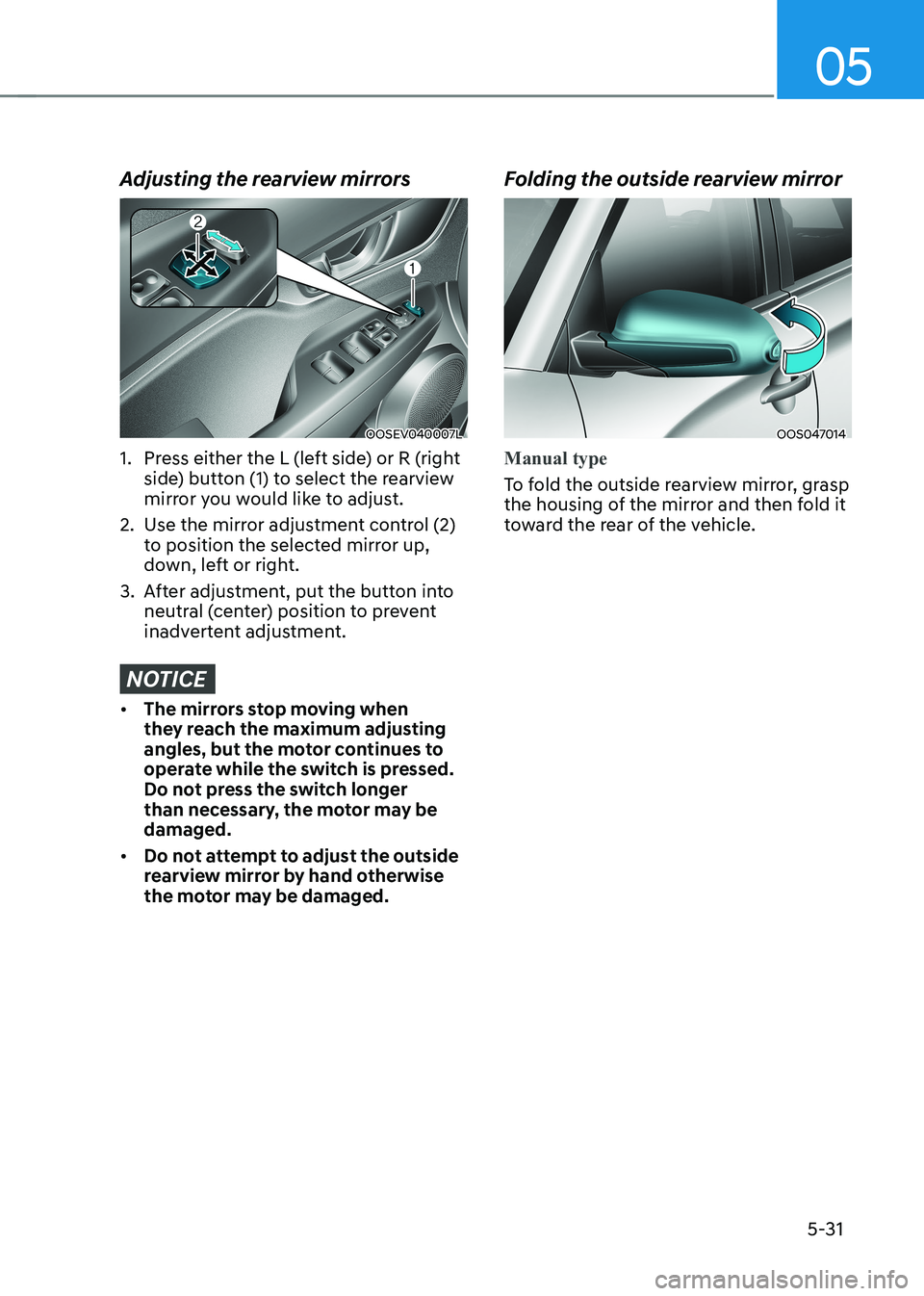

Adjusting the rearview mirrors
OOSEV040007L
1. Press either the L (left side) or R (right side) button (1) to select the rearview
mirror you would like to adjust.
2. Use the mirror adjustment control (2) to position the selected mirror up,
down, left or right.
3. After adjustment, put the button into neutral (center) position to prevent
inadvertent adjustment.
NOTICE
• The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer
than necessary, the motor may be damaged.
• Do not attempt to adjust the outside
rearview mirror by hand otherwise
the motor may be damaged. Folding the outside rearview mirror
OOS047014
Manual type
To fold the outside rearview mirror, grasp
the housing of the mirror and then fold it
toward the rear of the vehicle.

Convenient features
5-32
OOS047015
Electric type (if equipped)
Left : The mirror will unfold.
Right : The mirror will fold.
Center (AUTO) : The mirror will fold or
unfold automatically as follows: • With smart key system
- The mirror will fold or unfold when the door is locked or unlocked
by the smart key and “Welcome
mirror” in the User Setting Mode on
the LCD display is activated.
- The mirror will fold or unfold when the door is locked or unlocked by
the button on the outside door
handle and “Welcome mirror” in
the User Setting Mode on the LCD
display is activated.
NOTICE
The electric type outside rearview
mirror operates even though the START/
STOP button is in the OFF position.
However, to prevent unnecessary
battery discharge, do not adjust the
mirrors longer than necessary while the
vehicle is not running.
NOTICE
Do not fold the electric type outside
rearview mirror by hand. It could cause
motor failure.
