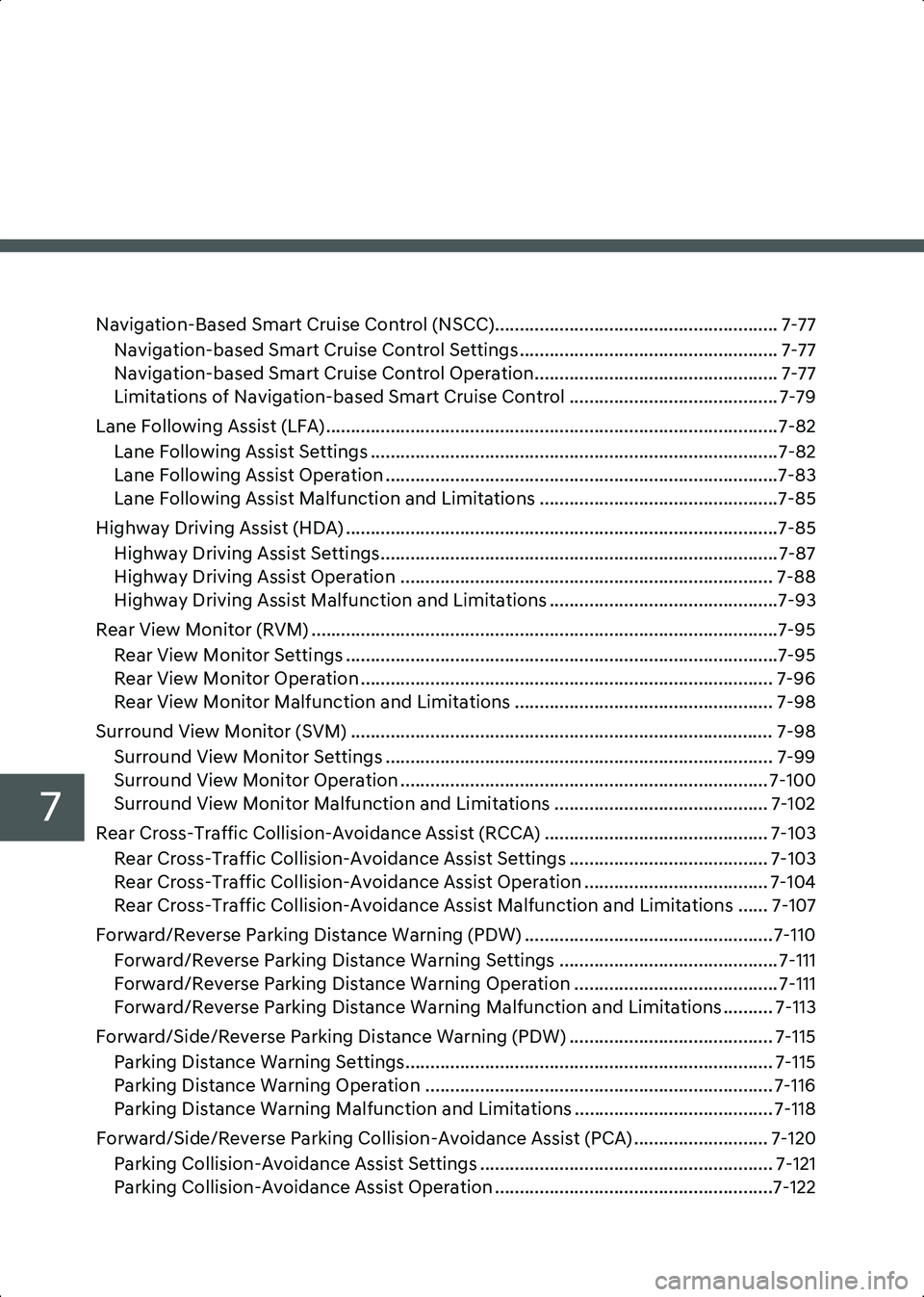

Navigation-Based Smart Cruise Control (NSCC)......................................................... 7-77Navigation-based Smart Cruise Control Settings .................................................... 7-77
Navigation-based Smart Cruise Control Operation................................................. 7-77
Limitations of Navigation-based Smart Cruise Control .......................................... 7-79
Lane Following Assist (LFA)........................................................................................... 7-82 Lane Following Assist Settings .................................................................................. 7-82
Lane Following Assist Operation ...............................................................................7-83
Lane Following Assist Malfunction and Limitations ................................................7-85
Highway Driving Assist (HDA) .......................................................................................7-85 Highway Driving Assist Settings................................................................................ 7-87
Highway Driving Assist Operation ........................................................................... 7-88Highway Driving Assist Malfunction and Limitations .............................................. 7-93
Rear View Monitor (RVM) ..............................................................................................7-95 Rear View Monitor Settings ....................................................................................... 7-95
Rear View Monitor Operation ................................................................................... 7-96
Rear View Monitor Malfunction and Limitations .................................................... 7-98
Surround View Monitor (SVM) ..................................................................................... 7-98 Surround View Monitor Settings .............................................................................. 7-99
Surround View Monitor Operation .......................................................................... 7-100
Surround View Monitor Malfunction and Limitations ........................................... 7-102
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ............................................. 7-103 Rear Cross-Traffic Collision-Avoidance Assist Settings ........................................ 7-103
Rear Cross-Traffic Collision-Avoidance Assist Operation ..................................... 7-104
Rear Cross-Traffic Collision-Avoidance Assist Malfunction and Limitations ...... 7-107
Forward/Reverse Parking Distance Warning (PDW) .................................................. 7-110 Forward/Reverse Parking Distance Warning Settings ............................................ 7-111
Forward/Reverse Parking Distance Warning Operation ......................................... 7-111
Forward/Reverse Parking Distance Warning Malfunction and Limitations .......... 7-113
Forward/Side/Reverse Parking Distance Warning (PDW) ......................................... 7-115 Parking Distance Warning Settings.......................................................................... 7-115
Parking Distance Warning Operation ...................................................................... 7-116Parking Distance Warning Malfunction and Limitations ........................................ 7-118
Forward/Side/Reverse Parking Collision-Avoidance Assist (PCA) ........................... 7-120 Parking Collision-Avoidance Assist Settings ........................................................... 7-121
Parking Collision-Avoidance Assist Operation ........................................................7-122
Hyundai_CE_en_US.book Page 2

7
7-49
Intelligent Speed Limit
if equipped
Assist (ISLA)
Intelligent Speed Limit Assist uses
information from the detected road signs
and uses the navigation system data to
inform you of the speed limit and to help
maintain within the speed limit on the
road.
CAUTION • Intelligent Speed Limit Assist may not operate properly if the function is used
in other countries.
• If a navigation system is equipped to your vehicle, the navigation needs to be
regularly updated for Intelligent Speed
Limit Assist to operate properly.
• The infotainment system may change after software updates. For more
information, refer to the user's manual
provided in the infotainment system
and the quick reference guide.

Detecting sensor
B7002501(1) Front view camera
Refer to the picture above for the detailed
location of the detecting sensor.
CAUTION For more information on the precautions
of the front view camera, refer to the
Forward Collision-Avoidance Assist (FCA)
section in this chapter.

Intelligent Speed Limit Assist
Settings
Speed Limit
B7002601
With the vehicle on, select or deselect
Setup > Vehicle > Driver Assistance >
Speed Limit from the Settings menu to
set whether to use each function.
• If Speed Limit Offset is selected, the
Speed Limit Offset can be adjusted.
Speed Limit Warning and Speed Limit
Assist will warn the driver and adjust
the driving speed when vehicle speed
exceeds the speed at which the set
Offset is added to speed limit.
• If Speed Limit Assist is selected,
Intelligent Speed Limit Assist will
inform the driver of speed limit and
additional road signs. In addition,
Intelligent Speed Limit Assist will
inform the driver to change set speed of
Manual Speed Limit Assist and/or
Smart Cruise Control to help the driver
stay within the speed limit.
• If Speed Limit Warning is selected,
Intelligent Speed Limit Assist will
inform the driver of speed limit. In
addition, Intelligent Speed Limit Assist
1
Hyundai_CE_en_US.book Page 49

Driver Assistance System
7-50

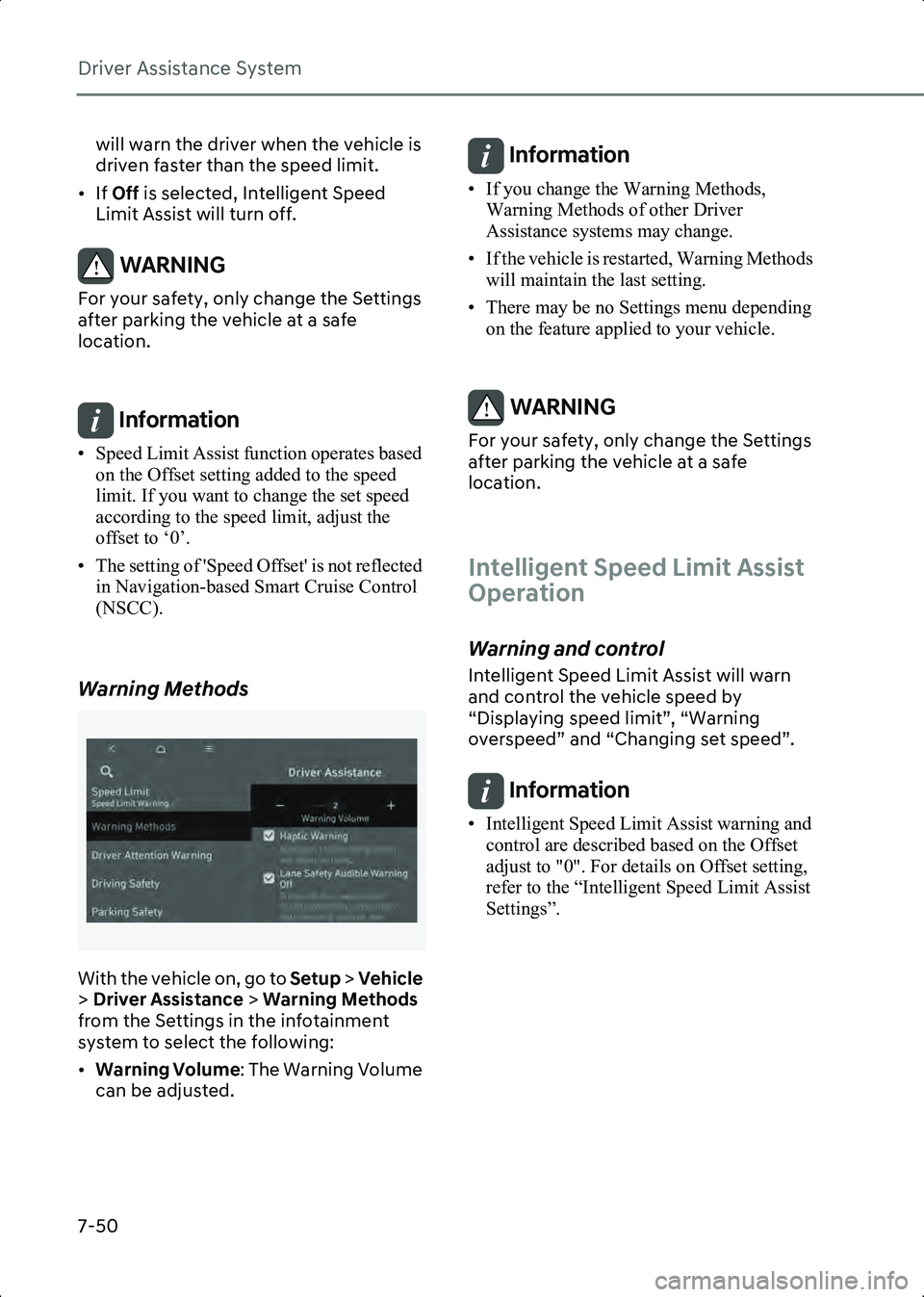

will warn the driver when the vehicle is
driven faster than the speed limit.
• If Off is selected, Intelligent Speed
Limit Assist will turn off.
WARNING For your safety, only change the Settings
after parking the vehicle at a safe
location.

Information • Speed Limit Assist function operates based on the Offset setting added to the speed
limit. If you want to change the set speed
according to the speed limit, adjust the
offset to ‘0’.
• The setting of 'Speed Offset' is not reflected in Navigation-based Smart Cruise Control
(NSCC).

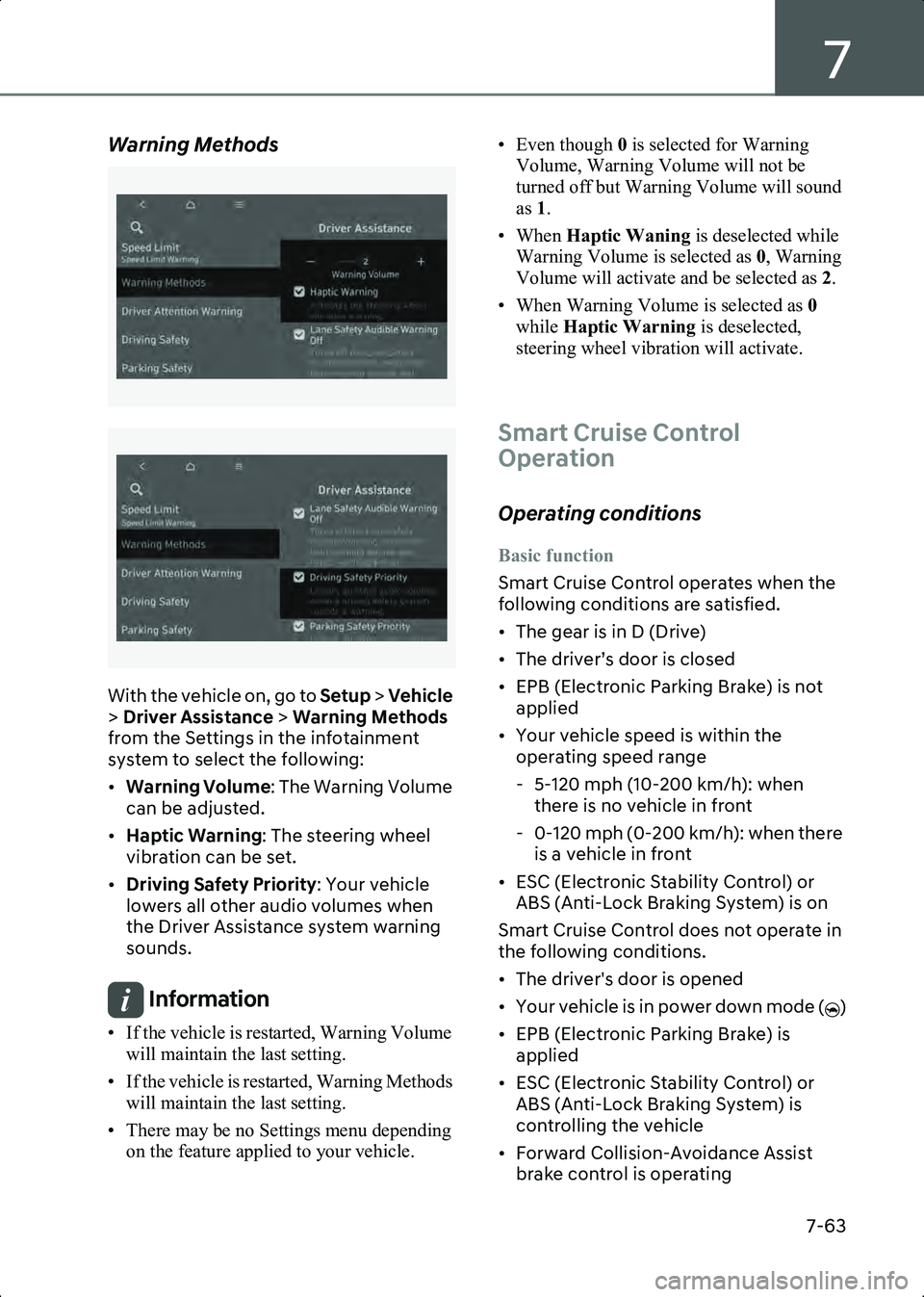

Warning Methods
B7001902
With the vehicle on, go to Setup > Vehicle
> Driver Assistance > Warning Methods
from the Settings in the infotainment
system to select the following:
• Warning Volume : The Warning Volume
can be adjusted.
Information • If you change the Warning Methods, Warning Methods of other Driver
Assistance systems may change.
• If the vehicle is restarted, Warning Methods will maintain the last setting.
• There may be no Settings menu depending on the feature applied to your vehicle.

WARNING For your safety, only change the Settings
after parking the vehicle at a safe
location.

Intelligent Speed Limit Assist
Operation
Warning and control
Intelligent Speed Limit Assist will warn
and control the vehicle speed by
“Displaying speed limit”, “Warning
overspeed” and “Changing set speed”.
Information • Intelligent Speed Limit Assist warning and control are described based on the Offset
adjust to "0". For details on Offset setting,
refer to the “Intelligent Speed Limit Assist
Settings”.

Hyundai_CE_en_US.book Page 50

7
7-51

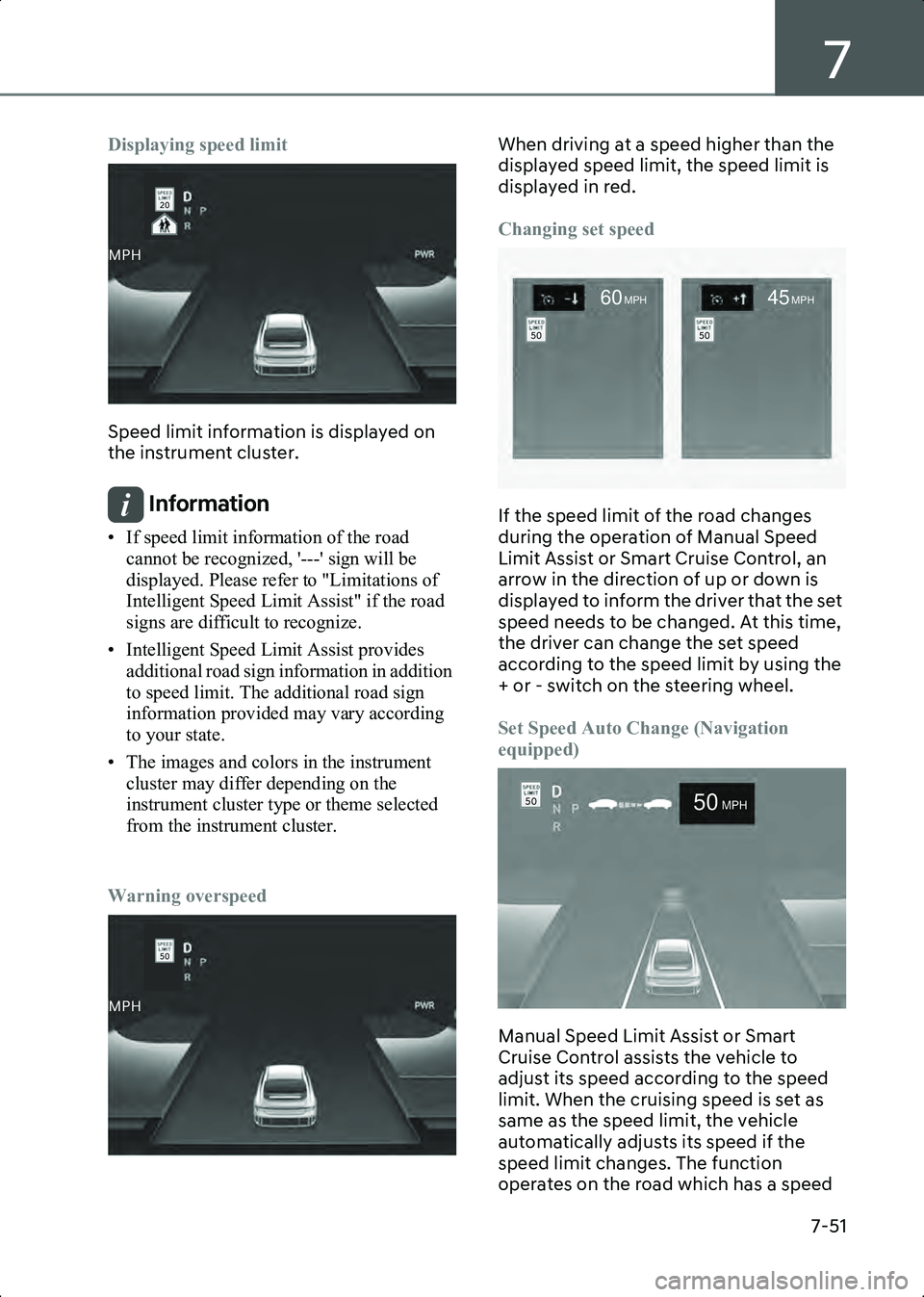

Displaying speed limit
B7002701
Speed limit information is displayed on
the instrument cluster.
Information • If speed limit information of the road cannot be recognized, '---' sign will be
displayed. Please refer to "Limitations of
Intelligent Speed Limit Assist" if the road
signs are difficult to recognize.
• Intelligent Speed Limit Assist provides additional road sign information in addition
to speed limit. The additional road sign
information provided may vary according
to your state.
• The images and colors in the instrument cluster may differ depending on the
instrument cluster type or theme selected
from the instrument cluster.

Warning overspeed
B7002702
When driving at a speed higher than the
displayed speed limit, the speed limit is
displayed in red.
Changing set speed
B7002703
If the speed limit of the road changes
during the operation of Manual Speed
Limit Assist or Smart Cruise Control, an
arrow in the direction of up or down is
displayed to inform the driver that the set
speed needs to be changed. At this time,
the driver can change the set speed
according to the speed limit by using the
+ or - switch on the steering wheel.
Set Speed Auto Change (Navigation
equipped)
B7002704
Manual Speed Limit Assist or Smart
Cruise Control assists the vehicle to
adjust its speed according to the speed
limit. When the cruising speed is set as
same as the speed limit, the vehicle
automatically adjusts its speed if the
speed limit changes. The function
operates on the road which has a speed

.1)

.1)
60MPH45MPH

50MPH
Hyundai_CE_en_US.book Page 51

Driver Assistance System
7-52
limit of 44 mph (70 km/h) or higher. When
the function is active, the cruising speed
on the instrument cluster appears in
green.
WARNING • If you want to drive below the speed limit, adjust the Offset under 0 or use
the – switch on the steering wheel to
lower the set speed.
• Even after changing the set speed according to the speed limit of the road,
the vehicle can still be driven over the
speed limit. If necessary, depress the
brake pedal to reduce your driving
speed.
• If the speed limit of the road is under 20 mph (30 km/h), the set speed change
function will not work.
• Intelligent Speed Limit Assist operates using the speed units in the instrument
cluster set by the driver. If the speed
unit is not set to the speed unit used in
your state, Intelligent Speed Limit
Assist may not operate properly.

Information • For more information on Manual Speed Limit Assist operation, refer to the “Manual
Speed Limit Assist (MSLA)” section in this
chapter.
• For more information on Smart Cruise Control operation, refer to the “Smart
Cruise Control (SCC)” section in this
chapter.

Intelligent Speed Limit Assist
Malfunction and Limitations
Intelligent Speed Limit Assist
malfunction
B7002801
When Intelligent Speed Limit Assist is not
working properly, the 'Check Speed Limit
system' warning message will appear on
the instrument cluster for several
seconds, and the master ( ) warning light
and ( ) warning light will illuminate on
the instrument cluster. If this occurs, have
the vehicle inspected by an authorized
HYUNDAI dealer.
Intelligent Speed Limit Assist
disabled
B7002802
When the front windshield where the
front view camera is located is covered
with foreign material, such as snow or
rain, it can reduce the detecting
performance and temporarily limit or
disable Intelligent Speed Limit Assist. If
Hyundai_CE_en_US.book Page 52

7
7-61

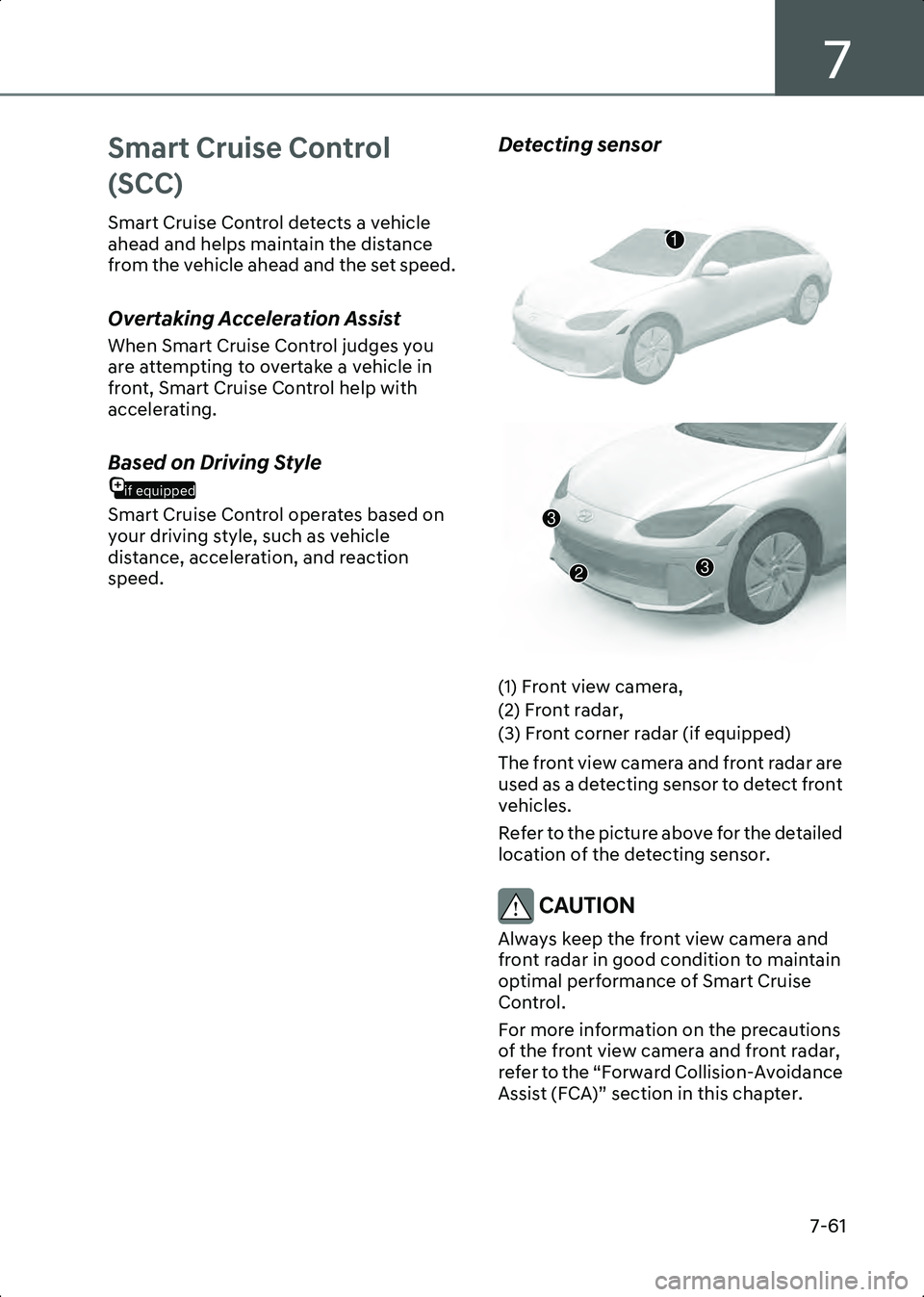

Smart Cruise Control
(SCC)
Smart Cruise Control detects a vehicle
ahead and helps maintain the distance
from the vehicle ahead and the set speed.
Overtaking Acceleration Assist
When Smart Cruise Control judges you
are attempting to overtake a vehicle in
front, Smart Cruise Control help with
accelerating.
if equipped
Based on Driving Style
Smart Cruise Control operates based on
your driving style, such as vehicle
distance, acceleration, and reaction
speed.
Detecting sensor
B7004101
B7004102
(1) Front view camera,
(2) Front radar,
(3) Front corner radar (if equipped)
The front view camera and front radar are
used as a detecting sensor to detect front
vehicles.
Refer to the picture above for the detailed
location of the detecting sensor.
CAUTION Always keep the front view camera and
front radar in good condition to maintain
optimal performance of Smart Cruise
Control.
For more information on the precautions
of the front view camera and front radar,
refer to the “Forward Collision-Avoidance
Assist (FCA)” section in this chapter.

1
3
32
Hyundai_CE_en_US.book Page 61

Driver Assistance System
7-62

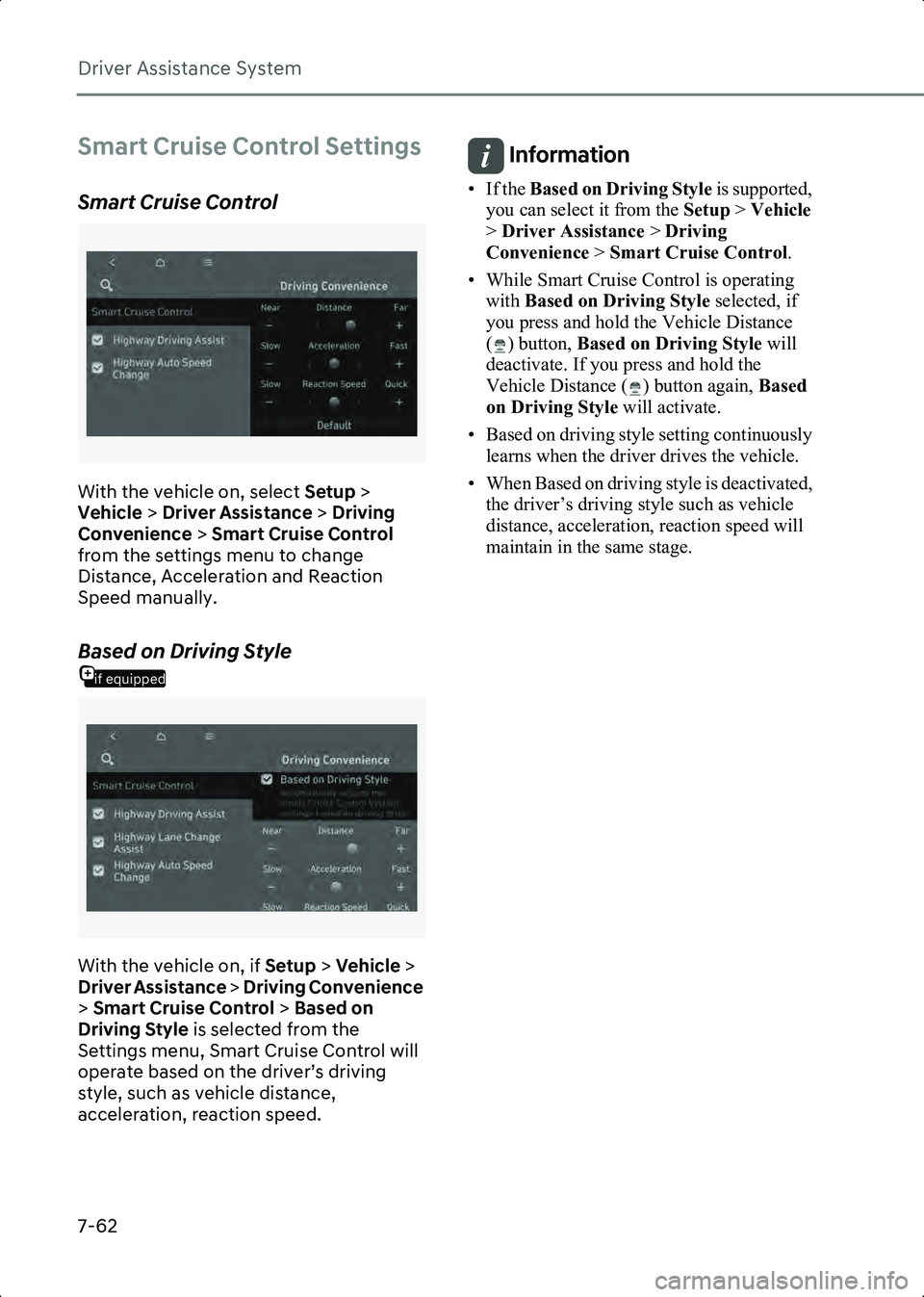

Smart Cruise Control Settings
Smart Cruise Control
B7004201
With the vehicle on, select Setup >
Vehicle > Driver Assistance > Driving
Convenience > Smart Cruise Control
from the settings menu to change
Distance, Acceleration and Reaction
Speed manually.
if equipped
Based on Driving Style
ORS071259L
With the vehicle on, if Setup > Vehicle >
Driver Assistance > Driving Convenience
> Smart Cruise Control > Based on
Driving Style is selected from the
Settings menu, Smart Cruise Control will
operate based on the driver’s driving
style, such as vehicle distance,
acceleration, reaction speed.
Information • If the Based on Driving Style is supported,
you can select it from the Setup > Vehicle
> Driver Assistance > Driving
Convenience > Smart Cruise Control .
• While Smart Cruise Control is operating with Based on Driving Style selected, if
you press and hold the Vehicle Distance
( ) button, Based on Driving Style will
deactivate. If you press and hold the
Vehicle Distance ( ) button again, Based
on Driving Style will activate.
• Based on driving style setting continuously learns when the driver drives the vehicle.
• When Based on driving style is deactivated, the driver’s driving style such as vehicle
distance, acceleration, reaction speed will
maintain in the same stage.

Hyundai_CE_en_US.book Page 62

7
7-63
Warning Methods
B7000205
B7000205_1
With the vehicle on, go to Setup > Vehicle
> Driver Assistance > Warning Methods
from the Settings in the infotainment
system to select the following:
• Warning Volume : The Warning Volume
can be adjusted.
• Haptic Warning : The steering wheel
vibration can be set.
• Driving Safety Priority : Your vehicle
lowers all other audio volumes when
the Driver Assistance system warning
sounds.
Information • If the vehicle is restarted, Warning Volume will maintain the last setting.
• If the vehicle is restarted, Warning Methods will maintain the last setting.
• There may be no Settings menu depending on the feature applied to your vehicle. • Even though
0 is selected for Warning
Volume, Warning Volume will not be
turned off but Warning Volume will sound
as 1.
• When Haptic Waning is deselected while
Warning Volume is selected as 0, Warning
Volume will activate and be selected as 2.
• When Warning Volume is selected as 0
while Haptic Warning is deselected,
steering wheel vibration will activate.

Smart Cruise Control
Operation
Operating conditions
Basic function
Smart Cruise Control operates when the
following conditions are satisfied.
• The gear is in D (Drive)
• The driver’s door is closed
• EPB (Electronic Parking Brake) is not applied
• Your vehicle speed is within the operating speed range
- 5-120 mph (10-200 km/h): when there is no vehicle in front
- 0-120 mph (0-200 km/h): when there is a vehicle in front
• ESC (Electronic Stability Control) or ABS (Anti-Lock Braking System) is on
Smart Cruise Control does not operate in
the following conditions.
• The driver's door is opened
• Your vehicle is in power down mode ( )
• EPB (Electronic Parking Brake) is applied
• ESC (Electronic Stability Control) or ABS (Anti-Lock Braking System) is
controlling the vehicle
• Forward Collision-Avoidance Assist brake control is operating
Hyundai_CE_en_US.book Page 63
