Driver Assistance System
7-128

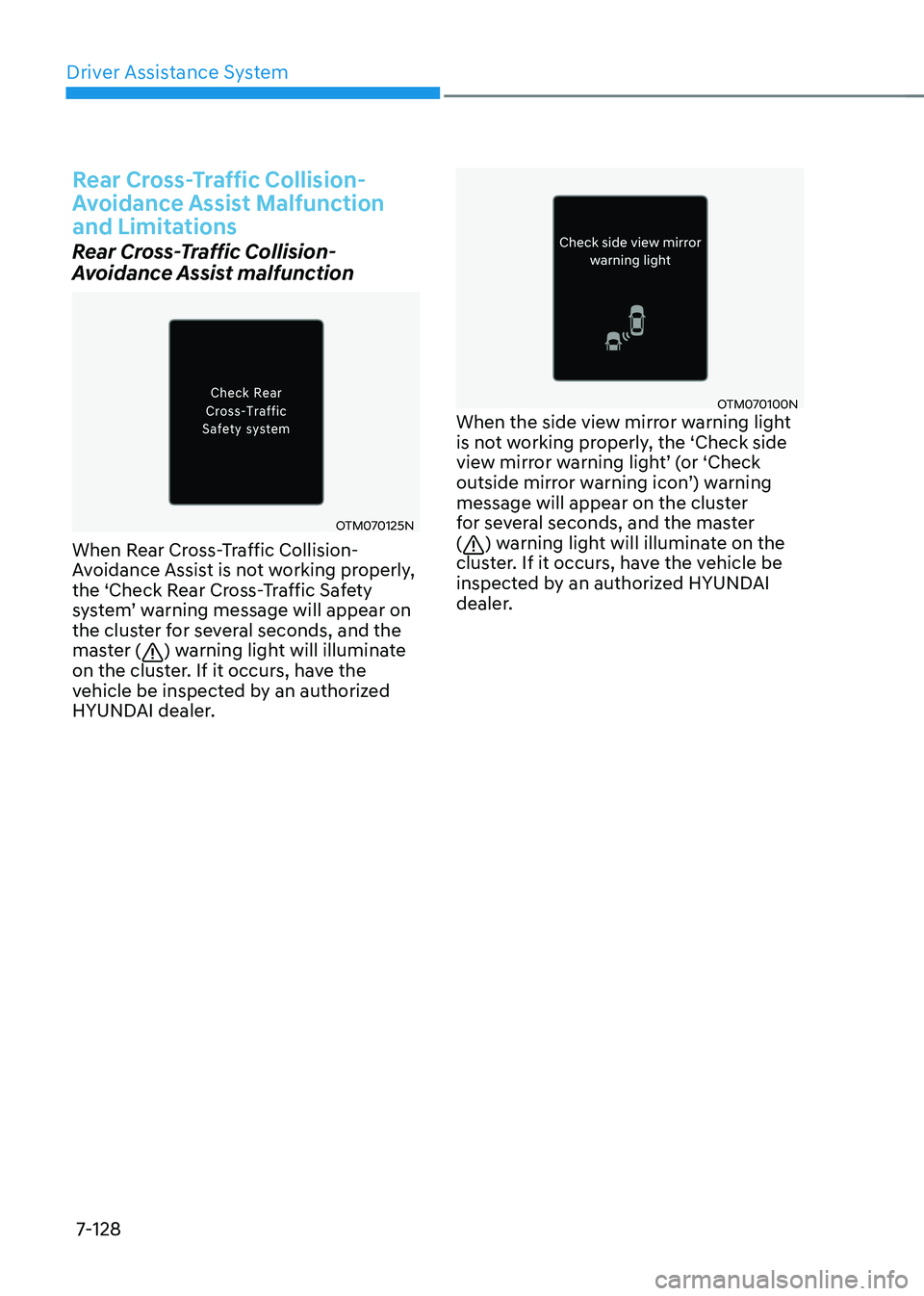

Rear Cross-Traffic Collision-
Avoidance Assist Malfunction
and Limitations
Rear Cross-Traffic Collision-
Avoidance Assist malfunction
OTM070125N
When Rear Cross-Traffic Collision-
Avoidance Assist is not working properly,
the ‘Check Rear Cross-Traffic Safety
system’ warning message will appear on
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If it occurs, have the
vehicle be inspected by an authorized
HYUNDAI dealer.
OTM070100N
When the side view mirror warning light
is not working properly, the ‘Check side
view mirror warning light’ (or ‘Check
outside mirror warning icon’) warning
message will appear on the cluster
for several seconds, and the master (
) warning light will illuminate on the
cluster. If it occurs, have the vehicle be
inspected by an authorized HYUNDAI
dealer.
Maintenance
9-56
Exterior Care
NOTICE
If you park your vehicle near a stainless
steel sign or glass facade building, the
vehicle’s exterior plastic parts such
as a bumper, spoiler, garnish, lamp
or outside rearview mirror might be
damaged due to sunlight reflected from
the sign or building. To prevent damage
of the exterior plastic parts, you should
avoid parking in areas where light may
be reflected or use a car cover. (The
exterior plastic parts applied to your
vehicle may vary.)
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the label.
Finish maintenance
Washing
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughly
and frequently at least once a month
with lukewarm or cold water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges
of the doors and rocker panels are kept clear and clean.Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, should be used.
After washing, rinse the vehicle
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
High-pressure washing
•
When using high-pressure washers,
make sure to maintain sufficient
distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
• Do not spray the camera, sensors or
its surrounding area directly with a
high pressure washer. Shock applied
from high pressure water may cause
the device to not operate normally.
• Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be damaged
if they come into contact with high
pressure water.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see
if they have been affected by water
before getting on the road. If braking
performance is impaired, dry the
brakes by applying them lightly while
maintaining a slow forward speed.
appearance care

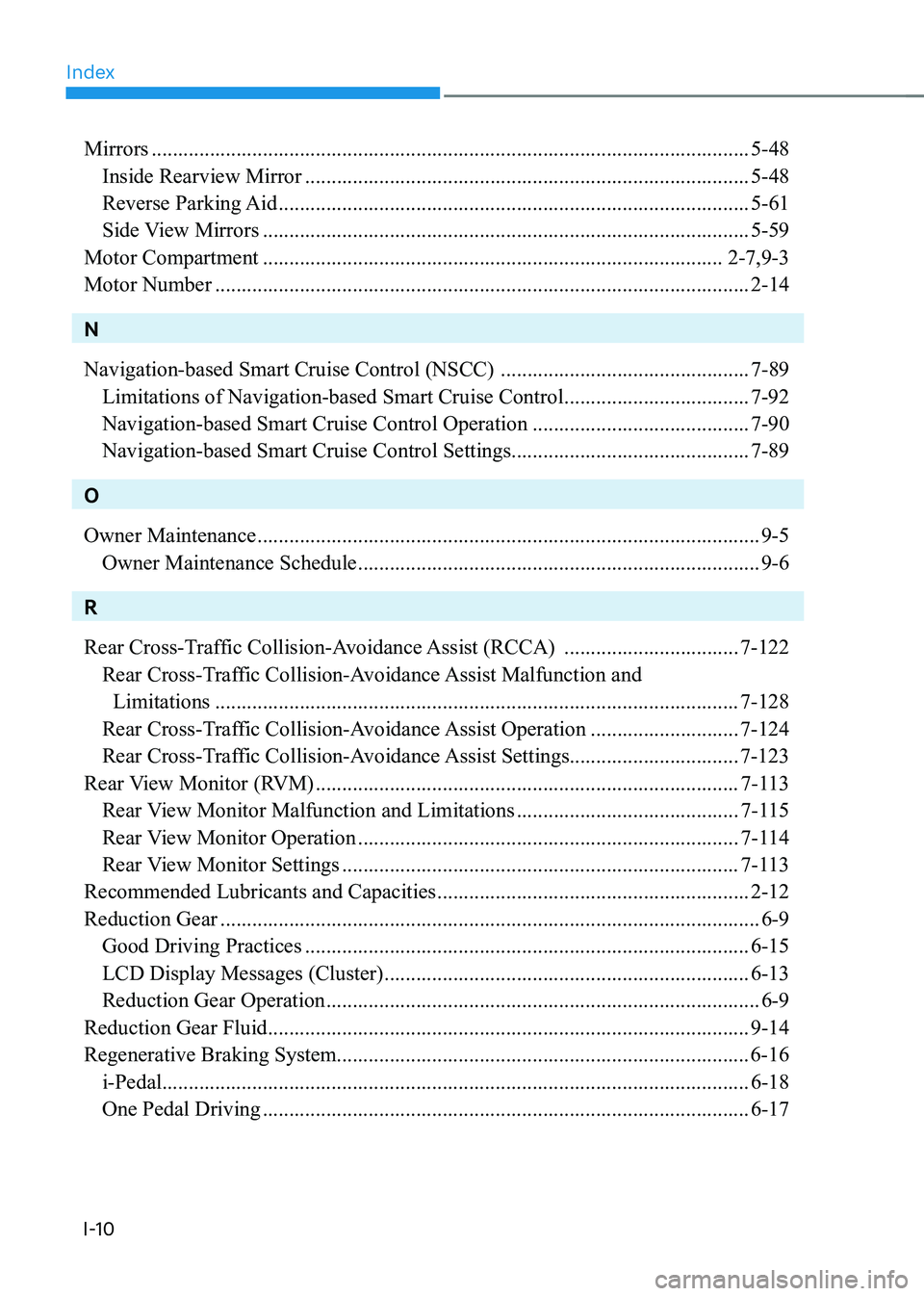

Index
I-10
Mirrors ................................................................................................................. 5-48
Inside Rearview Mirror .................................................................................... 5-48
Reverse Parking Aid ......................................................................................... 5-61
Side View Mirrors ............................................................................................ 5-59
Motor Compartment ....................................................................................... 2-7,9-3
Motor Number ..................................................................................................... 2-14
N Navigation-based Smart Cruise Control (NSCC) ...............................................7-89
Limitations of Navigation-based Smart Cruise Control ...................................7-92
Navigation-based Smart Cruise Control Operation .........................................7-90
Navigation-based Smart Cruise Control Settings .............................................7-89
OOwner Maintenance ............................................................................................... 9-5
Owner Maintenance Schedule ............................................................................ 9-6
R
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) .................................7-122
Rear Cross-Traffic Collision-Avoidance Assist Malfunction and
Limitations ................................................................................................... 7-128
Rear Cross-Traffic Collision-Avoidance Assist Operation ............................7-124
Rear Cross-Traffic Collision-Avoidance Assist Settings................................ 7-123
Rear View Monitor (RVM) ................................................................................ 7-113
Rear View Monitor Malfunction and Limitations ..........................................7-115
Rear View Monitor Operation ........................................................................ 7-114
Rear View Monitor Settings ........................................................................... 7-113
Recommended Lubricants and Capacities ...........................................................2-12
Reduction Gear ...................................................................................................... 6-9
Good Driving Practices .................................................................................... 6-15
LCD Display Messages (Cluster) ..................................................................... 6-13
Reduction Gear Operation .................................................................................. 6-9
Reduction Gear Fluid ........................................................................................... 9-14
Regenerative Braking System.............................................................................. 6-16 i-Pedal ............................................................................................................... 6-18
One Pedal Driving ............................................................................................ 6-17
