2023 HYUNDAI I20 stop start

6-53
06
NOTICE
If you want to use the ISG function, the
battery sensor needs to be calibrated
for approximately 4 hours with the
ignition off and then, turn the engine
on and off 2 or 3 times.
WARNING
When the engine is in Idle Stop mode,
it’s possible to restart the engine
without the driver taking any action.
Before leaving the car or doing
anything in the engine room area,
stop the engine by turning the ignition
switch to the LOCK (OFF) position or
removing the ignition key.

6-70
Driving your vehicle
Driving with a trailer
Towing a trailer requires a certain
amount of experience. Before setting
out for the open road, you must get to
know your trailer. Acquaint yourself with
the feel of handling and braking with the
added weight of the trailer. And always
keep in mind that the vehicle you are
driving is now longer and not nearly as
responsive as your vehicle is by itself.
Before you start, check the trailer towbar
and platform, safety chains, electrical
connector(s), lights, tyres and brakes.
During your trip, occasionally check
to be sure that the load is secure, and
that the lights and trailer brakes are still
working.
Distance
Stay at least twice as far behind the
vehicle ahead as you would when driving
your vehicle without a trailer. This can
help you avoid situations that require
heavy braking and sudden turns.
Passing
You will need more passing distance up
ahead when you’re towing a trailer. And,
because of the increased vehicle length,
you’ll need to go much farther beyond
the passed vehicle before you can return
to your lane.
Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, move your hand to the left.
To move the trailer to the right, move
your hand to the right. Always back up
slowly and, if possible, have someone
guide you.
Making turns
When you’re turning with a trailer, make
wider turns than normal. Do this so your
trailer won’t strike soft shoulders, kerbs,
road signs, trees, or other objects. Avoid
jerky or sudden manoeuvres. Signal well
in advance.
Turn signals
When you tow a trailer, your vehicle has
to have a different turn signal flasher and
extra wiring. The green arrows on your
instrument panel will flash whenever you
signal a turn or lane change. Properly
connected, the trailer lights will also
flash to alert other drivers you’re about
to turn, change lanes, or stop.
When towing a trailer, the green arrows
on your instrument panel will flash for
turns even if the bulbs on the trailer
are burned out. Thus, you may think
drivers behind you are seeing your
signals when, in fact, they are not. It’s
important to check occasionally to be
sure the trailer bulbs are still working.
You must also check the lights every
time you disconnect and then reconnect
the wires.
WARNING
Do not connect a trailer lighting system
directly to your vehicle’s lighting
system. Use an approved trailer wiring
harness.
Failure to do so could result in damage
to the vehicle electrical system and/or
personal injury.
We recommend that you have the
system checked by a HYUNDAI
authorised repairer as soon as possible.

6-71
06
Driving on hills
Reduce speed and shift to a lower gear
before you start down a long or steep
downgrade. If you don’t shift down, you
might have to use your brakes so much
that they would get overheated and may
not operate efficiently.
On a long uphill grade, shift down and
reduce your speed to around 45 mph (70
km/h) to reduce the possibility of engine
and transmission overheating.
If your trailer weighs more than the
maximum trailer weight without trailer
brakes and you have an automatic
transmission/dual clutch transmission,
you should drive in D (Drive) when
towing a trailer. Operating your vehicle
in D (Drive) when towing a trailer will
minimise heat build-up and extend the
life of your transmission.
NOTICE
To prevent engine and/or transmission
overheating:

V When towing a trailer on steep
grades (in excess of 6%) pay close
attention to the engine coolant
temperature gauge to ensure the
engine does not overheat. If the
needle of the coolant temperature
gauge moves towards “H” (HOT),
pull over and stop as soon as it is
safe to do so, and allow the engine
to idle until it cools down. You may
proceed once the engine has cooled
sufficiently.

V You must decide your vehicle speed
according to the trailer weight and
uphill grade.
Parking on hills
Generally, if you have a trailer attached
to your vehicle, you should not park your
vehicle on a hill.
However, if you ever have to park your
trailer on a hill, here's how to do it:
1. Pull the vehicle into the parking space.
Turn the steering wheel in the
direction of the kerb (left if headed
down hill, right if headed up hill).
2. Shift the vehicle to P (Park, for
Automatic transmission/Dual clutch
transmission vehicle) or neutral (for
Manual transmission vehicle).
3. Set the parking brake and shut off the
vehicle.
4. Place wheel chocks under the trailer
wheels on the down hill side of the
wheels.
5. Start the vehicle, hold the brakes, shift
to neutral, release the parking brake
and slowly release the brakes until the
trailer chocks absorb the load.
6. Reapply the brakes and parking
brakes.
7. Move the shift lever to P (Park, for
Automatic transmission/Dual clutch
transmission vehicle) or the 1st gear
when the vehicle is parked on a uphill
grade and in R (Reverse) on a downhill
(for Manual transmission vehicle).
8. Shut off the vehicle and release the
vehicle brakes but leave the parking
brake set.
WARNING
To prevent serious or fatal injury:
Do not get out of the vehicle without
the parking brake firmly set. If you have
left the engine running, the vehicle can
move suddenly. You and others could
be seriously or fatally injured.

6-72
Driving your vehicle
Ready to leave after parking on a
hill
1. With the shift lever to P (Park, for
Automatic transmission/Dual clutch
transmission vehicle) or neutral (for
Manual transmission vehicle), apply
your brakes and hold the brake pedal
down whilst you:

V Start your engine;

V Shift into gear; and

V Release the parking brake.
2. Slowly remove your foot from the
brake pedal.
3. Drive slowly until the trailer is clear of
the chocks.
4. Stop and have someone pick up and
store the chocks.
Maintenance when towing a
trailer
Your vehicle will need service more
often when you regularly pull a trailer.
Important items to pay particular
attention to include engine oil,
automatic transmission/dual clutch
transmission fluid, axle lubricant and
cooling system fluid. Brake condition
is another important item to frequently
check. If you’re trailering, it’s a good
idea to review these items before
you start your trip. Don’t forget to
also maintain your trailer and towbar.
Follow the maintenance schedule that
accompanied your trailer and check it
periodically. Preferably, conduct the
check at the start of each day’s driving.
Most importantly, all towbar nuts and
bolts should be tight.
NOTICE
To prevent vehicle damage:

V Due to higher load during trailer
usage, overheating might occur on
hot days or during uphill driving. If
the coolant gauge indicates over-
heating, switch off the air conditioner
and stop the vehicle in a safe area to
cool down the engine.

V When towing check Automatic
transmission/Dual clutch
transmission fluid more frequently.

V If your vehicle is not equipped with
an air conditioner, you should install
a condenser fan to improve engine
performance when towing a trailer.

07
7-5
CAUTION

[The setting of the Warning Timing
and Warning Volume applies to
all functions of Forward Collision-
Avoidance Assist.

[Even though, ‘Normal’ is selected for
Warning Timing if the front vehicle
suddenly stops the initial warning
activation time may seem late.

[Select ‘Late’ for Warning Timing
when traffic is light and when driving
speed is slow.
Information
If the engine is restarted, Warning Timing
and Warning Volume will maintain the
last setting.
Forward Collision-Avoidance
Assist operation
Basic function
Warning and control
The basic function of Forward Collision-
Avoidance Assist is to help warn and
control the vehicle depending on
FROOLVLRQOHYHO
S&ROOLVLRQ:DUQLQJ
T

S(PHUJHQF\%UDNLQJ
TDQG
S6WRSSLQJ
YHKLFOHDQGHQGLQJEUDNHFRQWURO
T
OBC3070002
Collision warning

[To warn the driver of a collision, the

S&ROOLVLRQ:DUQLQJ
TZDUQLQJPHVVDJH
will appear on the cluster and an
audible warning will sound and
the steering wheel will vibrate. (if
equipped)

[If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~112 mph (10~180
km/h).

[If a pedestrian or cyclist is detected
in front, the function will operate
when your vehicle speed is between
approximately 6~50 mph (10~80
km/h).

[ ,I
S$FWLYH$VVLVW
TLVVHOHFWHGEUDNLQJ
may be assisted.

Driver assistance system
7-32
„Type A
OTM070141L
„Type B
ONX4E070090
Warning volume
With the Engine Start/Stop button in the
ON position, select ‘Driver Assistance

07

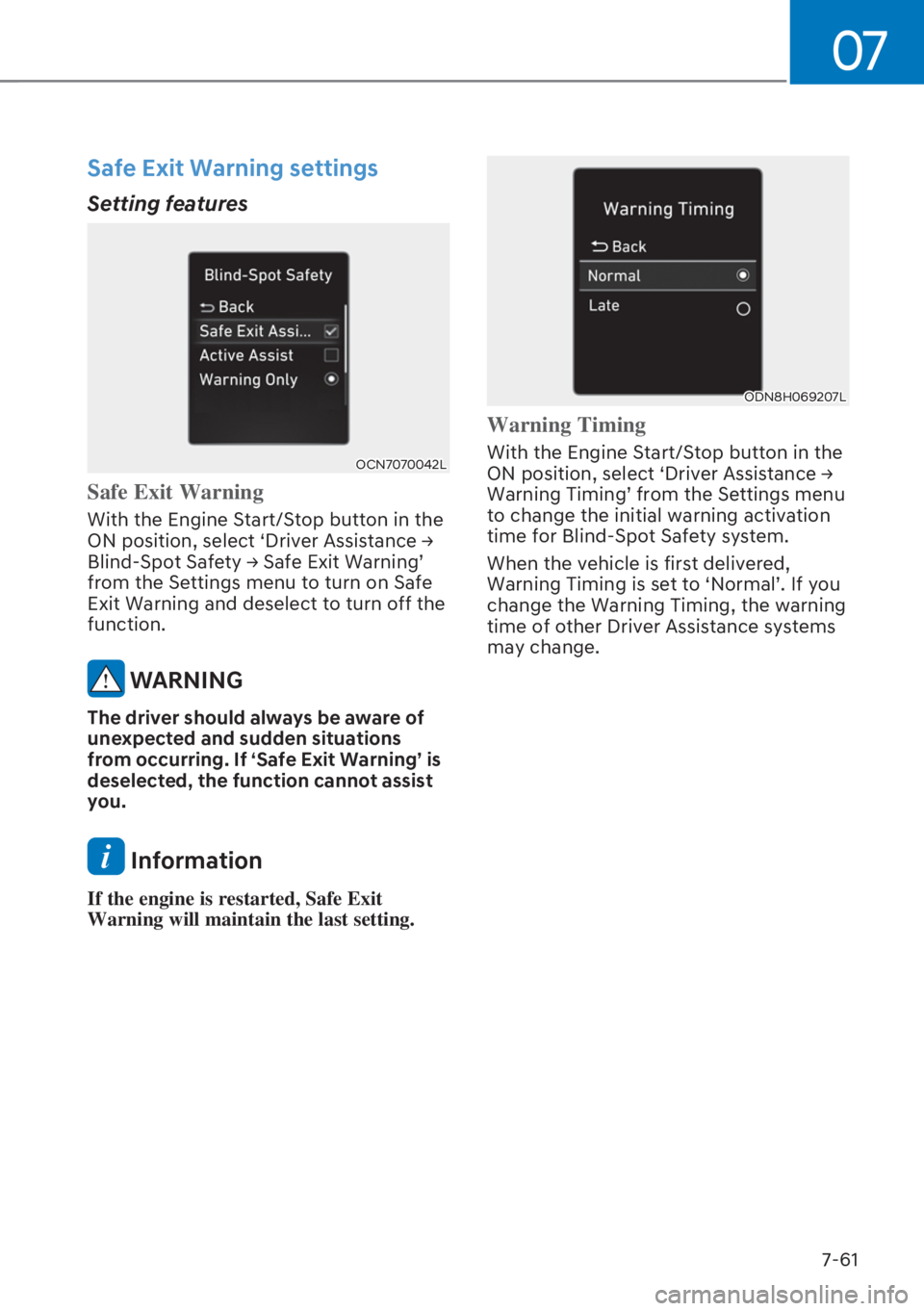

7-61
Safe Exit Warning settings
Setting features
OCN7070042L
Safe Exit Warning
With the Engine Start/Stop button in the
21SRVLWLRQVHOHFW
S'ULYHU$VVLVWDQFH

07
7-71
Speed Limit Offset
With the Engine Start/Stop button in the
ON position, when ‘Driver assistance
