6-9
06
Engine Stop/Start button positions
- Vehicle with manual transmission/intelligent manual transmission
Button PositionAction Notice
OFF[ 7 R W X U Q R I I W K H H Q J L Q H V W R S
the vehicle and then press the
Engine Start/Stop button.
[ 7 K H V W H H U L Q J Z K H H O O R F N V W R
protect the vehicle from theft.
(if equipped)If the steering wheel is not locked
properly when you open the
driver’s door, the warning chime
will sound.
ACC[ 3 U H V V W K H ( Q J L Q H 6 W D U W 6 W R S
button when the button is
in the OFF position without
depressing the clutch pedal.
[ ( O H F W U L F D O D F F H V V R U L H V D U H
usable.
[ 7 K H V W H H U L Q J Z K H H O X Q O R F N V [ , I \ R X O H D Y H W K H ( Q J L Q H 6 W D U W
Stop button in the ACC position
for more than one hour, the
battery power will turn off
automatically to prevent the
battery from discharging.
[ , I W K H V W H H U L Q J Z K H H O G R H V QT W
unlock properly, the Engine
Start/Stop button will not
work. Press the Engine Start/
Stop button whilst turning the
steering wheel right and left to
release tension.
ON[ 3 U H V V W K H ( Q J L Q H 6 W D U W 6 W R S
button whilst it is in the ACC
position without depressing the
clutch pedal.
[ 7 K H Z D U Q L Q J O L J K W V F D Q E H
checked before the engine is
started.Do not leave the Engine Start/
Stop button in the ON position
when the engine is not running
to prevent the battery from
discharging.
STARTTo start the engine, depress the
clutch and brake pedals and
press the Engine Start/Stop
button with the shift lever in
neutral.If you press the Engine Start/Stop
button without depressing the
clutch pedal, the engine does not
start and the Engine Start/Stop
button changes as follows:
OFF o ACC o ON o OFF
Page 283 of 649
6-10
Driving your vehicle
Engine Stop/Start button positions
- Vehicle with automatic transmission / dual clutch transmission
Button PositionAction Notice
OFF[ 7 R W X U Q R I I W K H H Q J L Q H S U H V V W K H
Engine Start/Stop button with
shift lever in P (Park). When you
press the Engine Start/Stop
button without the shift lever in
P (Park), the Engine Start/Stop
button does not turn to the OFF
position, but turns to the ACC
position.
[ 7 K H V W H H U L Q J Z K H H O O R F N V W R
protect the vehicle from theft.
(if equipped)If the steering wheel is not locked
properly when you open the
driver’s door, the warning chime
will sound.
ACC[ 3 U H V V W K H ( Q J L Q H 6 W D U W 6 W R S
button when the button is
in the OFF position without
depressing the brake pedal.
[ 6 R P H H O H F W U L F D O D F F H V V R U L H V D U H
usable.
[ 7 K H V W H H U L Q J Z K H H O X Q O R F N V [ , I \ R X O H D Y H W K H ( Q J L Q H 6 W D U W
Stop button in the ACC position
for more than one hour, the
battery power will turn off
automatically to prevent the
battery from discharging.
[ , I W K H V W H H U L Q J Z K H H O G R H V QT W
unlock properly, the Engine
Start/Stop button will not work.
[ 3 U H V V W K H ( Q J L Q H 6 W D U W 6 W R S
button whilst turning the
steering wheel right and left to
release tension.
ON[ 3 U H V V W K H ( Q J L Q H 6 W D U W 6 W R S
button whilst it is in the ACC
position without depressing the
brake pedal.
[ 7 K H Z D U Q L Q J O L J K W V F D Q E H
checked before the engine is
started.Do not leave the Engine Start/
Stop button in the ON position
when the engine is not running
to prevent the battery from
discharging.
STARTTo start the engine, depress the
brake pedal and press the Engine
Start/Stop button with the shift
lever in the P (Park) or in the N
(Neutral) position.
For your safety, start the engine
with the shift lever in the P (Park)
position.If you press the Engine Start/Stop
button without depressing the
brake pedal, the engine does not
start and the Engine Start/Stop
button changes as follows:
OFF o ACC o ON o OFF or ACC
Page 285 of 649
6-12
Driving your vehicle
OPDE050564L
Vehicle with Automatic transmission/
Dual clutch transmission:
1. Always carry the smart key with you.
2. Make sure the parking brake is
applied.
3. Make sure the shift lever is in P (Park).
4. Depress the brake pedal.
5. Press the Engine Start/Stop button.
i Information
Page 290 of 649
6-17
06

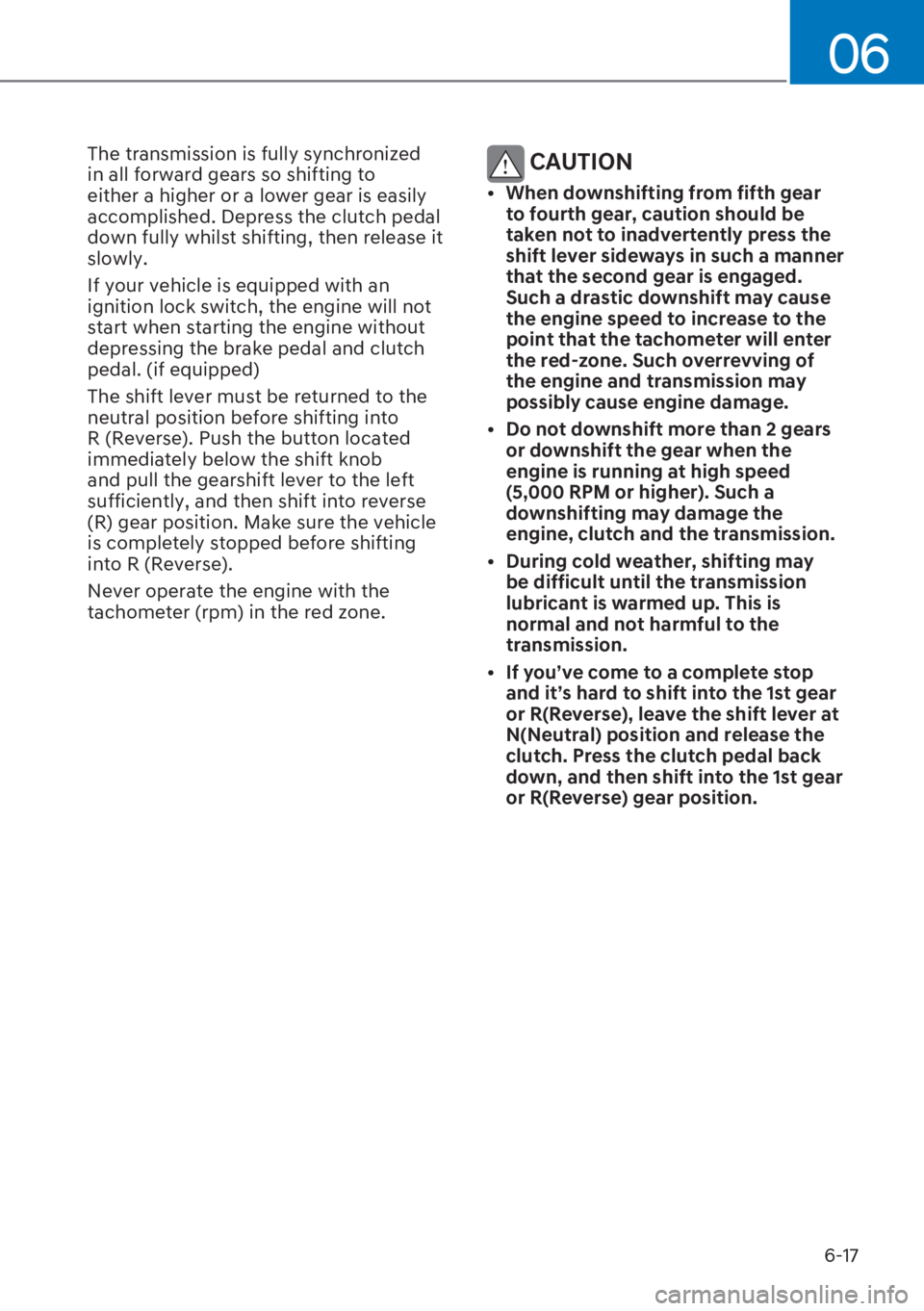

The transmission is fully synchronized
in all forward gears so shifting to
either a higher or a lower gear is easily
accomplished. Depress the clutch pedal
down fully whilst shifting, then release it
slowly.
If your vehicle is equipped with an
ignition lock switch, the engine will not
start when starting the engine without
depressing the brake pedal and clutch
pedal. (if equipped)
The shift lever must be returned to the
neutral position before shifting into
R (Reverse). Push the button located
immediately below the shift knob
and pull the gearshift lever to the left
sufficiently, and then shift into reverse
(R) gear position. Make sure the vehicle
is completely stopped before shifting
into R (Reverse).
Never operate the engine with the
tachometer (rpm) in the red zone. CAUTION
[ When downshifting from fifth gear
to fourth gear, caution should be
taken not to inadvertently press the
shift lever sideways in such a manner
that the second gear is engaged.
Such a drastic downshift may cause
the engine speed to increase to the
point that the tachometer will enter
the red-zone. Such overrevving of
the engine and transmission may
possibly cause engine damage.
[ Do not downshift more than 2 gears
or downshift the gear when the
engine is running at high speed
(5,000 RPM or higher). Such a
downshifting may damage the
engine, clutch and the transmission.
[ During cold weather, shifting may
be difficult until the transmission
lubricant is warmed up. This is
normal and not harmful to the
transmission.
[ If you’ve come to a complete stop
and it’s hard to shift into the 1st gear
or R(Reverse), leave the shift lever at
N(Neutral) position and release the
clutch. Press the clutch pedal back
down, and then shift into the 1st gear
or R(Reverse) gear position.
Page 291 of 649
6-18
Driving your vehicle
[ To avoid premature clutch wear
and damage, do not drive with your
foot resting on the clutch pedal.
Also, don’t use the clutch to hold the
vehicle stopped on an uphill grade,
whilst waiting for a traffic light, etc.
[ Do not use the shift lever as a
handrest during driving, as this can
result in premature wear of the
transmission shift forks.
[ To prevent possible damage to the
clutch system, do not start with the
2nd (second) gear engaged except
when you start on a slippery road.
WARNING
[ Before leaving the driver’s seat,
always set the parking brake fully
and shut the engine off. Then make
sure the transmission is shifted into
the 1st gear when the vehicle is
parked on a level or uphill grade, and
shifted into R (Reverse) on a downhill
grade. Unexpected and sudden
vehicle movement can occur if these
precautions are not followed in the
order identified.
[ Do not use the engine brake (shifting
from a high gear to lower gear)
rapidly on slippery roads. The vehicle
may slip causing an accident.
Using the clutch
The clutch should be pressed all the way
to the floor before shifting, then released
slowly. The clutch pedal should always
be fully released whilst driving. Do not
rest your foot on the clutch pedal whilst
driving. This can cause unnecessary
wear. Do not partially engage the clutch
to hold the vehicle on an incline. This
causes unnecessary wear. Use the
foot brake or parking brake to hold the
vehicle on an incline. Do not operate the
clutch pedal rapidly and repeatedly.
CAUTION
When operating the clutch pedal, press
the clutch pedal down fully. If you don’t
press the clutch pedal fully, the clutch
may be damaged or noise may occur.
Downshifting
When you must slow down in heavy
traffic or whilst driving up steep hills,
downshift before the engine starts to
labour. Downshifting reduces the chance
of stalling and gives better acceleration
when you again need to increase your
speed. When the vehicle is traveling
down steep hills, downshifting helps
maintain safe speed and prolongs brake
life.
Page 294 of 649
6-21
06
Transmission ranges
The indicator in the instrument cluster
displays the shift lever position when the
ignition switch is in the ON position.
3 3 D U N
Always come to a complete stop before
shifting into P (Park).
To shift from P (Park), you must depress
firmly on the brake pedal and make sure
your foot is off the accelerator pedal.
If you have done all of the above and
still cannot shift the lever out of P
(Park), see “Shift-Lock Release” in this
chapter.
The shift lever must be in P (Park) before
turning the engine off.
WARNING
[ Shifting into P (Park) whilst the
vehicle is in motion may cause you to
lose control of the vehicle.
[ After the vehicle has stopped, always
make sure the shift lever is in P (Park),
apply the parking brake, and turn the
engine off.
[ When parking on an incline, place the
shift lever in P (Park) and apply the
parking brake to prevent the vehicle
from rolling downhill.
[ For safety, always engage the parking
brake with the shift lever in the P
(Park) position except for the case of
emergency parking.
5 5 H Y H U V H
Use this position to drive the vehicle
backward.
NOTICE
Always come to a complete stop before
shifting into or out of R (Reverse); you
may damage the transmission if you
shift into R (Reverse) whilst the vehicle
is in motion.
1 1 H X W U D O
The wheels and transmission are not
engaged.
Use N (Neutral) if you need to restart
a stalled engine, or if it is necessary to
stop with the engine ON. Shift into P
(Park) if you need to leave your vehicle
for any reason.
Always depress the brake pedal when
you are shifting from N (Neutral) to
another gear.
WARNING
Do not shift into gear unless your foot is
firmly on the brake pedal. Shifting into
gear when the engine is running at high
speed can cause the vehicle to move
very rapidly. You could lose control of
the vehicle and hit people or objects.
' ' U L Y H
This is the normal driving position. The
transmission will automatically shift
through a 6-gear sequence, providing
the best fuel economy and power.
For extra power when passing another
vehicle or driving uphill, depress the
accelerator fully. The transmission will
automatically downshift to the next
lower gear (or gears, as appropriate).
Page 297 of 649
6-24
Driving your vehicle
Ignition key interlock system
(if equipped)
The ignition key cannot be removed
unless the shift lever is in the P (Park)
position.
3 D U N L Q J
Always come to a complete stop and
continue to depress the brake pedal.
Move the shift lever into the P (Park)
position, apply the parking brake, and
place the ignition switch in the LOCK/
OFF position. Take the Key with you
when exiting the vehicle.
WARNING
When you stay in the vehicle with
the engine running, be careful not to
depress the accelerator pedal for a long
period of time. The engine or exhaust
system may overheat and start a fire.
The exhaust gas and the exhaust
system are very hot. Keep away from
the exhaust system components.
Do not stop or park over flammable
materials, such as dry grass, paper or
leaves. They may ignite and cause a
fire.
Good driving practices
[ Never move the shift lever from P
(Park) or N (Neutral) to any other
position with the accelerator pedal
depressed.
[ Never move the shift lever into P
(Park) when the vehicle is in motion.
[ Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).
[ Do not move the shift lever to N
(Neutral) when driving. Doing so may
result in an accident because of a loss
of engine braking and the transmission
could be damaged.
[ Driving uphill or downhill, always shift
to D (Drive) when driving forward or to
R (Reverse) when driving backwards,
and check the gear position indicated
on the cluster before driving. If you
drive in the opposite direction of the
selected gear, the engine will turn
off and a serious accident might be
occurred due to the degraded brake
performance.
[ Do not drive with your foot resting
on the brake pedal. Even light, but
consistent pedal pressure can result
in the brakes overheating, brake wear
and possibly even brake failure.
[ When driving in manual shift mode,
slow down before shifting to a lower
gear. Otherwise, the lower gear may
not be engaged if the engine rpms are
outside of the allowable range.
[ Always apply the parking brake when
leaving the vehicle. Do not depend on
placing the transmission in P (Park) to
keep the vehicle from moving.
[ Exercise extreme caution when driving
on a slippery surface. Be especially
careful when braking, accelerating or
shifting gears. On a slippery surface,
an abrupt change in vehicle speed can
cause the drive wheels to lose traction
and may cause loss of vehicle control
resulting in an accident.
Page 303 of 649
6-30
Driving your vehicle
Transmission ranges
The indicator in the instrument cluster
displays the shift lever position when the
ignition switch is in the ON position.
3 3 D U N
Always come to a complete stop before
shifting into P (Park).
To shift from P (Park), you must depress
firmly on the brake pedal and make sure
your foot is off the accelerator pedal.
If you have done all of the above and
still cannot shift the lever out of P
(Park), see “Shift-Lock Release” in this
chapter.
The shift lever must be in P (Park) before
turning the engine off.
WARNING
[ Shifting into P (Park) whilst the
vehicle is in motion may cause you to
lose control of the vehicle.
[ After the vehicle has stopped, always
make sure the shift lever is in P (Park),
apply the parking brake, and turn the
engine off.
[ When parking on an incline, place the
shift lever in P (Park) and apply the
parking brake to prevent the vehicle
from rolling downhill.
[ For safety, always engage the parking
brake with the shift lever in the P
(Park) position except for the case of
emergency parking.
5 5 H Y H U V H
Use this position to drive the vehicle
backward.
NOTICE
Always come to a complete stop before
shifting into or out of R (Reverse); you
may damage the transmission if you
shift into R (Reverse) whilst the vehicle
is in motion.
1 1 H X W U D O
The wheels and transmission are not
engaged.
Use N (Neutral) if you need to restart
a stalled engine, or if it is necessary to
stop with the engine ON. Shift into P
(Park) if you need to leave your vehicle
for any reason.
Always depress the brake pedal when
you are shifting from N (Neutral) to
another gear.
' ' U L Y H
This is the normal driving position. The
transmission will automatically shift
through a 7-gear sequence, providing
the best fuel economy and power.
For extra power when passing another
vehicle or driving uphill, depress the
accelerator fully. The transmission will
automatically downshift to the next
lower gear (or gears, as appropriate).
