6-91
06
The severe weather conditions of
winter quickly wear out tyres and
cause other problems. To minimise
winter driving problems, you should
W D N H W K H I R O O R Z L Q J V X J J H V W L R Q V
Snow or icy conditions
You need to keep sufficient distance
between your vehicle and the vehicle
in front of you.
Apply the brakes gently. Speeding,
rapid acceleration, sudden brake
applications, and sharp turns are
potentially very hazardous practices.
During deceleration, use engine brak-
ing to the fullest extent. Sudden brake
applications on snowy or icy roads
may cause the vehicle to skid.
To drive your vehicle in deep snow, it
may be necessary to use snow tyres
or to install tyre chains on your tyres.
Always carry emergency equipment.
Some of the items you may want to
carry include tyre chains, tow straps
or chains, a flashlight, emergency
I O D U H V V D Q G D V K R Y H O M X P S H U F D E O H V
a window scraper, gloves, ground
cloth, coveralls, a blanket, etc.
Snow tyres
WARNING
Snow tyres should be equivalent
in size and type to the vehicle’s
standard tyres. Otherwise, the
safety and handling of your vehi-
cle may be adversely affected.
If you mount snow tyres on your vehi-
cle, make sure to use radial tyres of
the same size and load range as the
R U L J L Q D O W \ U H V 0 R X Q W V Q R Z W \ U H V R Q D O O
four wheels to balance your vehicle’s
handling in all weather conditions.
The traction provided by snow tyres
on dry roads may not be as high as
your vehicle’s original equipment
tyres. Check with the tyre dealer for
maximum speed recommendations.
i Information
'o not install studded tyres without
first checking local and municipal reg-
ulations for possible restrictions
against their use.
WINTER DRIVING
Page 355 of 486
7-3
07
OAC3079001TU
The hazard warning flasher serves as
a warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
It should be used whenever emer-
gency repairs are being made or
when the vehicle is stopped near the
edge of a roadway.
To turn the hazard warning flasher on
or off, press the hazard warning flash-
er button with the ignition switch in
any position. The button is located in
the centre fascia panel. All turn signal
lights will flash simultaneously.
‡ The hazard warning flasher oper-
ates whether your vehicle is run-
ning or not.
‡ The turn signals do not work when
the hazard flasher is on
HAZARD WARNING FLASHER IN CASE OF AN EMERGENCY
WHILST DRIVING
, I W K H H Q J L Q H V W D O O V Z K L O V W
G U L Y L Q J
‡ Reduce your speed gradually,
keeping a straight line. Move cau-
tiously off the road to a safe place.
‡ Turn on your hazard warning flash-
er.
‡ Try to start the engine again. If your
vehicle will not start, we recom-
mend that you contact a HYUNDAI
authorised repairer.
, I W K H H Q J L Q H V W D O O V D W D F U R V V-
U R D G R U F U R V V L Q J
If the engine stalls at a crossroads or
crossing, if safe to do so, move the
shift lever to the N (Neutral) position
and then push the vehicle to a safe
location.
Page 366 of 486
7-14
Emergency situations
/ R Z W \ U H S U H V V X U H
W H O O W D O H
/ R Z W \ U H S U H V V X U H S R V L W L R Q W H O O-
W D O H D Q G W \ U H S U H V V X U H W H O O W D O H
OAC3079037R
When the tyre pressure monitoring
system warning indicators are illumi-
nated and warning message dis-
played on the cluster LCD display,
one or more of your tyres is signifi-
cantly under-inflated. The Low Tyre
Pressure Position Telltale will indi-
cate which tyre is significantly
under-inflated.If either telltale illuminates, immedi-
ately reduce your speed, avoid hard
cornering and anticipate increased
stopping distances. You should stop
and check your tyres as soon as pos-
sible. Inflate the tyres to the proper
pressure as indicated on the vehicle’s
placard or tyre inflation pressure label
located on the driver’s side centre pil-
lar outer panel. Then, reset TPMS
according TPMS reset procedure.
If you cannot reach a service station
or if the tyre cannot hold the newly
added air, replace the low pressure
tyre with the spare tyre.
The Low Tyre Pressure Telltale will
remain on and the TPMS Malfunction
Indicator may blink for one minute
and then remain illuminated until you
have the low pressure tyre repaired
and replaced on the vehicle.

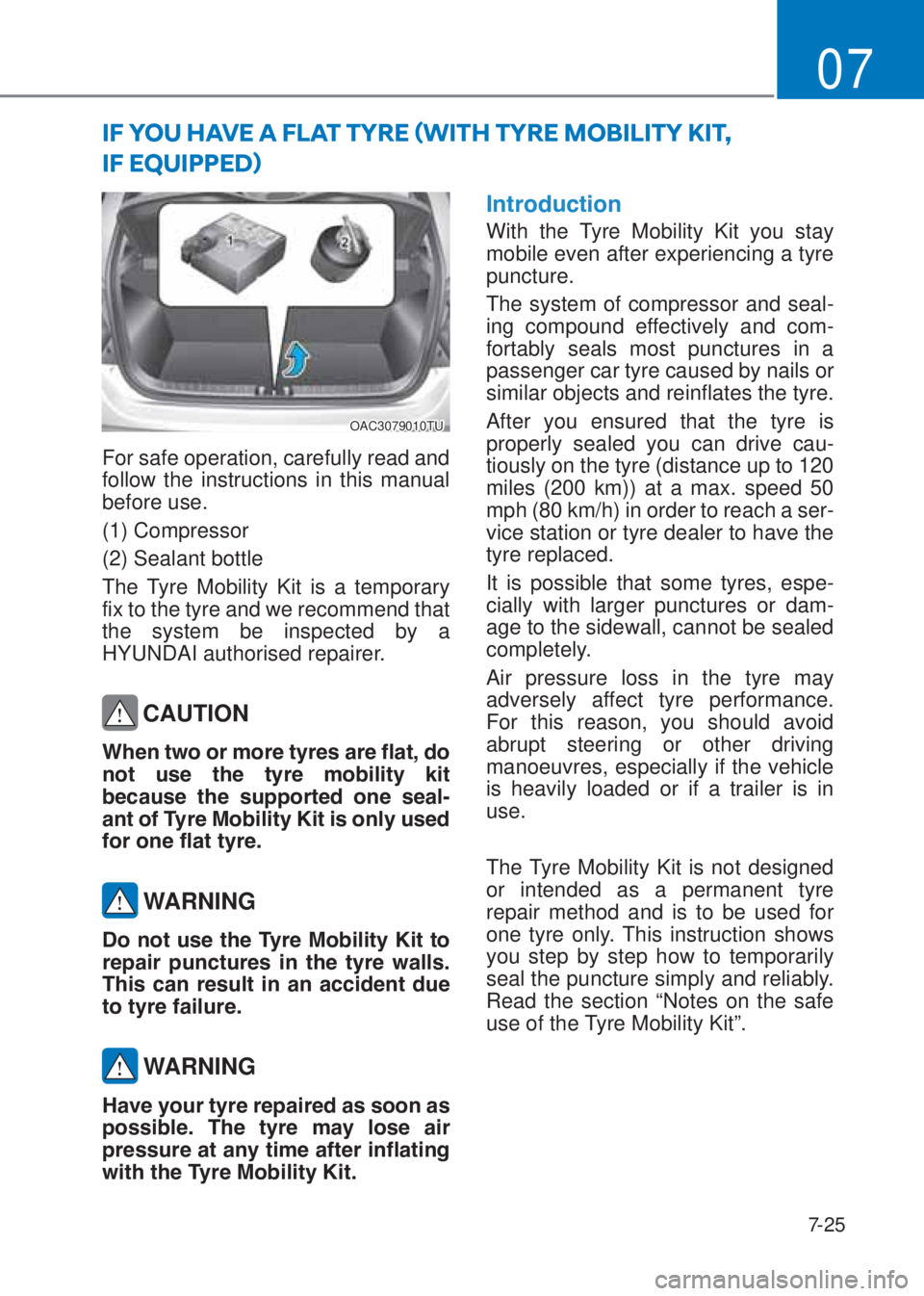

Page 377 of 486
7-25
07
OAC3079010TU
For safe operation, carefully read and
follow the instructions in this manual
before use.
(1) Compressor
(2) Sealant bottle
The Tyre Mobility Kit is a temporary
fix to the tyre and we recommend that
the system be inspected by a
HYUNDAI authorised repairer.
CAUTION
: K H Q W Z R R U P R U H W \ U H V D U H I O D W G R
Q R W X V H W K H W \ U H P R E L O L W \ N L W
E H F D X V H W K H V X S S R U W H G R Q H V H D O-
D Q W R I 7 \ U H 0 R E L O L W \ . L W L V R Q O \ X V H G
I R U R Q H I O D W W \ U H
WARNING
' R Q R W X V H W K H 7 \ U H 0 R E L O L W \ . L W W R
U H S D L U S X Q F W X U H V L Q W K H W \ U H Z D O O V
7 K L V F D Q U H V X O W L Q D Q D F F L G H Q W G X H
W R W \ U H I D L O X U H
WARNING
+ D Y H \ R X U W \ U H U H S D L U H G D V V R R Q D V
S R V V L E O H 7 K H W \ U H P D \ O R V H D L U
S U H V V X U H D W D Q \ W L P H D I W H U L Q I O D W L Q J
Z L W K W K H 7 \ U H 0 R E L O L W \ . L W
, Q W U R G X F W L R Q
With the Tyre Mobility Kit you stay
mobile even after experiencing a tyre
puncture.
The system of compressor and seal-
ing compound effectively and com-
fortably seals most punctures in a
passenger car tyre caused by nails or
similar objects and reinflates the tyre.
After you ensured that the tyre is
properly sealed you can drive cau-
tiously on the tyre (distance up to 120
miles (200 km)) at a max. speed 50
mph (80 km/h) in order to reach a ser-
vice station or tyre dealer to have the
tyre replaced.
It is possible that some tyres, espe-
cially with larger punctures or dam-
age to the sidewall, cannot be sealed
completely.
Air pressure loss in the tyre may
adversely affect tyre performance.
For this reason, you should avoid
abrupt steering or other driving
manoeuvres, especially if the vehicle
is heavily loaded or if a trailer is in
use.
The Tyre Mobility Kit is not designed
or intended as a permanent tyre
repair method and is to be used for
one tyre only. This instruction shows
you step by step how to temporarily
seal the puncture simply and reliably.
Read the section “Notes on the safe
use of the Tyre Mobility Kit”.
IF YOU HAVE A FLAT TYRE ãWITH TYRE MOBILITY KIT
IF EQUIPPEDä
Page 479 of 486
I-7
I
If you have a flat tyre (with tyre mobility kit) ..................................................... 7-25
Introduction ...................................................................................................... 7-25
Notes on the safe use of the tyre Mobility Kit ................................................. 7-26
Components of the Tyre Mobility Kit .............................................................. 7-27
Using the Tyre Mobility Kit ............................................................................. 7-28
Distributing the sealant ..................................................................................... 7-30
Checking the tyre inflation pressure ................................................................. 7-30
Ignition switch ....................................................................................................... 6-7
Key ignition switch ........................................................................................... 6-7
Engine Start/Stop button ................................................................................. 6-10
Important safety precautions.................................................................................. 3-2
Always wear your seat belt ................................................................................ 3-2
Restrain all children ........................................................................................... 3-2
Air bag hazards ................................................................................................... 3-2
Driver distraction ................................................................................................ 3-2
Control your speed ............................................................................................. 3-3
Keep your vehicle in safe condition ................................................................... 3-3
In case of an emergency whilst driving ................................................................. 7-3
If the engine stalls whilst driving ....................................................................... 7-3
If the engine stalls at a crossroad or crossing ..................................................... 7-3
If you have a flat tyre whilst driving .................................................................. 7-4
Infotainment system............................................................................................. 5-90
USB port ........................................................................................................... 5-90
Antenna ............................................................................................................ 5-90
Steering wheel audio control ............................................................................ 5-91
Audio / Video / Navigation system .................................................................. 5-92
Bluetooth
® Wireless Technology hands-free ................................................... 5-93
How vehicle radio works .................................................................................. 5-93
Infotainment System specifications ................................................................... 5-125
Instrument cluster .................................................................................................. 4-2
Instrument cluster control ................................................................................... 4-3
Gauges and meters ............................................................................................. 4-3
Transmission shift indicator ............................................................................... 4-7
Warning and indicator lights .............................................................................. 4-8
LCD display messages ..................................................................................... 4-20
Page 480 of 486
I-8
Index
Instrument panel overview .................................................................................... 2-5
Intelligent speed limit warning (ISLW) ............................................................... 6-72
System setting and activation ........................................................................... 6-73
Display ............................................................................................................. 6-73
Limitations of the system ................................................................................ 6-76
Interior features ................................................................................................... 5-79
Cigarette lighter ................................................................................................ 5-79
Ashtray ............................................................................................................. 5-79
Cup holder ........................................................................................................ 5-80
Sunvisor ............................................................................................................ 5-81
Power outlet ...................................................................................................... 5-82
USB charger ..................................................................................................... 5-83
Wireless mobile phone charging system .......................................................... 5-83
Clock ................................................................................................................ 5-86
Coat hook ......................................................................................................... 5-86
Floor mat anchor(s) .......................................................................................... 5-87
Luggage net (holder) ........................................................................................ 5-88
Cargo area cover ............................................................................................... 5-88
Interior overview ................................................................................................... 2-4
ISG (Idle Stop and Go) system ............................................................................ 6-44
To activate the ISG system ............................................................................... 6-44
To deactivate the ISG system .......................................................................... 6-47
ISG system malfunction ................................................................................... 6-47
The battery sensor deactivation ........................................................................ 6-48
J
Jump starting .......................................................................................................... 7-6
L
Lane keeping assist (LKA) .................................................................................. 6-61
LKA operation .................................................................................................. 6-62
LKA system function change ........................................................................... 6-63
Warning light and message............................................................................... 6-65
Limitations of the system ................................................................................. 6-67
