2023 HYUNDAI ELANTRA HYBRID key

Convenience Features5-80

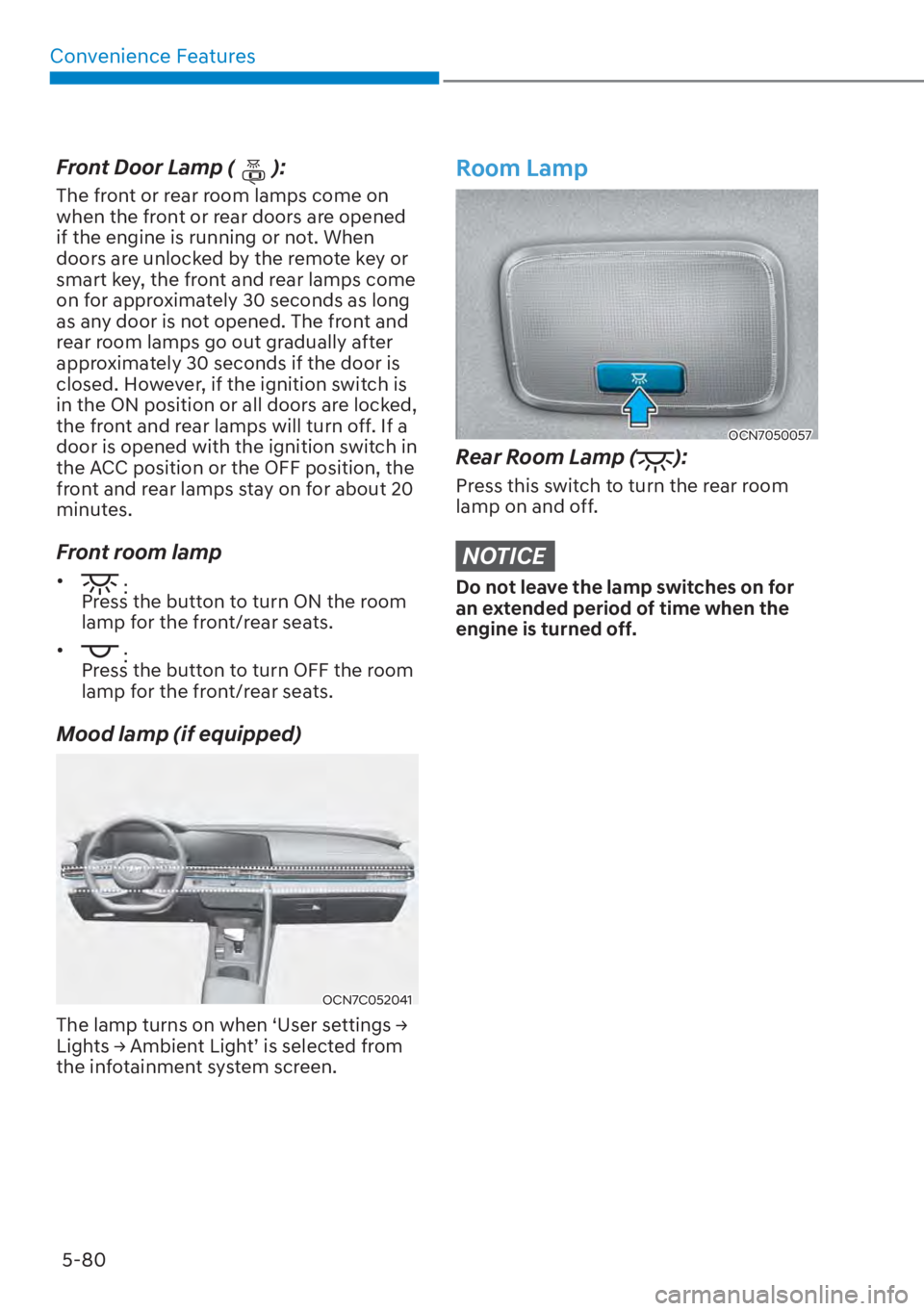

Front Door Lamp ():
The front or rear room lamps come on
when the front or rear doors are opened
if the engine is running or not. When
doors are unlocked by the remote key or
smart key, the front and rear lamps come
on for approximately 30 seconds as long
as any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds if the door is
closed. However, if the ignition switch is
in the ON position or all doors are locked,
the front and rear lamps will turn off. If a
door is opened with the ignition switch in
the ACC position or the OFF position, the
front and rear lamps stay on for about 20
minutes.
Front room lamp

[ :
Press the button to turn ON the room
lamp for the front/rear seats.

[
:
Press the button to turn OFF the room
lamp for the front/rear seats.
Mood lamp (if equipped)
OCN7C052041
7KHODPSWXUQVRQZKHQ
S8VHUVHWWLQJV

Convenience Features5-82

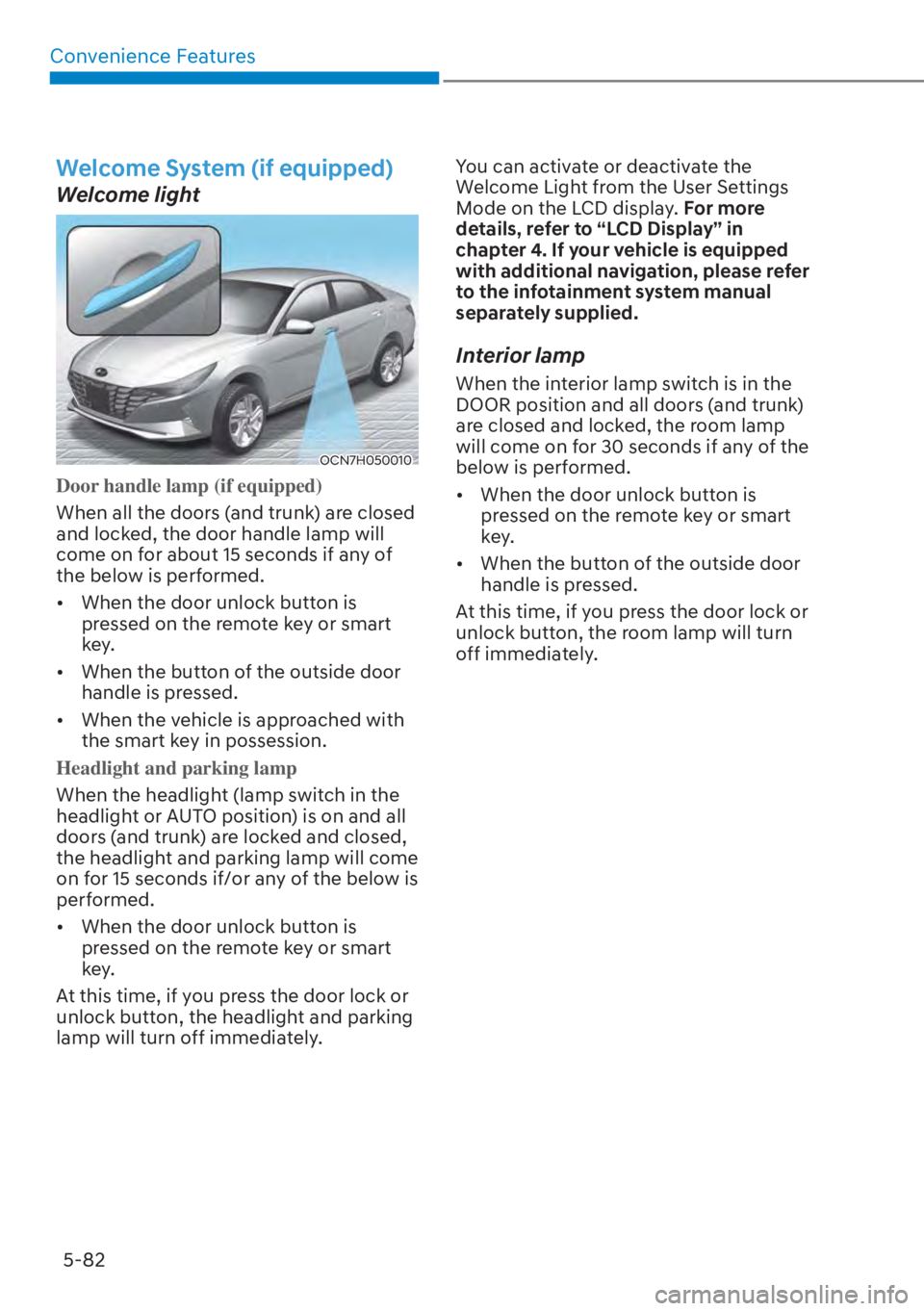

Welcome System (if equipped)
Welcome light
OCN7H050010
Door handle lamp (if equipped)
When all the doors (and trunk) are closed
and lock
ed, the door handle lamp will
come on for about 15 seconds if any of
the below is performed.

[ When the door unlock button is
pressed on the remote key or smart
key.

[ When the button of the outside door
handle is pressed.

[ When the vehicle is approached with
the smart key in possession.
Headlight and parking lamp
When the headlight (lamp switch in the
headlight or A
UTO position) is on and all
doors (and trunk) are locked and closed,
the headlight and parking lamp will come
on for 15 seconds if/or any of the below is
performed.

[ When the door unlock button is
pressed on the remote key or smart
key.
At this time, if you press the door lock or
unlock button, the headlight and parking
lamp will turn off immediately. You can activate or deactivate the
Welcome Light from the User Settings
Mode on the LCD display. For more
details, refer to “LCD Display” in
chapter 4. If your vehicle is equipped
with additional navigation, please refer
to the infotainment system manual
separately supplied.
Interior lamp
When the interior lamp switch is in the
DOOR position and all doors (and trunk)
are closed and locked, the room lamp
will come on for 30 seconds if any of the
below is performed.

[
When the door unlock button is
pressed on the remote key or smart
key.

[ When the button of the outside door
handle is pressed.
At this time, if you press the door lock or
unlock button, the room lamp will turn
off immediately.

Convenience Features5-106

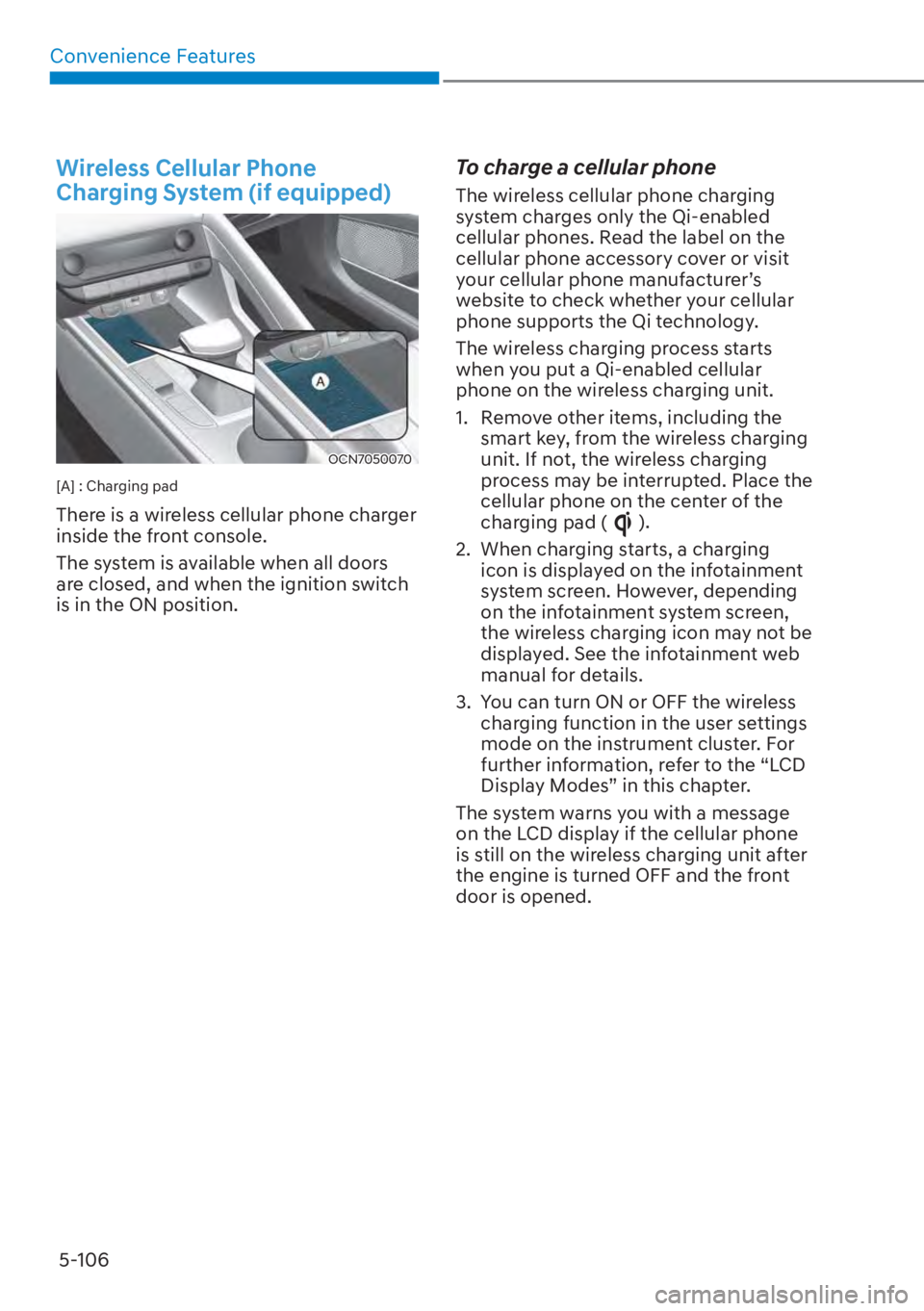

Wireless Cellular Phone
Charging System (if equipped)
OCN7050070
[A] : Charging pad
There is a wireless cellular phone charger
inside the front console.
The system is available when all doors
are closed, and when the ignition switch
is in the ON position.
To charge a cellular phone
The wireless cellular phone charging
system charges only the Qi-enabled
cellular phones. Read the label on the
cellular phone accessory cover or visit
your cellular phone manufacturer’s
website to check whether your cellular
phone supports the Qi technology.
The wireless charging process starts
when you put a Qi-enabled cellular
phone on the wireless charging unit.
1. Remove other items, including the smart key, from the wireless charging
unit. If not, the wireless charging
process may be interrupted. Place the
cellular phone on the center of the
charging pad (
).
2. When charging starts, a charging icon is displayed on the infotainment
system screen. However, depending
on the infotainment system screen,
the wireless charging icon may not be
displayed. See the infotainment web
manual for details.
3. You can turn ON or OFF the wireless charging function in the user settings
mode on the instrument cluster. For
further information, refer to the “LCD
Display Modes” in this chapter.
The system warns you with a message
on the LCD display if the cellular phone
is still on the wireless charging unit after
the engine is turned OFF and the front
door is opened.

5-107
05
Information
For some manufacturers’ cellular phones,
the system may not warn you even though
the cellular phone is left on the wireless
charging unit. This is due to the particular
characteristic of the cellular phone and
not a malfunction of the wireless charging.
NOTICE

[ 7KHZLUHOHVVFHOOXODUSKRQHFKDUJLQJsystem may not support certain
cellular phones, which are not
verified for the Qi specification (
).

[ :KHQSODFLQJ\RXUFHOOXODUSKRQH on the charging mat, position the
phone in the middle of the mat for
optimal charging performance. If
your cellular phone is off to the side,
the charging rate may be less and in
some cases the cellular phone may
experience higher heat conduction.

[ ,QVRPHFDVHVWKHZLUHOHVVFKDUJLQJ may stop temporarily when the
Remote Key or Smart Key is used,
either when starting the vehicle or
locking/unlocking the doors, etc.

[ 7KHZLUHOHVVFKDUJLQJSURFHVVPD\ temporarily stop, when temperature
abnormally increases inside the
wireless cellular phone charging
system. Stop the charging cellular
phone and wait until temperature
falls to a certain level.

[ 7KHZLUHOHVVFKDUJLQJSURFHVVPD\ temporarily stop when there is
any metallic item, such as a coin,
between the wireless cellular phone
charging system and the cellular
phone.
[ :KHQFKDUJLQJVRPHFHOOXODUSKRQHV
with a self-protection feature,
the wireless charging speed may
decrease and the wireless charging
may stop.

[ ,IWKHFHOOXODUSKRQHKDVDWKLFN cover, the wireless charging may not
be possible.

[ ,IWKHFHOOXODUSKRQHLVQRW completely contacting the charging
pad, wireless charging may not
operate properly.

[ 6RPHPDJQHWLFLWHPVOLNHFUHGLW cards, phone cards or rail tickets may
be damaged if left with the cellular
phone during the charging process.

[ :KHQDQ\FHOOXODUSKRQHZLWKRXW a wireless charging function or a
metallic object is placed on the
charging pad, a small noise may
sound. This small sound is due to the
vehicle discerning compatibility of
the object placed on the charging
pad. It does not affect your vehicle or
the cellular phone in any way.
Information
If the ignition switch is in the LOCK/ OFF
position, the charging also stops.
Information
This device complies with part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.

6
6. Driving Your Vehicle
Before Driving ........................................................................\
........................ 6-3Before Entering the Vehicle ........................................................................\
............. 6-3
Before Starting ........................................................................\
................................. 6-3
Ignition Switch ........................................................................\
.......................6-4Key Ignition Switch ........................................................................\
........................... 6-4
Engine Start/Stop Button ........................................................................\
................ 6-7
Vehicle Auto-Shut Off ........................................................................\
........... 6-11Operating Conditions ........................................................................\
...................... 6-11
Deactivating Conditions ........................................................................\
................. 6-11
System Operation ........................................................................\
............................ 6-11
Dual Clutch Transmission ........................................................................\
.....6-12Dual Clutch Transmission Operation ..................................................................... 6-12
Lcd Display for Transmission Temperature and Warning Message .....................6-14
Parking .................................................................\
................................................... 6-20
Good Driving Practices ........................................................................\
................... 6-21
Coasting Guide ........................................................................\
..................... 6-22
Brake System ........................................................................\
........................ 6-23
Power Brakes ........................................................................\
.................................. 6-23
Disc Brakes Wear Indicator......................................................................\
.............. 6-23
Electronic Parking Brake (EPB) ........................................................................\
..... 6-24
Auto Hold ........................................................................\
........................................ 6-28
Anti-lock Brake System (ABS) ......................................................................6-31Electronic Stability Control (ESC) ........................................................................\
. 6-33
Vehicle Stability Management (VSM) .................................................................. 6-35
Hill-Start Assist Control (HAC) ........................................................................\
...... 6-36
Good Braking Practices ................................................................\
......................... 6-37
Drive Mode Integrated Control System ...................................................... 6-38Drive Mode ........................................................................\
..................................... 6-38
Smart Shift on Trip Computer .....................................................................\
...........6-41
Special Driving Conditions ........................................................................\
..6-42Hazardous Driving Conditions ................................................\
.............................. 6-42
Rocking the Vehicle .................................................................\
.............................. 6-42
Smooth Cornering ........................................................................\
.......................... 6-43
Driving at Night ........................................................................\
.............................. 6-43
Driving in the Rain ........................................................................\
.......................... 6-43
Driving in Flooded Areas ........................................................................\
................6-44
Highway Driving ........................................................................\
.............................6-44
Winter Driving ........................................................................\
......................6-45Snow or Icy Conditions ........................................................................\
.................. 6-45
Winter Precautions ........................................................................\
.........................6-46
Vehicle load limit.......................................................\
.................................. 6-48Tire Loading Information Label ........................................................................\
.....6-49
Trailer Towing ........................................................................\
....................... 6-53

Driving Your Vehicle6-4

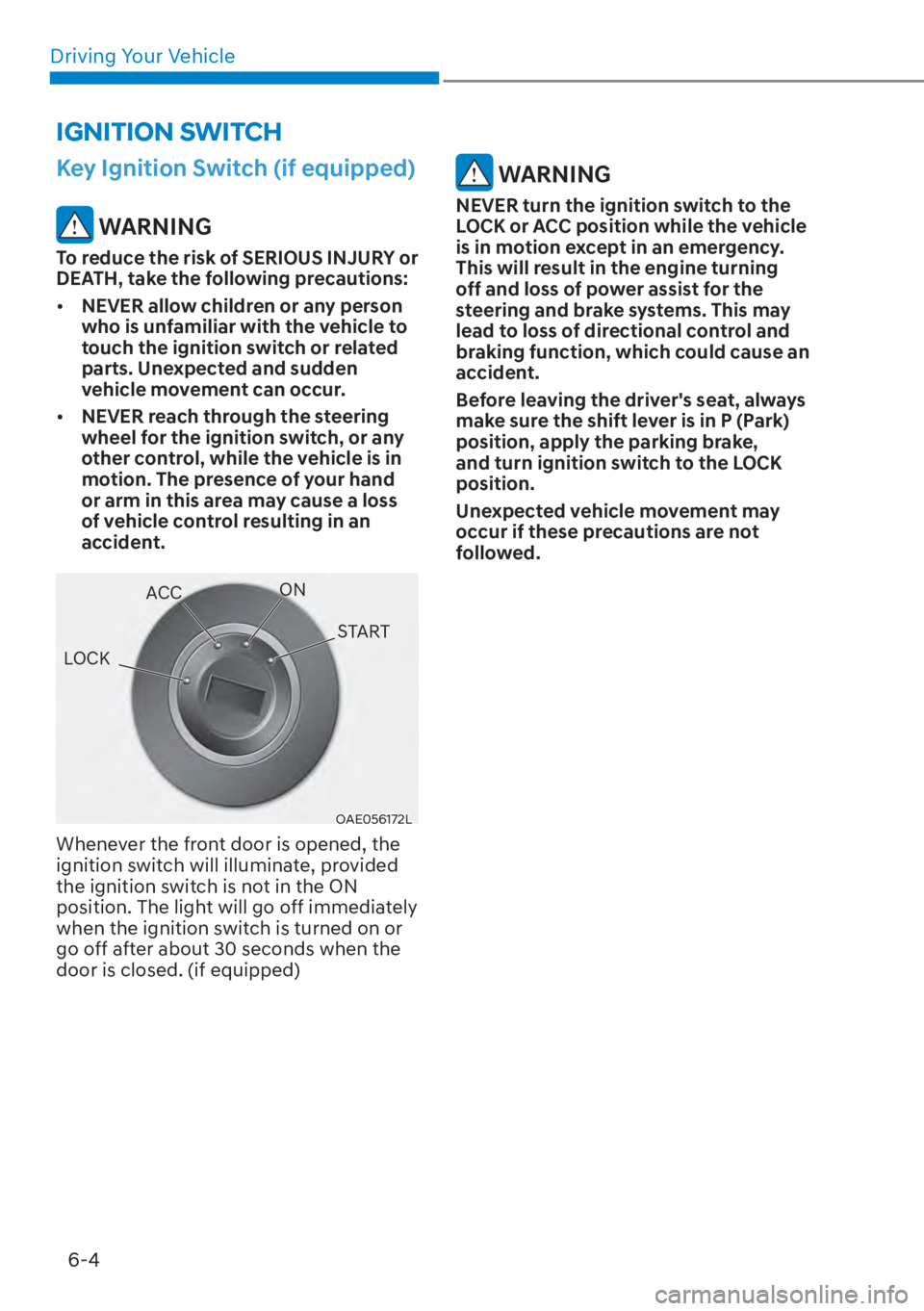

Key Ignition Switch (if equipped)
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:

[ NEVER allow children or any person
who is unfamiliar with the vehicle to
touch the ignition switch or related
parts. Unexpected and sudden
vehicle movement can occur.

[ NEVER reach through the steering
wheel for the ignition switch, or any
other control, while the vehicle is in
motion. The presence of your hand
or arm in this area may cause a loss
of vehicle control resulting in an
accident.
OAE056172L
Whenever the front door is opened, the
ignition switch will illuminate, provided
the ignition switch is not in the ON
position. The light will go off immediately
when the ignition switch is turned on or
go off after about 30 seconds when the
door is closed. (if equipped)
WARNING
NEVER turn the ignition switch to the
LOCK or ACC position while the vehicle
is in motion except in an emergency.
This will result in the engine turning
off and loss of power assist for the
steering and brake systems. This may
lead to loss of directional control and
braking function, which could cause an
accident.
Before leaving the driver's seat, always
make sure the shift lever is in P (Park)
position, apply the parking brake,
and turn ignition switch to the LOCK
position.
Unexpected vehicle movement may
occur if these precautions are not
followed.
IGNITION SWITCH
LOCK ACC
ON
START

06
6-5

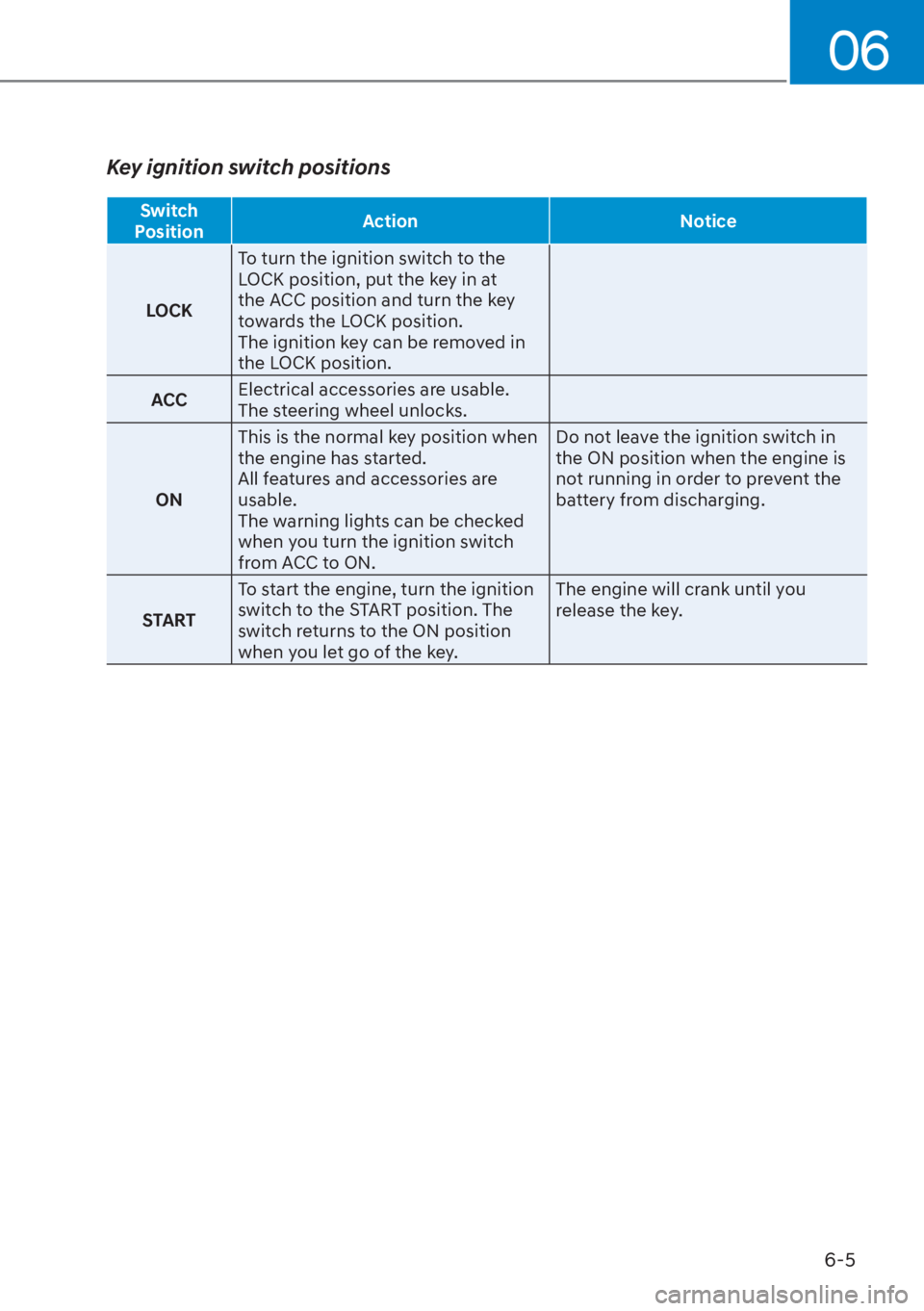

Key ignition switch positions
Switch
Position Action Notice
LOCK T
o turn the ignition switch to the
LOCK position, put the key in at
the ACC position and turn the key
towards the LOCK position.
The ignition key can be removed in
the LOCK position.
ACC Electrical accessories are usable.
The steering wheel unlocks.
ON This is the normal key position when
the engine has started.
All features and accessories are
usable.
The warning lights can be checked
when you turn the ignition switch
from ACC to ON. Do not leave the ignition switch in
the ON position when the engine is
not running in order to prevent the
battery from discharging.
START To start the engine, turn the ignition
switch to the START position. The
switch returns to the ON position
when you let go of the key. The engine will crank until you
release the key.

Driving Your Vehicle6-6

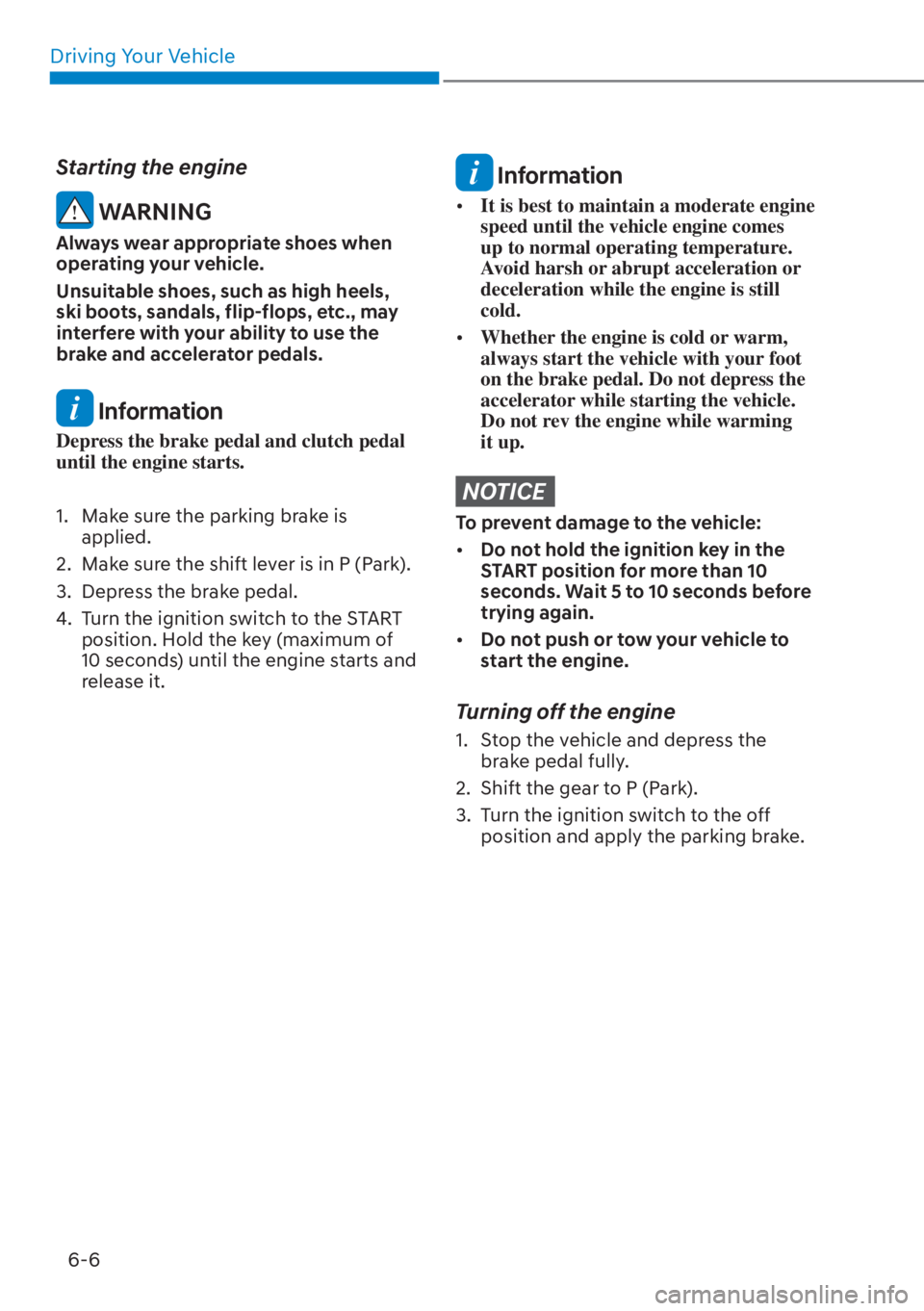

Starting the engine
WARNING
Always wear appropriate shoes when
operating your vehicle.
Unsuitable shoes, such as high heels,
ski boots, sandals, flip-flops, etc., may
interfere with your ability to use the
brake and accelerator pedals.
Information
Depress the brake pedal and clutch pedal
until the engine starts.
1. Make sure the parking brake is applied.
2. Make sure the shift lever is in P (Park).
3. Depress the brake pedal.
4. Turn the ignition switch to the START position. Hold the key (maximum of
10 seconds) until the engine starts and
release it.
Information

[It is best to maintain a moderate engine
speed until the vehicle engine comes
up to normal operating temperature.
Avoid harsh or abrupt acceleration or
deceleration while the engine is still
cold.

[ Whether the engine is cold or warm,
always start the vehicle with your foot
on the brake pedal. Do not depress the
accelerator while starting the vehicle.
Do not rev the engine while warming
it up.
NOTICE
To prevent damage to the vehicle:

[Do not hold the ignition key in the
START position for more than 10
seconds. Wait 5 to 10 seconds before
trying again.

[ Do not push or tow your vehicle to
start the engine.
Turning off the engine
1. Stop the vehicle and depress the
brake pedal fully.
2. Shift the gear to P (Park).
3. Turn the ignition switch to the off position and apply the parking brake.
