2023 HYUNDAI ELANTRA HYBRID key

Foreword / Hybrid System Overview1-10
Starting the Vehicle
Vehicles with smart key system
1. Carry the smart key or leave it inside the vehicle.
2. Make sure the parking brake is firmly applied.
3. Make sure the shift lever is in P (Park). With the shift lever in N (Neutral), you
cannot start the vehicle.
4. Depress the brake pedal.
5. Press the Engine Start/Stop button. If the hybrid system starts, the “
”
indicator will come on.
Whether the engine is cold or warm, it
should be started without depressing
the accelerator.
After following the start procedures, “
” indicator on the instrument cluster
will turn on. For more details, please
check chapter 6.
ECONOMICAL and SAFE OPERATION
of Hybrid system

[ Drive smoothly. Accelerate at a
moderate rate and maintain a steady
cruising speed. Do not make “jack-
rabbit” starts. Do not race between
stoplights.

[ Avoid heavy traffic whenever possible.
Always maintain a safe distance
from other vehicles so you can
avoid unnecessary braking. This also
reduces brake wear.

[ The regenerative brake generates
energy when the vehicle decelerates.

[ When the hybrid battery power is
low, the hybrid system automatically
recharges the hybrid battery.

[ When the engine is running with the
shift lever in N (Neutral), the hybrid
system cannot generate electricity.
The hybrid battery cannot recharge
with the shift lever in N (Neutral).
Information
In the hybrid system, the engine
automatically runs and stops. When
the hybrid system operates, the “
”
indicator is illuminated.
In the following situation, the engine may
operate automatically.
- When the engine is ready to run
- When the hybrid battery is being
charged
- Depending on the temperature
condition of the hybrid battery
Special Features
Hybrid vehicles sound different than
gasoline engine vehicles. When the
hybrid system operates, you may hear
a sound from the hybrid battery system
behind the rear seat. If you apply the
accelerator pedal rapidly, you may hear
an unconventional sound. When you
apply the brake pedal, you may hear
a sound from the regenerative brake
system. When the hybrid system is
turned off or on, you may hear a sound
in the engine compartment. If you
depress the brake pedal repeatedly
when the hybrid system is turned on,
you may hear a sound in the engine
compartment. None of these sounds
indicate a problem. These are normal
characteristics of hybrid vehicles.
If any of following occur, it’s a normal
condition if you hear a motor sound in
the engine compartment:
- After turning off the hybrid system, the brake pedal is released.
- When the hybrid system is turned off, the brake pedal is applied.
- When the driver door is opened.
DRIVING THE HYBRID VEHICLE

Foreword / Hybrid System Overview1-24
WARNING
If a fire occurs:

[ If a small scale fire occurs, use a fire
extinguisher (ABC, BC) that is meant
for electrical fires.
If it is impossible to extinguish
the fire in the early stage, remain
a safe distance from the vehicle
and immediately call your local
fire emergency responders. Also,
advise them that a hybrid vehicle is
involved.
If the fire spreads to the high voltage
battery, large amount of water is
needed to put out the fire.
Using small amount of water or
fire extinguishers not meant for
electrical fires could cause serious
injury or death from electrical
shocks.

[ Upon witnessing any sparks, gases,
flames, or fuel leakage of your
vehicle, immediately call emergency
services or contact an authorized
HYUNDAI dealer. Also, advise them
that a hybrid vehicle is involved.
WARNING
When a submersion in water occurs:
When your vehicle is flooded in water, a
high-voltage battery may cause shock
or fires. Thus, turn the hybrid system
OFF, take the key in your possession and
escape to a safe place. Never attempt
physical contact with your flooded
vehicle.
Immediately contact an authorized
HYUNDAI dealer and advise them that a
hybrid vehicle is involved.
When the Hybrid Vehicle Shuts
Off
When the high voltage battery or 12 volt
battery is discharged, or when the fuel
tank is empty, the hybrid system may
not operate while driving. When the
Hybrid system does not operate, do the
following:
1. Gradually reduce the vehicle speed.
Pull over your vehicle off the road in a
safe area.
2. Make sure the shift lever is in P (Park).
3. Turn ON the hazard warning flashers.
4. Turn OFF the vehicle, and try to start the hybrid system again, while
depressing the brake pedal and
turning on the ignition switch.
5. When the hybrid system still does not operate, refer to “If the 12 Volt Battery
Is Discharged” section in chapter 8.
Before jump-starting the vehicle,
check the fuel level and the exact
procedure to jump start. For further
details, refer to “If the 12 Volt Battery
Is Discharged” section in chapter
8. When the fuel level is low, do not
attempt to drive the vehicle only with
the battery power. The high voltage
battery may be discharged, and the
hybrid system will turn OFF.

2-5
02

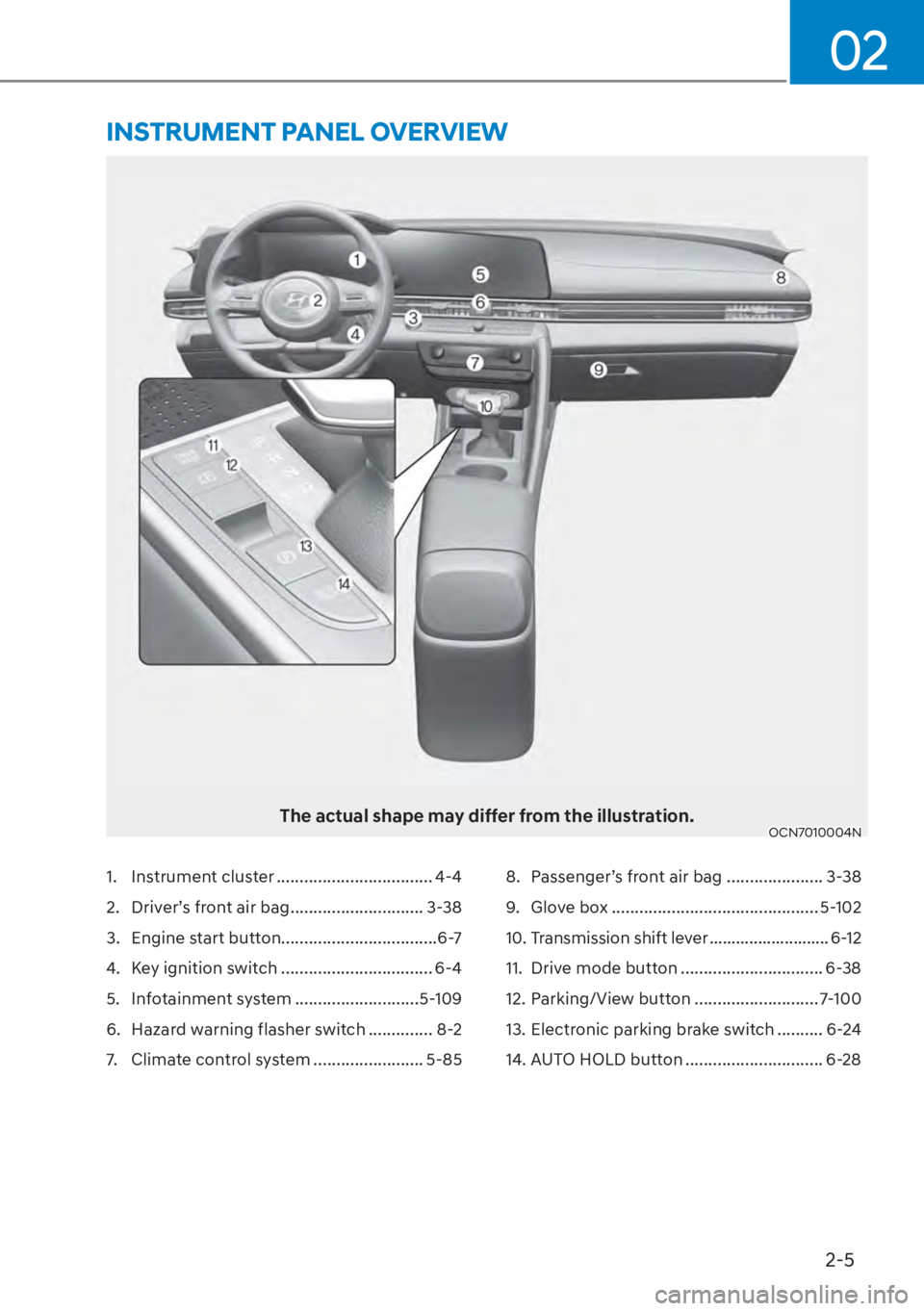

The actual shape may differ from the illustration.OCN7010004N
INSTRUMENT PANEL OVERVIEW
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-38
3. Engine start button..................................6-7
4. Key ignition switch ................................. 6-4
5. Infotainment system ...........................5-109
6. Hazard warning flasher switch .............. 8-2
7. Climate control system ........................ 5-85 8. Passenger’s front air bag ..................... 3-38
9. Glove box ............................................. 5-102
10. Transmission shift lever ........................... 6-12
11. Drive mode button ............................... 6-38
12. Parking/View button ........................... 7-100
13. Electronic parking brake switch .......... 6-24
14. AUTO HOLD button .............................. 6-28

4
Instrument Cluster ........................................................................\
................. 4-4Instrument Cluster Control ........................................................................\
.............. 4-5Adjusting instrument cluster illumination ............................................................ 4-5
Gauges and Meters ........................................................................\
.......................... 4-5 Speedometer .....................................................................\
.................................... 4-5
Power gauge ..............................................................\
........................................... 4-6
Hybrid battery SOC (State of Charge) gauge ...................................................... 4-6
Fuel gauge ........................................................................\
...................................... 4-7
Outside temperature gauge ........................................................................\
.......... 4-8
Odometer .....................................................................\
.......................................... 4-8
Range ..................................................................\
.................................................... 4-9
Transmission Shift Indicator ........................................................................\
............ 4-9 Dual clutch transmission shift indicator .............................................................. 4-9
Warning and Indicator Lights ........................................................................\
........ 4-10 Ready indicator ........................................................................\
............................ 4-10
EV mode indicator ........................................................................\
....................... 4-10
Service warning light ........................................................................\
................... 4-10
Air Bag Warning Light ........................................................................\
.................. 4-10
Seat Belt Warning Light ........................................................................\
................ 4-11
Parking Brake & Brake Fluid Warning Light ......................................................... 4-11
Regenerative brake warning light ........................................................................\
4-11
Anti-lock Brake System (ABS) Warning Light ...................................................... 4-12
Electronic Brake Force Distribution (EBD) System Warning Light .................... 4-12
Electronic Parking Brake (EPB) Warning Light .................................................... 4-12
AUTO HOLD Indicator Light ........................................................................\
......... 4-13
Motor Driven Power Steering (MDPS) Warning Light ........................................ 4-13
Malfunction Indicator Lamp (MIL) ....................................................................... 4-13
Charging System Warning Light ........................................................................\
..4-14
Engine Oil Pressure Warning Light ......................................................................4-14
Low Fuel Level Warning Light ........................................................................\
......4-14
Master Warning Light ........................................................................\
................... 4-15
Low Tire Pressure Warning Light ........................................................................\
. 4-15
Electronic Stability Control (ESC) Indicator Light .............................................. 4-15
Electronic Stability Control (ESC) OFF Indicator Light .......................................4-16
AUTO STOP indicator light ........................................................................\
...........4-16
Immobilizer Indicator Light ........................................................................\
..........4-16
Immobilizer Indicator Light (with smart key) ..................................................... 4-17
Turn Signal Indicator Light ........................................................................\
........... 4-17
Exterior Light Warning Light ........................................................................\
........ 4-17
LED headlight warning light ........................................................................\
.........4-18
High Beam Indicator Light ........................................................................\
...........4-18
Light ON Indicator Light ........................................................................\
...............4-18
4. Instrument Cluster

4
High Beam Assist indicator light ........................................................................\
..4-18
Forward Collision-Avoidance Assist Warning Light ............................................4-18
Lane Keep Assist Indicator Light................................................................\
..........4-19
Cruise Indicator Light ........................................................................\
...................4-19
SPORT Mode Indicator Light ........................................................................\
........4-19
SMART Mode Indicator Light ........................................................................\
.......4-19
Icy Road Warning Light ........................................................................\
................4-19
LCD Display Messages ........................................................................\
................... 4-20 Shift to P or N to start engine (for smart key system) ....................................... 4-20
Shift to P (for smart key system and dual clutch transmission)........................ 4-20
Low key battery (for smart key system).............................................................. 4-20
Press brake pedal to start engine (for smart key system and dual clutch
transmission) .....................................................................\
................................... 4-20
Key not in vehicle (for smart key system) ........................................................... 4-20
Key not detected (for smart key system)............................................................ 4-20
Press START button again (for smart key system) ............................................. 4-20
12V battery discharging due to additional electrical devices ........................... 4-21
Press START button with key (for smart key system) ......................................... 4-21
Check BRAKE SWITCH fuse (for smart key system and automatic
transmission/intelligent variable transmission).................................................. 4-21
Door, Hood, Trunk Open Indicator....................................................................... 4-21
Sunroof Open ........................................................................\
................................ 4-21
Low Pressure ........................................................................\
................................ 4-22
Lights Mode........................................................................\
.................................. 4-22
Wiper ..................................................................\
.................................................. 4-22
Heated Steering Wheel turned off ...................................................................... 4-22
Low washer fluid ........................................................................\
.......................... 4-22
Low fuel ........................................................................\
........................................ 4-23
Engine Overheated ........................................................................\
...................... 4-23
Check headlight ........................................................................\
........................... 4-23
Check headlight (Low) ........................................................................\
................. 4-23
Check turn signal ........................................................................\
......................... 4-23
Check brake light ........................................................................\
......................... 4-23
Check daytime running light ........................................................................\
....... 4-24
Check high mounted stop lamp ........................................................................\
. 4-24
Check headlight LED ........................................................................\
................... 4-24
Check Forward Collision-Avoidance Assist system ........................................... 4-24
Check Lane Keeping Assist system .................................................................... 4-24
Check Blind-Spot Collision Warning system...................................................... 4-24
Check Driver Attention Warning system ............................................................ 4-25
Check High Beam Assist system ........................................................................\
. 4-25
Check Smart Cruise Control system ................................................................... 4-25

Instrument Cluster4-16
Electronic Stability Control
(ESC) OFF Indicator Light
This indicator light illuminates:

[ When y
ou place the ignition switch to
the ON position.
- It illuminates for approximately 3 seconds and then goes off.

[ When you deactivate the ESC system
by pressing the ESC OFF button.
For more information, refer to
“Electronic Stability Control (ESC)” in
chapter 6.
AUTO STOP indicator light
(if equipped)
This indicator light illuminates:
When the engine enters the Idle Stop
mode o
f ISG (Idle Stop and Go) system.
When the engine automatically starts,
the AUTO STOP indicator on the cluster
Illuminates to white.
For more details, refer to "ISG (Idle Stop
and Go) system" section in chapter 6.
Information
When the engine automatically starts
by the ISG system, some warning lights
(ABS, ESC, ESC OFF, MDPS or Parking
brake warning light) may turn on for a
few seconds. This happens because of
low battery voltage. It does not mean the
system has malfunctioned.
Immobilizer Indicator Light
This indicator light illuminates:

[ When the v
ehicle detects the
immobilizer in the key with the
ignition switch in the ON position.
- At this time, you can start the engine.

- The indicator light goes off after
starting the engine.
This indicator light blinks:

[ When ther
e is a malfunction with the
immobilizer system.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.

04
4-17
Immobilizer Indicator Light
(with smart key)
(if equipped)
This indicator light illuminates for up to
30 seconds:
When the vehicle detects the smart key
in the v
ehicle with the Engine Start/Stop
button in the ACC or ON position.
- Once the smart key is detected, you can start the engine.

- The indicator light goes off after
starting the engine.
This indicator light blinks for a few seconds:
When the smart key is not in the vehicle.
- If the smart key is not detected, you cannot start the engine.
This indicator light illuminates for 2
seconds and goes off:
If the smart key is in the vehicle and the
E
ngine Start/Stop button is ON, but the
vehicle cannot detect the smart key.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
This indicator light blinks:
When there is a malfunction with the
immobiliz
er system.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
Turn Signal Indicator Light
This indicator light blinks:
When you operate the turn signal
indica
tor stalk.
If any of the following occur, there may be
a malfunction with the turn signal system.

- The turn signal indicator light
illuminates but does not blink

- The turn signal indicator light blinks
rapidly

- The turn signal indicator light does not
illuminate at all
If any of these conditions occur, have
your vehicle inspected by an authorized
HYUNDAI dealer.
For more details, refer to “High Beam
Assist (HBA)” in chapter 5.
Exterior Light Warning Light
(if equipped)
This warning light illuminates:

[ When one o
f the exterior bulbs
(headlight, DRL, turn signal lamp, stop
lamp, etc) is not operating properly.
One of the bulbs may need to be
replaced.
Information
Make sure to replace the burned out bulb
with a new one of the same wattage rating.

Instrument Cluster4-20
LCD Display Messages
Shift to P or N to start engine
(for smart key system)
This warning message is displayed if you
try to start the engine with the shift lever
not in the P (Park) or N (Neutral) position.
Information
You can start the engine with the shift
lever in the N (Neutral) position. But, for
your safety, we recommend that you start
the engine with the shift lever in the P
(Park) position.
Shift to P (for smart key system and
dual clutch transmission)
This message is displayed if you try to
turn off the engine without the shift lever
in P (Park) position.
If this occurs, the Engine Start/Stop
button turns to the ACC position (If you
press the Engine Start/Stop button once
more, it will turn to the ON position).
Low key battery
(for smart key system)
This warning message is displayed if the
battery of the smart key is discharged
while changing the Engine Start/Stop
button to the OFF position.
Press brake pedal to start engine
(for smart key system and dual
clutch transmission)
This warning message is displayed if the
Engine Start/Stop button changes to
the ACC position twice by pressing the
button repeatedly without depressing
the brake pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Engine Start/Stop button.
Key not in vehicle
(for smart key system)
This warning message is displayed if the
smart key is not in the vehicle when you
press the Engine Start/Stop button.
When attempting to start the vehicle,
always have the smart key with you.
Key not detected
(for smart key system)
This warning message is displayed if the
smart key is not detected when you press
the Engine Start/Stop button.
Press START button again
(for smart key system)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, have your vehicle inspected by
an authorized HYUNDAI dealer.
