2023 HYUNDAI ELANTRA HYBRID key

04
4-21
12V battery discharging due to
additional electrical devices
This message is displayed if the 12V
battery voltage is weak due to any
non-factory electrical accessories (ex.
dashboard camera) while parking. Be
careful that the battery is not discharged.
If the message appears after removing
the non-factory electrical accessories,
we recommend that you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Press START button with key
(for smart key system)
This warning message is displayed if you
press the Engine Start/Stop button while
the warning message "Key not detected"
is displayed.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH fuse (for
smart key system and automatic
transmission/intelligent variable
transmission)
This warning message is displayed if the
brake switch fuse is disconnected.
You need to replace the fuse with a new
one before starting the engine.
If that is not possible, you can start the
engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
Door, Hood, Trunk Open Indicator
OCN7040017
This warning is displayed if any door or
the hood or the liftgate is left open. The
warning will indicate which door is open
in the display.
CAUTION
Before driving the vehicle, you should
confirm that the door/hood/liftgate
are fully closed. Also, check there is no
door/hood/liftgate open warning light
or message displayed on the instrument
cluster.
Sunroof Open (if equipped)
OCN7040018
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.

04
4-33
2. Door
ItemsExplanation
Auto Lock
[
Enable on Shift: All doors will be automatically locked if the shift
lever is moved from the P (Park) position to the R (Reverse), N
(Neutral), or D (Drive) position. (Only when the engine is running)

[ Enable on Speed: All doors will be automatically locked when the
vehicle speed exceeds 15km/h (9.3mph).

[ Disable : The auto door lock operation will be deactivated.
Auto Unlock
[
On Shift to P: All doors will be automatically unlocked if the shift
lever is moved to P (Park) position. (Only when the engine is
running)

[ On key out/Vehicle Off : All doors will be automatically
unlockedwhen the ignition key is removed from the ignition switch
or the Engine Start/Stop button is set to the OFF position.

[ Disable : The auto door unlock operation will be canceled.
Two Press
Unlock

[ Off: The two press unlock function will be deactivated. Therefore, all
doors will unlock if the door unlock button is pressed.

[ On: Only the driver’s door will unlock if the door unlock button is
pressed. When the door unlock button is pressed again within 4
seconds, the remaining doors will unlock.
Horn
Feedback
To activate or deactivate the horn feedback.
If the horn feedback is activated, after locking the door by pressing the
lock button on the remote key, and pressing it again within 4 seconds,
the horn feedback sound will operate once to indicate that all doors
are locked (if equipped with remote key).
Smart TrunkTo activate or deactivate the smart trunk.
For more details, refer to “Smart trunk” in chapter 5.
3. Lights
Items Explanation
IlluminationTo adjust the illumination level.
- Level 1~20
One Touch
Turn Signal
[
Off: The one touch turn signal function will be deactivated.

[ 3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times
when the turn signal lever is moved slightly.
For more details, refer to “Lighting” in chapter 5.
Headlight Delay
[ To activate or deactivate the headlight delay function.
For more details, refer to “Lighting” in chapter 5.
High Beam Assist
[ To activate or deactivate the High Beam Assist function.
For more details, refer to “High Beam Assist (HBA)” in chapter 5.

Instrument Cluster4-34

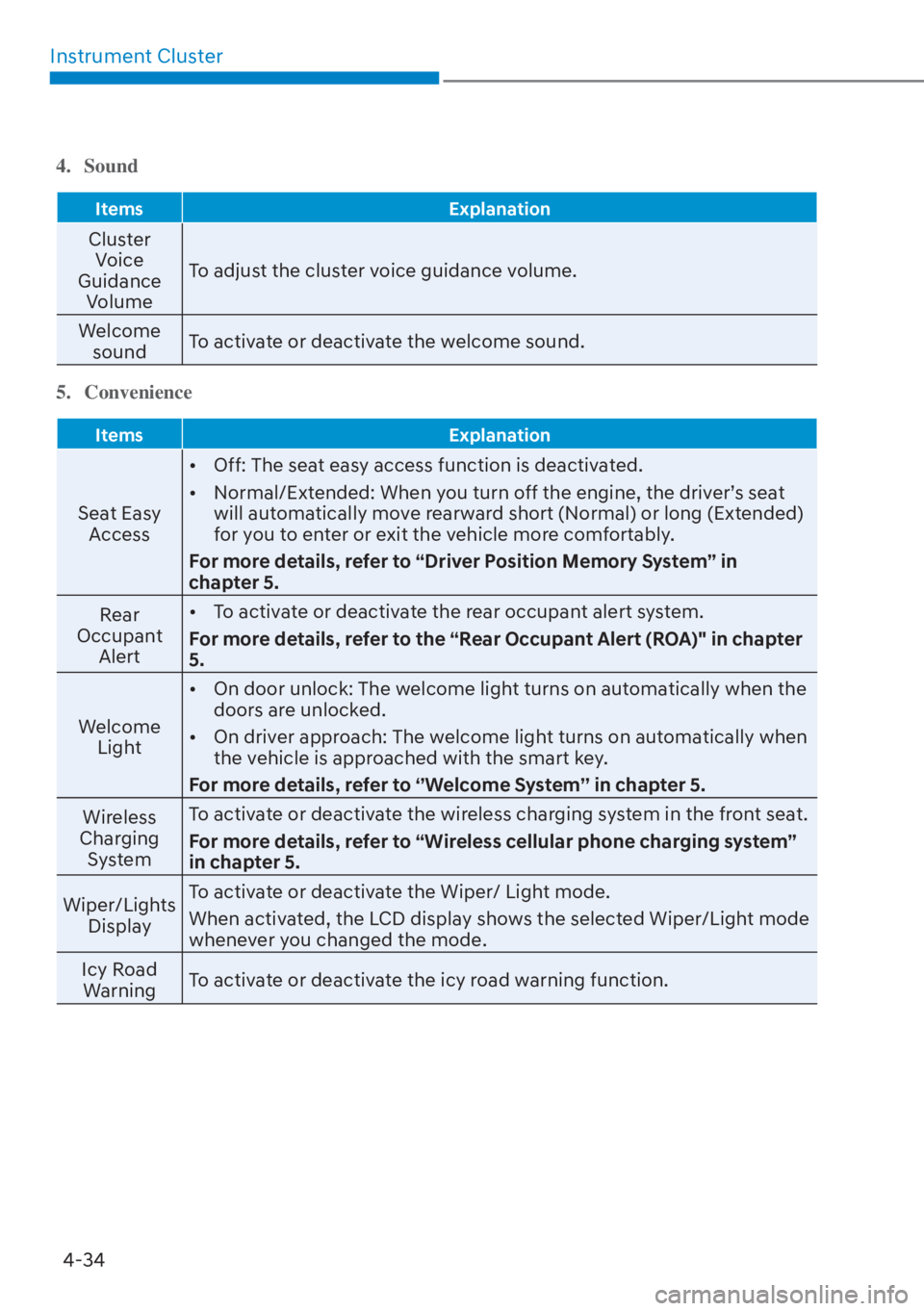

4. Sound
Items Explanation
Cluster
Voice
Guidance Volume To adjust the cluster voice guidance volume.
Welcome sound To activate or deactivate the welcome sound.
5. Convenience
Items Explanation
Seat Easy
Access
[
Off: The seat easy access function is deactivated.

[ Normal/Extended: When you turn off the engine, the driver’s seat
will automatically move rearward short (Normal) or long (Extended)
for you to enter or exit the vehicle more comfortably.
For more details, refer to “Driver Position Memory System” in
chapter 5.
Rear
Occupant Alert
[
To activate or deactivate the rear occupant alert system.
For more details, refer to the “Rear Occupant Alert (ROA)" in chapter
5.
Welcome Light
[
On door unlock: The welcome light turns on automatically when the
doors are unlocked.

[ On driver approach: The welcome light turns on automatically when
the vehicle is approached with the smart key.
For more details, refer to ‘’Welcome System’’ in chapter 5.
Wireless
Charging System To activate or deactivate the wireless charging system in the front seat.
For more details, refer to “Wireless cellular phone charging system”
in chapter 5.
Wiper/Lights Display To activate or deactivate the Wiper/ Light mode.
When activated, the LCD display shows the selected Wiper/Light mode
whenever you changed the mode.
Icy Road Warning To activate or deactivate the icy road warning function.

04
4-39
Manual reset
To clear the average fuel economy
manually, press the OK button on the
steering wheel for more than 1 second
when the average fuel economy is
displayed.
Automatic reset
To automatically reset the average fuel
economy after refueling, select the "Fuel
Econ. Reset" mode in the User Settings
menu on the LCD display.
- After Ignition: When the engine has
been OFF for 4 hours or longer the
average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically after
adding 1.6 gallons (6 liters) of fuel or
more and after driving speed exceeds
1 mph (1 km/h).
Information
The vehicle must be driven for a minimum
of 0.19 miles (300 meters) since the last
ignition key cycle before the average fuel
economy will be recalculated.
Instant Fuel Economy (2)
The instantaneous fuel economy is
displa
yed according to the bar graph in
the LCD display while driving.
Accumulated Info display
OCN7040085N
This display shows the accumulated trip
distance (1), the average fuel economy
(2), and the total driving time (3).
The information is accumulated starting
from the last reset.
To reset the information, press and
hold the OK button when viewing the
Accumulated driving info. The trip
distance, the average fuel economy,
and total driving time will reset
simultaneously.
The accumulated driving information will
continue to be counted while the engine
is still running (for example, when the
vehicle is in traffic or stopped at a stop
light).
Information
The vehicle must be driven for a minimum
of 300 meters (0.19 miles) since the last
ignition key cycle before the average fuel
economy will be recalculated.

Instrument Cluster4-40
Drive Info display
OCN7040086N
This display shows the trip distance (1),
the average fuel economy (2), and the
total driving time (3).
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 4 hours or longer the
Drive Info screen will reset.
To manually reset the information, press
and hold the OK button when viewing
the Drive Info. The trip distance, the
average fuel economy, and total driving
time will reset simultaneously.
The driving information will continue
to be counted while the engine is still
running (for example, when the vehicle is
in traffic or stopped at a stop light).
Information
The vehicle must be driven for a minimum
of 0.19 miles (300 meters) since the last
ignition key cycle before the average fuel
economy will be recalculated.
Digital speedometer
OIK047151N
The digital speedometer display shows
the speed of the vehicle.
Auto Stop accumulated time
ODN8A049036
This mode displays the Auto Stop
accumulated time within ISG vehicles.

Instrument Cluster4-48
2. Door
Items Explanation
Auto Lock
[
Enable on Shift: All doors will be automatically locked if the shift
lever is moved from the P (Park) position to the R (Reverse), N
(Neutral), or D (Drive) position. (Only when the engine is running)

[ Enable on Speed: All doors will be automatically locked when the
vehicle speed exceeds 15km/h (9.3mph).

[ Disable : The auto door lock operation will be deactivated.
Auto Unlock
[
On Shift to P: All doors will be automatically unlocked if the shift
lever is moved to P (Park) position. (Only when the engine is
running)

[ On key out/Vehicle Off : All doors will be automatically
unlockedwhen the ignition key is removed from the ignition switch
or the Engine Start/Stop button is set to the OFF position.

[ Disable : The auto door unlock operation will be canceled.
Two Press
Unlock

[ Off: The two press unlock function will be deactivated. Therefore, all
doors will unlock if the door unlock button is pressed.

[ On: Only the driver’s door will unlock if the door unlock button is
pressed. When the door unlock button is pressed again within 4
seconds, the remaining doors will unlock.
Horn
Feedback
To activate or deactivate the horn feedback.
If the horn feedback is activated, after locking the door by pressing the
lock button on the remote key, and pressing it again within 4 seconds,
the horn feedback sound will operate once to indicate that all doors
are locked (if equipped with remote key).
Smart TrunkTo activate or deactivate the smart trunk.
For more details, refer to “Smart trunk” in chapter 5.
3. Lights
Items Explanation
IlluminationTo adjust the illumination level.
- Level 1~20
One Touch
Turn Signal
[
Off: The one touch turn signal function will be deactivated.

[ 3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times
when the turn signal lever is moved slightly.
For more details, refer to “Lighting” in chapter 5.
Headlight Delay
[ To activate or deactivate the headlight delay function.
For more details, refer to “Lighting” in chapter 5.
High Beam Assist
[ To activate or deactivate the High Beam Assist.
For more details, refer to “High Beam Assist (HBA)” in chapter 5.

04
4-49

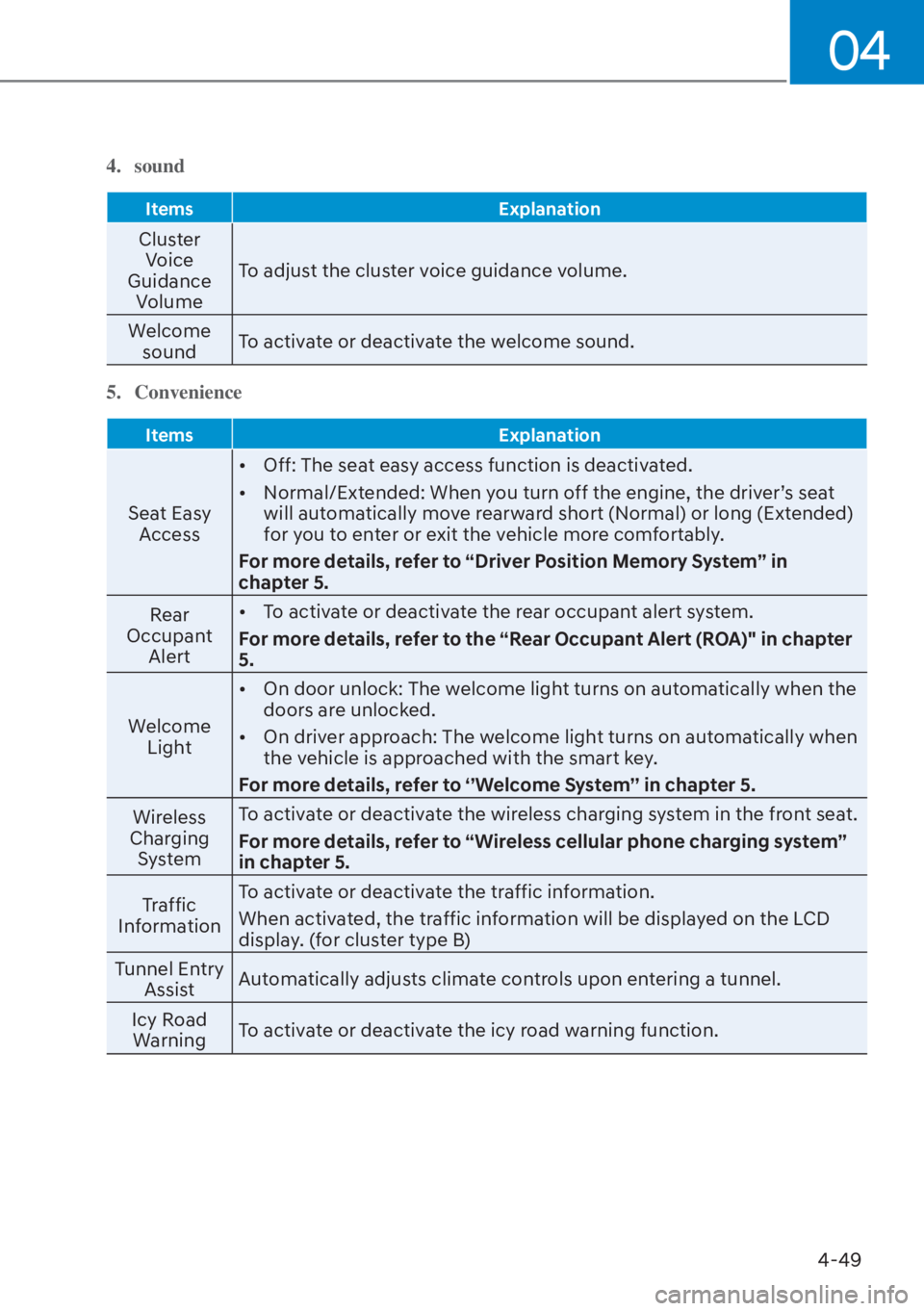

4. sound
ItemsExplanation
Cluster
Voice
Guidance Volume To adjust the cluster voice guidance volume.
Welcome sound To activate or deactivate the welcome sound.
5. Convenience
Items Explanation
Seat Easy
Access
[
Off: The seat easy access function is deactivated.

[ Normal/Extended: When you turn off the engine, the driver’s seat
will automatically move rearward short (Normal) or long (Extended)
for you to enter or exit the vehicle more comfortably.
For more details, refer to “Driver Position Memory System” in
chapter 5.
Rear
Occupant Alert
[
To activate or deactivate the rear occupant alert system.
For more details, refer to the “Rear Occupant Alert (ROA)" in chapter
5.
Welcome Light
[
On door unlock: The welcome light turns on automatically when the
doors are unlocked.

[ On driver approach: The welcome light turns on automatically when
the vehicle is approached with the smart key.
For more details, refer to ‘’Welcome System’’ in chapter 5.
Wireless
Charging System To activate or deactivate the wireless charging system in the front seat.
For more details, refer to “Wireless cellular phone charging system”
in chapter 5.
Traffic
Information To activate or deactivate the traffic information.
When activated, the traffic information will be displayed on the LCD
display. (for cluster type B)
Tunnel Entry Assist Automatically adjusts climate controls upon entering a tunnel.
Icy Road Warning To activate or deactivate the icy road warning function.

5. Convenience Features
Accessing Your Vehicle ........................................................................\
.......... 5-4Remote Key ........................................................................\
....................................... 5-4
Smart Key ........................................................................\
...........................................5-7
Immobilizer System ........................................................................\
........................ 5-14
Hyundai Digital Key ........................................................................\
......................... 5-15
Door Locks ........................................................................\
............................. 5-31Operating Door Locks from Outside the Vehicle .................................................. 5-31
Operating Door Locks from Inside the Vehicle .................................................... 5-33
Automatic Door Lock and Unlock Features .......................................................... 5-35
Child-Protector Rear Door Locks ........................................................................\
.. 5-35
Rear Occupant Alert (ROA) ........................................................................\
. 5-36Rear Occupant Alert Operation ........................................................................\
.... 5-36
Theft-Alarm System ........................................................................\
............ 5-37
Driver Position Memory System ................................................................. 5-38
Storing Memory Positions ........................................................................\
............. 5-38
Recalling Memory Positions ........................................................................\
.......... 5-38
Driver Position Memory System Reset ................................................................. 5-39
Easy Access Function ........................................................................\
.....................5-40
Steering Wheel ........................................................................\
......................5-41Motor Driven Power Steering (MDPS) ...................................................................5-41
Tilt Steering / Telescope Steering ........................................................................\
. 5-42
Horn........................................................................\
................................................. 5-43
Mirrors ......................................................................\
....................................5-44Inside Rearview Mirror ........................................................................\
................... 5-44
Side View Mirrors ........................................................................\
........................... 5-52
Windows ......................................................................\
................................. 5-54Power Windows ........................................................................\
.............................. 5-55
Sunroof ......................................................................\
................................... 5-58Sunshade ...............................................................\
................................................. 5-58
Tilt Open/Close........................................................................\
............................... 5-59
Slide Open/Close .......................................................\
............................................ 5-59
Automatic Reversal ........................................................................\
.......................5-60
Resetting the Sunroof ........................................................................\
.....................5-61
Sunroof Open Warning ........................................................................\
...................5-61
5
