09
9-27

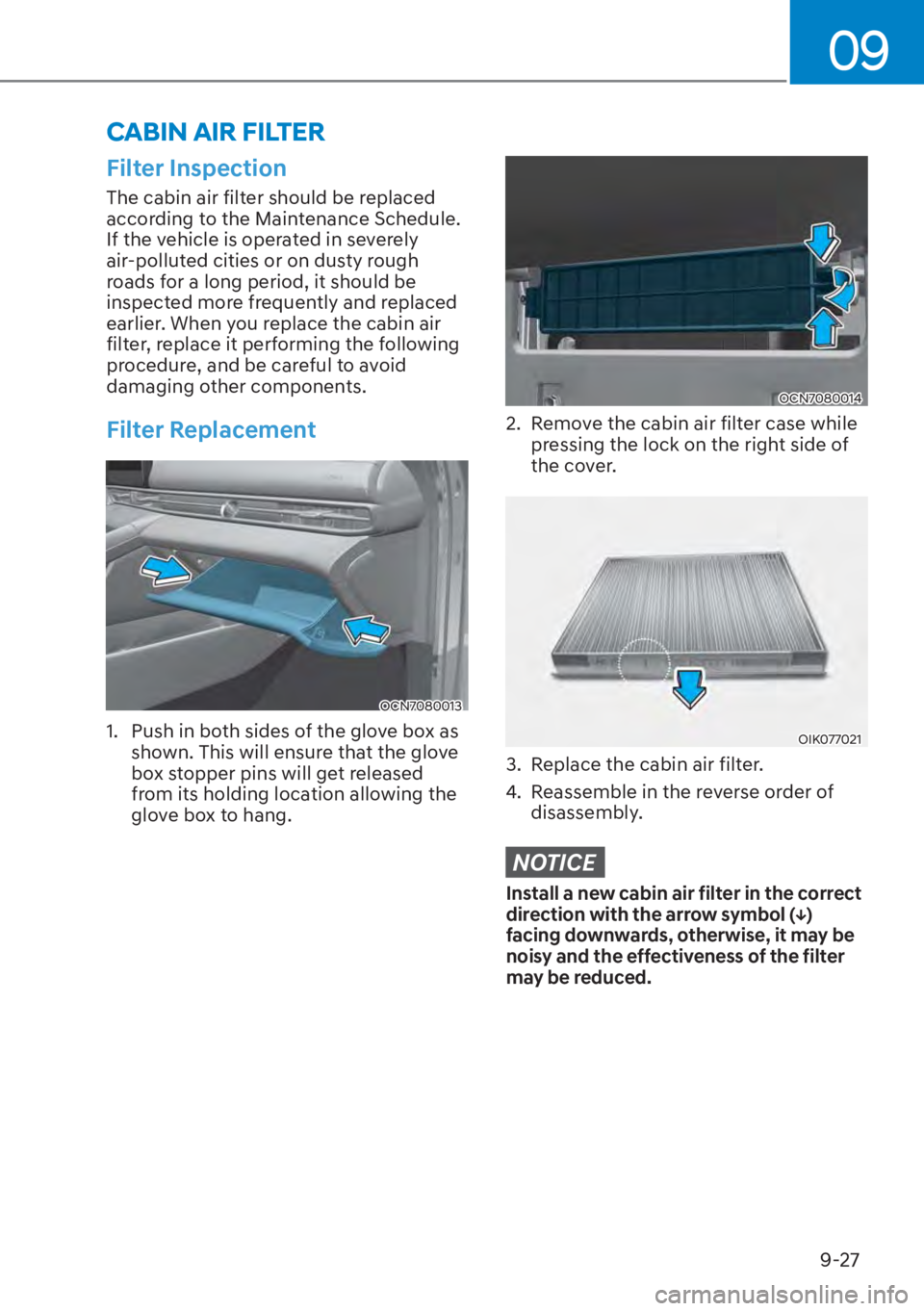

Filter Inspection
The cabin air filter should be replaced
according to the Maintenance Schedule.
If the vehicle is operated in severely
air-polluted cities or on dusty rough
roads for a long period, it should be
inspected more frequently and replaced
earlier. When you replace the cabin air
filter, replace it performing the following
procedure, and be careful to avoid
damaging other components.
Filter Replacement
OCN7080013
1. Push in both sides of the glove box as shown. This will ensure that the glove
box stopper pins will get released
from its holding location allowing the
glove box to hang.
OCN7080014
2. Remove the cabin air filter case while pressing the lock on the right side of
the cover.
OIK077021
3. Replace the cabin air filter.
4. Reassemble in the reverse order of disassembly.
NOTICE
Install a new cabin air filter in the correct
G L U H F W L R Q Z L W K W K H D U U R Z V \ P E R O
