2023 HONDA PILOT towing

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
The Navigation Manual is available online at owners.honda.com
(U.S.) or honda.ca (Canada). If you are the first registered owner
of your vehicle, you may request a complimentary printed
copy of the Navigation Manual within the first six months of
vehicle purchase. To request a copy, visit owners.honda.com. In
Canada, please request a copy from your Honda dealer.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s ma nual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 37
For Safe Driving P. 38 Seat Belts P. 43 Airbags P. 59
2Instrument Panel P. 97
Indicators P. 98 Gauges and Displays P. 121
2Controls P. 175
Clock P. 176 Locking and Unlocking the Doors P. 178
Panoramic Roof* P. 213
Seats P. 239 Interior Convenience Items P. 260
2 Features P. 291
Audio System P. 292 Audio System Basic Operation P. 301, 326
Customized Features P. 421, 429 HomeLink ® Universal Transceiver* P. 456
CabinTalk ®* P. 499
2Driving P. 501
Before Driving P. 502 Towing a Trailer P. 508
Parking Your Vehicle P. 661Multi-View Rear Camera* P. 672
2Maintenance P. 691
Before Performing Maintenance P. 692 Maintenance MinderTM P. 695
Checking and Maintaining Wiper Blades P. 723
Climate Control System Main tenance P. 740 Cleaning P. 742
2Handling the Unexpected P. 749
Tools P. 750 If a Tire Goes Flat P. 751
Overheating P. 769 Indicator Coming On/Blinking P. 771
If You Cannot Unlock the Fuel Fill Door P. 786
2 Information P. 789
Specifications P. 790 Identification Numbers P. 792
Emissions Testing P. 795 Warranty Coverages P. 797
23 PILOT-31T906000_03.book 6 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Contents
Child Safety P. 77Exhaust Gas Hazard P. 95Safety Labels P. 96
Tailgate P. 196 Security System P. 207 Windows P. 210
Operating the Switches Around the Steering Wheel P. 217 Mirrors P. 236
Climate Control System P. 283
Audio Error Messages P. 398 General Information on the Audio System P. 400
Bluetooth ® HandsFreeLink ® P. 459, 479 Refuel Recommend P. 498
Off-Highway Driving Guidelines P. 519 When Driving P. 524 Honda Sensing ® P. 567 Braking P. 652
Surround View Camera System* P. 674 Refueling P. 686 Fuel Economy and CO2 Emissions P. 689
Maintenance Under the Hood P.705 Replacing Light Bulbs P. 718
Checking and Maintaining Tires P. 728 Batt ery P. 737 Remote Transmitter Care P. 739
Accessories and Modifications P. 747
Engine Does Not Start P. 762 If the Battery Is Dead P. 767
Fuses P. 778 Emergency Towing P. 785
If You Cannot Open the Tailgate P. 787 Refueling P. 788
Devices that Emit Radio Waves P. 793 Reporting Safety Defects P. 794
Authorized Manuals P. 800 Customer Service Information P. 801 Open Source License P. 802
Quick Reference GuideP. 8
Safe DrivingP. 37
Instrument PanelP. 97
ControlsP. 175
FeaturesP. 291
DrivingP. 501
MaintenanceP. 691
Handling the UnexpectedP. 749
InformationP. 789
IndexP. 804
23 PILOT-31T906000_03.book 7 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Quick Reference Guide
33
Handling the Unexpected (P749)
Flat Tire (P751)
●Park in a safe location and replace the
flat tire with the spare tire located under
the cargo area.
Indicators Come On (P771)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P762)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P778)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P769)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P785)
●Call a professional towing service if you
need to tow your vehicle.
23 PILOT-31T906000_03.book 33 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

104
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Transmission
System Indicator
•The current gear selection blinks if the
transmission system has a problem.•Blinks while driving - Performance may be
reduced. Avoid sudden starts and acceleration and
have your vehicle checked by a dealer immediately.
• The indicated current gear selection blinks if
you cannot put the transmission into
(R due
to a transmission system failure.
• The indicated current gear selection blinks if
the transmission system has a problem and
the performance of the vehicle is reduced.
•Avoid sudden starts, sudden acceleration and high
speed, and have your vehi cle checked by a dealer
immediately.
• The indicated current gear selection blinks if
the transmission system has a problem and
the paddle shifters cannot be used.•Have your vehicle checked by a dealer immediately.
•The current gear position or all the gear
positions blink if there is a problem with the
transmission and the vehicle is no longer
able to run.•Immediately park your vehicle in a safe place.
2 Emergency Towing P. 785
•Have your vehicle checked by a dealer.
•The current gear position or all the gear
positions blink if there is a problem with the
transmission and it is not possible to select
(P.
•Depending on the circumstances, you can set the
power mode to ON as an emergency measure.
2 If the Transmission System Indicator Blinks
along with the Warning Message P. 777
•While the vehicle is stopped, apply the parking
brake.
• Have your vehicle checked by a dealer immediately.
23 PILOT-31T906000_03.book 104 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

501
Driving
This chapter discusses driving and refueling.
Before Driving....................................... 502
Towing a Trailer .................................... 508
Off-Highway Driving Guidelines ......... 519
When Driving
Starting the Engine .......................... 524
Precautions While Driving................. 531
Automatic Transmission ................... 532
Shifting ............................................ 533
Auto Idle Stop .................................. 542
Drive Mode System .......................... 548
Hill Descent Control System ............. 553
Vehicle Stability AssistTM (VSA ®), aka Electronic
Stability Control (ESC), System ..............555
Agile Handling Assist ....................... 557 Intelligent Variable To
rque Management (i-
VTM4
TM) AWD System*.................. 558
Tire Pressure Monitoring System (TPMS) with Tire Fill Assist .......................... 559
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 561
Blind Spot Information System
*....... 563Honda Sensing ®.................................... 567Collision Mitigation Braking SystemTM (CMBSTM) ....572Low Speed Braking Control*............ 584Adaptive Cruise Control (ACC) with Low Speed Follow.. 590Lane Keeping Assist System (LKAS) .. 612
Traffic Jam Assist ............................. 625
Road Departure Mitigation System .. 634
Traffic Sign Recognition System.... 642
Front Sensor Camera ....................... 648
Radar Sensor ................................... 650
Sonar Sensors*............................. 651BrakingBrake System ................................... 652
Anti-lock Brake System (ABS) ........... 659
Brake Assist System ......................... 660
Parking Your VehicleWhen Stopped ................................ 661
Parking Sensor System*................... 663
Cross Traffic Monitor*..................... 668Multi-View Rear Camera*..................... 672
Surround View Camera System*.......... 674Refueling ........................................... 686
Fuel Economy and CO
2 Emissions .... 689
* Not available on all models
23 PILOT-31T906000_03.book 501 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

505
uuBefore Driving uMaximum Load Limit
Continued
Driving

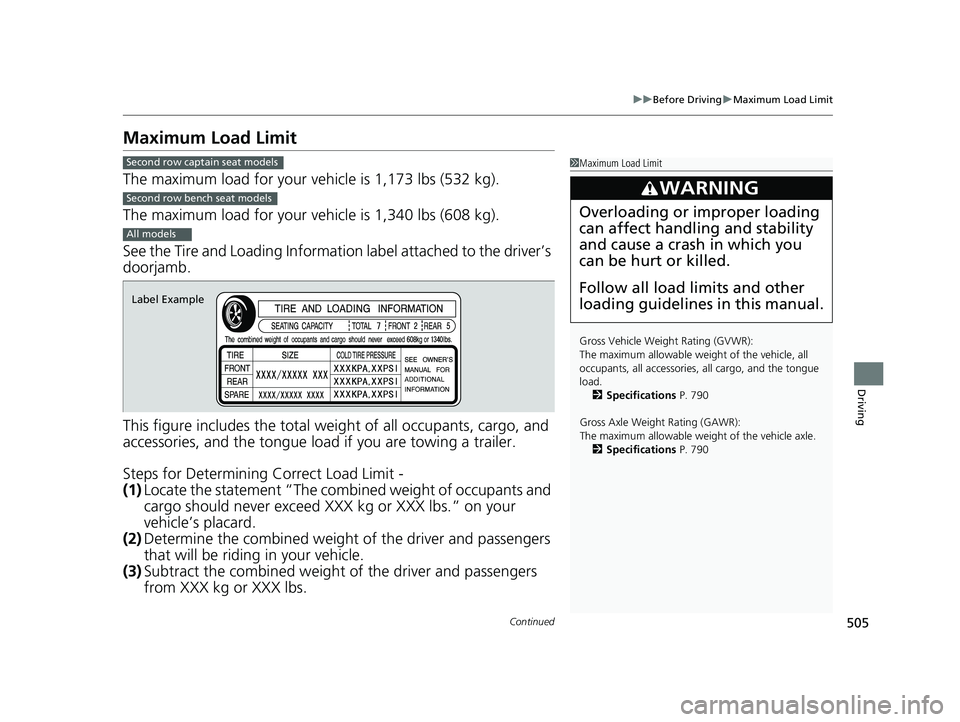

Maximum Load Limit
The maximum load for your ve hicle is 1,173 lbs (532 kg).
The maximum load for your ve hicle is 1,340 lbs (608 kg).
See the Tire and Loading Information label attached to the driver’s
doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1) Locate the statement “The combined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
1Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all a ccessories, all cargo, and the tongue
load.
2 Specifications P. 790
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 790
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
Second row captain seat models
Second row bench seat models
All models
Label Example
23 PILOT-31T906000_03.book 505 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

506
uuBefore Driving uMaximum Load Limit
Driving

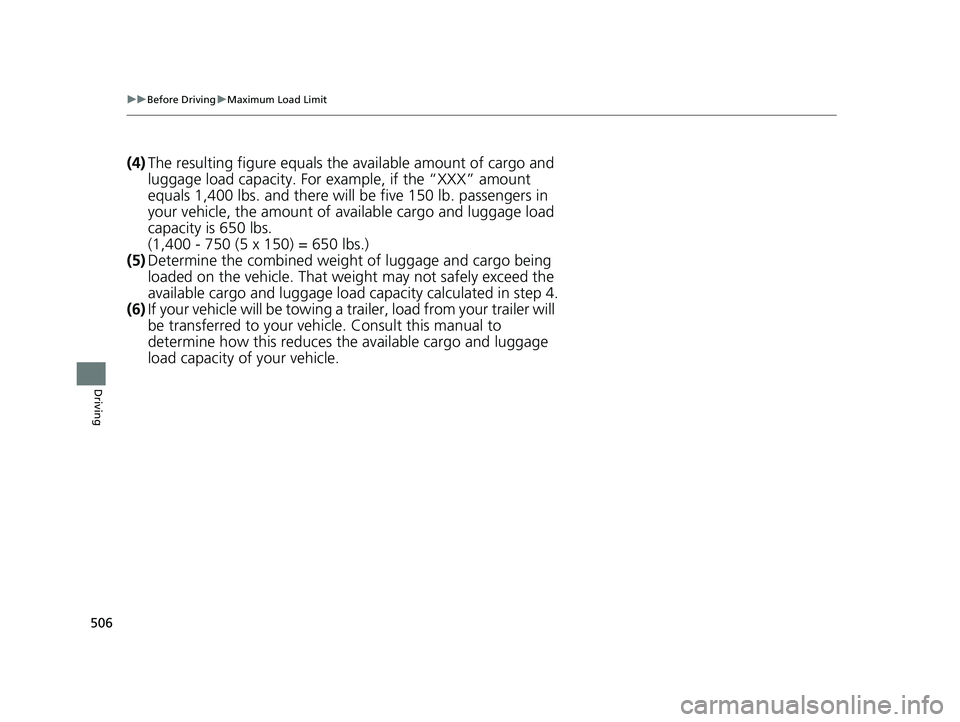

(4) The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the amount of av ailable cargo and luggage load
capacity is 650 lbs.
(1,400 - 750 (5 x 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That we ight may not safely exceed the
available cargo and luggage load capacity calculated in step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will
be transferred to your vehicl e. Consult this manual to
determine how this reduces the available cargo and luggage
load capacity of your vehicle.
23 PILOT-31T906000_03.book 506 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

507
uuBefore Driving uMaximum Load Limit
Driving

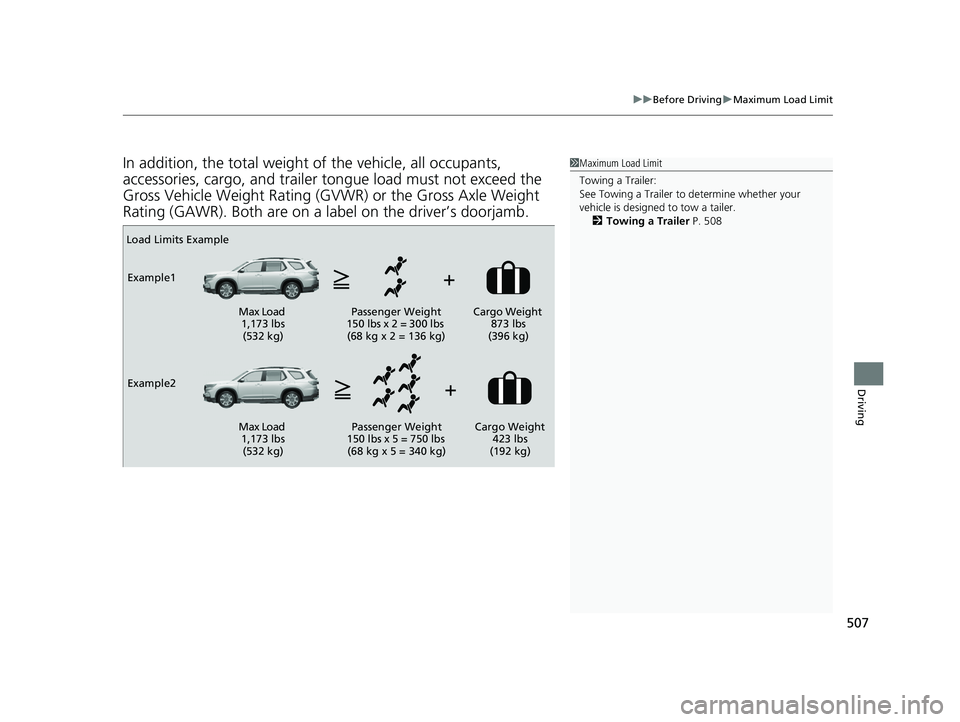

In addition, the total weight of the vehicle, all occupants,
accessories, cargo, and trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVW R) or the Gross Axle Weight
Rating (GAWR). Both are on a label on the driver’s doorjamb.1 Maximum Load Limit
Towing a Trailer:
See Towing a Trailer to determine whether your
vehicle is designed to tow a tailer.
2 Towing a Trailer P. 508
Load Limits Example
Example1 Max Load 1,173 lbs (532 kg) Passenger Weight
150 lbs x 2 = 300 lbs (68 kg x 2 = 136 kg) Cargo Weight
873 lbs
(396 kg)
Example2 Max Load 1,173 lbs (532 kg) Passenger Weight
150 lbs x 5 = 750 lbs (68 kg x 5 = 340 kg) Cargo Weight
423 lbs
(192 kg)
23 PILOT-31T906000_03.book 507 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
