2023 HONDA PILOT clock

715
uuMaintenance Under the Hood uEngine Coolant
Maintenance
1. Make sure the engine and radiator are
cool.
2. Remove the engine compartment cover.
2 Engine Compartment Cover P. 708
3.Turn the radiator cap 1/8th turn counter-
clockwise and relieve any pressure in the
cooling system. Do not push the cap down
when turning.
4. Push down and turn the radiator cap
counter-clockwise to remove it.
5. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
6. Put the radiator cap back on, and tighten it
fully.
■Radiator1Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.Radiator
Cap
23 PILOT-31T906000_03.book 715 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

720
uuReplacing Light Bulbs uBrake Lights, Taillights, Rear Side Marker Lights, and Rear Turn Signal Light Bulbs
Maintenance
3.Pull the light assembly out of the rear pillar.
4. Turn the socket counter-clockwise and
remove it.
5. Remove the old bulb and insert a new bulb.
6. Align the pins with the body grommets,
then push in unt il they fully seat.
Bulb
Socket
23 PILOT-31T906000_03.book 720 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

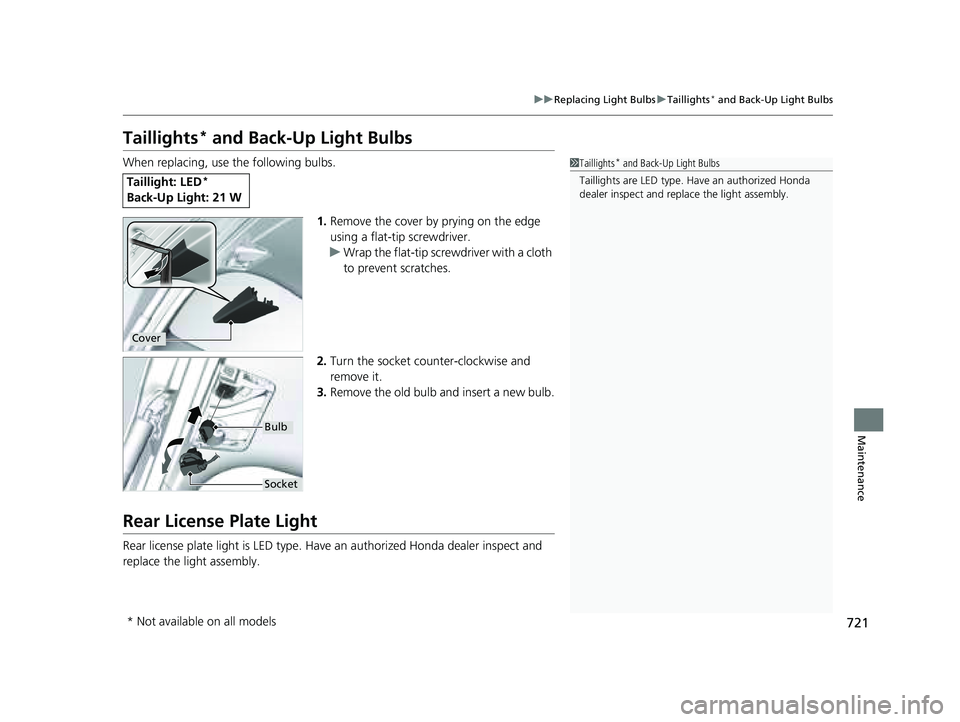

721
uuReplacing Light Bulbs uTaillights* and Back-Up Light Bulbs
Maintenance
Taillights* and Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover by prying on the edge
using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Taillight: LED*
Back-Up Light: 21 W
1Taillights* and Back-Up Light Bulbs
Taillights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Cover
Bulb
Socket
* Not available on all models
23 PILOT-31T906000_03.book 721 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

737
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery termina ls for corrosion monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 295
•The clock resets*.
2 Clock P. 176
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 112
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Canadian models only
* Not available on all models
23 PILOT-31T906000_03.book 737 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

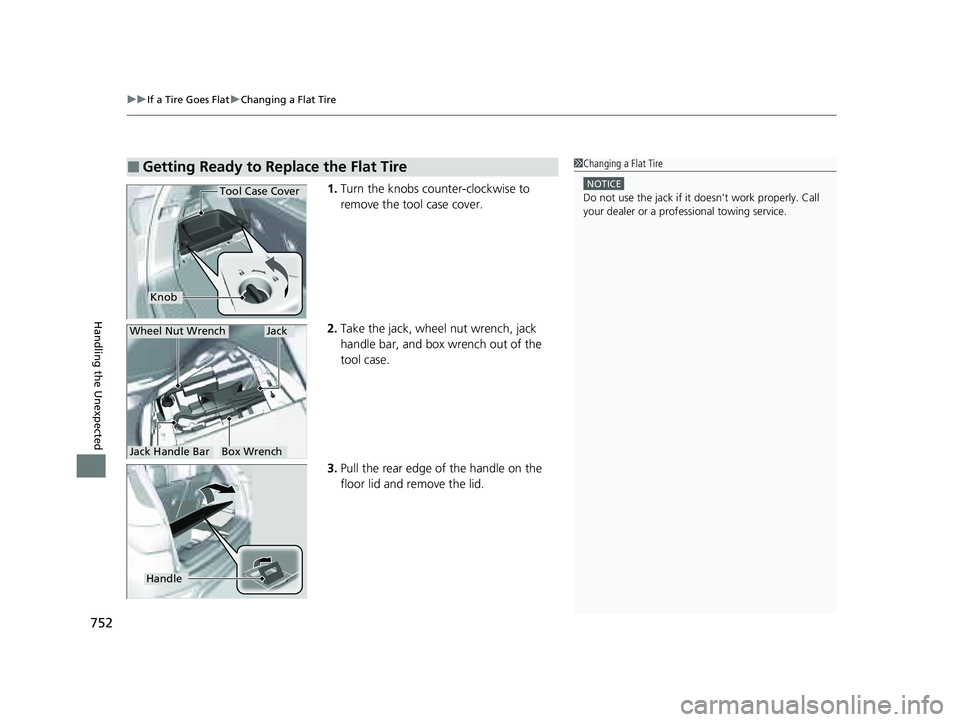

uuIf a Tire Goes Flat uChanging a Flat Tire
752
Handling the Unexpected
1. Turn the knobs counter-clockwise to
remove the tool case cover.
2. Take the jack, wheel nut wrench, jack
handle bar, and box wrench out of the
tool case.
3. Pull the rear edge of the handle on the
floor lid and remove the lid.
■Getting Ready to Replace the Flat Tire1Changing a Flat Tire
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
Knob
Tool Case Cover
Wheel Nut Wrench
Jack Handle Bar
Jack
Box Wrench
Handle
23 PILOT-31T906000_03.book 752 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

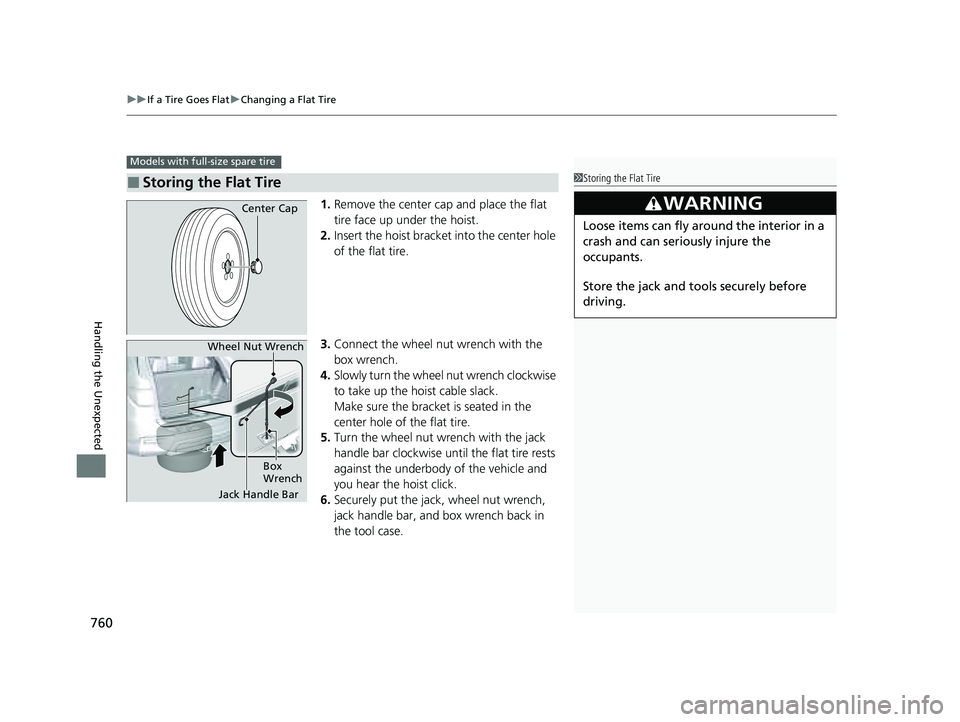

uuIf a Tire Goes Flat uChanging a Flat Tire
760
Handling the Unexpected
1. Remove the center cap and place the flat
tire face up under the hoist.
2. Insert the hoist bracket into the center hole
of the flat tire.
3. Connect the wheel nut wrench with the
box wrench.
4. Slowly turn the wheel nut wrench clockwise
to take up the hoist cable slack.
Make sure the bracket is seated in the
center hole of the flat tire.
5. Turn the wheel nut wrench with the jack
handle bar clockwise until the flat tire rests
against the underbody of the vehicle and
you hear the hoist click.
6. Securely put the jack , wheel nut wrench,
jack handle bar, and box wrench back in
the tool case.
■Storing the Flat Tire
Models with full-size spare tire
1 Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the jack and tools securely before
driving.
Center Cap
Jack Handle Bar
Wheel Nut Wrench
Box
Wrench
23 PILOT-31T906000_03.book 760 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Index
804
Index
Index
A
ABS (Anti-lock Brake System)................... 659
AC Power Outlet ....................................... 274
Accessories and Modifications ................. 747
Accessory Power Sockets .......................... 273
Adaptive Cruise Control (ACC) with Low Speed Follow ........................................... 590
Additives
Coolant ................................................... 714
Engine Oil ................................................ 709
Washer .................................................... 717
Additives, Engine Oil ................................ 709
Adjusting Armrest ................................................... 258
Clock ....................................................... 176
Front Seats .............................................. 239
Head Restraints................................ 253, 257
Mirrors .................................................... 236
Sound.............................................. 302, 346
Steering Wheel ........................................ 235
Third row seat ......................................... 249
Agile Handling Assist ................................ 557
Air Conditioning System (Climate Control System) .................................................... 283
Defrosting the Windshield and
Windows ............................................... 285
Dust and Pollen Filter ............................... 741
Sensor ..................................................... 289
Synchronized Mode ................................. 286
Using Automatic Climate Control ............ 283
Air Pressure ....................................... 729, 791 Airbags
........................................................ 59
Advanced Airbags ..................................... 65
After a Collision ........................................ 62
Airbag Care............................................... 76
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 62
Indicator............................................ 73, 106
Knee Airbags............................................. 67
Passenger Airbag Off Indicator .................. 74
Sensors ..................................................... 59
Side Airbags .............................................. 70
Side Curtain Airbags.................................. 72
AM/FM Radio .................................... 304, 352
Android Auto
TM................................ 322, 392
Anti-lock Brake System (ABS) .................. 659
Indicator.................................................. 106
Apple CarPlay ................................... 318, 385
Armrest ..................................................... 258
AT&T Hotspot ........................................... 384
Audio ........................................................ 130
Audio Remote Controls ........................... 296
Audio System ............................ 292, 301, 326
Adjusting the Sound........................ 302, 346
Android Auto
TM............................... 322, 392
Audio/Information Screen........................ 328
Display Setup .................................. 303, 347
Error Messages ........................................ 398
General Information ................................ 400
Home Screen........................................... 334
How to Update ....................................... 340
How to Update Wirelessly ....................... 344 How to Update with a USB Device .......... 345
iPod ................................................ 306, 367
Limitations for Manual
Operation ............................. 348, 461, 481
MP3/WMA/AAC ............................. 309, 370
Reactivating ............................................ 295
Recommended Devices ........................... 401
Remote Controls ..................................... 296
Security Code ......................................... 295
Selecting an Audio Source ...................... 348
Start Up .................................................. 327
Status Area ............................................. 339
System Updates ...................................... 340
System Updates Settings ......................... 341
Theft Protection ...................................... 295
USB Flash Drives...................................... 401
USB Ports ................................................ 293
Wallpaper Setup ..................................... 332
Audio/Information Screen ....................... 328
Authorized Manuals ................................ 800
Auto Door Locking/Unlocking ................ 195
Auto High-Beam ...................................... 226
Indicator ................................................. 108
Auto Idle Stop .......................................... 542
OFF Button ............................................. 543
Automatic Brake Hold ............................. 656
Indicator ......................................... 102, 656
Automatic Brake Hold System
Indicator ......................................... 102, 656
Automatic Folding Door Mirror .............. 238
Automatic Intermittent Wipers .............. 230
23 PILOT-31T906000_03.book 804 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

805
Index
Automatic Transmission.......................... 532
Creeping................................................. 532
Fluid ....................................................... 716
Kickdown ............................................... 532
Operating the Shift Button ...................... 535
Shifting ................................................... 533
Average Fuel Economy .................... 128, 157
Average Speed ................................. 130, 159
AWD Torque Distribution Monitor ........................................... 135, 163
B
Battery...................................................... 737
Charging System Indicator .............. 103, 772
If the Battery Is Dead............................... 767
Maintenance (Checking the Battery) ....... 737
Maintenance (Replacing) ......................... 739
Belts (Seat) .................................................. 43
Beverage Holders ..................................... 264
Blind Spot Information System ............... 563
Bluetooth ® Audio ............................. 312, 373
Bluetooth ® HandsFreeLink ®........... 459, 479
Booster Seats (For Children) ...................... 94
Brake System ............................................ 652
Anti-lock Brake System (ABS) .................. 659
Automatic Brake Hold ............................. 656
Brake Assist System................................. 660
Fluid ....................................................... 717
Foot Brake .............................................. 655
Indicator (Amber) ............................ 102, 775 Indicator (Red) ................. 100, 101, 773, 775
Parking Brake .......................................... 652
Brightness ......................................... 138, 166
Bulb Replacement .................................... 718
Brake Lights, Taillights, Rear Side Marker
Lights, and Rear Turn Signal Light
Bulbs ..................................................... 719
Fog Lights ................................................ 718
Front Side Marker Lights .......................... 718
Front Turn Signal Lights ........................... 718
Headlights ............................................... 718
High-Mount Brake Light .......................... 722
Parking/Daytime Running Lights .............. 718
Puddle Lights ........................................... 722
Rear License Plate Light ........................... 721
Side Turn Signal/Em ergency Indicator
Lights .................................................... 718
Taillight and Back-Up Light Bulbs ............. 721
Bulb Specifications ................................... 790
C
CabinTalk®............................................... 499
CAMERA Button ....................................... 675
Car Wash Mode ........................................ 537
Carbon Monoxide Gas ................................ 95
Cargo Hooks ............................................. 268
Carrying Cargo .................................. 503, 505
Certification Label .................................... 792
Changing Bulbs ......................................... 718
Charging System Indicator ............... 103, 772Child Safety
................................................. 77
Childproof Door Locks............................. 194
Child Seat .................................................... 77
Booster Seats ............................................ 94
Child Seat for Infants................................. 79
Child Seat for Small Children ..................... 80
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 87
Larger Children ......................................... 93
Rear-facing Child Seat ............................... 79
Selecting a Child Seat ................................ 81
Childproof Door Locks ............................. 194
Cleaning the Exterior ............................... 744
Cleaning the Interior ................................ 742
Climate Control System ............................ 283
Defrosting the Windshield and Windows ............................................... 285
Dust and Pollen Filter............................... 741
Sensors ................................................... 289
Synchronized Mode................................. 286
Using Automatic Climate Control ............ 283
Clock .......................................................... 176
CMBS (Collision Mitigation Braking System) .................................................... 572
Coat Hook ................................................. 266
Collision Mitigation Braking System (CMBS) ..................................................... 572
Compact Spare Tire .......................... 751, 791
Console Compartment ............................. 263
Controls ..................................................... 175
23 PILOT-31T906000_03.book 805 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
