2023 HONDA CRV tailgate

398
uuCustomized Features u
Features
■Power Tailgate Setup
*1:Default Setting
■Predictive Eco Assist*
*1:Default Setting
■Maintenance Info.
Customizable Features Description Selectable Settings
Keyless Open ModeChanges the keyless setting for when the power tailgate opens.Anytime*1/When Unlocked
Power Open By Outer
HandleChanges the setting to open power tailgate by tailgate outer handle.ON (Power/Manual)*1/OFF
(Manual Only)
Hands Free Access Function*Changes the setting to open power tailgate by a swift forward in and
out kicking motion under the rear bumper.ON*1/ OFF
Customizable Features Desc ription Selectable Settings
Predictive Eco AssistTurns the Predictive Eco Assist on and off.ON*1/OFF
Customizable Features Desc ription Selectable Settings
Maintenance Info.Resets the maintenance information.
2Maintenance MinderTM P. 603Select Reset Items
* Not available on all models

Continued443
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 445
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 161
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Seats P. 205
2 Adjusting the Front Head Restraint Positions P. 213
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Mirrors P. 203
2 Adjusting the Steering Wheel P. 202
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.

uuWhen Driving uTurning on the Power
458
Driving
If the power system is not turned on, exterior
lights will not flash.
u Go within the rang e, and try again.
The power system is on for up to 10 minutes without you starting the vehicle.
To extend the time for another 10 minute s during the first 10 minutes, press the
button, then press and hold the button.
u Some exterior lights flash six times if a 10-minute extension request was
transmitted successfully.1Remote Engine Start
The power system may not be turned on by the
remote engine start if:
•You have disabled a remo te engine start setting.
2 Settings* P. 135
2 Customized Features P. 376
•The power mode is not in VEHICLE OFF.•The transmission is in a position other than (P.
•The hood is open, or any door or the tailgate is
unlocked.
•You have already used the remote twice to turn the
power system on.
•Another registered keyless remote is in the vehicle.•There is any antenna failure.
•The door is unlocked with the built-in key.
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The telematics unit* malfunctions.
•The security system alarm is not set.•The 12-volt battery charge is too low.
* Not available on all models

Continued459
uuWhen Driving uTurning on the Power
Driving
■To turn the power system off
Press and hold the button for one
second.
If the power system is turned off successfully,
the exterior lights flash once.
When the remote is out of the keyless access
system range, the exteri or lights will not flash.
The power system will not be turned off. u Go within the range, and try again.1Remote Engine Start
The power system may be turned off while it is on if:
•You do not start the vehicl e within 10 minutes of
turning the power system on with the keyless
remote.
•The power system is turned off by using the keyless
remote.
•The security system alarm is not set.•The door is unlocked with the built-in key.
•The hood is open, or any door, or the tailgate is
unlocked.
•You press the shift lever release button.
•The engine coolant temper ature is extremely high.
•The 12-volt battery is low.•The engine oil pressure is low.
•The malfunction indicator la mp comes on if there is
a problem with the emissions control systems.
While the power system is on, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The climate control system is activated in
recirculation mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger, heated door mirrors, seat
heaters and heated steering wheel* are activated.
2 Rear Defogger/Heated Door Mirror
Button P. 199
2 Heated Steering Wheel
* P. 229
2 Front Seat Heaters P. 230
* Not available on all models

651
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 652
If a Tire Goes Flat
Temporarily Repairi ng a Flat Tire....... 653
Handling of the Jack ......................... 666
Power System Won’t Start Checking the Procedure ................... 667
If the Keyless Remote Battery is Weak ... 668Emergency Power System On ........... 669
Emergency Power System Off........... 670
If the 12-Volt Battery Is Dead .......... 671
Shift Lever Does Not Move .............. 673
Overheating How to Handle Overheating ............. 674 Indicator, Coming On/Blinking
If the Engine oil pressure low Warning Appears ......................................... 676
If the 12-Volt Battery Charging System Indicator Comes On ....................... 677
If the Limited stopping power Warning
Appears ......................................... 677
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 678
If the Brake System Indicator (Red) Comes On or Blinks ................................... 679
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On.... 680
If the Electric Power Steering (EPS) System
Indicator Comes On ....................... 681
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 682
Fuses Fuse Locations ................................. 683
Inspecting and Changing Fuses ........ 687
Emergency Towing ........................... 689
If You Cannot Unlock the Fuel Fill Door... 690If You Cannot Open the Tailgate.......... 691Refueling................................................. 692
U.S. models

690
Handling the Unexpected

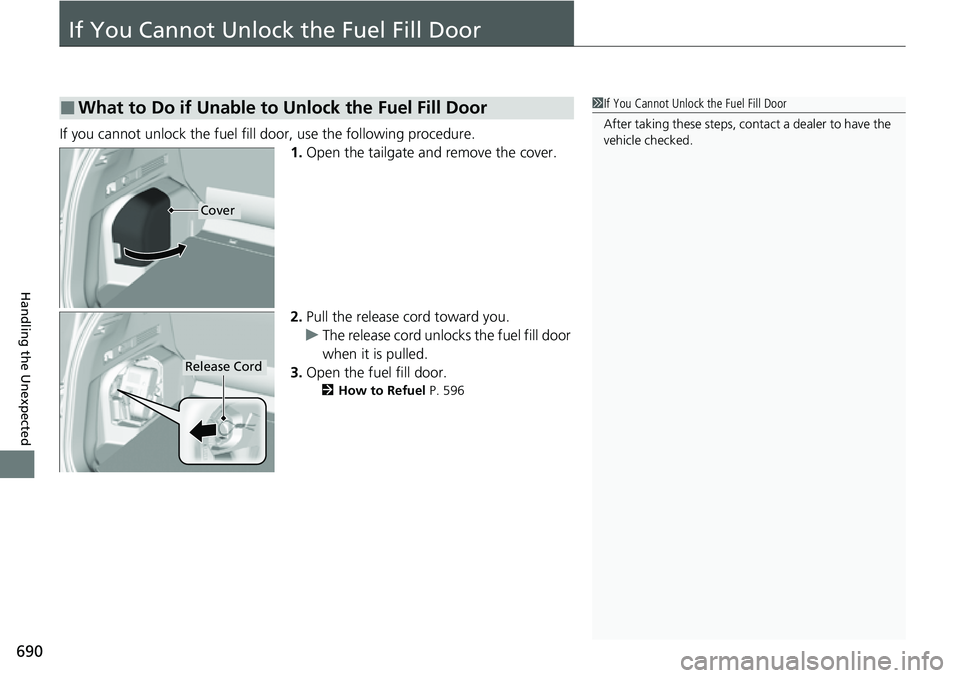

If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate and remove the cover.
2. Pull the release cord toward you.
u The release cord unlocks the fuel fill door
when it is pulled.
3. Open the fuel fill door.
2 How to Refuel P. 596
■What to Do if Unable to Unlock the Fuel Fill Door1If You Cannot Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Cord

691
Handling the Unexpected

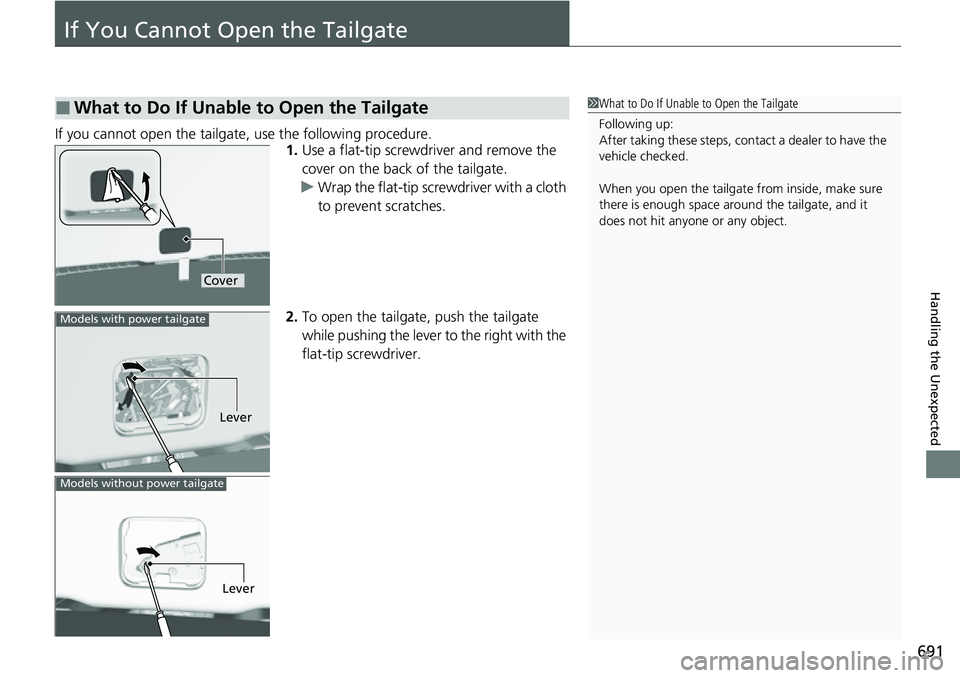

If You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while pushing the lever to the right with the
flat-tip screwdriver.
■What to Do If Unable to Open the Tailgate1What to Do If Unable to Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
Models without power tailgate
Lever

710
Index
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 495
Coat Hook ................................................. 222
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 495
Console Compartment ............................. 219
Controls ..................................................... 145
Coolant (Engine) ....................................... 618
Adding to the Radiator ............................ 619
Adding to the Reserve Tank ..................... 618
Overheating............................................. 674
Creeping .................................................... 463
Cross Traffic Monitor ................................ 589
Cup Holders ............................................... 220
Customer Service Information ................. 705
Customize Display ..................................... 134
Customized Features ................ 135, 368, 376
D
Daytime Running Lights ........................... 192
Dead 12-Volt Battery ................................ 671
Deceleration Paddle Selector ................... 466
Defaulting All the Settings .............. 375, 399
Defrosting the Windshield and Windows .................................................. 234
Detachable Anchor ..................................... 56
Devices that Emit Radio Waves ................ 697Dimming
Headlights ............................................... 188
Rearview Mirror....................................... 203
Dipstick (Engine Oil) ................................. 614
Directional Signals (Turn Signal) ............. 187
Display Setup .................................... 248, 291
Door Mirrors ............................................. 204
Doors ......................................................... 148
Auto Door Locking .................................. 164
Auto Door Unlocking .............................. 164
Keys ........................................................ 148
Locking/Unlocking the Doors from the Inside ...................................... 161
Locking/Unlocking the Doors
from the Outside ................................... 151
DOT Tire Quality Grading ........................ 634
Drive Mode Switch ................................... 470
Driver Attention Monitor ........................ 126
Driver Information Interface ................... 117
Switching the Display .............................. 117
Driver’s Seat Lumbar Support .................. 206
Driving ...................................................... 441
Braking ................................................... 572
Off-Highway Driving Guidelines............... 453
Shifting Position ...................................... 464
Transmission ........................................... 463
Turn on the Power .................................. 455
Driving Position Memory System ............ 200
Dust and Pollen Filter ............................... 643
E
Eco Assist® System ...................................... 20
ECON Mode Indicator .............................. 108
Elapsed Time ............................................ 124
Electric Power Steering (EPS) System
Indicator ......................................... 104, 681
Electronic Stability Control (ESC) ............ 476
Emergency ................................................ 689
Emergency Power System Off ................. 670
Emergency Power System On .................. 669
Emergency Tailgate Opener .................... 691
Emissions Testing (Readiness Codes) ...... 699
Engine Coolant .................................................. 618
If the 12-Volt Battery Is Dead .................. 671
Number .................................................. 696
Oil .......................................................... 613
Starting................................................... 455
Switch Buzzer ......................................... 185
Engine Coolant ........................................ 618
Adding to the Radiator ........................... 619
Adding to the Reserve Tank .................... 618
Overheating ............................................ 674
Engine Oil ................................................. 613
Adding ................................................... 615
Checking ................................................ 614
Displaying Oil Life ................................... 604
Low Oil Pressure Indicator ....................... 676
Recommended Engine Oil ....................... 613
Viscosity.......................................... 613, 695
EPS (Electric Power Steering) System ...... 681
