623
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.
Front Turn Signal, Parkin g/Daytime Running Lights
Front turn signal, parking/daytime running lights are LED type. Have an authorized
Honda dealer inspect and replace the light assembly.
Front Side Marker Lights
Front side marker lights are LED type. Have an authorized Hond a dealer inspect and
replace the light assembly.
Side Turn Signal/Emer gency Indicator Lights
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.

624
uuReplacing Light Bulbs uBrake Light, Taillight, Rear Side Marker Light, and Rear Turn Signal Light Bulbs
Maintenance
Brake Light, Taillight, Rear Side Marker Light, and
Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Unscrew the bolts.
2. Pull the taillight carefully until the snap pins
are removed from the body grommets.
Brake Light: LED
Taillight: LED
Rear Side Marker Light: LED
Rear Turn Signal Li ght: 21 W (Amber)
1Brake Light, Taillight, Rear Side Marker Light, and Rear Turn
Signal Light Bulbs
Brake lights, taillight s, and rear side marker lights are
LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Bolt
Snap Pin

625
uuReplacing Light Bulbs uBrake Light, Taillight, Rear Side Marker Light, and Rear Turn Signal Light Bulbs
Maintenance
3.Pull the light assembly out of the rear pillar.
4. Turn the socket counter-clockwise and
remove it.
5. Remove the old bulb and insert a new bulb.
6. Align the pins with the body grommets,
then push in until they fully seat.
SocketBulb

694
Information
Specifications
■Vehicle Specifications
ModelCR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 17.1 – 18.9 oz (485 – 535 g)
Lubricant TypeND-OIL 11 (POE)
Quantity 7.32 – 8.24 cu-in (120 – 135 cm3)
Displacement121.6 cu-in (1,993 cm3)Spark PlugsNGKDILZKAR7G11Y
TypeUnleaded gasoline, pump octane number
87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank CapacityU.S.: 1.6 US qt (1.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LEDHeadlights (High Beam)LEDFront Turn Signal/Parking/Daytime
Running LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake Lights LED
Rear Side Marker LightsLED
Rear Turn Signal Lights 21 W (Amber)
Back-Up LightsLED
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap LightsLEDCeiling LightLEDCargo Area LightsLEDVanity Mirror Lights1.4 WFront Door Inner
Handle Lights*LED
Foot Lights*LEDAmbient LightsLEDCenter Console LightLED
* Not available on all models

709
Index
Authorized Manuals................................ 704
Auto Door Locking/Unlocking ................ 164
Auto High-Beam ...................................... 193
Indicator ................................................. 106
Automatic Brake Hold ............................. 577
Indicator ......................................... 101, 577
Automatic Brake Hold System Indicator ......................................... 101, 577
Automatic Intermittent Wipers .............. 197
Automatic Lighting .................................. 189
Average Fuel Economy ............................ 122
Average Speed ......................................... 124
AWD (All-Wheel Drive) ............................ 479
AWD Torque Distribution Monitor ......... 129
B
Battery................................................ 14, 640
12-Volt Battery Charging System
Indicator ............................................... 101
High Voltage..................................... 14, 491
If the 12-Volt Battery Is Dead .................. 671
Maintenance (checking the 12-Volt battery) ............... 640
Maintenance (Replacing) ......................... 642
Belts (Seat) .................................................. 49
Beverage Holders ..................................... 220
Blind Spot Information System ............... 487
Bluetooth ® Audio ............................. 257, 317
Bluetooth ® HandsFreeLink ®........... 400, 420
Booster Seats (For Children) ...................... 91Brake System
............................................. 572
Anti-lock Brake System (ABS) ................... 580
Automatic Brake Hold ............................. 577
Brake Assist System ................................. 581
Fluid ........................................................ 621
Foot Brake ............................................... 576
Indicator (Amber) ............................ 100, 680
Indicator (Red) ..................... 98, 99, 679, 680
Parking Brake .......................................... 572
Built-in Key ............................................... 148
Bulb Replacement .................................... 623
Brake Light, Tailli ght, Rear Side Marker Light,
and Rear Turn Signal Light Bulbs ............ 624
Front Side Marker Lights .......................... 623
Front Turn Signal, Parking/Daytime Running
Lights .................................................... 623
Headlights ............................................... 623
High-Mount Brake Light .......................... 626
Rear License Plate Light ........................... 626
Side Turn Signal/Em ergency Indicator
Lights .................................................... 623
Taillights and Back-Up Lights ................... 626
Bulb Specifications ................................... 694
C
Carbon Monoxide Gas ............................... 92
Carrying Cargo ................................. 443, 445
Certification Label .................................... 696
Changing Bulbs ........................................ 623
CHARGE/DECEL Gauge ............................. 114
Charging System Indicator ............... 101, 677
Child Safety ................................................. 79
Childproof Door Locks............................. 163
Child Seat .................................................... 79
Booster Seats ............................................ 91
Child Seat for Infants................................. 81
Child Seat for Small Children ..................... 82
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 86
Larger Children ......................................... 90
Rear-facing Child Seat ............................... 81
Selecting a Child Seat ................................ 83
Childproof Door Locks ............................. 163
Cleaning the Exterior ............................... 646
Cleaning the Interior ................................ 644
Climate Control System ............................ 232
Changing the Mode ................................ 232
Defrosting the Windshield and Windows ............................................... 234
Dust and Pollen Filter............................... 643
Recirculation/Fresh Air Mode ................... 233
Sensors ................................................... 236
Synchronization Mode............................. 235
Using Automatic Climate Control ............ 232

710
Index
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 495
Coat Hook ................................................. 222
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 495
Console Compartment ............................. 219
Controls ..................................................... 145
Coolant (Engine) ....................................... 618
Adding to the Radiator ............................ 619
Adding to the Reserve Tank ..................... 618
Overheating............................................. 674
Creeping .................................................... 463
Cross Traffic Monitor ................................ 589
Cup Holders ............................................... 220
Customer Service Information ................. 705
Customize Display ..................................... 134
Customized Features ................ 135, 368, 376
D
Daytime Running Lights ........................... 192
Dead 12-Volt Battery ................................ 671
Deceleration Paddle Selector ................... 466
Defaulting All the Settings .............. 375, 399
Defrosting the Windshield and Windows .................................................. 234
Detachable Anchor ..................................... 56
Devices that Emit Radio Waves ................ 697Dimming
Headlights ............................................... 188
Rearview Mirror....................................... 203
Dipstick (Engine Oil) ................................. 614
Directional Signals (Turn Signal) ............. 187
Display Setup .................................... 248, 291
Door Mirrors ............................................. 204
Doors ......................................................... 148
Auto Door Locking .................................. 164
Auto Door Unlocking .............................. 164
Keys ........................................................ 148
Locking/Unlocking the Doors from the Inside ...................................... 161
Locking/Unlocking the Doors
from the Outside ................................... 151
DOT Tire Quality Grading ........................ 634
Drive Mode Switch ................................... 470
Driver Attention Monitor ........................ 126
Driver Information Interface ................... 117
Switching the Display .............................. 117
Driver’s Seat Lumbar Support .................. 206
Driving ...................................................... 441
Braking ................................................... 572
Off-Highway Driving Guidelines............... 453
Shifting Position ...................................... 464
Transmission ........................................... 463
Turn on the Power .................................. 455
Driving Position Memory System ............ 200
Dust and Pollen Filter ............................... 643
E
Eco Assist® System ...................................... 20
ECON Mode Indicator .............................. 108
Elapsed Time ............................................ 124
Electric Power Steering (EPS) System
Indicator ......................................... 104, 681
Electronic Stability Control (ESC) ............ 476
Emergency ................................................ 689
Emergency Power System Off ................. 670
Emergency Power System On .................. 669
Emergency Tailgate Opener .................... 691
Emissions Testing (Readiness Codes) ...... 699
Engine Coolant .................................................. 618
If the 12-Volt Battery Is Dead .................. 671
Number .................................................. 696
Oil .......................................................... 613
Starting................................................... 455
Switch Buzzer ......................................... 185
Engine Coolant ........................................ 618
Adding to the Radiator ........................... 619
Adding to the Reserve Tank .................... 618
Overheating ............................................ 674
Engine Oil ................................................. 613
Adding ................................................... 615
Checking ................................................ 614
Displaying Oil Life ................................... 604
Low Oil Pressure Indicator ....................... 676
Recommended Engine Oil ....................... 613
Viscosity.......................................... 613, 695
EPS (Electric Power Steering) System ...... 681

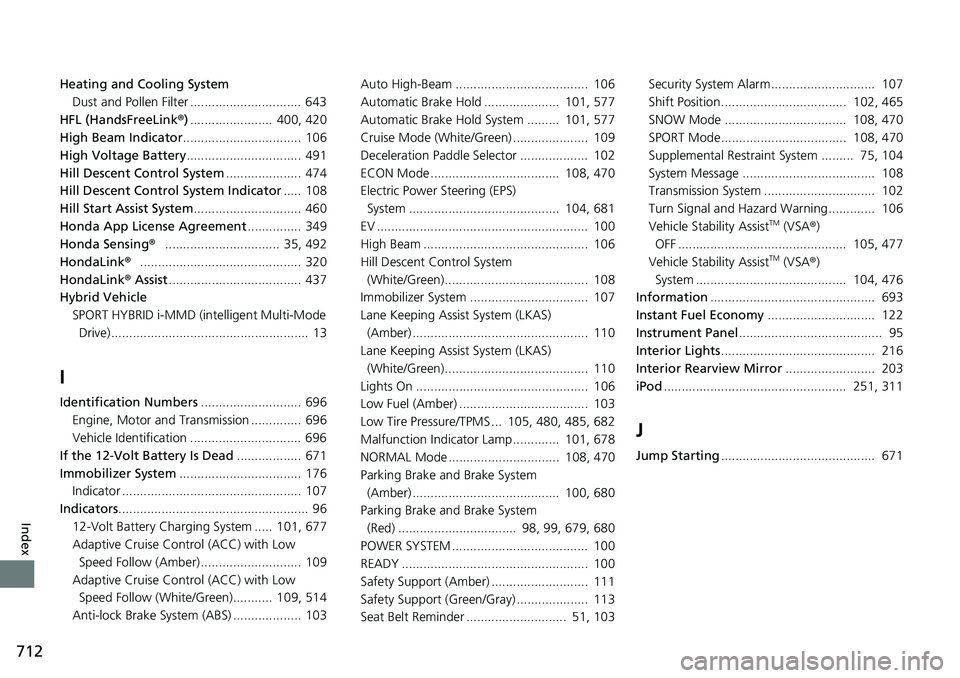

712
Index
Heating and Cooling SystemDust and Pollen Filter ............................... 643
HFL (HandsFreeLink ®)....................... 400, 420
High Beam Indicator ................................. 106
High Voltage Battery ................................ 491
Hill Descent Control System ..................... 474
Hill Descent Control System Indicator ..... 108
Hill Start Assist System .............................. 460
Honda App License Agreement ............... 349
Honda Sensing ®................................ 35, 492
HondaLink ®............................................. 320
HondaLink ® Assist ..................................... 437
Hybrid Vehicle SPORT HYBRID i-MMD (int elligent Multi-Mode
Drive) ....................................................... 13
I
Identification Numbers ............................ 696
Engine, Motor and Transmission .............. 696
Vehicle Identification ............................... 696
If the 12-Volt Battery Is Dead .................. 671
Immobilizer System .................................. 176
Indicator .................................................. 107
Indicators ..................................................... 96
12-Volt Battery Charging System ..... 101, 677
Adaptive Cruise Control (ACC) with Low
Speed Follow (Amber) ............................ 109
Adaptive Cruise Control (ACC) with Low Speed Follow (White/Green)........... 109, 514
Anti-lock Brake System (ABS) ................... 103 Auto High-Beam ..................................... 106
Automatic Brake Hold ..................... 101, 577
Automatic Brake Hold System ......... 101, 577
Cruise Mode (White/Green) ..................... 109
Deceleration Paddle Selector ................... 102
ECON Mode .................................... 108, 470
Electric Power Steering (EPS)
System .......................................... 104, 681
EV ........................................................... 100
High Beam .............................................. 106
Hill Descent Control System (White/Green)........................................ 108
Immobilizer System ................................. 107
Lane Keeping Assist System (LKAS)
(Amber) ................................................. 110
Lane Keeping Assist System (LKAS) (White/Green)........................................ 110
Lights On ................................................ 106
Low Fuel (Amber) .................................... 103
Low Tire Pressure/TPMS ... 105, 480, 485, 682
Malfunction Indicator Lamp............. 101, 678
NORMAL Mode ............................... 108, 470
Parking Brake a nd Brake System
(Amber) ......................................... 100, 680
Parking Brake a nd Brake System
(Red) ................................. 98, 99, 679, 680
POWER SYSTEM ...................................... 100
READY .................................................... 100
Safety Support (Amber) ........................... 111
Safety Support (Green/Gray) .................... 113
Seat Belt Reminder ............................ 51, 103 Security System Alarm............................. 107
Shift Position................................... 102, 465
SNOW Mode .................................. 108, 470
SPORT Mode................................... 108, 470
Supplemental Restraint System ......... 75, 104
System Message ..................................... 108
Transmission System ............................... 102
Turn Signal and Hazard Warning ............. 106
Vehicle Stability Assist
TM (VSA
®)
OFF ............................................... 105, 477
Vehicle Stability Assist
TM (VSA ®)
System .......................................... 104, 476
Information .............................................. 693
Instant Fuel Economy .............................. 122
Instrument Panel ........................................ 95
Interior Lights ........................................... 216
Interior Rearview Mirror ......................... 203
iPod ................................................... 251, 311
J
Jump Starting ........................................... 671

713
Index
K
Key Number Tag...................................... 149
Keyless Access System .............................. 151
Keys ........................................................... 148
Master Keys ............................................ 148
Number Tag............................................ 149
Rear Door Won’t Open ........................... 163
Remote Transmitter ................................ 157
Types and Functions................................ 148
Kickdown .................................................. 463
Knee Airbags .............................................. 67
L
Lane Keeping Assist System (LKAS) ........ 533
LATCH (Child Seats) ................................... 84
Lights ................................................ 188, 623
Auto High-Beam ..................................... 193
Automatic............................................... 189
Bulb Replacement ................................... 623
Daytime Running Lights .......................... 192
High Beam Indicator ............................... 106
Interior.................................................... 216
Light Switches......................................... 188
Lights On Indicator.................................. 106
Turn Signals ............................................ 187
Load Limits ............................................... 445
Locking/Unlocking ................................... 148
Auto Door Locking/Unlocking ................. 164
Childproof Door Locks ............................ 163
From Inside ............................................. 161 From Outside ........................................... 151
Keys ........................................................ 148
Using a Key ............................................. 158
Low 12-Volt Battery Charge .................... 677
Low Battery Charge .................................. 677
Low Fuel Indicator (Amber) ..................... 103
Low Keyless Remote Signal Strength ...... 150
Low Oil Pressure Indicator ....................... 676
Low Speed Braking Control ..................... 507
Lower Anchors ............................................ 84
Luggage (Maximum Load Limit) ............. 445
Lumbar Support ........................................ 206
Lumbar Support Adjustment Switch ....... 206M
Maintenance............................................. 599
12-Volt Battery ........................................ 640
Brake Fluid .............................................. 621
Cleaning .................................................. 644
Coolant ................................................... 618
Maintenance Minder
TM............................ 603
Oil ........................................................... 614
Precautions .............................................. 600
Radiator .................................................. 619
Remote Transmitter ................................. 642
Replacing Light Bulbs ............................... 623
Safety ...................................................... 601
Service Items ........................................... 607
Tires ........................................................ 631
Transmission Fluid ................................... 620 Under the Hood ...................................... 611
Malfunction Indicator Lamp ............ 101, 678
Map Lights ................................................ 217
Maximum Load Limit ............................... 445
Meters, Gauges ......................................... 114
Mirrors ...................................................... 203
Adjusting ................................................ 203
Door ....................................................... 204
Exterior ................................................... 204
Interior Rearview ..................................... 203
Modifications (and Accessories) .............. 649
Moonroof ................................................. 183
MP3 ................................................... 254, 314
Multi-View Rear Camera .......................... 593
N
Navigation................................................ 125
No Content ............................................... 132
NORMAL Mode Indicator ........................ 108
Numbers (Identification) .......................... 696
