WARNING
OJWEVQ011030
[A] : Dollies

[For AWD vehicles, it must be towed
with a wheel lift and dollies or
flatbed equipment with all the
wheels off the ground.
WARNING
OJWEVQ011031

[If you tow the vehicle while the 2WD:
rear, AWD: front/rear wheels are
touching the ground, the vehicle
motor may generate electricity
and the motor components may be
damaged or a fire may occur.

[When a vehicle fire occurs due to the
battery, there is a risk of a second
fire. Contact the fire department
when towing the vehicle.
Other Precautions for Electric
Vehicle

[When you paint or apply heat
treatment to the vehicle as a result of
an accident, the performance of the
high voltage battery can be reduced.

[If heat treatment is required, contact
an authorized retailer of Genesis
Branded products.

[When you clean the motor
compartment, do not use high
pressure water to wash. This may
cause an electric shock due to a
discharge in high voltage electricity,
or damage the vehicle’s electric
system.

[Use, remodel, or install genuine
Genesis part or the equivalent (of
the genuine part) specified for your
vehicle.

2

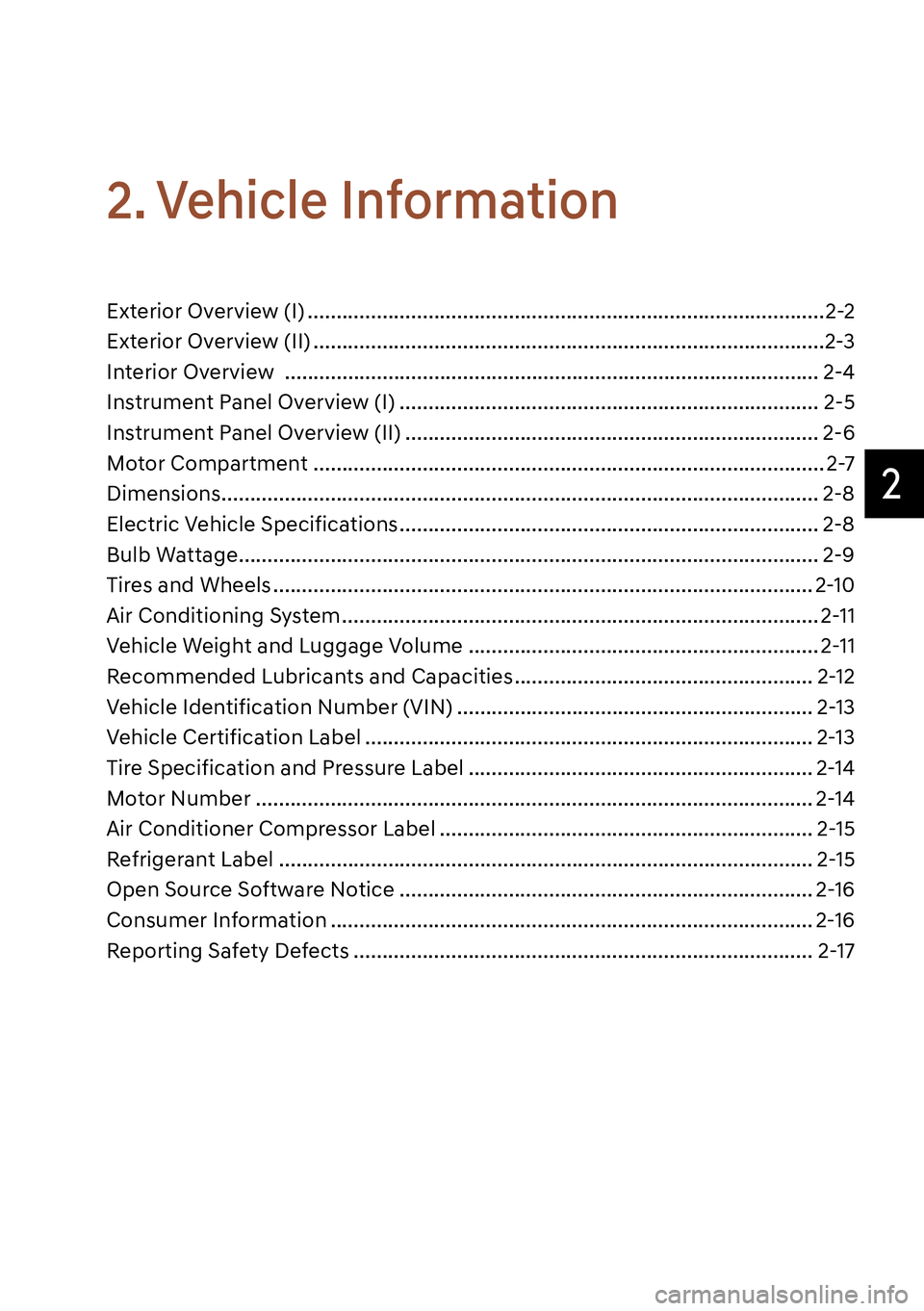

2. Vehicle Information
Exterior Overview (I) ..........................................................................................2-2
Exterior Overview (II) .........................................................................................2-3
Interior Overview ............................................................................................. 2-4
Instrument Panel Overview (I) ......................................................................... 2-5
Instrument Panel Overview (II) ........................................................................ 2-6
Motor Compartment ......................................................................................... 2-7
Dimensions ........................................................................................................ 2-8
Electric Vehicle Specifications ......................................................................... 2-8
Bulb Wattage ..................................................................................................... 2-9
Tires and Wheels .............................................................................................. 2-10
Air Conditioning System ................................................................................... 2-11
Vehicle Weight and Luggage Volume ............................................................. 2-11
Recommended Lubricants and Capacities .................................................... 2-12
Vehicle Identification Number (VIN) .............................................................. 2-13
Vehicle Certification Label .............................................................................. 2-13
Tire Specification and Pressure Label ............................................................ 2-14
Motor Number ................................................................................................. 2-14
Air Conditioner Compressor Label ................................................................. 2-15
Refrigerant Label ............................................................................................. 2-15
Open Source Software Notice ........................................................................ 2-16
Consumer Information .................................................................................... 2-16
Reporting Safety Defects ................................................................................ 2-17

2-4
Vehicle Information
The actual shape may differ from the illustration.
OJWEV011003
1. Inside door handle .................................5-37
2. Integrated memory system ................. 5-48
3. Side view mirror control switch ........... 5-66
4. Side view mirror folding button........... 5-66
5. Central door lock switch ...................... 5-38
6. Power window switches ...................... 5-70
7. Power window lock button / ................ 5-72
Electronic child safety lock button ....... 5-72
8. Instrument panel illumination control
switch ...................................................... 4-49. ESC (Electronic Stability Control) OFF
button .....................................................6-41
10. Liftgate open/close button .................. 5-83
11. EPB (Electronic Parking Brake)
switch .................................................... 6-32
12. Hood release lever .................................5-78
13. Steering wheel tilt/telescopic switch.. 5-53
14. Steering wheel ...................................... 5-52
15. Seat .......................................................... 3-3
INTERIOR OVERVIEW

2-5
02
1. Instrument cluster .................................. 4-3
2. Horn ....................................................... 5-54
3. Driver’s front air bag ............................. 3-49
4. Start/Stop button ................................... 6-4
5. Infotainment system ............................5-141
6. Hazard warning flasher button .............. 8-2
7. Automatic climate control system .....5-108
8. Passenger’s front air bag ..................... 3-49
9. Glove box ............................................. 5-129
10. Wireless charging system indicator ... 5-134
11. Wireless charging system pad ............ 5-134
12. USB port ................................................5-14113. USB charger ......................................... 5-133
14. Power outlet ......................................... 5-132
15. Cup holder ........................................... 5-130
16. Rotary shifter (Rotary gear shift dial) .... 6-9
17. Fingerprint authentication system ...... 5-30
18. Heated steering wheel button ............. 5-55
19. Auto Hold button .................................. 6-37
20. Parking/View button ............................ 7-116
21. Parking Safety button .......................... 7-140
22. Seat Warmer/Air ventilation seat ... 3-24, 3-26
23. Rear seat USB charger ........................ 5-133
The actual shape may differ from the illustration.
OJWEV011004L
,167580(173$1(/29(59,(:

2-8
Vehicle Information
Items in (mm)
Overall length 177.8 (4,515)
Overall width 74.4 (1,890)
Overall height 62.4(1,585)*
1/62.6(1,590)*2
TreadTire size Front Rear
235/55 R19 64.3 (1,633) 64.6 (1,642)
255/45 R20
64.1 (1,628) 64.4 (1,637)
255/40 R21
Wheelbase 114.2 (2,900)
*1 : with roof rack
*2 : with shark fin antenna
ELECTRIC VEHICLE SPECIFICATIONS
ItemsStandard typePerformance
type
2WD AWD AWD
Motor (Front/Rear)Max. output (kW) 168 234 320/360*3
Max. torqu (Nm) 350 605 700
Battery
(Lithium-ion)Capacity (kWh) 77.4 77.4 77.4
Power output (kW) 350 350 394
Voltage (V) 697 697 697
Charger (OBC) Max. output (kW) 10.9 10.9 10.9
OBC : On-Board Battery Chargers
*3 : if equipped with boost mode
DIMENSIONS

2-10
Vehicle Information
Items Tire size Wheel sizeInflation pressure
psi (kPa)Wheel bolt torque
[lbf·ft, N·m (kgf·m)]
Front Rear
Full size tire
235/55 R19 8.0J x 192WD36 (250) 38(260)
101~116, 137~157
(14~16)
AWD36 (250) 36 (250)
255/45 R20
8.5J x 2036 (250) 36 (250)
255/40 R21 8.5J x 2136 (250) 39(270)
NOTICE

[Ambient temperature affects the tire pressure (about 1 psi (7 kPa) for every
12 °F (7 °C) change). If colder temperatures are anticipated, it is permissible to
increase cold tire inflation pressure by up to 3 psi (20 kPa) over the specification.
If extreme temperature changes are expected, be sure to check and adjust tire
pressure accordingly.

[Tire inflation pressure decreases with higher elevation, and increases with lower
elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change).
Be sure to check and adjust tire pressure accordingly when driving through
changing elevations.

[Do not exceed the maximum inflation pressure, as found on the sidewall of the
tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
TIRES AND WHEELS

3-2
Safety System
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate Child Restraint System.
Larger children should use a booster
seat with the lap/shoulder belt until they
can use the seat belt properly without a
booster seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using mobile phones.Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving.
To reduce your risk of distraction and an
accident:

[ALWAYS set up your mobile devices
(for example, MP3 players, phones,
navigation units, etc.) when your
vehicle is parked or safely stopped.

[ONLY use your mobile device when
allowed by laws and conditions
permit safe use. NEVER text or email
while driving. Most states have laws
prohibiting drivers from texting. Some
states and cities also prohibit drivers
from using handheld phones.

[NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle In Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
IMPORTANT SAFETY PRECAUTIONS

3-6
Safety System
Safety Precautions
Adjusting the seats so that you are sitting
in a safe, comfortable position plays an
important role in driver and passenger
safety, together with seat belts and air
bags, in an accident.
WARNING
Do not use a cushion that reduces
friction between the seat and the
passenger. The passenger’s hips may
slide under the lap portion of the seat
belt during an accident or a sudden
stop.
Serious or fatal internal injuries could
result because the seat belt cannot
operate properly.
Air bags
You can take steps to reduce the risk
of being injured by an inflating air bag.
Sitting too close to an air bag greatly
increases the risk of injury in the event
the air bag inflates. Move your seat as
far back as possible from front air bags,
while still maintaining control of the
vehicle.
WARNING
To reduce the risk of serious injury or
death from an inflating air bag, take the
following precautions:

[Adjust the driver’s seat as far to the
rear as possible maintaining the
ability to control the vehicle.

[Adjust the front passenger seat as far
to the rear as possible.

[Hold the steering wheel by the rim
with hands at the 9 o’clock and 3
o’clock positions to minimize the risk
of injuries to your hands and arms.

[NEVER place anything or anyone
between you and the air bag.

[Do not allow the front passenger to
place feet or legs on the dashboard
to minimize the risk of leg injuries.
Seat belts
Always fasten your seat belt before
starting any trip. At all times, passengers
should sit upright and be properly
restrained. Infants and small children
must be restrained in appropriate Child
Restraint Systems. Children who have
outgrown a booster seat and adults must
be restrained using the seat belts.
WARNING
Take the following precautions when
adjusting your seat belt:

[NEVER use one seat belt for more
than one occupant.

[Always position the seatback upright
with the lap portion of the seat belt
snug and low across the hips.

[NEVER allow children or small infants
to ride on a passenger’s lap.

[Do not route the seat belt across your
neck, across sharp edges, or reroute
the shoulder strap away from your
body.

[Do not allow the seat belt to become
caught or jammed.
