2023 GENESIS G90 steering

6-66
Driving Your Vehicle
SPECIAL DRIVING CONDITIONS
Hazardous Driving Conditions
When hazardous driving elements
are encountered such as water, snow,
ice, mud and sand, take the following
precautions:

[Drive cautiously and maintain a longer
braking distance.

[Avoid abrupt braking or steering.

[When your vehicle is stuck in
snow, mud, or sand, use second
gear. Accelerate slowly to avoid
unnecessary wheel spin.

[Put sand, rock salt, tire chains or other
non-slip materials under the wheels to
provide additional traction while the
vehicle becomes stuck in ice, snow,
or mud.
WARNING
Downshifting with an automatic
transmission while driving on slippery
surfaces can cause an accident. The
sudden change in tire speed could
cause the tires to skid. Be careful when
downshifting on slippery surfaces.
Rocking the Vehicle
If it is necessary to rock the vehicle to
free it from snow, sand, or mud, first turn
the steering wheel right and left to clear
the area around your front wheels. Then,
shift back and forth between R (Reverse)
and a forward gear.
Try to avoid spinning the wheels, and do
not race the engine.
To prevent transmission wear, wait until
the wheels stop spinning before shifting
gears. Release the accelerator pedal
while shifting, and press lightly on the
accelerator pedal while the transmission
is in gear. Slowly spinning the wheels in
forward and reverse directions causes a
rocking motion that may free the vehicle.
WARNING
If the vehicle is stuck and excessive
wheel spin occurs, the temperature
in the tires can increase very quickly.
If the tires become damaged, a tire
blow out or tire explosion can occur.
This condition is dangerous - you and
others may be injured. Do not attempt
this procedure if people or objects are
anywhere near the vehicle.
If you attempt to free the vehicle, the
vehicle can overheat quickly, possibly
causing an engine compartment fire or
other damage. Try to avoid spinning the
wheels as much as possible to prevent
overheating of either the tires or the
engine. DO NOT allow the vehicle to
spin the wheels above 35 mph
(56 km/h).

6-71
06
Tire chains
ORS061025L
Since the sidewalls on some radial tires
are thinner than other types of tires,
they may be damaged by mounting
certain types of tire chains on them.
Do not mount tire chains on vehicles
equipped with aluminum wheels; if
possible use AutoSock® (fabric snow
chain or similar). Install AutoSock® after
reviewing the instructions provided
with AutoSock®. Damage to your vehicle
caused by improper use of fabric snow
chains are not covered by your vehicle
manufacturer's warranty.
Information
AutoSock® is a Registered trademark of
AutoSock.
WARNING
The use of AutoSock® (fabric snow
chain) may adversely affect vehicle
handling:

[Drive less than 20 mph (30 km/h)
or the AutoSock® manufacturer’s
recommended speed limit,
whichever is lower.

[Drive carefully and avoid bumps,
holes, sharp turns, and other road
hazards, which may cause the
vehicle to bounce.

[Avoid sharp turns or locked wheel
braking.
Disabling Rear Wheel Steering system to
install snow chains
ORS061036L
If the Rear Wheel Steering system is
applied, disable the system to protect the
vehicle when snow chains are installed.
6HOHFW
S6HWXS

6-72
Driving Your Vehicle
NOTICE
If you drive without disabling the
Rear Wheel Steering system in the
infotainment system after installing
snow chains, the snow chains can
damage your vehicle’s body or chassis
parts. When you hear the snow chain
hitting the vehicle, stop the vehicle and
check whether the snow chains are
installed properly and whether the Rear
Wheel Steering system is disabled.
Information

[Install AutoSock® (fabric snow chain)
only in pairs and on the rear tires.
It should be noted that installing
AutoSock (fabric snow chain) on the
tires will provide a greater driving
force, but will not prevent side skids.

[Do not install studded tires without
first checking local, state and municipal
regulations for possible restrictions
against their use.
Chain Installation
When installing AutoSock® (fabric
snow chain), follow the manufacturer's
instructions and mount them as tightly
as possible. Drive slowly (less than 20
mph (30 km/h)) with AutoSock® installed.
If you hear the fabric snow chains
contacting the body or chassis, stop and
tighten them. If they still make contact,
slow down until the noise stops. Remove
the AutoSock® as soon as you begin
driving on cleared roads.
When mounting AutoSock®, park the
vehicle on level ground away from traffic.
Turn on the vehicle Hazard Warning
Flasher and place a triangular emergency
warning device behind the vehicle (if
available).
Always place the vehicle in P (Park),
apply the parking brake and turn off the
engine before installing tire chains.
NOTICE
When using AutoSock® (fabric snow
chain):

[Wrong size fabric snow chains or
improperly installed fabric snow
chains can damage your vehicle's
brake lines, suspension, body and
wheels.

[If you hear noise caused by fabric
snow chains contacting the body,
retighten the fabric snow chains to
prevent contact with the vehicle
body.

[To prevent body damage, retighten
the fabric snow chains after driving
0.3~0.6 miles (0.5~1.0 km).

6-74
Driving Your Vehicle
Do not let ice and snow accumulate
underneath
Under some conditions, snow and ice
can build up under the fenders and
interfere with the steering. When driving
in such conditions during the severe
winter, you should check underneath
the vehicle on a regular basis, to ensure
that the front wheels and the steering
components is unblocked.
Carry emergency equipment
In accordance with weather conditions,
you should carry appropriate emergency
equipment, while driving. Some of the
items you may want to carry include tire
chains, tow straps or chains, flashlight,
emergency flares, sand, shovel, jumper
cables, window scraper, gloves, ground
cloth, coveralls, blanket, etc.
Do not place objects or materials in the
engine compartment
Putting objects or materials in the engine
compartment may cause an engine
failure or combustion, because they may
block the engine cooling. Such damage
will not be covered by the manufacturer’s
warranty.
Drive your vehicle when water vapor
condenses and accumulates inside the
exhaust pipes
When the vehicle is stopped for a
long time in winter while the engine is
running, water vapor may condense and
accumulate inside the exhaust pipes.
Water in the exhaust pipes may cause
noise, etc., but it is drained driving at
medium to high speed.

7-3
07
Direct Oncoming function
ORS071176
A: Oncoming vehicle
Direct Oncoming function helps reduce
the speed at the collision when a vehicle
approaching from the opposite side is
detected.
Lane-Change Oncoming function
ORS071057
A: Oncoming vehicle
Lane-Change Oncoming function helps
avoid a collision with an oncoming
vehicle when changing lanes by assisting
the driver’s steering.Lane-Change Side function
ORS071058
A: Front-side vehicle
Lane-Change Side function helps avoid
a collision with the vehicle ahead in
the next lane when changing lanes by
assisting the driver’s steering.

7-4
Driver Assistance System
(YDVLYH6WHHULQJ$VVLVWIXQFWLRQ
ORS072053N

[Driver steering assist
Evasive Steering Assist function
helps avoid a collision with a vehicle,
pedestrian or cyclist ahead in the
same lane. When a risk of collision
is detected, Evasive Steering Assist
function will warn the driver and if the
driver steers to avoid collision it will
assist the driver’s steering.

[Evasive steering assist
Evasive Steering Assist function helps
avoid a collision with a pedestrian or
cyclist ahead in the same lane. When
a risk of collision is detected, Evasive
Steering Assist function will warn the
driver and if there is space to avoid
collision in the lane, it will assist the
driver’s steering.
Detecting sensor
ORS071001
ORS072292
ORS072003N
M: Front view camera,
N: Front radar,
O: Front corner radar,
P: Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.

7-8
Driver Assistance System
CAUTION

[The setting of the Warning Timing
DQG:DUQLQJ9ROXPHDSSOLHVWR
all functions of Forward Collision-
$YRLGDQFH$VVLVW

[(YHQWKRXJK
S6WDQGDUG
TLVVHOHFWHG
IRU:DUQLQJ7LPLQJLIDGHWHFWHG
YHKLFOHLQIURQWVXGGHQO\VWRSVWKH
ZDUQLQJPD\VHHPODWH

[6HOHFW
S/DWH
TIRU:DUQLQJ7LPLQJ
ZKHQWUDIILFLVOLJKWDQGZKHQGULYLQJ
VSHHGLVVORZ
)RUZDUG&ROOLVLRQ$YRLGDQFH
Assist operation
Basic function
The basic function for Forward Collision-
Avoidance Assist is to warn and help
control the vehicle depending on the
collision risk level: ‘Collision Warning’,
‘Emergency Braking’ and ‘Stopping
vehicle and ending brake control’.
ORS071096L
Collision Warning

[To warn the driver of a collision, the
‘Collision Warning’ warning message
will appear on the instrument cluster,
an audible warning will sound and the
steering wheel will vibrate.

[If a vehicle or powered two-wheeler
is detected in front, the function will
operate when your vehicle speed is
between approximately 6-124 mph
(10-200 km/h).

[If a pedestrian or cyclist is detected
in front, the function will operate
when your vehicle speed is between
approximately 6-53 mph (10-85 km/h).

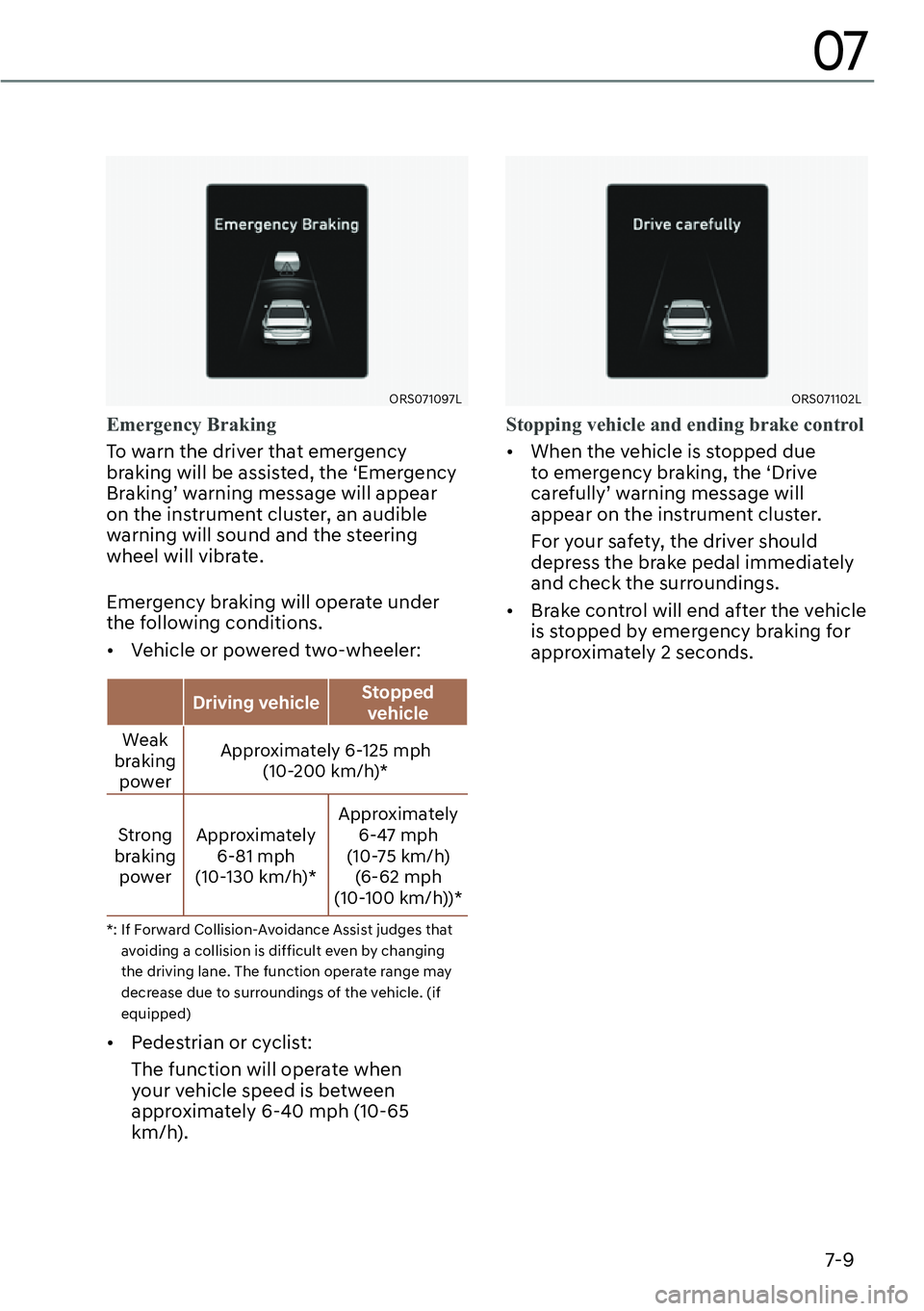

7-9
07
ORS071097L
Emergency Braking
To warn the driver that emergency
braking will be assisted, the ‘Emergency
Braking’ warning message will appear
on the instrument cluster, an audible
warning will sound and the steering
wheel will vibrate.
Emergency braking will operate under
the following conditions.

[Vehicle or powered two-wheeler:
'ULYLQJYHKLFOHStopped
YHKLFOH
Weak
braking
powerApproximately 6-125 mph
(10-200 km/h)*
Strong
braking
powerApproximately
6-81 mph
(10-130 km/h)*Approximately
6-47 mph
(10-75 km/h)
(6-62 mph
(10-100 km/h))*
*: If Forward Collision-Avoidance Assist judges that
avoiding a collision is difficult even by changing
the driving lane. The function operate range may
decrease due to surroundings of the vehicle. (if
equipped)

[Pedestrian or cyclist:
The function will operate when
your vehicle speed is between
approximately 6-40 mph (10-65
km/h).
ORS071102L
6WRSSLQJYHKLFOHDQGHQGLQJEUDNHFRQWURO

[When the vehicle is stopped due
to emergency braking, the ‘Drive
carefully’ warning message will
appear on the instrument cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
