FUSE PRECAUTIONS
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
WARNING: Always replace a fusewith one that has the specifiedamperage rating. Using a fuse with ahigher amperage rating can cause severewire damage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOODFUSE BOX
ACCESSING THE UNDER HOODFUSE BOX
488
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMFusesE311329 E322941

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Protected ComponentRatingItem
Body control module -battery power in feed 1.40 A1
Body control module -battery power in feed 2.40 A3
Fuel pump.30 A4
Powertrain control modulecoil.5 A5
Powertrain control modulepower (gas, hybrid).25 A6
Powertrain control modulepower.20 A7
489
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMFusesE356997

BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROLMODULE FUSE BOX
ACCESSING THE BODY CONTROLMODULE FUSE BOX
IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
494
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMFusesE322874 E322804 E145984

3.Raise the hood until the lift cylindershold it open.
4.To close, lower the hood and makesure that it fully latches.
UNDER HOOD OVERVIEW - 2.7L ECOBOOST™
Engine compartment fuse box. See Fuses (page 488).A.
Battery. See Changing the 12V Battery (page 512).B.
Engine oil filler cap. See Checking the Engine Oil Level (page 505).C.
499
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE338089 E337516

Engine oil dipstick. See Engine Oil Dipstick Overview (page 505).D.
Brake fluid reservoir. See Checking the Brake Fluid (page 291).E.
Air filter assembly. See Changing the Engine Air Filter (page 510).F.
Engine coolant reservoir. See Checking the Coolant (page 506).G.
Windshield washer fluid reservoir.H.
UNDER HOOD OVERVIEW - 3.3L
Engine compartment fuse box. See Under Hood Fuse Box (page 488).A.
Battery. See Changing the 12V Battery (page 512).B.
Engine oil filler cap. See Checking the Engine Oil Level (page 505).C.
Engine oil dipstick. See Engine Oil Dipstick Overview (page 505).D.
Brake fluid reservoir. See Checking the Brake Fluid (page 291).E.
Air filter assembly. See Changing the Engine Air Filter (page 510).F.
500
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE337514

Engine coolant reservoir. See Checking the Coolant (page 506).G.
Windshield washer fluid reservoir.H.

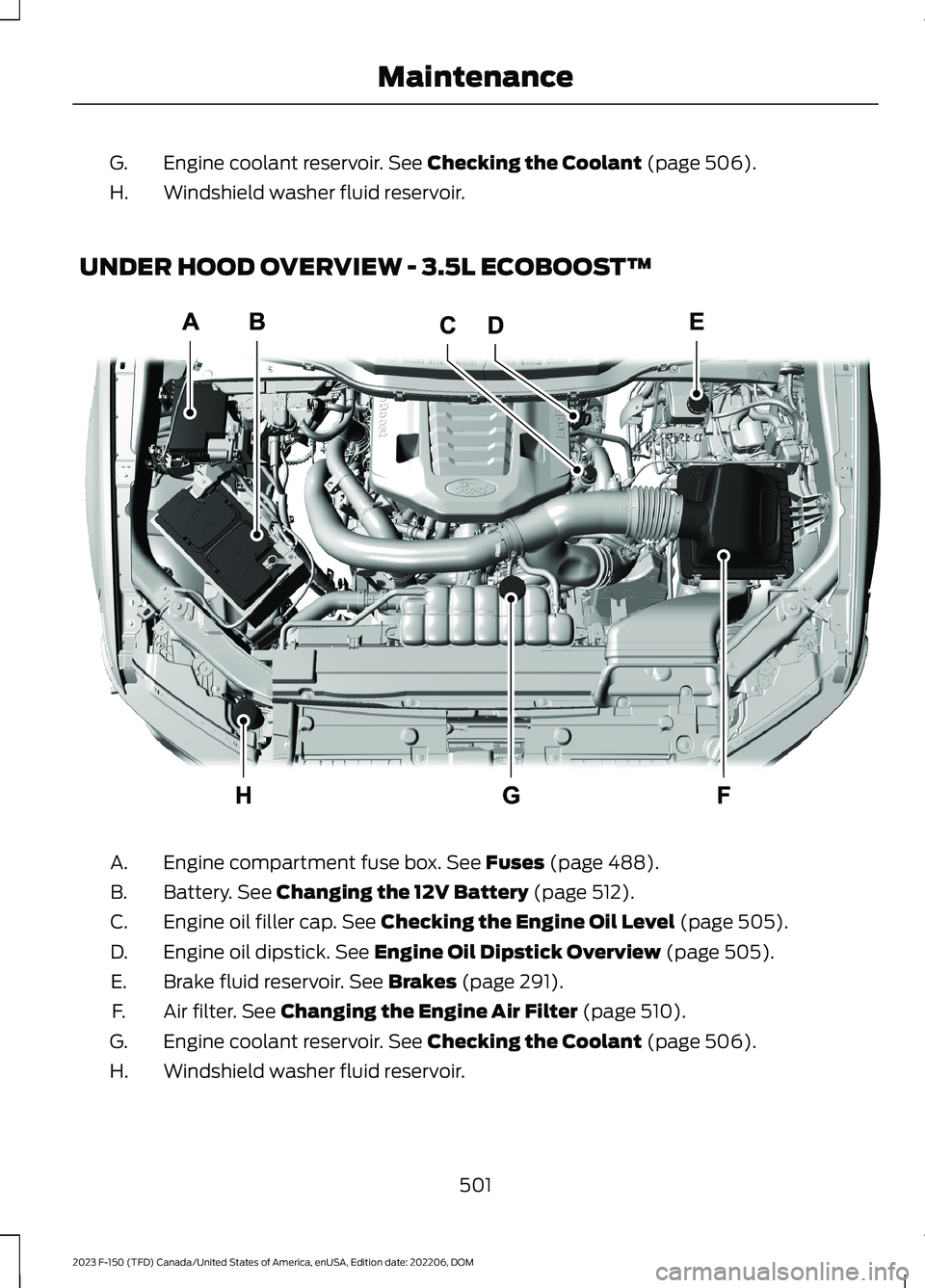

UNDER HOOD OVERVIEW - 3.5L ECOBOOST™
Engine compartment fuse box. See Fuses (page 488).A.
Battery. See Changing the 12V Battery (page 512).B.
Engine oil filler cap. See Checking the Engine Oil Level (page 505).C.
Engine oil dipstick. See Engine Oil Dipstick Overview (page 505).D.
Brake fluid reservoir. See Brakes (page 291).E.
Air filter. See Changing the Engine Air Filter (page 510).F.
Engine coolant reservoir. See Checking the Coolant (page 506).G.
Windshield washer fluid reservoir.H.
501
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMMaintenanceE313722

UNDER HOOD OVERVIEW - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)
Engine compartment fuse box. See Fuses (page 488).A.
Battery. See Changing the 12V Battery (page 512).B.
Engine oil dipstick. See Engine Oil Dipstick Overview (page 505).C.
Engine oil filler cap. See Adding Engine Oil (page 505).D.
Brake fluid reservoir. See Checking the Brake Fluid (page 291).E.
Air filter. See Changing the Engine Air Filter (page 510).F.
Secondary coolant reservoir. See Checking the Coolant (page 506).G.
Engine coolant reservoir. See Checking the Coolant (page 506).H.
Windshield washer fluid reservoir.I.
