UNIQUE FEATURES - 5.2L
Powertrain
•5.2L Supercharged V8 engine.
•10R80 10-speed automatictransmission with paddle shifters andwater to air transmission cooler.
•Torque On Demand™ 2-speed transfercase with 4 Hi-Loc.
•Rear differential capable of locking in4A, 4H and 4L.
•35 spline rear axle shafts for increasedcapability.
•4.10 front and rear axle ratios.
•High flow exhaust with X-pipe andactive valves for acoustic refinement.
•Low temperature radiator fanassembly for greater cooling at lowspeeds.
Chassis
•Cast aluminum lower control arms.
•Forged steel upper control arms.
•Fox Factory 3.1 Live Valve InternalBypass front shocks.
•Fox Factory 3.1 Live Valve InternalBypass Remote Reservoir rear shocks.
•24 inch triple rate rear springs.
•Unique underbody shields.
•Heavy duty fully boxed frame.
•Unique 5 link rear suspension.
•Unique cast aluminum knuckle.
•Ride height sensors at each corner.
•Off-road tuned stabilizer bar andjounce bumpers.
Exterior
•Optional off-road driving lights.
•Modified rear bumper with integratedrear tow hooks.
•Underbody shields plus front towhooks.
•Hood with functional air extractors.
•Front fenders with functional airextractors.
•Front and rear LED marker lamps.
•17 x 8.5 aluminum wheels.
•Optional 17 x 8.5 forged beadlockcompatible wheels.
•LT 315/70R17 BF Goodrich All TerrainTA KO2 tires.
•Optional 37x12.5R17 LT BF Goodrich AllTerrain TA KO2 tires.
Interior
•Unique terrain-mode and trail controlfunctionality plus six auxiliary switches.
•Premium leather and suede seats.
UNIQUE FEATURES - 3.5L
ECOBOOST™
Powertrain
•3.5L EcoBoost engine.
•10R80 10-speed automatictransmission with paddle shifters andwater to air transmission cooler.
•Torque On Demand™ 2-speed transfercase with 4 Hi-Loc.
•Rear differential capable of locking in4A, 4H and 4L.
•35 spline rear axle shafts for increasedcapability.
•4.10 front and rear axle ratios.
•High flow exhaust with X-pipe andactive valves for acoustic refinement.
•Charge air cooler fan assembly forgreater cooling at low speeds.
33
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMAt a Glance - Raptor

Chassis
•Cast aluminum lower control arms.
•Forged steel upper control arms.
•Fox Factory 3.1 Live Valve InternalBypass front shocks.
•Fox Factory 3.1 Live Valve InternalBypass Remote Reservoir rear shocks.
•24 inch triple rate rear springs.
•Unique underbody shields.
•Heavy duty fully boxed frame.
•Unique 5 link rear suspension.
•Unique cast aluminum knuckle.
•Ride height sensors at each corner.
•Off-road tuned stabilizer bar andjounce bumpers.
Exterior
•Optional off-road driving lights.
•Modified rear bumper with integratedrear tow hooks.
•Underbody shields plus front towhooks.
•Hood with functional air extractors.
•Front fenders with functional airextractors.
•Front and rear LED marker lamps.
•17 x 8.5 aluminum wheels.
•Optional 17 x 8.5 forged beadlockcompatible wheels.
•LT 315/70R17 BF Goodrich All TerrainTA KO2 tires.
•Optional 37x12.5R17 LT BF Goodrich AllTerrain TA KO2 tires.
Interior
•Unique terrain-mode and trail controlfunctionality plus six auxiliary switches.
•Optional premium leather and suedeseats.
34
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMAt a Glance - Raptor

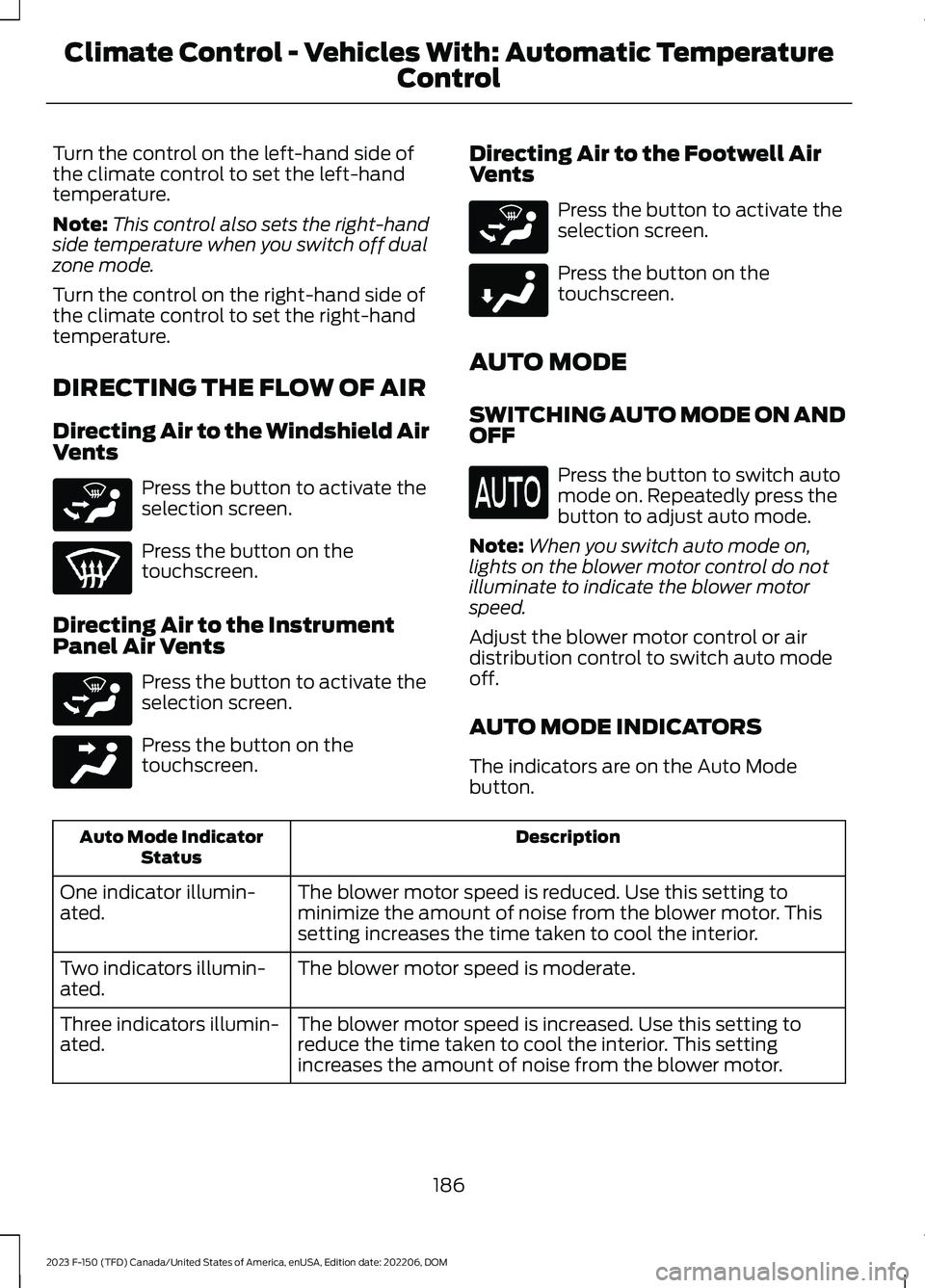

Turn the control on the left-hand side ofthe climate control to set the left-handtemperature.
Note:This control also sets the right-handside temperature when you switch off dualzone mode.
Turn the control on the right-hand side ofthe climate control to set the right-handtemperature.
DIRECTING THE FLOW OF AIR
Directing Air to the Windshield AirVents
Press the button to activate theselection screen.
Press the button on thetouchscreen.
Directing Air to the InstrumentPanel Air Vents
Press the button to activate theselection screen.
Press the button on thetouchscreen.
Directing Air to the Footwell AirVents
Press the button to activate theselection screen.
Press the button on thetouchscreen.
AUTO MODE
SWITCHING AUTO MODE ON ANDOFF
Press the button to switch automode on. Repeatedly press thebutton to adjust auto mode.
Note:When you switch auto mode on,lights on the blower motor control do notilluminate to indicate the blower motorspeed.
Adjust the blower motor control or airdistribution control to switch auto modeoff.
AUTO MODE INDICATORS
The indicators are on the Auto Modebutton.
DescriptionAuto Mode IndicatorStatus
The blower motor speed is reduced. Use this setting tominimize the amount of noise from the blower motor. Thissetting increases the time taken to cool the interior.
One indicator illumin-ated.
The blower motor speed is moderate.Two indicators illumin-ated.
The blower motor speed is increased. Use this setting toreduce the time taken to cool the interior. This settingincreases the amount of noise from the blower motor.
Three indicators illumin-ated.
186
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMClimate Control - Vehicles With: Automatic Temperature
ControlE265283 E265283 E244097 E265283 E244098

ADAPTIVE CRUISE CONTROL
LIMITATIONS
Sensor Limitations
WARNING: On rare occasions,detection issues can occur due to theroad infrastructures, for example bridges,tunnels and safety barriers. In thesecases, the system may brake late orunexpectedly. At all times, you areresponsible for controlling your vehicle,supervising the system and intervening,if required.
WARNING: If the systemmalfunctions, have your vehicle checkedas soon as possible.
WARNING: Large contrasts inoutside lighting can limit sensorperformance.
WARNING: The system only warnsof vehicles detected by the radar sensor.In some cases there may be no warningor a delayed warning. Apply the brakeswhen necessary. Failure to follow thisinstruction could result in personal injuryor death.
WARNING: The system may notdetect stationary or slow movingvehicles below 6 mph (10 km/h).
WARNING: The system does notdetect pedestrians or objects in the road.
WARNING: The system does notdetect oncoming vehicles in the samelane.
WARNING: The system may notoperate properly if the sensor is blocked.Keep the windshield free fromobstruction.
WARNING: The sensor mayincorrectly track lane markings as otherstructures or objects. This can result ina false or missed warning.
Camera.1.
Radar sensor.2.
The camera is on the windshield behindthe interior mirror.
The radar sensor is in the lower grille.
Note:You cannot see the sensor. It isbehind a fascia panel.
Note:Keep the front of your vehicle free ofdirt, metal badges or objects. Vehicle frontprotectors, aftermarket lights, additionalpaint or plastic coatings could also degradesensor performance.
A message displays if something obstructsthe camera or the sensor. When somethingblocks the sensor, the system cannotdetect a vehicle ahead and does notfunction. See Adaptive Cruise Control– Information Messages (page 354).
343
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMAdaptive Cruise Control (If Equipped)E328125

It is important to rely upon your dealershipto properly diagnose and repair yourvehicle.
We strongly recommend only using ourgenuine or our authorized re-manufacturedreplacement parts engineered for yourvehicle.
Additives and Chemicals
We do not recommend using chemicals oradditives not approved by us as part ofyour vehicle’s normal maintenance. Pleaseconsult your warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is anormal operating characteristic and, byitself, does not necessarily indicate aconcern or that the fluid needs to bechanged. Have discolored fluids that alsoshow signs of overheating or foreignmaterial contamination checkedimmediately.
Make sure to change the vehicle’s oils andfluids at the specified intervals or inconjunction with a repair. Flushing is aviable way to change fluid for many vehiclesub-systems during scheduledmaintenance. It is critical that systems areflushed only with new fluid that is the sameas that required to fill and operate thesystem or using our approved flushingchemical.
Owner Checks and Services
Make sure you perform the following basicmaintenance checks and inspections.
Check Every Month
The engine oil level.
Function of all interior and the exterior lights.
The tires including the spare for wear and proper pressure.
The windshield washer fluid level.
Check Every Six Months
The battery connections. Clean if necessary.
The body and door drain holes for obstructions. Clean if necessary.
The cooling system fluid level and the coolant system strength.
The door weatherstrips for wear. Lubricate if necessary.
The hinges, latches and outside locks for proper operation. Lubricate if necessary.
The parking brake for proper operation.
668
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMScheduled Maintenance
