Anti-theft protection
Electronic immobiliser
The keys contain an electronic chip which has
a specific code. When the ignition is switched
on, this code must be recognised to allow the
engine to be started.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and/or the display of a message,
depending on version.
Starting/Switching off the
engine with the key
Ignition switch
It has 3 positions:
- position 1 (Stop): inserting and removing
the key, steering column locked,
-
position 2 (Ignition on) : steering column
unlocked, ignition on, Diesel preheating,
engine running,
-
position 3 (Starting) .
Ignition on position
It allows the use of the vehicle's electric
equipment or portable devices to be charged.
Once the state of charge of the battery drops
to the reser ve level, the system switches to
energy economy mode: the power supply is
cut off automatically to preser ve the remaining
battery charge. Avoid attaching heavy objects to the key
or the remote control, which would weigh
down on its blade in the ignition switch
and could cause a malfunction.
Switching off the engine leads to a loss of
braking assistance.
Starting the engine
With the parking brake applied and the gearbox
in neutral or position N
or P:
F

d
epress the clutch pedal fully (manual
gearbox),
or
F

p
ress the brake pedal firmly (automatic
gearbox),
F

i
nsert the key into the ignition switch; the
system recognises the code,
F

u
nlock the steering column by simultaneously
turning the steering wheel and the key.
In certain cases, you may have to apply
more force to the steering (wheels on full
lock, for example).
F

W
ith a petrol engine, operate the starter
motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key.
In this case, your vehicle will not start; contact
the dealer network as soon as possible.
06
Driving

137
If one of the starting conditions is not
met, a reminder message appears in the
instrument panel screen. In some cases, it
is necessary to operate the steering wheel
while pressing the "START/STOP" button
to help unlock the steering column.
The presence of the Keyless Entry and
Starting electronic key in the recognition
zone is essential.
As a safety measure, do not leave this
zone with the vehicle running.
If the electronic key is not detected in the
recognition zone, a message is displayed.
Move the electronic key into the zone so
that the engine can be started.
Switching off the engine
F Stop the vehicle.
F P lace the gear selector lever at P or N for
vehicles with an automatic gearbox, or
neutral for vehicles with a manual gearbox. F

W
ith the electronic key inside
the vehicle, press the " S TA R T/
STOP " button.
The engine stops and the steering
column locks.
If the vehicle is not immobilised, the
engine will not stop.
Never leave your vehicle with the
electronic key still inside.
Switching off the engine leads to a loss of
braking assistance.
Back-up star ting
When the electronic key is in the recognition
zone and after pressing the "START/STOP"
button, if the engine does not start:
F

P
lace the gear selector lever at P or N for
vehicles with an automatic gearbox, or
neutral for vehicles with a manual gearbox.
F

O
pen the front armrest. F

R
aise the mat by its tongue and remove it.
F
P
lace the electronic key on the back-up
reader.
F
P
ress the brake pedal on vehicles with an
automatic gearbox, or fully depress the
clutch pedal with a manual gearbox.
F P ress the "START/STOP"
button.
The engine starts.
Back-up switch off
In the event of an emergency only,
the engine can be switched off
without conditions. To do this, press
and hold the " START/STOP " button
for about three seconds.
In this case the steering column locks as soon
as the vehicle stops.
06
Driving

138
Electronic key not recognised
If the electronic key is no longer in the
recognition zone when driving or when you
(later) request switching off the engine, a
message is displayed.F

P
ress and hold the " S TA R T/
STOP " button for about
3
seconds if you want to force
switching off the engine (note
that restar ting will not be
possible without the key).
Ignition on (without starting)
With the "Keyless Entry and Starting" key
inside the vehicle, pressing the " START/STOP"
button, with no action on the pedals , allows
the ignition to be switched on.
F Press the " START/STOP" button,
the instrument panel comes on
but the engine does not start.
F Press the button again to switch off the ignition and allow the
vehicle to be locked.
With the ignition on, the system
automatically goes into energy economy
mode when required to maintain the state
of charge of the battery.
Manual parking brake
Application
F Pull the parking brake lever fully up to immobilise your vehicle.
Releasing
F Pull the parking brake lever up gently, press the release button then lower the lever fully.
06
Driving

139
When the vehicle is being driven,
if this warning lamp and the STOP
warning lamp come on, accompanied
by an audible signal and a message
on the multifunction screen, this
indicates that the parking brake is still
on or has not been fully released.
When parking on a slope, direct your
wheels towards the kerb, apply the
parking brake, engage a gear and switch
off the ignition.
Electric parking brake
The electric parking brake combines
2 operating modes:
-

A
utomatic application/release
Application is automatic when the engine stops,
release is automatic on use of the accelerator
(activated by default),
-

M
anual application/release
The parking brake can be applied/released
manually by pulling control lever .
If this warning lamp comes on in
the instrument panel, the automatic
mode is deactivated.
Do not place any object (packet of
cigarettes, telephone...) between the gear
lever and the electric parking brake control
l eve r.
Programming the mode
Depending on the country of sale of the vehicle,
the automatic application when the engine is
switched off and the automatic release when
you press the accelerator can be deactivated.
Activation/deactivation of the system
is done in the vehicle configuration
menu.
The parking brake is locked and unlocked
manually. When the driver’s door is opened, a
loud beep is heard and a message is displayed
if the parking brake has not been applied. It is recommended that you do not apply
the parking brake in very cold conditions
(ice) and during towing (breakdown,
caravan...). Deactivate the automatic
functions and release the parking brake
manually.
06
Driving

140
Manual application
With the vehicle stationary, to apply the parking
brake regardless of whether the engine is
running or switched off, pull the control lever.
The application of the parking brake is
confirmed by:
When the driver’s door is opened with the
engine running, a message is displayed
accompanied by an audible signal if the parking
brake has not been applied, except in the case
of an automatic gearbox with the gear selector
in position P .
Before leaving the vehicle, ensure
that parking brake warning lamp in the
instrument panel is on fixed, not flashing.
Manual release
With the ignition on or the engine running, to
release the parking brake, press on the brake
pedal or the accelerator, pull then release
control. Full release of the parking brake is confirmed
by:
-
d
isplay of the message "Parking
brake released/off".
If you pull the control lever without
pressing the brake pedal, the parking
brake will not be released and a
warning lamp will come on in the
instrument panel.
Maximum application
If necessary, you can make maximum
application of the parking brake. It is obtained
by means of a long pull on control lever , until
you see the message "Parking brake applied
fully" accompanied by an audible signal.
Maximum application is essential:
-

i
n the case of a vehicle towing a caravan
or a trailer, if the automatic functions are
activated but you are applying the parking
brake manually,
-

w
hen the gradient you are parked on may
vary (e.g. on a ferry, on a lorry, during
towing). In the case of towing, a loaded vehicle or
parking on a gradient, make a maximum
application of the parking brake then turn
the front wheels towards the kerb and
engage a gear when you park.
After a maximum application, the release
time will be longer.
Automatic application, engine
off
With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off
.
The application of the parking brake is
confirmed by:
-

d
isplay of the message "Parking
brake applied/on".
-

i

llumination of the braking
warning lamp and the P warning
lamp in the control lever,
-

d

isplay of the message "Parking
brake applied". -

t

he braking warning lamp and
the P warning lamp in the
control lever going off,
-
i
llumination of the braking
warning lamp and the P warning
lamp in the control lever ,
06
Driving

141
Before leaving the vehicle, ensure
that parking brake warning lamp in the
instrument panel is on fixed, not flashing.
Never leave a child alone inside the
vehicle with the ignition on, as they could
release the parking brake.
In the case of towing, a loaded vehicle
or parking on a gradient, turn the front
wheels towards the kerb and engage a
gear when you park.
Automatic release
The electric parking brake releases
automatically and progressively when you
press the accelerator:
F
M
anual gearbox: press down fully on the
clutch pedal, engage 1st gear or reverse,
press on the accelerator pedal and move
of f.
F

A
utomatic gearbox : select position D, M or
R then press the accelerator pedal.
Full release of the parking brake is confirmed
by:
When stationary with the engine running, do
not press the accelerator pedal unnecessarily,
as you may release the parking brake.
Immobilisation of the vehicle
with the engine running
With the engine running and the vehicle
stationary, in order to immobilise the vehicle
it is essential to manually apply the parking
brake by pulling the control lever.
The application of the parking brake is
confirmed by:
When the driver’s door is opened, a message is
displayed accompanied by an audible signal if
the parking brake has not been applied, except
in the case of an automatic gearbox with the
gear selector in position P . Before leaving the vehicle, ensure
that parking brake warning lamp in the
instrument panel is on fixed, not flashing.
Special situations
In some circumstances (engine start, etc.),
the parking brake may automatically adjust its
force. This is normal operation.
To move your vehicle a few centimetres without
starting the engine, with the ignition on, press
the brake pedal and release the parking brake
by pulling
then releasing the control lever. The
full release of the parking brake is confirmed by
the warning lamps in the control lever and in the
instrument panel going off and by the display of
the message "Parking brake released/off ".
- the braking warning lamp and the P warning lamp in the
control lever going off, -

d
isplay of the message "Parking
brake released/off".
-
i
llumination of the braking
warning lamp and the P warning
lamp in the control lever,
-
d
isplay of the message "Parking
brake applied/on".
Emergency braking
In the event of a failure of the main ser vice
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc.), a continuous
pull on the control lever will stop the vehicle.
The electronic stability control provides stability
during emergency braking.
If the emergency braking malfunctions,
the message "Parking brake faulty" will be
displayed.
06
Driving

143
Automatic gearbox
Six speed automatic gearbox which offers a
choice between the comfort of fully automatic
operation, enhanced by sport and snow
programmes, and the pleasure of manual gear
changing.
Two driving modes are offered:
-
a
utomatic operation for electronic
management of the gears by the gearbox,
with a spor t programme for a more dynamic
style of driving and a snow programme to
improve driving when traction is poor,
-

man
ual operation for sequential changing
of the gears by the driver.
Gear selector module
1. Gear selector.
2. "T " (snow) button.
3. "S " (spor t) button.
4. Gear selector positions diagram.
Gear selector positions
P. Park.
-
I mmobilisation of the vehicle,
parking brake on or off.
-
S

tarting the engine.
R. Reverse.
-

R
eversing manoeuvres, vehicle
stationary, engine at idle.
N. Neutral.
-

I
mmobilisation of the vehicle,
parking brake on.
-
S

tarting the engine.
D. Automatic operation.
M.+/- Manual operation with sequential
changing of the six gears.
F

P
ush for wards to change up through the
gears.
or
F

P
ull backwards to change down through the
gears.
Displays on the instrument panel
When you move the selector in the grille to
select a position, the corresponding indicator is
displayed in the instrument panel.
P Park
R Reverse
N Neutral
D Drive (automatic driving)
S Sport programme
T Snow
programme
1 to 6 Gear engaged during manual operation
- Invalid value during manual operation
06
Driving

144

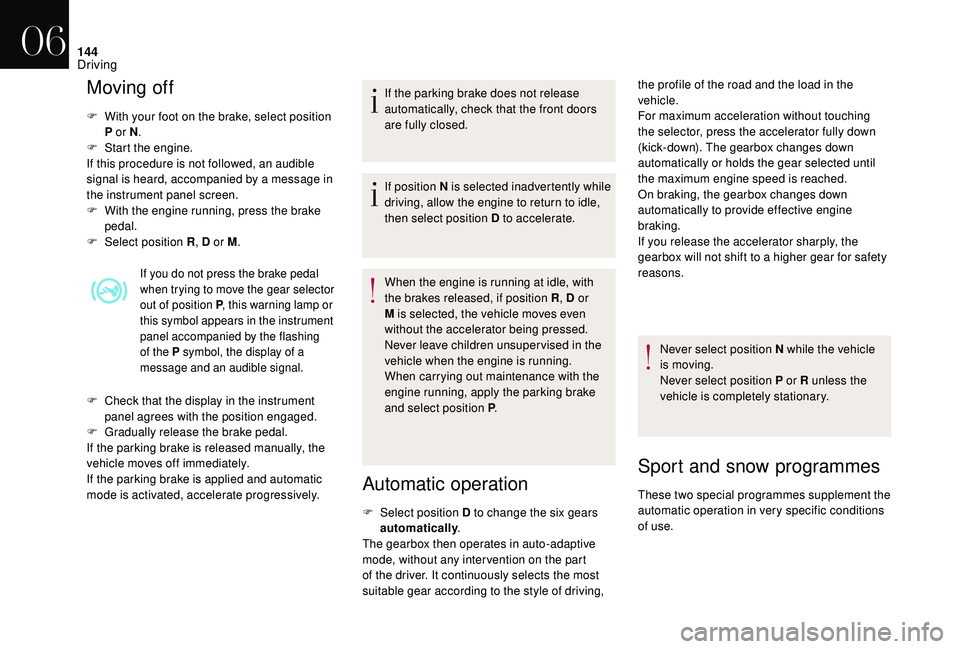

Moving off
F With your foot on the brake, select position P or N .
F

S
tart the engine.
If this procedure is not followed, an audible
signal is heard, accompanied by a message in
the instrument panel screen.
F

W
ith the engine running, press the brake
pedal.
F

Sel
ect position R , D or M.
If you do not press the brake pedal
when trying to move the gear selector
out of position P , this warning lamp or
this symbol appears in the instrument
panel accompanied by the flashing
of the P symbol, the display of a
message and an audible signal.
F Check that the display in the instrument panel agrees with the position engaged.
F

G
radually release the brake pedal.
If the parking brake is released manually, the
vehicle moves off immediately.
If the parking brake is applied and automatic
mode is activated, accelerate progressively. If the parking brake does not release
automatically, check that the front doors
are fully closed.
If position N is selected inadvertently while
driving, allow the engine to return to idle,
then select position D to accelerate.
When the engine is running at idle, with
the brakes released, if position R
, D or
M is selected, the vehicle moves even
without the accelerator being pressed.
Never leave children unsuper vised in the
vehicle when the engine is running.
When carrying out maintenance with the
engine running, apply the parking brake
and select position P .
Automatic operation
the profile of the road and the load in the
vehicle.
For maximum acceleration without touching
the selector, press the accelerator fully down
(kick-down). The gearbox changes down
automatically or holds the gear selected until
the maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide effective engine
braking.
If you release the accelerator sharply, the
gearbox will not shift to a higher gear for safety
reasons.
Never select position N while the vehicle
is moving.
Never select position P or R unless the
vehicle is completely stationary.
Sport and snow programmes
These two special programmes supplement the
automatic operation in very specific conditions
of use.
F

Sel

ect position D to change the six gears
automatically .
The gearbox then operates in auto-adaptive
mode, without any inter vention on the part
of the driver. It continuously selects the most
suitable gear according to the style of driving,
06
Driving
