Electric parking brake
Warning/indicator lamp StateCause Action/Observations
+ They light up,
accompanied by the
display of the message
"Parking brake fault". Manual release of the electric parking
brake is only available by pressing the
accelerator pedal and releasing the
electric parking brake lever.
Hill start assist is not available. The automatic functions and the manual application are still available.
Contact the dealer network or a qualified workshop.
+
+ They light up,
accompanied by the
display of the message
"Parking brake fault".
The automatic functions are
deactivated.
Hill start assist is not available.
The electric parking brake can only be used manually.
Contact the dealer network or a qualified workshop.
+ They light up,
accompanied by the
display of the message
"Parking brake fault". The electric parking brake has a fault. Contact the dealer network or a qualified workshop.
01
Instruments

28
Warning/indicator lamp StateCause Action/Observations
+
+
+
+ They light up,
accompanied by the
display of the message
"Parking brake fault".
The automatic functions are
deactivated.
Hill start assist is not available.
Upon stopping, to apply the electric parking brake:
F

S
witch off the ignition.
F

P
ull the control for at least 5 seconds or until application is
complete.
F

S
witch on the ignition and check that the electric parking brake
warning lamps come on.
Application is slower than normal.
Upon stopping, to release the electric parking brake:
F

S
witch on the ignition.
F

P
ull the control lever and hold it for at least 3 seconds, then release
it.
If the braking warning lamp is flashing or if the warning lamps do not
come on with the ignition on, these procedures will not work; you must
make your vehicle safe on a level sur face:
F

W
ith a manual gearbox, engage a gear.
F

W
ith an automatic gearbox, put the gear selector in position P,
then
put a chock against one of the wheels.
Contact the dealer network or a qualified workshop.
01
Instruments

29
For more information on the use of the Electric parking brake, refer to the corresponding section.
Warning/indicator lamp StateCause Action/Observations
+ They light up,
accompanied by the
display of the message
"Parking brake fault". The manual application/release of
the electric parking brake and the
emergency braking are not available.
Only the automatic application on switching off the engine and
automatic release on acceleration functions are available.
Contact the dealer network or a qualified workshop.
It lights up,
accompanied by the
display of the message
"Faulty battery". A discharged battery no longer allows
the use of the electric parking brake.
Stop the vehicle as soon as it is safe to do so.
Apply the electric parking brake before switching off the engine, then
immobilise the vehicle:
F

W
ith a manual gearbox, engage a gear.
F

W
ith an automatic gearbox, put a chock against one of the wheels.
Contact the dealer network or a qualified workshop.
01
Instruments

30
Indicators
Service indicator
Warning/indicator lamp StateCause Action/Observations
Service spanner Fixed, temporary when
the ignition is switched
on. When between 620 miles (1,000 km)
and 1,860 miles (3,000 km) remain
before the next ser vice is due. The ser vice indicator is displayed for a few seconds in
the instrument panel. Depending on the version:
-

t
he distance recorder displays a line showing the
distance remaining (in kilometres or miles) before
the next ser vice is due.
-

a
n alert indicates the distance remaining
(in
kilometres or miles) as well as the period before
the next ser vice is due.
The service spanner disappears after a few seconds.
The alert may be triggered close to the due date.
Fixed, when the
ignition is switched on. Less than 620 miles (1,000 km)
remain before the next ser vice is due. The ser vice indicator is displayed for a few seconds in
the instrument panel. Depending on the version:
-

t
he distance recorder display line indicates the
distance remaining before the next ser vice is due.
-

a
n alert message indicates the distance remaining
as well as the period before the next ser vice is due.
The ser vice spanner remains on to show that a ser vice
is required very soon.
The alert may be triggered close to the due date.
01
Instruments

31
Warning/indicator lamp StateCause Action/Observations
Service spanner Flashing then fixed,
when the ignition is
switched on. Service is overdue.
The ser vice indicator is displayed for a few seconds in
the instrument panel. Depending on the version:
-

t
he total distance recorder displays a line showing
the distance travelled since ser vice was due.
The
value is preceded by the "-" sign.
-

a
n alert message indicates that ser vice is overdue.
The ser vice spanner remains on until the ser vice has
been performed.
The alert is triggered when the due date has passed.
+ Flashing then fixed,
when the ignition
is switched on,
associated with the
Service warning lamp.Ser vice is overdue for Diesel BlueHDi
versions.
The ser vice indicator is displayed for a few seconds in
the instrument panel. Depending on the version:
-

t
he total distance recorder displays a line showing
the distance travelled since ser vice was due.
The
value is preceded by the "-" sign.
-

a
n alert message indicates that ser vice is overdue.
The ser vice spanner remains on until the ser vice has
been performed.
The alert is triggered when the due date has passed.
The distance indicated (in kilometres or miles) is calculated according to the mileage covered and the time elapsed since the last ser vice.
01
Instruments

32

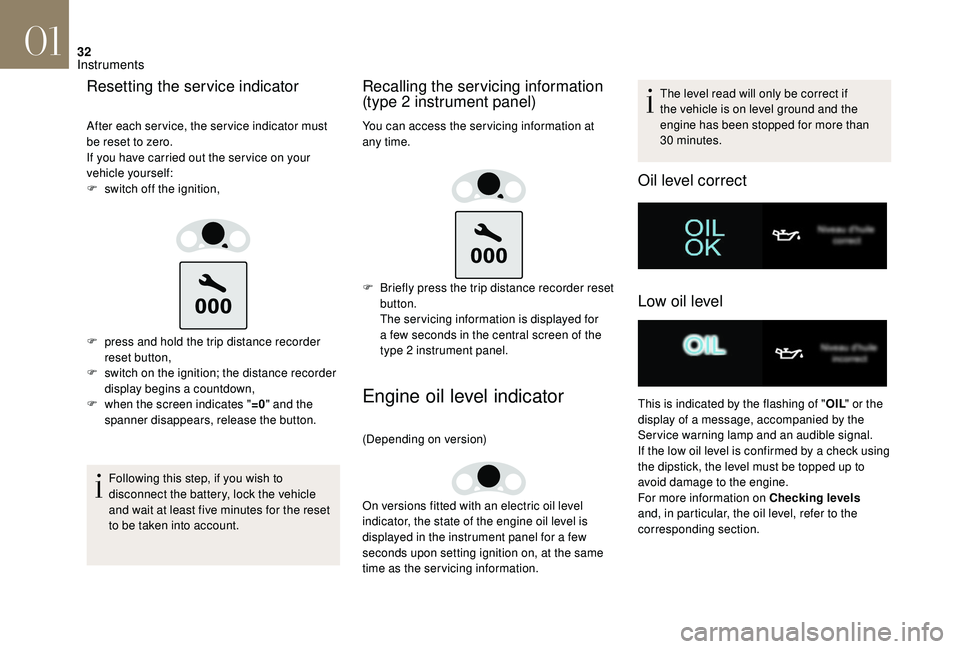

Resetting the service indicator
After each service, the service indicator must
be reset to zero.
If you have carried out the ser vice on your
vehicle yourself:
F
s
witch off the ignition,
F

p
ress and hold the trip distance recorder
reset button,
F

s
witch on the ignition; the distance recorder
display begins a countdown,
F

w
hen the screen indicates " =0" and the
spanner disappears, release the button.
Following this step, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the reset
to be taken into account.
Recalling the servicing information
(type 2 instrument panel)
You can access the ser vicing information at
any time.
F

B
riefly press the trip distance recorder reset
button.
The ser vicing information is displayed for
a few seconds in the central screen of the
type 2 instrument panel.
Engine oil level indicator
(Depending on version)
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds upon setting ignition on, at the same
time as the servicing information. The level read will only be correct if
the vehicle is on level ground and the
engine has been stopped for more than
30


minutes.
Oil level correct
Low oil level
This is indicated by the flashing of "
OIL" or the
display of a message, accompanied by the
Service warning lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels
and, in particular, the oil level, refer to the
corresponding section.
01
Instruments

33
Oil level indicator fault
This is signalled by "OIL- -" flashing or the display
of a message.
Contact the dealer network or a qualified workshop.
In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking levels
and, in particular, the oil level, refer to the
corresponding section.
AdBlue® fluid range indicators
Once the AdBlue® tank is on reser ve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of simultaneous system fault and
low AdBlue
® level, the shortest range figure is
the one displayed.
In the event of the risk of non-
starting related to a lack of AdBlue®
The engine start prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y.
Range greater than 1,500 miles (2,400 km)
When switching on the ignition, there is no
automatic display of range in the instrument
panel.
Above around 3,000 miles (5,000 km), the
value is not defined. With the type 2 instrument panel, pressing this
button temporarily shows the driving range.
Range between 1,500 miles and 370 miles (2,400 and 600 km)
When driving, the message is displayed every
190 miles (300 km) until the level is topped up.
The reser ve level has been reached; it is
recommended that you top up as soon as
possible.
Go to a member of the dealer network or a
qualified workshop to have the AdBlue
® topped
up.
You can also top up the tank yourself.
For more information on AdBlue
® and the
SCR system , and in particular on topping
up the AdBlue
®, refer to the corresponding
section.
When switching on the ignition, this warning
lamp comes on, accompanied by an audible
signal and a message indicating the remaining
range expressed in miles or kilometres before
engine starting is prevented.
01
Instruments

34
Range below 370 miles (600 km)
When driving, this message is displayed every
30 seconds until the AdBlue level has been
topped up.
Go to a member of the dealer network or a
qualified workshop to have the AdBlue
® topped
up.
You can also top up the tank yourself.
Other wise you will not be able to restart the
vehicle.
For more information on the AdBlue
®
(BlueHDi engines) , and in particular on
topping up, refer to the corresponding
section. Breakdown due to a lack of AdBlue
®
The AdBlue® tank is empty: the starting
inhibition system required by legislation
prevents starting of the engine.
To be able to start the engine, we
recommend that you call on a dealer or a
qualified workshop for the top-up required.
If you carry out the top-up yourself, it is
essential to add at least 4 litres of AdBlue
®
to the tank.
For more information on the AdBlue
® (BlueHDi
engines) , and in particular on topping up, refer
to the corresponding section.
When switching on the ignition, this warning
lamp flashes and the Service warning lamp
comes on, accompanied by an audible signal
and the temporary display of a message in the
instrument panel indicating the remaining range
expressed in miles or kilometres before engine
starting is prevented.
When switching on the ignition, this warning
lamp flashes and the Service warning lamp
comes on, accompanied by an audible signal
and the temporary display of a message in the
instrument panel indicating that starting the
vehicle has been prevented.
In the event of a fault with the SCR
emissions control system
A system that prevents engine starting is
activated automatically from 680 miles
(1,100 km) after confirmation of a fault with
the SCR emissions control system.
Have the system checked by the dealer
network or a qualified workshop as soon
as possible.
In the event of the detection of a fault
If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnostic checks of the SCR
emissions control system.
These warning lamps come on, accompanied
by an audible signal and the display of the
message "Emissions control fault".
The alert is triggered while driving as soon
as the fault is detected for the first time, then
when switching on the ignition for subsequent
journeys, while the fault persists.
01
Instruments
