44GETTING TO KNOW YOUR VEHICLE


Neutral Wipe Inhibit
— The Rain Sensing feature will not
operate when the ignition is ON, when the transmission gear
selector is in the NEUTRAL position and the vehicle speed is
less than 3 mph (5 km/h), unless the wiper control on the
windshield wiper lever is moved, the vehicle speed is
greater than 3 mph (5 km/h) or the gear selector is moved
out of the NEUTRAL position.

 Remote Start Mode Inhibit — On vehicles equipped with
the Remote Start system, Rain Sensing wipers are not
operational when the vehicle is in the Remote Start
mode. Once the operator is in the vehicle and has
placed the ignition switch in the ON/RUN position, rain
sensing wiper operation can resume, if it has been
selected, and no other inhibit conditions (mentioned
previously) exist.
REAR WIPER AND WASHER
The rear wiper/washer is operated by rotating a switch,
located at the middle of the lever.
Rotate the center portion of the lever upward to
the first detent for intermittent operation and to
the second detent for continuous rear wiper
operation.
Rear Window Washer Operation Pushing the windshield wiper lever forward
activates the rear window washer. If the lever is
pushed while on the intermittent setting, the
wiper will turn on and operate for several wipe
cycles after the lever is released, and then resume the
intermittent interval previously selected. If the lever is
pushed while the wiper is in the off position, the wiper will
operate several wipe cycles, then turn off.
CLIMATE CONTROLS
MANUAL CLIMATE CONTROL
D
ESCRIPTIONS AND FUNCTIONS

Uconnect 5 With 7-inch Display Manual Temperature Controls
Uconnect 5/5 NAV With 10.1-inch Display Manual Temperature Controls

MAX A/C Button
Press and release the MAX A/C button to
change the current setting. The indicator
illuminates when MAX A/C is on. Performing
this function again will cause the MAX A/C
operation to switch into manual mode and the MAX A/C
indicator will turn off.
NOTE:The MAX A/C setting is only available on the touchscreen.
A/C Button
Press and release the A/C button to change the
current setting. The indicator illuminates when
A/C is on.
NOTE:
 For Manual Climate Controls, if the system is in Mix,
Floor or Defrost Mode, the A/C can be turned off, but
the A/C system shall remain active to prevent fogging
of the windows.
 If fog or mist appears on the windshield or side glass,
select Defrost mode, and increase blower speed if
needed.
 If your air conditioning performance seems lower than
expected, check the front of the A/C condenser
(located in front of the radiator), for an accumulation of
dirt or insects. Clean with a gentle water spray from the
front of the radiator and through the condenser.

23_RUV_OM_EN_US_t.book Page 44

108MULTIMEDIA
Voice Options This setting will allow you to change the voice options for the radio to “Male” or “Female”.
Wake Up Word This setting will allow you to turn the voice recognition “Wake Up” word on or off.
Voice Barge-in This setting will allow you to turn the voice recognition barge-in feature on or off.
Show Command List This setting will allow the Command List to be shown on or off.
Key Off Power Delay This setting will keep certain electrical features running after the engine is turned off. When any door is opened, the
electronics will deactivate. The available settings are “0 sec”, “45 sec”, “5 min”, and “10 min”.
Radio Off With Door
This setting will turn the radio off when the driver or passenger door is opened. The available settings are “On” and “Off”.

App Drawer Favoriting Popups This setting will allow you to favorite app drawer pop-ups with “On” and “Off” options.
App Drawer Unfavoritings Popups This setting will allow you to unfavorite app drawer pop-ups with “On” and “Off” options.
New Text Message Popups This setting will allow you to have pop-up notifications for new text messages. This setting options are “On” and “Off”.
Missed Calls Message This setting will allow you to have pop-up notifications for missed calls. This setting options are “On” and “Off”.
Navigation Popups This setting will allow you to have pop-up notifications for Navigation. This setting options are “On” and “Off”.
Navigation Settings This setting will allow you to customize the settings within Navigation Mode.
Auto-On Driver Heated Seat & Steering Wheel This setting will activate the vehicle’s comfort systems and heated seats or heated steering wheel when the vehicle is
remote started or ignition is started. The “Off” setting will not activate the comfort systems. The “Remote Start”
setting will only activate the comfort systems when using Remote Start. The “All Start” setting will activate the comfort
systems whenever the vehicle is started.
Audio Settings This setting will take you to the audio settings for the vehicle profiles.
Reset App Drawer to Default Order This setting will reset the app drawer to its factory default layout.
Restore Settings to Default This setting will return all the previously changed settings to their factory defaults.
More Profile Options This setting will give access to more profile options.
Setting Name Description

23_RUV_OM_EN_US_t.book Page 108

MULTIMEDIA115
Doors & Locks
After pressing the Doors & Locks button on the touchscreen, the following settings will be available:
Setting Name Description
Auto Unlock On ExitThis setting will unlock the doors when any of the doors are opened from the inside.
Flash Lights With Lock This setting will allow you to turn the flashing of the lights when the Lock button is pushed on the key fob on or off.
Sound Horn With Lock This setting will sound the horn when the Lock button is pushed on the key fob. The “Off” setting will not sound the
horn when the Lock button is pushed. The “1st Press” setting will sound the horn when the Lock button is pushed
once. The “2nd Press” setting will sound the horn when the Lock button is pushed twice.
Sound Horn With Remote Start This setting will sound the horn when the remote start is activated from the key fob.
Remote Door Unlock, Door Lock/1st Press Of Key Fob
Unlocks This setting will change how many pushes of the Unlock button on the key fob are needed to unlock all the doors.
The “Driver Door” setting will only unlock the driver door on the first push on the Unlock button. The “All Doors” setting
will unlock all doors with only one push of the Unlock button.
Passive Entry This setting will allow you to turn the Passive Entry feature (Keyless Enter ‘n Go™) on or off.
Personal Settings Linked To Key Fob This setting will recall preset radio stations and driver seat position that have been linked to the key fob.
Power Liftgate Alert
This setting will chime an audible alert when the power liftgate is raising or lowering. Selectable options are “On” and “Off”.

Sliding Door Alert This setting will chime an audible alert when the sliding door reverses or sense an obstacle. Selectable options are
“On” and “Off”.
Flash Lights with Sliding Door This setting will flash the lights when the sliding door is opening. Selectable options are “On” and “Off”.
5

23_RUV_OM_EN_US_t.book Page 115

116MULTIMEDIA
Seats & Comfort
Key Off Options
When the Seats & Comfort button is pressed on the touchscreen, the system displays the options related to the vehicle’s comfort systems when remote start has been activated or
the vehicle has been started.
NOTE:Depending on the vehicle’s options, feature settings may vary.
Setting Name Description
Auto-On Driver Heated/Ventilated Seat & Heated Steering
Wheel With Vehicle StartThis setting will activate the vehicle’s comfort systems and heated seats or heated steering wheel when the vehicle is
remote started or ignition is started. The “Off” setting will not activate the comfort systems. The “Remote Start”
setting will only activate the comfort systems when using Remote Start. The “All Start” setting will activate the comfort
systems whenever the vehicle is started.

When the Key Off Options button is pressed on the touchscreen, the system displays the options related to vehicle shutoff. These settings will only activate when the ignition is set to OFF.

NOTE:Depending on the vehicle’s options, feature settings may vary.
Setting Name
Description
Key Off Power DelayThis setting will keep certain electrical features running after the engine is turned off. When any door is opened, the
electronics will deactivate. The available settings are “0 sec”, “45 sec”, “5 min”, and “10 min”.
Headlight Off Delay This setting will allow you to set the amount of time the headlights remain on after the vehicle has been turned off.
The “+” will increase the amount of time. The “-” will decrease the amount of time.
Radio Off With Door
This setting will turn the radio off when the driver or passenger door is opened. The available settings are “On” and “Off”.

23_RUV_OM_EN_US_t.book Page 116

186IN CASE OF EMERGENCY
NOTE:The positive battery post may be covered with a protective
cap. Lift up on the cap to gain access to the positive
battery post. Do not jump off fuses. Only jump directly off
positive post which has a positive (+) symbol on or around
the post.
See the following steps to prepare for jump starting:

1. Apply the parking brake, shift the automatic transmission into PARK (P) and place the ignition
to OFF.

2. Turn off the heater, radio, and all electrical accessories.
3. Pull upward and remove the protective cap over the positive (+) battery post.
4. If using another vehicle to jump start the battery, park the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
JUMP STARTING PROCEDURE
Connecting The Jumper Cables

1. Connect the positive
(+) end of the jumper cable
to the positive (+)
post of the vehicle with the
discharged battery.

2. Connect the opposite end of the positive (+) jumper
cable to the positive (+) post of the booster battery.
3. Connect the negative (-) end of the jumper cable to
the negative (-) post of the booster battery.
4. Connect the opposite end of the negative (-) jumper
cable to the remote negative (-) post (exposed
metallic/unpainted post of the discharge vehicle)
near the windshield cowl.
5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then
start the engine in the vehicle with the discharged
battery.
6. Once the engine is started, follow the disconnecting procedure. Disconnecting The Jumper Cables

1. Disconnect the negative

(-)
end of the jumper cable
from the remote negative post of the vehicle with the
discharged battery.

2. Disconnect the opposite end of the negative (-)
jumper cable from the negative (-) post of the booster
battery.
3. Disconnect the positive (+) end of the jumper cable
from the positive (+) post of the booster battery.
4. Disconnect the opposite end of the positive (+)
jumper cable from the positive (+) post of the vehicle
with the discharged battery and reinstall the
protective cap.
If frequent jump starting is required to start your vehicle
you should have the battery and charging system
inspected at an authorized dealer.
WARNING!
Do not allow vehicles to touch each other as this could
establish a ground connection and personal injury
could result.
WARNING!
Failure to follow this jump starting procedure could
result in personal injury or property damage due to
battery explosion.
CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
WARNING!
Do not connect the jumper cable to the negative (-) post
of the discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury.
CAUTION!
Accessories plugged into the vehicle power outlets draw
power from the vehicle’s battery, even when not in use
(i.e., cellular devices, etc.). Eventually, if plugged in long
enough without engine operation, the vehicle’s battery
will discharge sufficiently to degrade battery life and/or
prevent the engine from starting.

23_RUV_OM_EN_US_t.book Page 186

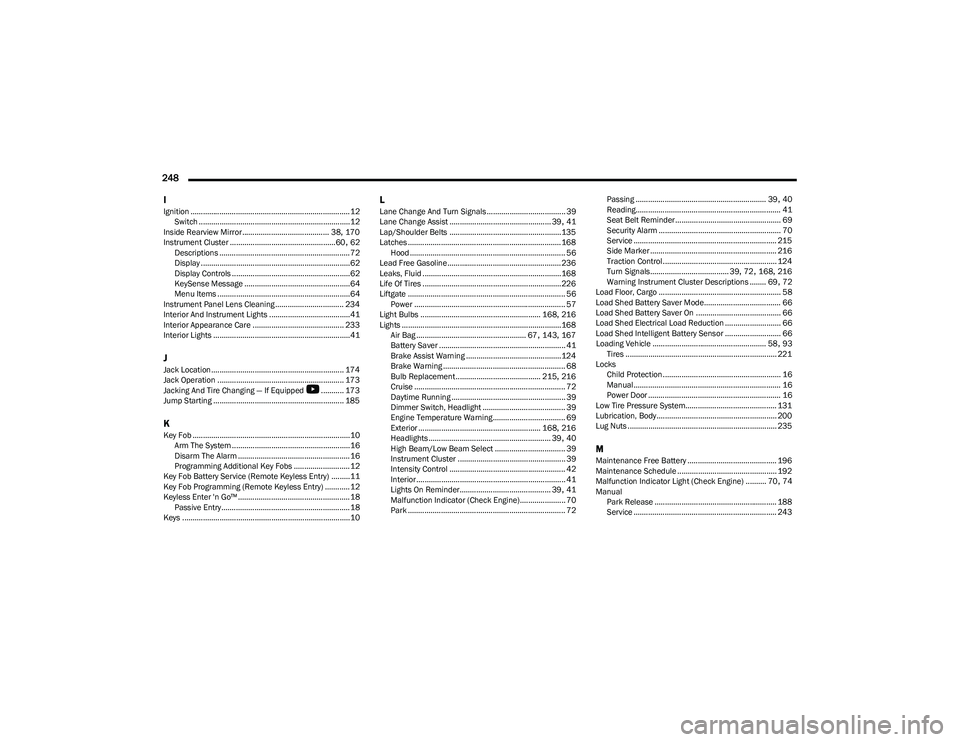

248 I
Ignition .............................................................................12 Switch .........................................................................12
Inside Rearview Mirror.......................................... 38
, 170
Instrument Cluster ...................................................60, 62
Descriptions ............................................................... 72
Display ........................................................................62
Display Controls .........................................................62
KeySense Message ...................................................64
Menu Items ................................................................64
Instrument Panel Lens Cleaning ................................. 234
Interior And Instrument Lights .......................................41
Interior Appearance Care ............................................ 233
Interior Lights ..................................................................41
JJack Location................................................................ 174
Jack Operation ............................................................. 173
Jacking And Tire Changing — If Equipped

b
........... 173
Jump Starting ............................................................... 185
KKey Fob ............................................................................10 Arm The System .........................................................16
Disarm The Alarm ...................................................... 16
Programming Additional Key Fobs ...........................12
Key Fob Battery Service (Remote Keyless Entry) .........11
Key Fob Programming (Remote Keyless Entry) ............ 12
Keyless Enter 'n Go™ ...................................................... 18 Passive Entry .............................................................. 18
Keys .................................................................................10
LLane Change And Turn Signals...................................... 39 Lane Change Assist ................................................. 39, 41
Lap/Shoulder Belts ...................................................... 135
Latches .......................................................................... 168 Hood ........................................................................... 56
Lead Free Gasoline....................................................... 236
Leaks, Fluid ...................................................................168
Life Of Tires ...................................................................226
Liftgate ............................................................................ 56 Power ......................................................................... 57
Light Bulbs .......................................................... 168
, 216
Lights .............................................................................168 Air Bag ..................................................... 67
, 143, 167
Battery Saver ............................................................. 41
Brake Assist Warning .............................................. 124 Brake Warning ........................................................... 68
Bulb Replacement......................................... 215
, 216
Cruise ......................................................................... 72
Daytime Running ....................................................... 39
Dimmer Switch, Headlight ........................................ 39
Engine Temperature Warning................................... 69
Exterior ........................................................... 168
, 216
Headlights ........................................................... 39, 40
High Beam/Low Beam Select .................................. 39
Instrument Cluster .................................................... 39
Intensity Control ........................................................ 42
Interior........................................................................ 41
Lights On Reminder............................................ 39
, 41
Malfunction Indicator (Check Engine)...................... 70
Park ............................................................................ 72 Passing ............................................................... 39
, 40
Reading...................................................................... 41
Seat Belt Reminder ................................................... 69
Security Alarm ........................................................... 70
Service ..................................................................... 215 Side Marker ............................................................. 216
Traction Control ....................................................... 124Turn Signals...................................... 39
, 72, 168, 216
Warning Instrument Cluster Descriptions ........ 69, 72
Load Floor, Cargo ........................................................... 58
Load Shed Battery Saver Mode..................................... 66
Load Shed Battery Saver On ......................................... 66 Load Shed Electrical Load Reduction ........................... 66Load Shed Intelligent Battery Sensor ........................... 66Loading Vehicle ....................................................... 58
, 93
Tires ......................................................................... 221
Locks Child Protection ......................................................... 16
Manual ....................................................................... 16
Power Door ................................................................ 16
Low Tire Pressure System............................................ 131
Lubrication, Body.......................................................... 200
Lug Nuts ........................................................................ 235
MMaintenance Free Battery ........................................... 196
Maintenance Schedule ................................................ 192
Malfunction Indicator Light (Check Engine) .......... 70
, 74
Manual Park Release ........................................................... 188
Service ..................................................................... 243

23_RUV_OM_EN_US_t.book Page 248

249
Map/Reading Lights ....................................................... 41
Marker Lights, Side ...................................................... 216
Media Hub ....................................................................... 52Methanol ...................................................................... 236
Mirrors .............................................................................38 Automatic Dimming ...................................................38
Exterior Folding ..........................................................39
Heated .................................................................38
, 39
Outside ....................................................................... 38
Rearview ........................................................... 38
, 170
Vanity ..........................................................................38
Modifications/Alterations Vehicle .......................................................................... 7
Monitor, Tire Pressure System .................................... 131
Mopar Parts .................................................................. 242
MP3 Control ....................................................................52
Multi-Function Control Lever ..........................................39
NNew Vehicle Break-In Period ..........................................78
OOccupant Restraints .................................................... 134
Octane Rating, Gasoline (Fuel) .......................... 236, 238
Oil Change Indicator ....................................................... 63 Reset ..........................................................................63
Oil Filter, Change .......................................................... 197
Oil Filter, Selection ....................................................... 197
Oil Life Reset

b
............................................................63
Oil Pressure Light ............................................................69 Oil, Engine ........................................................... 197
, 238
Capacity ...................................................................238 Checking .................................................................. 196
Dipstick ....................................................................196Disposal ...................................................................197Filter ............................................................... 197
, 238
Filter Disposal .......................................................... 197
Identification Logo...................................................197
Materials Added To ................................................. 197
Pressure Warning Light............................................. 69
Recommendation .......................................... 197
, 238
Synthetic .................................................................. 197
Viscosity ...................................................................238
Onboard Diagnostic System........................................... 73
Operating Precautions.................................................... 73 Operator Manual Owner's Manual ....................................................... 243
Outside Rearview Mirrors............................................... 38
Overheating, Engine ..................................................... 187
PPaint Care...................................................................... 232
Parking Brake ................................................................. 79
ParkSense System, Rear................................................ 87
Passive Entry................................................................... 18 Pets ................................................................................ 167
Placard, Tire And Loading Information ........................ 221
Power Brakes ...................................................................... 235
Mirrors ........................................................................ 39
Outlet (Auxiliary Electrical Outlet) ............................. 52
Seats .......................................................................... 33
Steering ...................................................................... 84 Power Seats
Down .......................................................................... 33
Forward ...................................................................... 33
Rearward ................................................................... 33
Up ............................................................................... 33
Power Sliding Door On / Off Switch ................................................... 20
, 57
Pregnant Women And Seat Belts ................................ 140
Preparation For Jacking ............................................... 173
Pretensioners Seat Belts ................................................................ 141
RRadial Ply Tires ............................................................. 225
Radiator Cap (Coolant Pressure Cap) ......................... 205
Radio Operation ........................................................... 120
Rear Air Conditioning ..................................................... 47
Rear Cross Path............................................................ 128
Rear ParkSense System ................................................ 87Rear Seat Reminder ..................................................... 121
Rear View ........................................................................ 38
Reclining Front Seats ..................................................... 24
Recreational Towing ..................................................... 101
Reformulated Gasoline ................................................ 236
Refrigerant .................................................................... 199
Release, Hood ................................................................ 56
Reminder, Lights On....................................................... 39Reminder, Seat Belt ..................................................... 135
Remote Control Starting System ......................................................... 14
Remote Keyless Entry Arm The Alarm ........................................................... 16
Disarm The Alarm ..................................................... 16
Programming Additional Key Fobs ........................... 12
11

23_RUV_OM_EN_US_t.book Page 249

250
Remote StartingExit Remote Start Mode ............................................14
Uconnect Customer Programmable Features .........15
Uconnect Settings...................................................... 15
Remote Starting System.................................................14
Replacement Bulbs...................................................... 215
Replacement Tires ....................................................... 226
Reporting Safety Defects............................................. 243
Restraints, Child ........................................................... 153
Restraints, Head ............................................................. 35
Rotation, Tires .............................................................. 230
SSafety Checks Inside Vehicle ...................................... 167
Safety Checks Outside Vehicle ................................... 168
Safety Defects, Reporting............................................ 243
Safety Information, Tire ............................................... 217
Safety Tips .................................................................... 167
Safety, Exhaust Gas ..................................................... 169
Schedule, Maintenance............................................... 192
Screen Setup ...................................................................65
Seat Belt Reminder.........................................................69 Seat Belts ............................................................ 135
, 167
Adjustable Shoulder Belt........................................ 138
Adjustable Upper Shoulder Anchorage ................. 138
Adjustable Upper Shoulder Belt Anchorage.......... 138
Automatic Locking Retractor (ALR)........................ 141
Child Restraints ...................................................... 153
Energy Management Feature ................................ 141
Extender .................................................................. 140
Front Seat....................................................... 135
, 137 Inspection ................................................................ 167
Lap/Shoulder Belt Operation ................................. 137
Lap/Shoulder Belt Untwisting ................................ 137
Lap/Shoulder Belts ................................................. 135
Operating Instructions............................................. 137Pregnant Women..................................................... 140Pretensioners .......................................................... 141
Rear Seat ................................................................. 135
Reminder ................................................................. 135
Seat Belt Extender...................................................140
Seat Belt Pretensioner ............................................141
Untwisting Procedure .............................................. 137
Seat Belts Maintenance ............................................... 233
Seats.................................................................. 23
, 33, 34
Adjustment................................................... 23, 24, 33
Heated........................................................................ 34
Power ......................................................................... 33
Rear Folding............................................................... 23
Reclining .................................................................... 24
Seatback Release .............................................. 23
, 24
Stow ‘n Go (Fold in Floor).......................................... 30
Tilting ................................................................... 23
, 24
Security Alarm ................................................................. 70 Arm The System......................................................... 16
Disarm The System ................................................... 16
Selection Of Coolant (Antifreeze)................................. 238
Sentry Key (Immobilizer) ................................................ 12
Service Assistance........................................................ 240
Service Contract ...........................................................242
Service Manuals ...........................................................243
Shifting Automatic Transmission ........................................... 82
Shoulder Belts .............................................................. 135 Side View Mirror Adjustment ......................................... 38
Signals, Turn .......................................... 39
, 72, 168, 216
Snow Chains (Tire Chains) ........................................... 230
Snow Tires .................................................................... 227
Spare Tire Changing ..................................................... 173
Spare Tire Stowage ...................................................... 180
Spare Tires ................................................. 174
, 228, 229
Specifications Oil ............................................................................. 238
Speed Control Cancel ........................................................................ 87
Resume...................................................................... 87
Starting..................................................................... 14
, 75
Button ........................................................................ 12
Cold Weather............................................................. 77
Engine Fails To Start ................................................. 77
Remote ...................................................................... 14
Starting And Operating................................................... 75
Starting Procedures ....................................................... 75 Steering ........................................................................... 84 Tilt Column................................................................. 22
Wheel, Heated ........................................................... 22
Wheel, Tilt .................................................................. 22
Storage ............................................................................ 49 Stow ‘n Go (Fold In Floor) Seats .................................... 30
Stuck, Freeing............................................................... 189
Sunglasses Storage ....................................................... 49Supplemental Restraint System – Air Bag ................. 144
Sway Control, Trailer .................................................... 125
Symbol Glossary ................................................................7
Synthetic Engine Oil ..................................................... 197
System, Remote Starting ............................................... 14

23_RUV_OM_EN_US_t.book Page 250
