Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
274 Driving and Operating
.Front side and rear side panels
.Outside of the windshield in front of the
rearview mirror
.Side camera lens on the bottom of the
outside mirrors
.Rear side corner bumpers
.Rear Vision Camera in the tailgate handle
.Rear Camera Mirror and Cargo View
Camera in the Center High-Mounted
Stoplamp
Radio Frequency
This vehicle may be equipped with driver
assistance systems that operate using radio
frequency. See Radio Frequency Statement
0 438.
Assistance Systems for Parking or
Backing
If equipped, the Rear Vision Camera (RVC),
Surround Vision, Rear Park Assist (RPA),
Front Park Assist (FPA), and Rear Cross
Traffic Alert (RCTA) may help the driver park
or avoid objects. Always check around the
vehicle when parking or backing.
The RVC, RPA, and Surround Vision will not
work properly if the tailgate is down. If the
tailgate is down, do not use these systems.
Rear Vision Camera (RVC)
When the vehicle is shifted into R (Reverse),
the RVC displays an image of the area
behind the vehicle in the infotainment
display. The previous screen displays when
the vehicle is shifted out of R (Reverse) after
a short delay. To return to the previous
screen sooner, press any button on the
infotainment system, shift into P (Park), or,
while in D (Drive), reach a vehicle speed of
approximately 12 km/h (8 mph). The rear
vision camera is in the tailgate handle.
1. View Displayed by the Rear Vision
Camera
1. View Displayed by the Rear VisionCamera
2. Corners of the Rear Bumper
Displayed images may be farther or closer
than they appear. The area displayed is
limited and objects that are close to either
corner of the bumper or under the bumper
do not display.
A warning triangle may display to show
that Rear Park Assist (RPA) has detected an
object. This triangle changes from amber to
red and increases in size the closer the
object.
If equipped with Hitch View, see Surround
Vision System 0275.

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
280 Driving and Operating
The vehicle may be equipped with a
Trailer Angle Indicator. The Trailer Angle
Indicator gives the driver a visual
representation of the trailer’s position
relative to the vehicle. (Available only in
Reverse, Guidelines On, Rear Trailering
Views).
{Warning
Use Hitch Guidance only to help back the
vehicle to a trailer hitch or, when
traveling above 12 km/h (8 mph), to
briefly check the status of your trailer. Do
not use for any other purpose, such as
making lane change decisions. Before
making a lane change, always check the
mirrors and glance over your shoulder.
Improper use could result in serious
injury to you or others.
HD Surround Vision with Trailer Camera
Provisions
If equipped, this feature provides additional
views to aid in trailering/towing. The
system shows multiple views in the
infotainment display using five cameras
mounted around the vehicle and up to two
additional accessory cameras that can be
mounted on or in a trailer. The front camera is in the grille under the front emblem, the
side cameras are on the bottom of the
outside mirrors, the rear camera is in the
tailgate handle and the bed camera is
mounted on the rear of the cab.
Additionally, up to two accessory cameras
can be mounted to the rear and/or interior
of the trailer. See your dealer for accessory
trailer cameras. To access, touch CAMERA on
the infotainment display or shift to
R (Reverse). To return to the previous screen
when not in reverse, touch the Home or
Back buttons on the infotainment display.
Certain trailer views require a compatible
trailer profile be configured and selected.
A compatible trailer is a box type trailer
(cargo, camper, etc.) with a conventional
hitch.
Available camera views:
.Front/Rear Standard View
.Front/Rear Top-Down View
.Rear Bowl View
.Front/Rear Side View
.Hitch View
.Bed View
.Rear trailer View
.Rear Side view with a available
articulation functionality
.Picture-in-Picture Side View
.Interior Trailer View
.Transparent trailer View
.Surround View
.Guidance Lines
.Hitch Guidance
Surround Vision (360 Degrees)
If equipped, the Surround Vision system can
display various views surrounding the
vehicle in the infotainment display using
four cameras mounted around the vehicle.
The front camera is in the grille under the
front emblem, the side cameras are on the
bottom of the outside mirrors, and the rear
camera is in the tailgate handle.
The Surround Vision system can be accessed
by selecting CAMERA in the infotainment
display or when the vehicle is shifted into
R (Reverse). To return to the previous screen
sooner, when not in R (Reverse), press the
Home or Back button on the infotainment
system, shift into P (Park), or, while in D
(Drive), reach a vehicle speed of
approximately 12 km/h (8 mph).
Available camera views:
.Front/Rear Standard View
.Front/Rear Top-Down View

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
Driving and Operating 281
.Rear Bowl View
.Front/Rear Side View
.Hitch View
.Surround View
.Guidance Lines
.Hitch Guidance
Surround Vision
If equipped, this feature provides, additional
views to aid in trailering/towing. The Front
Vision Camera and Surround Vision cameras
are not supported. The system can show
various views in the infotainment display
using cameras mounted in and around the
vehicle and trailer. The rear camera is in the
tailgate handle and the cargo bed camera is
mounted on the rear of the cab. Up to two
accessory cameras can be mounted to the
rear and/or interior of the trailer. See your
dealer for these accessory cameras.
The system can be accessed by selecting
CAMERA in the infotainment display or
when the vehicle is shifted into R (Reverse).
To return to the previous screen sooner,
when not in R (Reverse), press the Home or
Back button on the infotainment system or
shift into P (Park).
Available camera views:
.Rear Standard View
.Hitch View
.Bed View
.Rear Trailer View
.Interior Trailer View
.Guidance Lines
.Hitch Guidance
Troubleshooting
The Transparent Trailer calibration may take
longer than expected or not calibrate if:
.The vehicle is driven too fast during
calibration. Speed should be maintained
below 50 km/h (31 mph).
.The vehicle is not driven straight during
calibration. Steering should be maintained
as straight as possible, excessive steering
during calibration may extend
calibration time.
.The calibration is attempted in low light.
Calibration should be attempted when
there is enough light.
.The calibration is attempted during
adverse weather conditions. Calibration
during conditions such as snow or heavy
rain should be avoided.
.The road surface is not ideal for
calibration. Calibration should be
attempted on an alternate road surface.
.The accessory trailer cameras are
swapped at the hitch connector. Ensure
that the camera mounted to the rear of
the trailer is connected to the rear trailer
camera input.
.The accessory trailer camera is mounted,
angled or rotated outside of the defined
mounting location (see camera
installation instructions).
Distortion may be observed in the calibrated
Transparent Trailer View if:
.The accessory trailer camera is mounted,
angled or rotated outside of the defined
mounting location (see camera
installation instructions).
The Transparent Trailer icon may appear
grayed out if:
.A compatible trailer profile is not
configured or a non-compatible trailer
profile is selected.
.The vehicle is in R (Reverse).
.The trailer is not connected.
.The accessory rear trailer camera is not
connected or connected to the incorrect
input.
The preview may not be provided or the
wrong preview may be provided if:

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
358 Vehicle Care
Taillamps, Turn Signal, Stoplamps,
and Back-Up Lamps
Base Level Taillamp Assembly
1. Stoplamp/Taillamp/Turn Signal Lamp
2. Back-Up Lamp
3. Side Marker Lamp
Uplevel Taillamp Assembly
1500 shown 2500/3500 similar
1. Back-Up Lamp
It is recommended to replace the grommets
when replacing a bulb. See your dealer.To replace one of these bulbs:
1. Open the tailgate.
2. Remove the two rear lamp assembly screws.
3. Pull the rear lamp assembly outward and rearward away from the box side to
remove it from the vehicle.

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22

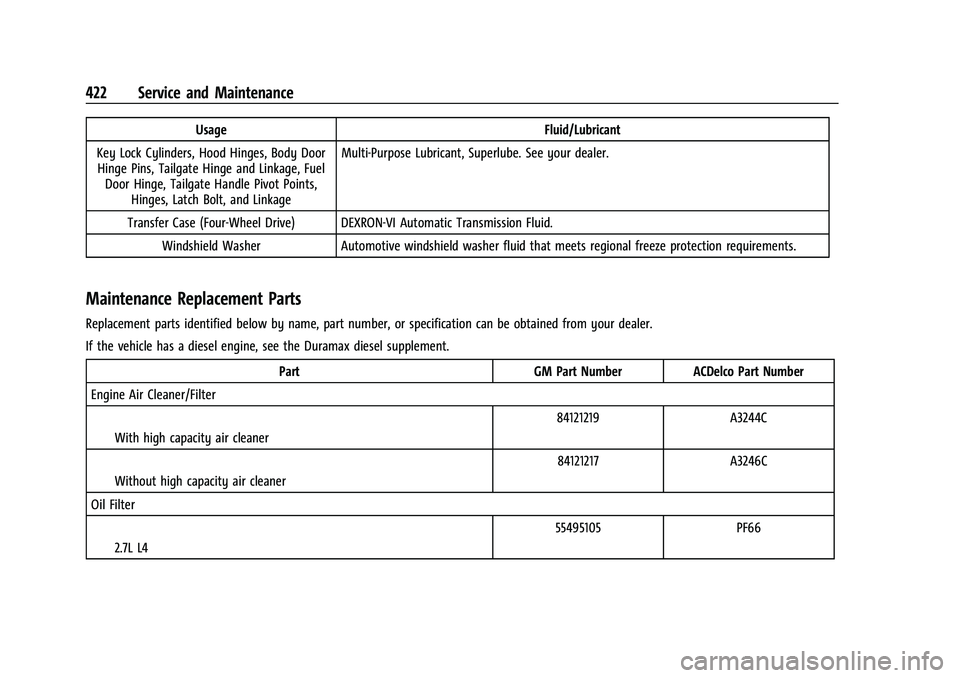

422 Service and Maintenance
UsageFluid/Lubricant
Key Lock Cylinders, Hood Hinges, Body Door Hinge Pins, Tailgate Hinge and Linkage, Fuel Door Hinge, Tailgate Handle Pivot Points, Hinges, Latch Bolt, and Linkage Multi-Purpose Lubricant, Superlube. See your dealer.
Transfer Case (Four-Wheel Drive) DEXRON-VI Automatic Transmission Fluid. Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
If the vehicle has a diesel engine, see the Duramax diesel supplement.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter
IWith high capacity air cleaner 84121219 A3244C
IWithout high capacity air cleaner 84121217 A3246C
Oil Filter I2.7L L4 55495105 PF66

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
450 Index
Appearance Care (cont'd)Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412
Apple CarPlay and Android Auto . . . . . 172, 173
Assistance Program, Roadside . . . . . . . . . . . . 433
Assistance Systems Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Parking and Backing . . . . . . . . . . . . . . . . . . . 274
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . 158, 159
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . . . . . . . . 34
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Emergency Braking (AEB) . . . . . . . . . . . . . . 286
Emergency Braking (AEB) DisabledLight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Headlamp System . . . . . . . . . . . . . . . . . . . . . 139
Transmission . . . . . . . . . . . . . . . . . . . . . . 220, 223
Transmission Fluid . . . . . . . . . . . . . . . . . . . . . 340
Transmission Shift Lock Control
Function Check . . . . . . . . . . . . . . . . . . . . . . . 354
Automatic Transmission
Manual Mode . . . . . . . . . . . . . . . . . . . . 227, 229
Auxiliary Roof Mounted Lamp . . . . . . . . . . . . . . . . . . . 142
Avoiding Untrusted Media Devices . . . . . . . . 157
Axle Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Locking Front . . . . . . . . . . . . . . . . . . . . . . . . . . 244 Axle (cont'd)
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
B
Battery
Exterior Lighting Battery Saver . . . . . . . . 146
Load Management . . . . . . . . . . . . . . . . . . . . . 145
Power Protection . . . . . . . . . . . . . . . . . . . . . . 146
Battery - North America . . . . . . . . . . . . .351, 399
Blade Replacement, Wiper . . . . . . . . . . . . . . . 355
Blind Spot Mirrors . . . . . . . . . . . . . . . . . . . . . . . . 34
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158, 159
Overview . . . . . . . . . . . . . . . . . . . . . 164, 165, 168
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Pad Life System . . . . . . . . . . . . . . . . . . . . . . . 349
System Warning Light . . . . . . . . . . . . . . . . . . 118
Brake Pad Life System . . . . . . . . . . . . . . . . . . . 349
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Electric Brake Boost . . . . . . . . . . . . . . . . . . . . 234
Electric Parking Brake . . . . . . . . . . . . . . . . . . 235
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196 Automatic Emergency (AEB) . . . . . . . . . . . 286
Braking System Front Pedestrian (FPB) . . . . . . . . . . . . . . . . . 288 Break-In, New Vehicle . . . . . . . . . . . . . . . . . . . . 210
Buckle To Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . 357
Center High-Mounted Stoplamp(CHMSL) and Cargo Lamp . . . . . . . . . . . . 359
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 357
Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . 356
Headlamps, Front Turn Signal, Sidemarker, and Parking Lamps . . . . . . 357
License Plate Lamps . . . . . . . . . . . . . . . . . . . 359
Taillamps, Turn Signal, Stoplamps, and Back-up Lamps . . . . . . . . . . . . . . . . . . 358
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . . 383
C
Calibration Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
California Perchlorate Materials Requirements . . . 332
California Proposition 65 Warning . . . . . 1, 399
Camera Rear Vision (RVC) . . . . . . . . . . . . . . . . . . . . . . 274
Canadian Vehicle Owners . . . . . . . . . . . . . . . . . . .2
Capacities and Specifications . . . . . . . . . . . . . 426
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . 220
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . 202

Chevrolet Silverado 1500 Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico/Paraguay-16515119) - 2023 - CRC - 6/2/22
Index 459
StepsPower Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Stop/Start System . . . . . . . . . . . . . . . . . . . . . . . . 213
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 358
Storage Center Console . . . . . . . . . . . . . . . . . . . . . . . . . 94
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Floor Console . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Underseat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Super Cruise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Surround Vision System . . . . . . . . . . . . . . . . . 275
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
System Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Brake Pad Life . . . . . . . . . . . . . . . . . . . . . . . . . 349
Driver Assistance . . . . . . . . . . . . . . . . . . . . . . 272
Engine Air Filter Life . . . . . . . . . . . . . . . . . . . 341
Forward Collision Alert (FCA) . . . . . . . . . . . 284 System (cont'd)
Global Positioning . . . . . . . . . . . . . . . . . . . . . . 161
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . . . . 440
Rear Cross Traffic Alert . . . . . . . . . . . . . . . . 284
Surround Vision . . . . . . . . . . . . . . . . . . . . . . . . 275
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Taillamps
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 358
Task Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Text Telephone (TTY) Users . . . . . . . . . . . . . . 432
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . . 31
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
All-Terrain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . 383
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 372
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 385
Full-Size Spare . . . . . . . . . . . . . . . . . . . . . . . . . 399
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 387
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 381 Tires (cont'd)
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . 123
Pressure Monitor Operation . . . . . . . . . . . 377
Pressure Monitor System . . . . . . . . . . . . . . 377
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . . 371
Terminology and Definitions . . . . . . . . . . . 374
Uniform Tire Quality Grading . . . . . . . . . . 385
Wheel Alignment and Tire Balance . . . . 386
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 386
When It Is Time for New Tires . . . . . . . . . 383
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . . . 229
Tow/Haul Mode Light . . . . . . . . . . . . . . . . . . . 120
Towing App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Driving Characteristics . . . . . . . . . . . . . . . . . 299
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
General Information . . . . . . . . . . . . . . . . . . . 298
Recreational Vehicle . . . . . . . . . . . . . . . . . . . 403
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Trailer Sway Control (TSC) . . . . . . . . . . . . . 316
Traction Control System (TCS)/StabiliTrak
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Control/Electronic Stability Control . . . . 237
