2023 CHEVROLET CORVETTE Owners Manual

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
312 Service and Maintenance

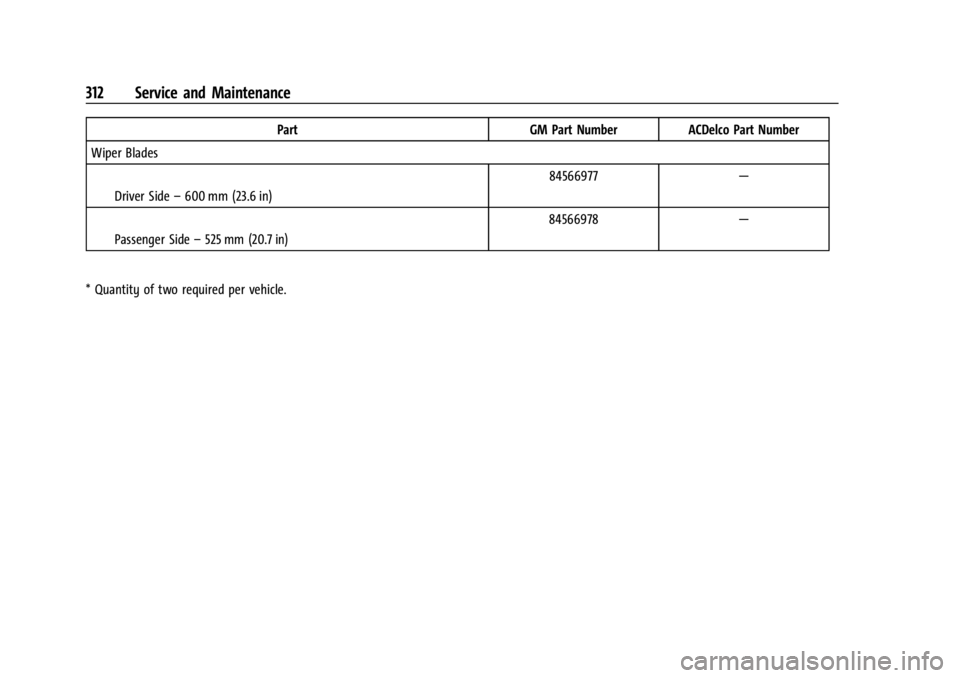

PartGM Part NumberACDelco Part Number
Wiper Blades
IDriver Side –600 mm (23.6 in) 84566977
—
IPassenger Side –525 mm (20.7 in) 84566978
—
* Quantity of two required per vehicle.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
Service and Maintenance 313

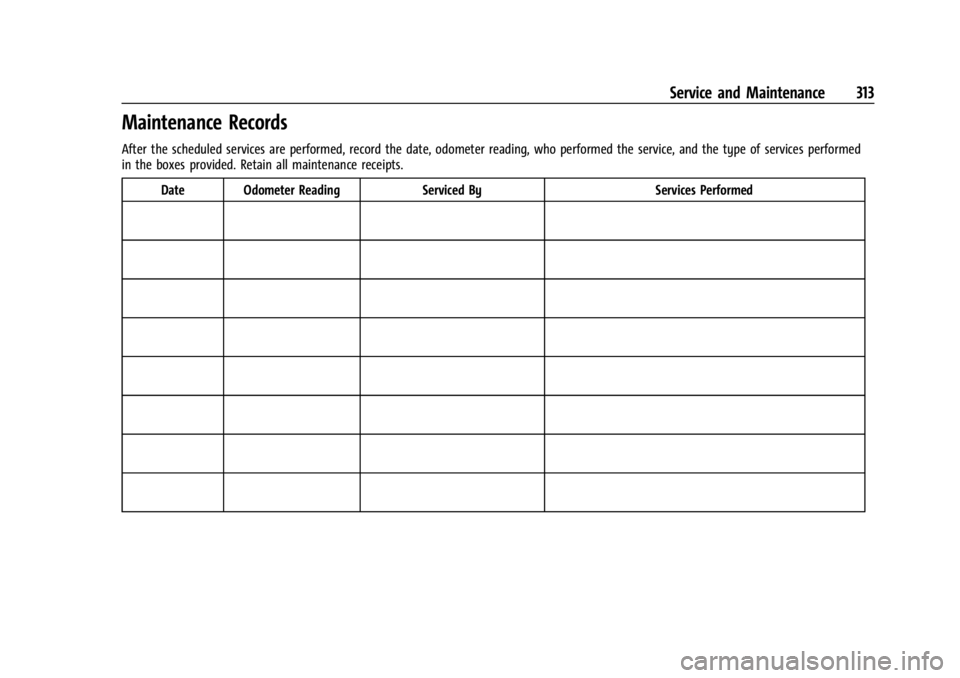

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed
in the boxes provided. Retain all maintenance receipts.Date Odometer Reading Serviced By Services Performed

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
314 Technical Data
Technical Data
Vehicle Identification
Vehicle Identification Number (VIN) . . . . 314
Service Parts Identification . . . . . . . . . . . . . 314
Vehicle Data
Capacities and Specifications . . . . . . . . . . . 315
Engine Drive Belt Routing . . . . . . . . . . . . . 318
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front corner of
the instrument panel, on the driver side of
the vehicle. It can be seen through the
windshield from outside. The Vehicle
Identification Number (VIN) also appears on
the Vehicle Certification label and certificates
of title and registration.
Engine Identification
The eighth character in the VIN is the
engine code. This code identifies the
vehicle's engine, specifications, and
replacement parts. See“Engine
Specifications” underCapacities and
Specifications 0315 for the vehicle's
engine code.
Service Parts Identification
There will be a large barcode on the
certification label located on the driver door
or door frame that you can scan for the
following information:
.Vehicle Identification Number (VIN)
.Model designation
.Paint information
.Production options

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
Technical Data 315
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions.
SeeRecommended Fluids and Lubricants 0310.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant charge type and amount, see the refrigerant label under the hood. See yourdealer for more information.
5.5L V8 Engine (LT6) Engine Cooling System* –Z06 23.5 L24.8 qt
6.2L V8 Engine (LT2) Engine Cooling System with Performance Package* –
Stingray 21.5 L
22.7 qt
6.2L V8 Engine (LT2) Engine Cooling System without Performance Package*
– Stingray 20.5 L
21.7 qt
Engine Oil with Filter
I5.5L V8 Engine (LT6) –Z06 7.6 L
8.0 qt
I6.2L V8 Engine (LT2) –Stingray 7.1 L
7.5 qt

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
316 Technical Data
ApplicationCapacities
Metric English
Fuel Tank 70.0 L 18.5 gal
Wheel Nut Torque 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual. Recheck fluid level
after filling
*Engine cooling system capacity values are based on the entire cooling system and its components.
Engine Specifications
Engine VIN Code Transmission Spark Plug GapFiring Order
5.5L V8 Engine (LT6) –Z06 3 Dual Clutch Transmission 0.65-0.75 mm
(0.026- 0.030 in)1-4-3-8-7-6-5-2
6.2L V8 Engine (LT2) –Stingray 4 Dual Clutch Transmission 0.95-1.10 mm
(0.037-0.043 in)1-8-7-2-6-5-4-3
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage the spark plug.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
Technical Data 317
Engine Data
EngineHorsepower TorqueDisplacement Compression Ratio
5.5L V8 Engine (LT6)
– Z06 670
460 lb ft 5.5 L12.5:1
6.2L V8 Engine (LT2) with
Performance Exhaust –
Stingray 495
470 lb ft 6.2 L 11.5:1
6.2L V8 Engine (LT2) with
Standard Exhaust –
Stingray 490
465 lb ft 6.2 L 11.5:1

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
318 Technical Data
Engine Drive Belt Routing
5.5L V8 Engine (LT6)–Z06
6.2L V8 Engine (LT2) –Stingray

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16287457) - 2023 - CRC - 3/10/22
Customer Information 319
Customer Information
Customer Information
Customer Satisfaction Procedure . . . . . . . 319
Customer Assistance Offices . . . . . . . . . . . 321
Customer Assistance for Text Telephone(TTY) Users . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
Online Account . . . . . . . . . . . . . . . . . . . . . . . . 321
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Roadside Assistance Program . . . . . . . . . . 322
Scheduling Service Appointments . . . . . . 324
Courtesy Transportation Program . . . . . 324
Collision Damage Repair . . . . . . . . . . . . . . . 325
Publication Ordering Information . . . . . . 327
Radio Frequency Statement . . . . . . . . . . . 327
Reporting Safety Defects
Reporting Safety Defects to the United States Government . . . . . . . . . . . . . . . . . . 327
Reporting Safety Defects to the Canadian Government . . . . . . . . . . . . . . . 328
Reporting Safety Defects to General Motors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
Vehicle Data Recording and Privacy
Vehicle Data Recording and Privacy . . . 328
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Event Data Recorders . . . . . . . . . . . . . . . . . . 329
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Infotainment System . . . . . . . . . . . . . . . . . . 330Customer Information
Customer Satisfaction Procedure
Your satisfaction and goodwill are important
to your dealer and to Chevrolet. Normally,
any concerns with the sales transaction or
the operation of the vehicle will be resolved
by your dealer's sales or service
departments. Sometimes, however, despite
the best intentions of all concerned,
misunderstandings can occur. If your concern
has not been resolved to your satisfaction,
the following steps should be taken:
STEP ONE : Discuss your concern with a
member of dealership management.
Normally, concerns can be quickly resolved
at that level. If the matter has already been
reviewed with the sales, service, or parts
manager, contact the owner of your
dealership or the general manager.
STEP TWO : If after contacting a member of
dealership management, it appears your
concern cannot be resolved by your
dealership without further help, in the U.S.,
call the Chevrolet Customer Assistance
Center at 1-800-222-1020. In Canada, call
General Motors of Canada Customer Care
Centre at 1-800-263-3777 (English),
or 1-800-263-7854 (French).
