2023 CADILLAC XT6 tow

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
30 Keys, Doors, and Windows
Kick Zone
To operate, move your foot in
a forward kicking motion under
the left side of the rear
bumper, at the location of the
projected logo, then pull it
back. Then step back. The kick
must come within 14 cm (6 in)
of the rear bumper to activate.
.Do not sweep your foot side
to side.
.Do not keep your foot under
the bumper; the liftgate will
not activate.
.Do not touch the liftgate
until it has stopped moving.
.This feature may be
temporarily disabled under
some conditions. If the
liftgate does not respond to
the kick, open or close the
liftgate by another method
or start the vehicle. The
feature will be re-enabled.
When closing the liftgate using
this feature, there will be a
short delay. The taillamps will
flash and a chime will sound.
Step away from the liftgate
before it starts moving.
Projected Logo
If equipped, a vehicle logo will
be projected for one minute
onto the ground near the rear
bumper when an remote key is
detected within approximately
2 m (6 ft) from the rear
bumper. The projected logo
may not be visible under
brighter daytime conditions.
1. 1 m (3 ft) Hands-Free Operation Detection Zone
2. 2 m (6 ft) Projected Logo Detection Zone
The projected logo shows
where to kick toward the rear
bumper.
The projected logo will not be
restarted using the same
remote key unless it has been
out of range for longer than
20 seconds.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22

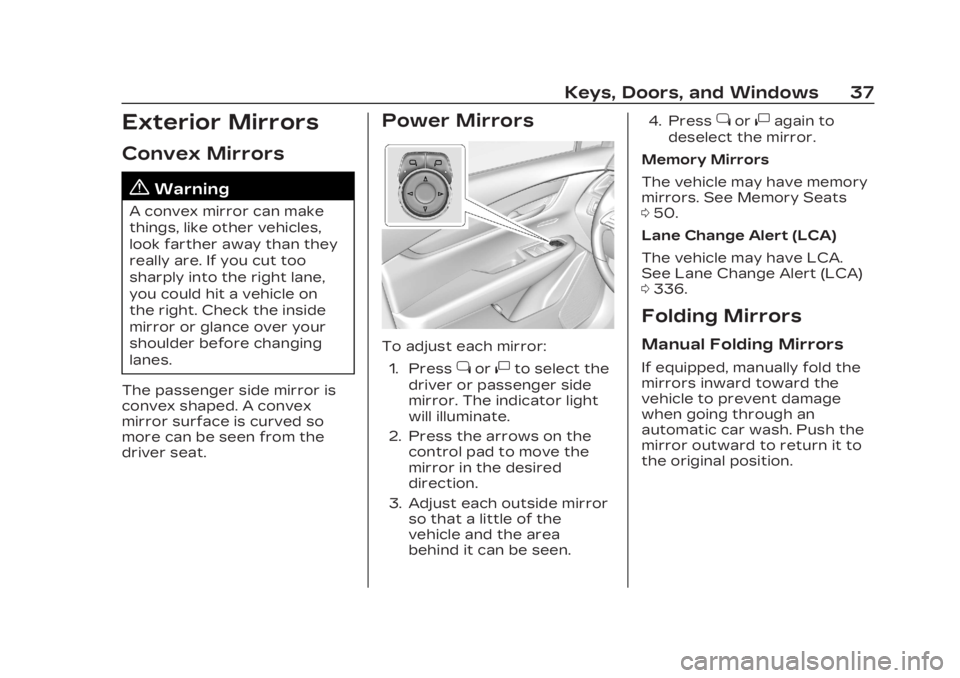

Keys, Doors, and Windows 37
Exterior Mirrors
Convex Mirrors
{Warning
A convex mirror can make
things, like other vehicles,
look farther away than they
really are. If you cut too
sharply into the right lane,
you could hit a vehicle on
the right. Check the inside
mirror or glance over your
shoulder before changing
lanes.
The passenger side mirror is
convex shaped. A convex
mirror surface is curved so
more can be seen from the
driver seat.
Power Mirrors
To adjust each mirror: 1. Press
jor|to select the
driver or passenger side
mirror. The indicator light
will illuminate.
2. Press the arrows on the control pad to move the
mirror in the desired
direction.
3. Adjust each outside mirror so that a little of the
vehicle and the area
behind it can be seen. 4. Press
jor|again to
deselect the mirror.
Memory Mirrors
The vehicle may have memory
mirrors. See Memory Seats
0 50.
Lane Change Alert (LCA)
The vehicle may have LCA.
See Lane Change Alert (LCA)
0 336.
Folding Mirrors
Manual Folding Mirrors
If equipped, manually fold the
mirrors inward toward the
vehicle to prevent damage
when going through an
automatic car wash. Push the
mirror outward to return it to
the original position.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
Keys, Doors, and Windows 39
The mirror(s) may move from
their tilted position when:
.The vehicle is shifted out of
R (Reverse), or remains in
R (Reverse) for about
30 seconds.
.The vehicle is turned off.
.The vehicle is driven in
R (Reverse) above a set
speed.
To view available settings
from the infotainment screen,
touch Settings > Vehicle >
Comfort and Convenience.
Interior Mirrors
Interior Rearview
Mirrors
Adjust the rearview mirror for
a clear view of the area behind
the vehicle.
Do not spray glass cleaner
directly on the mirror. Use a
soft towel dampened with
water.
Automatic Dimming
Rearview Mirror
If equipped, automatic
dimming reduces the glare of
headlamps from behind. The
dimming feature comes on
when the vehicle is started.
Rear Camera Mirror
If equipped, this automatic
dimming mirror provides a
wide angle camera view of the
area behind the vehicle.
Pull the tab to turn on the
display. Push the tab to turn it
off. When off the mirror is automatic dimming. Adjust the
mirror for a clear view of the
area behind the vehicle while
the display is off.
PressVto scroll through the
adjustment options.
Press
tanduto adjust the
settings using the indicators
on the mirror. The indicators
will remain visible for
five seconds after the last
button activation, and the
settings will remain saved.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
56 Seats and Restraints
closing the second row doors.
There may be an alert even
when there is nothing in the
rear seat; for example, if a
child entered the vehicle
through the rear door and left
the vehicle without the vehicle
being shut off.
The feature can be turned on
or off. Select Settings > Rear
Seat Reminder > ON or OFF.
Rear Seat Adjustment
The second row seats slide
forward for more room.
Bucket Seat Shown, BenchSeat Similar To adjust the seat position:
1. Remove objects on the floor in front of or on the
second row seat, or in the
seat tracks on the floor.
2. Lift the lever below the seat cushion and slide the
seat forward or backward.
Entering and Exiting the
Third Row
{Warning
Using the third row seating
position while the second
row is folded could cause
injury in a sudden stop or
crash. Be sure to return the
seat to the passenger
seating position. Push and
pull on the seat to make
sure it is locked into place.
{Warning
If the seatback and seat
base are not locked, the
seat could move forward in a
sudden stop or crash and
injure the occupant. Always
push and pull on the
seatbacks to be sure the
seatback and seat base are
locked.
Caution
Folding a rear seat with the
seat belts still fastened may
cause damage to the seat or
the seat belts. Always
unbuckle the seat belts and
return them to their normal
stowed position before
folding a rear seat.
To access the third row from
the passenger side:
The second row passenger
side seat can be easily moved
for third row entry or exit with
a forward-facing child

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Seats and Restraints 59
If available, the buttons are on
the rear of the center console.
With the engine running, press
MorLto heat the left or right
outboard seat cushion. An
indicator on the climate
control display appears when
this feature is on.
This feature turns on at the
highest setting. With each
press of the button, the
heated seat changes to the
next lower setting, and then
the off setting. Three lights
indicate the highest setting,
and one light indicates the lowest. If the heated seats are
on high, the level may
automatically be lowered after
approximately 30 minutes.
Third Row Seats
{Warning
Using the third row seating
position while the second
row is folded, or pushed
forward in the entry
position, could cause injury
in a sudden stop or crash.
Be sure to return the seat to
the passenger seating
position. Push and pull on
the seat to make sure it is
locked into place.
Caution
Folding a rear seat with the
seat belts still fastened may
cause damage to the seat or
the seat belts. Always
unbuckle the seat belts and
(Continued)
Caution (Continued)
return them to their normal
stowed position before
folding a rear seat.
Power Seatback Folding
(If Equipped)
1. Remove objects on thefloor in front of or on the
second row seat, or in the
seat tracks on the floor.
2. If the second row seat is in the full rear position, adjust
it forward to allow the
third row seat to fold
fully flat.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Seats and Restraints 61
2. To return the seatback tothe seating position from
the cargo area, press and
hold the seatback folding
switch on the passenger
side of the rear cargo area.
{Warning
If either seatback is not
locked, it could move
forward in a sudden stop or
crash. That could cause
injury to the person sitting
there. Always push and pull
on the seatbacks to be sure
they are locked. 3. Push and pull on the
seatback to make sure it is
locked in place.
Manual Seatback Folding
(If Equipped)
Caution
Folding a rear seat with the
seat belts still fastened may
cause damage to the seat or
the seat belts. Always
unbuckle the seat belts and
return them to their normal
stowed position before
folding a rear seat.
To fold the third row seatback: 1. Remove objects on the floor in front of or on the
second row seat, or in the
seat tracks on the floor.
2. If the second row seat is in the full rear position, adjust
it forward to allow the
third row seat to fold
fully flat.
3. Remove anything on or under the seat.
4. Pull the strap on theseatback.
5. Push the seatback forward to lay flat.
6. Repeat for the other seatback, if necessary.
Returning the Seat to the
Seating Position
To return the seatback to the
seating position: 1. From the rear of the vehicle, raise the seatback
to the upright position
using the strap on the back
of the third row seat, or lift

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
66 Seats and Restraints
Lap-Shoulder Belt
All seating positions in the
vehicle have a
lap-shoulder belt.
The following instructions
explain how to wear a
lap-shoulder belt properly.1. Adjust the seat, if the seat is adjustable, so you can sit
up straight. To see how,
see “Seats” in the Index.
2. Pick up the latch plate and
pull the belt across you. Do
not let it get twisted. The lap-shoulder belt may
lock if you pull the belt
across you very quickly.
If this happens, let the belt
go back slightly to unlock
it. Then pull the belt across
you more slowly.
If the shoulder portion of a
passenger belt is pulled
out all the way, the child
restraint locking feature
may be engaged. See Child
Restraint Systems
089.
If this occurs, let the belt
go back all the way and
start again. If the locking
feature stays engaged
after letting the belt go
back to stowed position on
the seat, move the seat
rearward or recline the
seat until the shoulder belt
retractor lock releases.
Engaging the child
restraint locking feature in
the front outboard seating
position may affect the
passenger sensing system.
See Passenger Sensing
System 078.
If the webbing locks in the
latch plate before it
reaches the buckle, tilt the
latch plate flat to unlock.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Seats and Restraints 67
3. Push the latch plate intothe buckle until it clicks.
Pull up on the latch plate
to make sure it is secure.
If the belt is not long
enough, see Seat Belt
Extender 070.
Position the release button
on the buckle so that the
seat belt could be quickly
unbuckled if necessary.
4. If equipped with a shoulder belt height adjuster, move
it to the height that is right
for you. See “Shoulder Belt
Height Adjuster” later in
this section for
instructions on use and
important safety
information.
5. To make the lap part tight, pull up on the
shoulder belt.
To unlatch the belt, push the
button on the buckle. The belt
should return to its stowed
position.
Always stow the seat belt
slowly. If the seat belt webbing
returns quickly to the stowed
position, the retractor may
lock and cannot be pulled out.
If this happens, pull the seat
belt straight out firmly to
unlock the webbing, and then
release it. If the webbing is still
locked in the retractor, see
your dealer.
Before a door is closed, be
sure the seat belt is out of the
way. If a door is slammed
against a seat belt, damage
can occur to both the seat
belt and the vehicle.
Shoulder Belt Height
Adjuster
The vehicle has a shoulder
belt height adjuster for the
driver and front outboard
passenger seating positions.
