Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
428 Service and Maintenance
Caution (Continued)
on the vehicle. The use of
flushes, solvents, cleaners,
or lubricants that are not
approved by GM could
damage the vehicle,
requiring expensive repairs
that are not covered by the
vehicle warranty.
The Tire Rotation and
Required Services are the
responsibility of the vehicle
owner. It is recommended to
have your dealer perform
these services every
12 000 km/7,500 mi. Proper
vehicle maintenance helps to
keep the vehicle in good
working condition, improves
fuel economy, and reduces
vehicle emissions.
Because of the way people
use vehicles, maintenance
needs vary. There may need to
be more frequent checks and
services. The Additional
Required Services - Normal
are for vehicles that:
.Carry passengers and cargo
within recommended limits
on the Tire and Loading
Information label. See
Vehicle Load Limits 0247.
.Are driven on reasonable
road surfaces within legal
driving limits.
.Use the recommended fuel.
See Recommended Fuel
(2.0L L4 Engine) 0318 or
Recommended Fuel (3.6L
V6 Engine) 0318.
Refer to the information in the
Maintenance Schedule
Additional Required Services -
Normal Service.
The Additional Required
Services - Severe are for
vehicles that are:
.Mainly driven in heavy city
traffic in hot weather.
.Mainly driven in hilly or
mountainous terrain.
.Frequently towing a trailer.
.Used for high speed or
competitive driving.
.Used for taxi, police,
or delivery service.
Refer to the information in the
Maintenance Schedule
Additional Required Services -
Severe Service.
{Warning
Performing maintenance
work can be dangerous and
can cause serious injury.
Perform maintenance work
only if the required
information, proper tools,
and equipment are available.
If they are not, see your
dealer to have a trained
technician do the work. See
Doing Your Own Service
Work 0339 or
Doing Your Own Service
Work 0340.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Service and Maintenance 429
Maintenance
Schedule
Tire Rotation and
Required Services Every
12 000 km (7,500 mi)
Tires are rotated to achieve a
more uniform wear for all tires.
The first rotation is the most
important.
Anytime unusual wear is
noticed, rotate the tires as
soon as possible, check for
proper tire inflation pressure,
and check for damaged tires
or wheels. If the unusual wear
continues after the rotation,
check the wheel alignment.
See When It Is Time for New
Tires0394 and
Wheel Replacement 0399.
.Perform Multi-Point Vehicle
Inspection. See Multi-Point
Vehicle Inspection (MPVI)
0431.
.Lubricate body components.
See Exterior Care 0416.
Additional Required
Services —Normal
Service
Every 12 000 km (7,500 mi)
.Check the engine oil level
and oil life percentage.
If needed, change engine the
oil and filter, and reset oil the
life system. Or when the
CHANGE ENGINE OIL SOON
message displays, have the
engine oil and filter changed
within the next 1 000 km/
600 mi. If driven under the
best conditions, the engine
oil life system may not
indicate the need for vehicle
service for up to a year. The
engine oil and filter must be
changed at least once a year
and the oil life system must
be reset. Your trained dealer
technician can perform this
work. If the engine oil life
system is reset accidentally,
service the vehicle within
5 000 km/3,000 mi since the
last service. Reset the oil life system when the oil is
changed. See Engine Oil Life
System
0348.
.When the REPLACE AT
NEXT OIL CHANGE
message displays, the engine
air filter should be replaced
at the next engine oil
change. When the REPLACE
ENGINE AIR FILTER SOON
message displays, the engine
air filter should be replaced
at the earliest convenience.
Reset the engine air filter life
system after the engine air
filter is replaced. See Engine
Air Filter Life System 0349.
Every 36 000 km (22,500 mi)
.Replace the passenger
compartment air filter. Or
every 24 months, whichever
comes first. More frequent
passenger compartment air
filter replacement may be
needed if driving in areas
with heavy traffic, poor air
quality, high dust levels,
or environmental allergens.
Passenger compartment air

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
430 Service and Maintenance
filter replacement may also
be needed if there is
reduced airflow, window
fogging, or odors. Your GM
dealer can help determine
when to replace the filter.
Every 96 000 km (60,000 mi)
.Replace spark plugs. (2.0L
L4 Engine Only.) Inspect
spark plug wires and/or
boots.
Every 156 000 km
(97,500 mi)
.Replace spark plugs. (3.6L
V6 Engine Only.) Inspect
spark plug wires and/or
boots.
Every 161 000 km
(100,000 mi)
.Replace hood and/or body
lift support gas struts. Or
every 10 years, whichever
comes first. See Gas Strut(s)
0 363. Every 240 000 km
(150,000 mi)
.Change rear axle fluid,
if equipped with AWD. Do
not directly power wash the
transfer case and/or front/
rear axle output seals. High
pressure water can
overcome the seals and
contaminate the transfer
case fluid. Contaminated
fluid will decrease the life of
the transfer case and/or
axles and should be
replaced.
.Drain and fill engine cooling
system. Or every six years,
whichever comes first. See
Cooling System
0352.
Severe Conditions
Requiring More Frequent
Maintenance*
.Public service, military,
or commercial use vehicles
to include the following:
‐ Ambulances, police cars,
and emergency rescue
vehicles. ‐
Civilian vehicles such as
light duty pick-up trucks,
SUVs, and passenger cars
that are used in military
applications.
‐ Recovery vehicles such as
tow trucks and flatbed
single vehicle carriers or
any vehicle that is
consistently used in towing
trailers or other loads.
‐ High use commercial
vehicles such as courier
delivery vehicles, private
security patrol vehicles,
or any vehicles that
operate on a 24–hour
basis.
‐ Any vehicle consistently
operated in a high sand or
dust environment such as
those used on oil pipelines
and similar applications..Vehicles that are regularly
used for short trips of 6 km
(4 mi) or less.
The oil life indicator will show
you when to change the oil
and filter. Under severe

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
432 Service and Maintenance
Engine Oil and Filter
.Engine oil
.Oil life monitor
‐Reset oil life monitor
Exterior Lights
.Visual inspection
Windshield and Wipers
.Visual inspection
Battery
.Battery visual inspection
.Battery test results
.Battery cables and
connections
Systems, Fluids, and
Visible Leak Inspection
.Engine oil
.Transmission
.Drive axle
.Transfer case
.Engine cooling system
.Power steering, if equipped
.Fuel system
.Windshield washer fluid
Tire Inspection
.Tire pressure, tread depth,
and wear
.Rotation, if applicable
.Alignment check, optional
.Reset tire pressure monitor
.Check tire sealant expiration
date, if equipped
.Check spare tire, if equipped
Brakes
.Check brake system
Visible and Functional
Inspections
.Seat belt components
.Exhaust system
.Accelerator pedal
.Passenger compartment air
filter, if equipped
.Engine air filter
.Hoses
.Belts
.Shocks and struts
.Steering components
.Axle boots or driveshaft and
u-joints
.Compartment lift struts,
if equipped
.Floor mats secured, no
interference with pedals
.Horn
.Ignition lock, if equipped
.Starter switch
.Evaporative control system
Lubricate
.Chassis components
Special Application
Services
.Severe Commercial Use
Vehicles Only: Lubricate
chassis components every
oil change.
.Have underbody flushing
service performed. See
"Underbody Maintenance" in
Exterior Care 0416.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Service and Maintenance 433

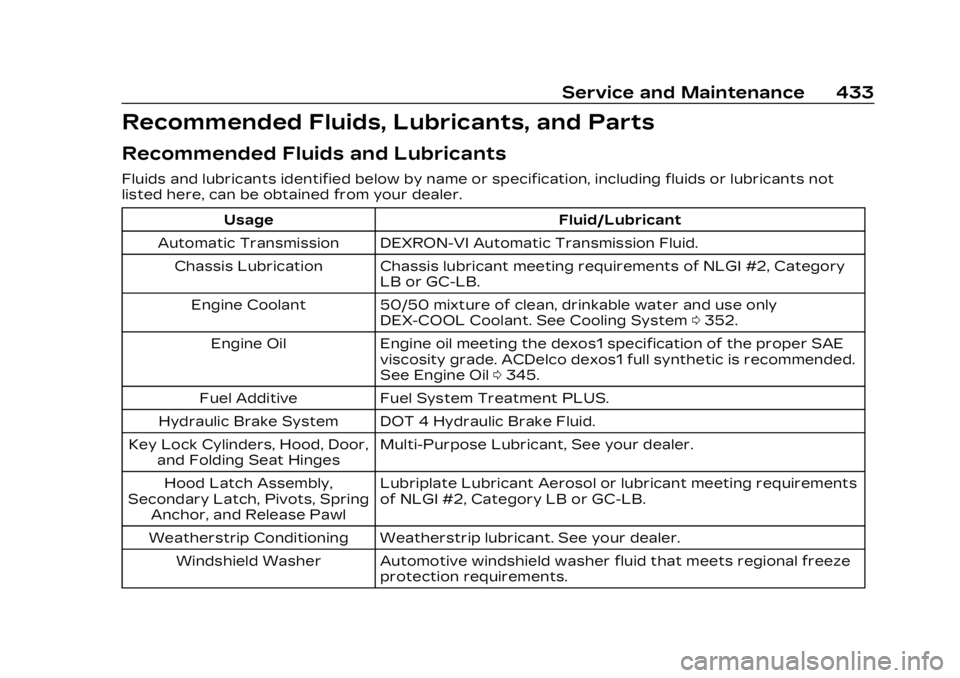

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name or specification, including fluids or lubricants not
listed here, can be obtained from your dealer.Usage Fluid/Lubricant
Automatic Transmission DEXRON-VI Automatic Transmission Fluid. Chassis Lubrication Chassis lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant. See Cooling System 0352.
Engine Oil Engine oil meeting the dexos1 specification of the proper SAE viscosity grade. ACDelco dexos1 full synthetic is recommended.
See Engine Oil0345.
Fuel Additive Fuel System Treatment PLUS.
Hydraulic Brake System DOT 4 Hydraulic Brake Fluid.
Key Lock Cylinders, Hood, Door, and Folding Seat Hinges Multi-Purpose Lubricant, See your dealer.
Hood Latch Assembly,
Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol or lubricant meeting requirements
of NLGI #2, Category LB or GC-LB.
Weatherstrip Conditioning Weatherstrip lubricant. See your dealer. Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
434 Service and Maintenance

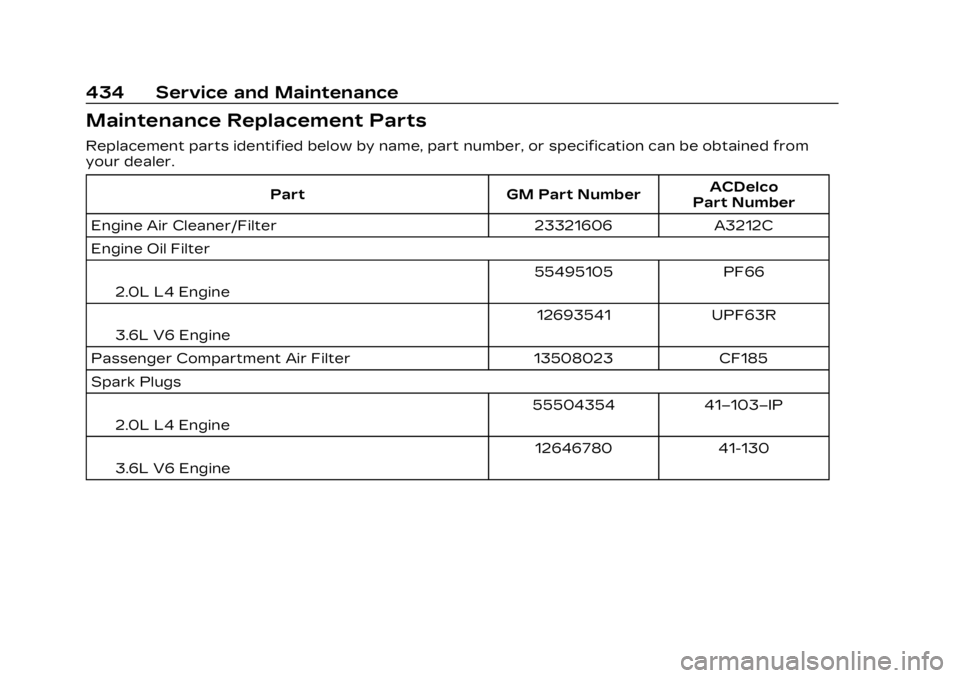

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from
your dealer.Part GM Part NumberACDelco
Part Number
Engine Air Cleaner/Filter 23321606A3212C
Engine Oil Filter
I2.0L L4 Engine 55495105
PF66
I3.6L V6 Engine 12693541
UPF63R
Passenger Compartment Air Filter 13508023CF185
Spark Plugs
I2.0L L4 Engine 55504354
41–103–IP
I3.6L V6 Engine 12646780
41-130

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Technical Data 437
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 437
Service Parts Identification . . . . . . . . . . . . . . 437
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . 438
Engine Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 440
Vehicle
Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the
front corner of the instrument
panel, on the driver side of the
vehicle. It can be seen through
the windshield from outside.
The Vehicle Identification
Number (VIN) also appears on
the Vehicle Certification label
and certificates of title and
registration.
Engine Identification
The eighth character in the
VIN is the engine code. This
code identifies the vehicle's
engine, specifications, and
replacement parts. See “Engine Specifications”
under
Capacities and Specifications
0 438 for the vehicle's
engine code.
Service Parts
Identification
There may be a large barcode
on the certification label on
the center pillar that you can
scan for the following
information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options
If there is not a large barcode
on this label, then you will find
this same information on a
label under the load floor,
inside the cargo storage
shelf unit.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
438 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. See
Recommended Fluids and Lubricants0433 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the
refrigerant label under the hood. See your dealer for more information.
Engine Cooling System*
I2.0L L4 Engine 8.5 L 9.0 qt
I3.6L V6 Engine 11.4 L 12.0 qt
Engine Oil with Filter I2.0L L4 Engine 5.0 L 5.3 qt
I3.6L V6 Engine 5.7 L 6.0 qt
