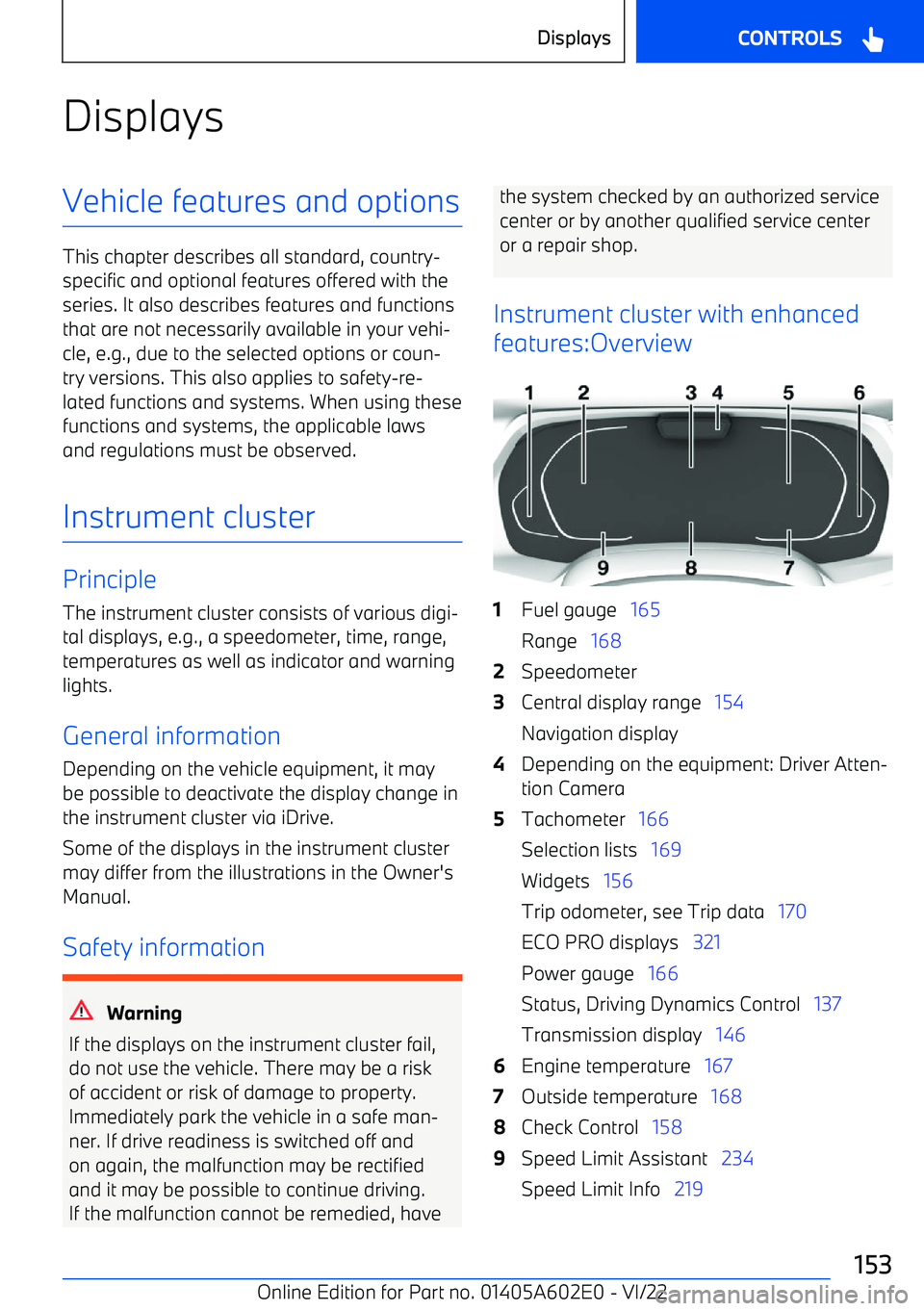

2023 BMW X3 Owners Manual

DisplaysVehicle features and options
This chapter describes all standard, country

Time 61
Instrument cluster without
enhanced features:Overview
1Fuel gauge 1652Speedometer3Check Control 158
Widgets 157
Service notifications 168
Trip odometer, see Trip data 170
Navigation display
Range 1684Tachometer 166
Power gauge 1665Engine temperature 1676Outside temperature 168
Transmission display
Status, Driving Dynamics Control 137
Time 617Speed Limit Info 219
Central display range
Depending on the equipment and configura

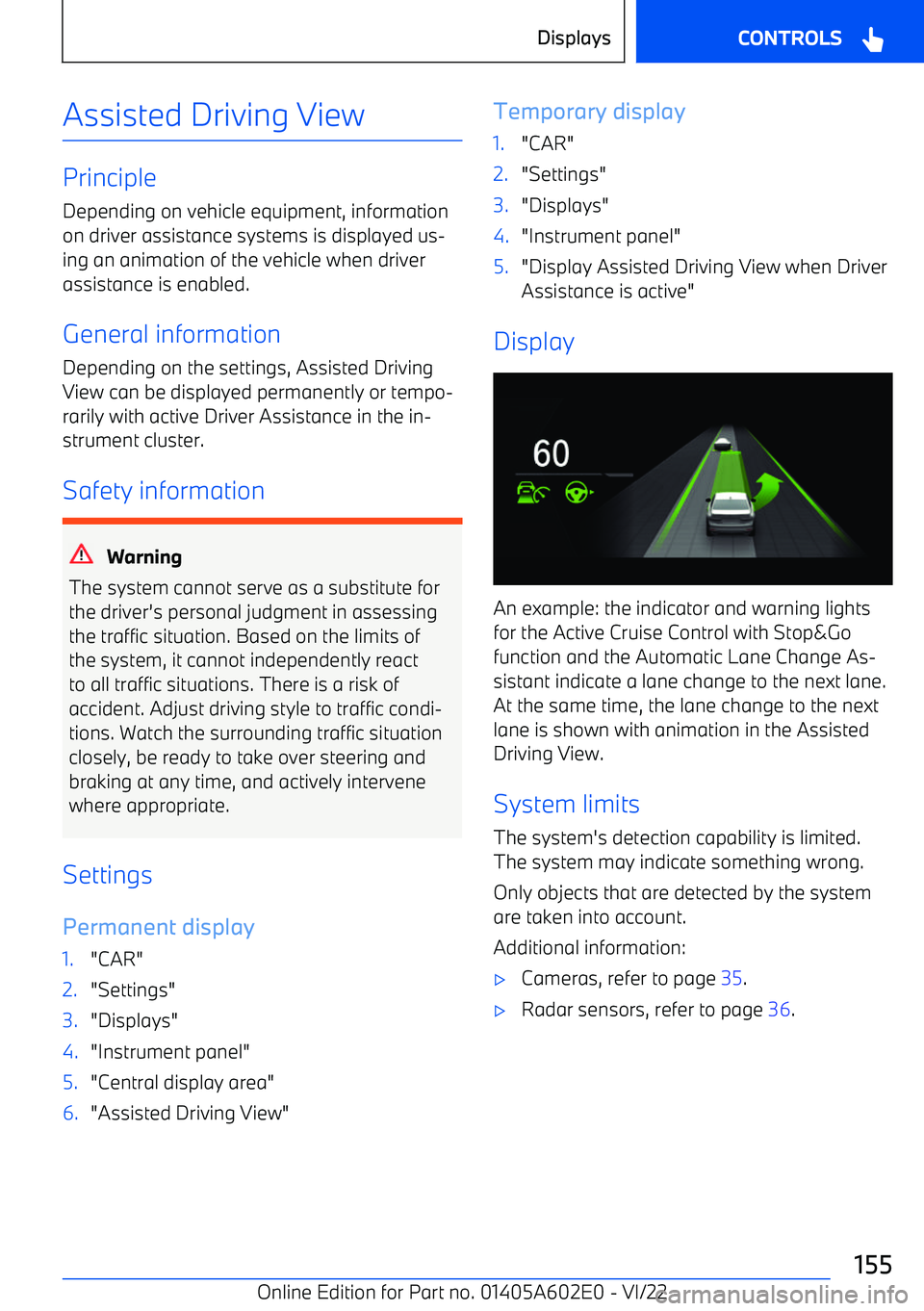

Assisted Driving View
PrincipleDepending on vehicle equipment, information
on driver assistance systems is displayed us

Instrument cluster with
extended features: Widgets
Principle Displays for specific functions can be displayed
in the instrument cluster.
The following displays can be selected:

partially charged and fuel consumption can bereduced.
ECO PRO bonus range
In the ECO PRO driving mode, the yielded ex

Display

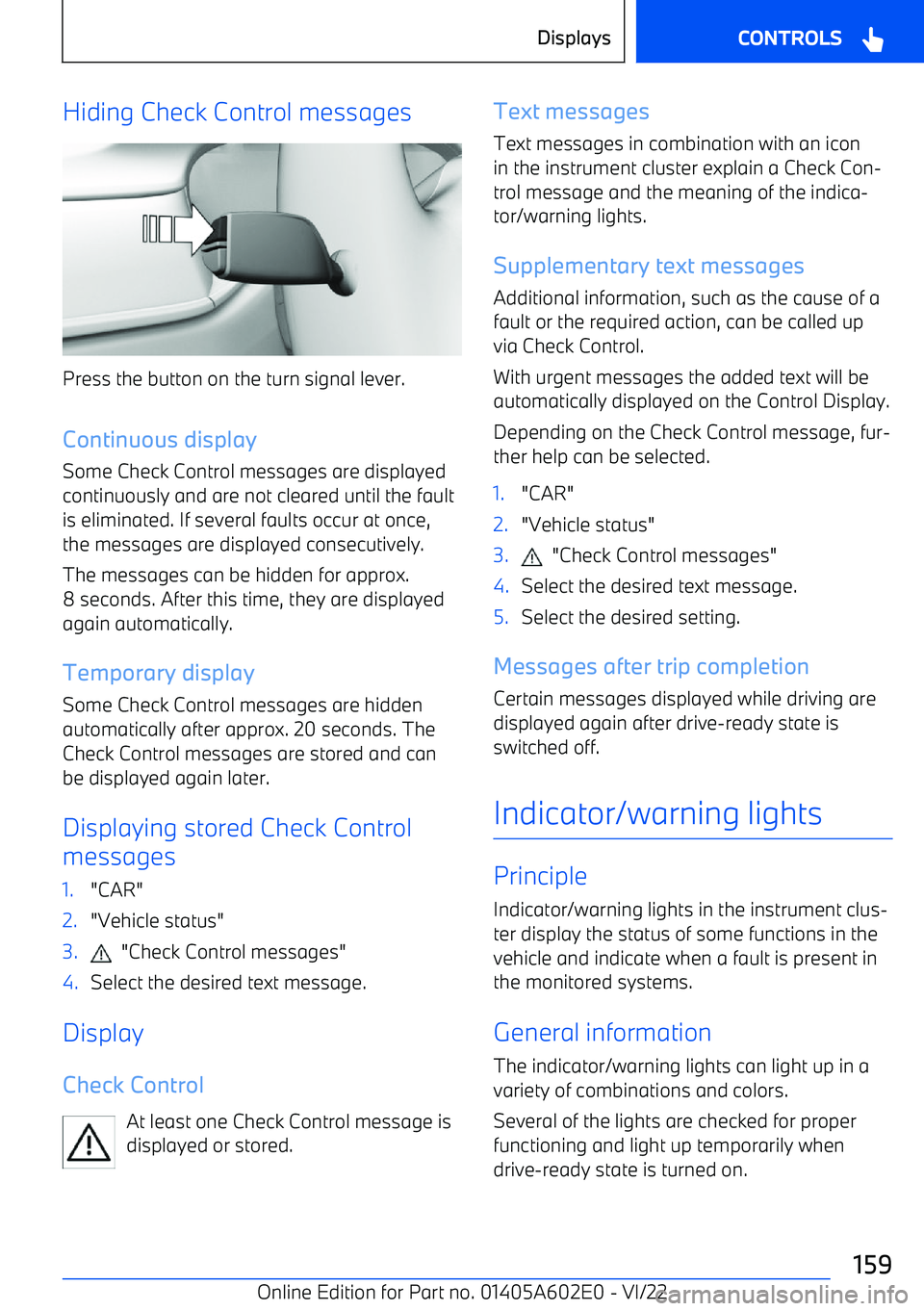

Hiding Check Control messages
Press the button on the turn signal lever.
Continuous display Some Check Control messages are displayed
continuously and are not cleared until the fault is eliminated. If several faults occur at once,the messages are displayed consecutively.
The messages can be hidden for approx.
8 seconds. After this time, they are displayed again automatically.
Temporary display Some Check Control messages are hiddenautomatically after approx. 20 seconds. TheCheck Control messages are stored and can
be displayed again later.
Displaying stored Check Control
messages
1."CAR"2."Vehicle status"3. "Check Control messages"4.Select the desired text message.
Display
Check Control At least one Check Control message isdisplayed or stored.
Text messages
Text messages in combination with an icon
in the instrument cluster explain a Check Con

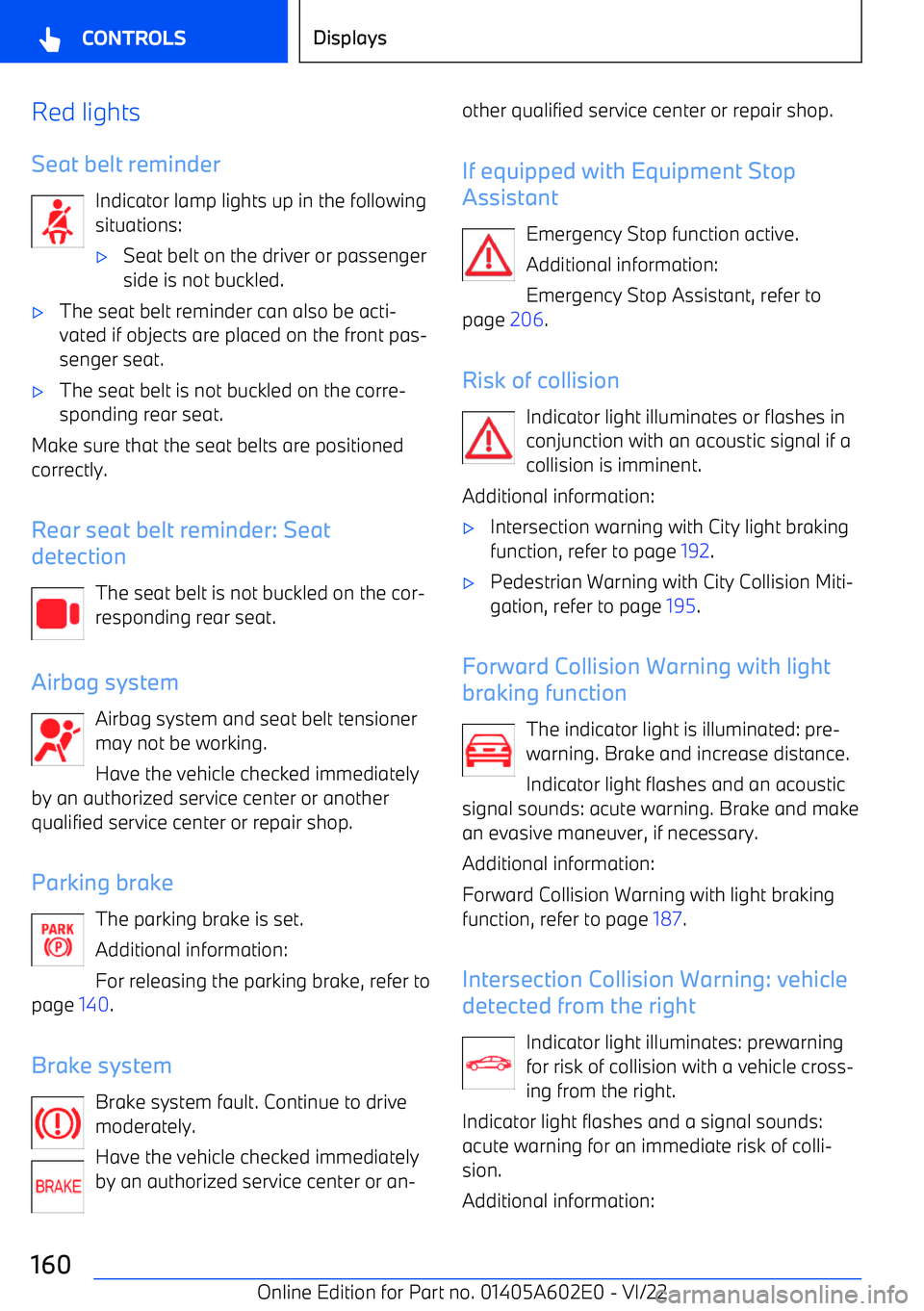

Red lights
Seat belt reminder Indicator lamp lights up in the following
situations:
