2022 TOYOTA YARIS CROSS oil capacity

13
CV Owner's Manual_Europe_M52N20_en
Pictorial index
Precautions for car wash (vehicles with rain-sensing windshield wipers)
............................................................... ..........................................P.343
Fuel filler door ............................................... .................................P.210
Refueling method ............................................... .............................. P.211
Fuel type/fuel tank capacity ................................... ..........................P.450
Tires .......................................................... ......................................P.363
Tire size/inflation pressure ................................... ............................P.454
Winter tires/tire chains ....................................... ..............................P.307
Checking/rotation/tire pressure warning system ................. .............P.363
Coping with flat tires......................................... ........................P.415, 426
Hood ........................................................... .....................................P.351
Opening ........................................................ ...................................P.351
Engine oil ..................................................... ....................................P.450
Coping with overheating ........................................ ..........................P.442
Headlights/front position lights ............................... .............P.186, 192
Turn signal lights/daytime running lights ...................... ......P.186, 192
Front fog lights*2............................................................... .............P.204
Tail lights/turn signal lights ................................. .................P.186, 192
Stop lights
Tail lights*2 /turn signal lights*2............................................P.186, 192
Rear fog light*2............................................................... ................P.204
Back-up light*2
Shifting the shift position to R ............................... ...................P.179, 183
Side turn signal lights ........................................ ...........................P.186
License plate lights........................................... .............................P.192
*1: Vehicles with a smart entry & start system
Light bulbs of the exterior lights for driving
(Replacing method:P.386, Watts: P.455)

165
4
CV Owner's Manual_Europe_M52N20_en
4-1. Before driving
Driving
When the following unusual opera-
tion is performed with the accelera-
tor pedal depressed, the engine
output may be restrained.
• When the shift lever is shifted to
R*.
• When the shift lever is shifted
from P or R to forward drive shift
position such as D*. When the
system operates, a message
appears on the multi-information
display. Read the message and
follow the instruction.
*: Depending on the situation, the shift
position may not be changed.
■Drive-Start Control (DSC)
When the TRC is turned off ( P.302), sudden start restraint control also does not operate. If your vehicle have trouble
escaping from the mud or fresh snow due to sudden start restraint control operation, deactivate TRC ( P.302) so
that the vehicle may become able to escape from the mud or fresh snow.
NOTICE
●Changes in the quantity and quality of the engine oil, transmission fluid,
clutch fluid, differential oil, etc.
●Lubricant condition for the bearings
and suspension joints (where possi- ble), and the function of all joints, bearings, etc.
Sudden start restraint con-
trol (Drive-Start Control
[DSC]) (vehicles with a Mul-
tidrive)
Cargo and luggage
Take notice of the following
information about storage pre-
cautions, cargo capacity and
load:
WARNING
■Things that must not be carried in the luggage compartment
The following things may cause a fire if loaded in the luggage compartment:
●Receptacles containing gasoline
●Aerosol cans
■Storage precautions
Observe the following precautions. Failure to do so may prevent the ped-
als from being depressed properly, may block the driver’s vision, or may result in items hitting the driver or
passengers, possibly causing an acci- dent.
●Stow cargo and luggage in the lug-
gage compartment whenever pos- sible.
●Do not stack cargo and luggage in the luggage compartment higher than the seatbacks.
●When you fold down the rear seats, long items should not be placed
directly behind the front seats.
●Do not place cargo or luggage in or
on the following locations.
• At the feet of the driver
• On the front passenger or rear seats (when stacking items)
• On the luggage cover
• On the instrument panel
• On the dashboard

448
CV Owner's Manual_Europe_M52N20_en
8-1. Specifications
8-1.Spec ific ations
*1: 17-inch tires or 18-inch tires
*2: 16-inch tires
*3: Manual transmission
*4:Multidrive
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifi-
cation number for your Toyota. It is
used in registering the ownership of
your vehicle.
This number is stamped under the
right-hand front seat.
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length4180 mm (164.6 in.)
Overall width1765 mm (69.5 in.)
Overall height (unladen vehicles)1595 mm (62.8 in.)
Wheelbase2560 mm (100.8 in.)
Tread
Front1517 mm (59.7 in.)*1
1527 mm (60.1 in.)*2
Rear1517 mm (59.7 in.)*1
1527 mm (60.1 in.)*2
Gross vehicle mass1625 kg (3583.1lb.)*3
1640 kg (3616.2lb.)*4
Maximum permissible axle
capacity
Front965 kg (2127.8lb.)
Rear925 kg (2039.6lb.)
Drawbar load (vehicles with towing packages)75 kg (165.3lb.)
Towing capacity (vehicles with
towing packages)
Without brake550 kg (1212.7lb.)
With brake1350 kg (2976.7lb.)
Vehicle identification

450
CV Owner's Manual_Europe_M52N20_en
8-1. Specifications
■Oil capacity (Drain and refill
[Reference*])
*: The engine oil capacity is a reference
quantity to be used when changing
the engine oil. Warm up and turn off
the engine, wait more than 5 minutes,
and check the oil level on the dip-
stick.
■Engine oil selection
Gasoline Engine 
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual-
ity can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserv-
ing”, SN PLUS “Resource-Conserv-
ing” or SP “Resource-Conserving”;
or ILSAC GF-6B multigrade engine
oil
0W-20 and 5W-30:
API grade SM “Energy-Conserv-
ing”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving”
or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)42.0 L (11.0 gal., 9.2 Imp. gal.)
Lubrication system
With filter3.4 L (3.6 qt., 3.0 Imp. qt.)
Without fil-
ter3.2 L (3.4 qt., 2.8 Imp. qt.)

453
8
CV Owner's Manual_Europe_M52N20_en

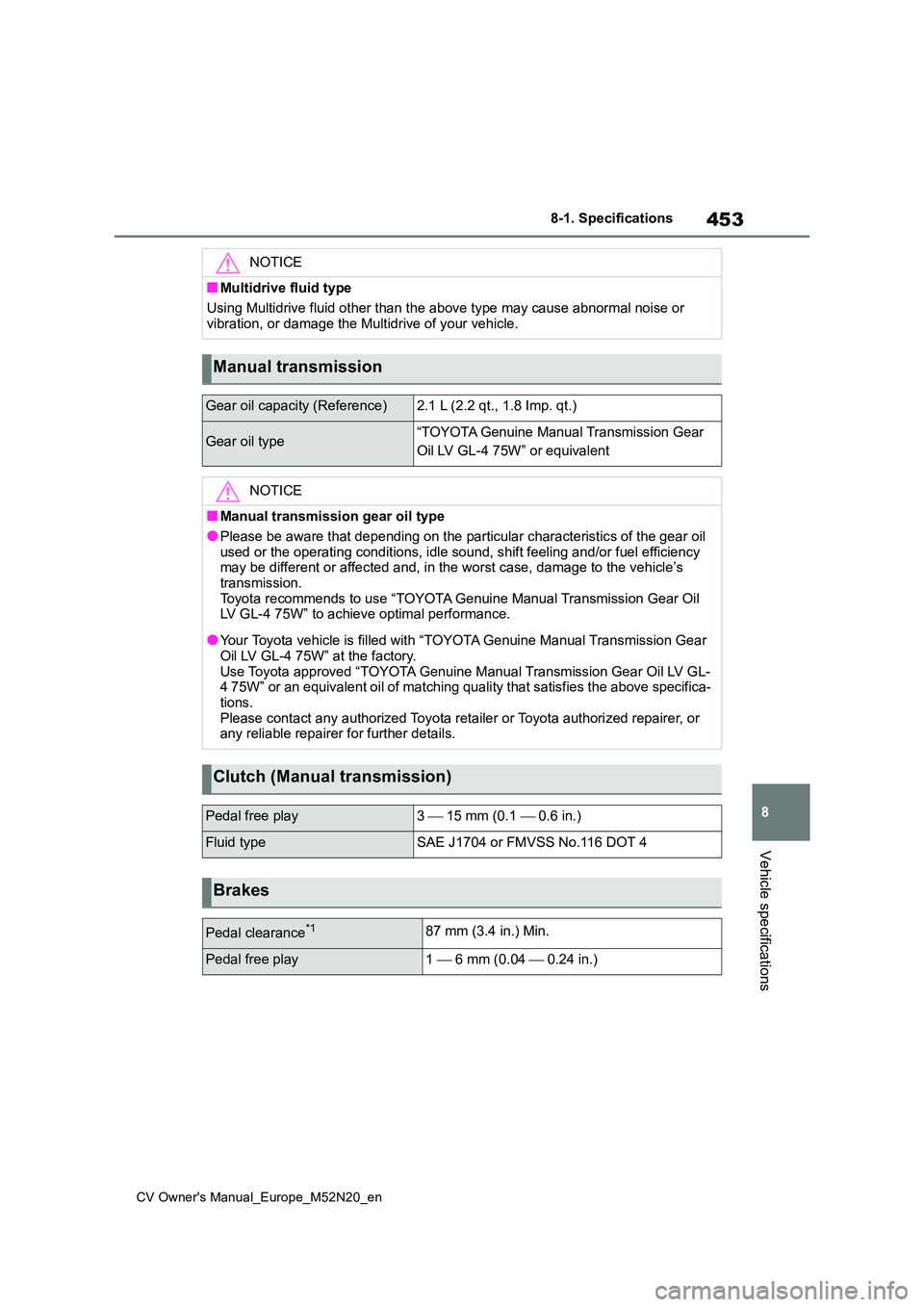

8-1. Specifications
Vehicle specifications
NOTICE
■Multidrive fluid type
Using Multidrive fluid other than the above type may cause abno rmal noise or
vibration, or damage the Multidrive of your vehicle.
Manual transmission
Gear oil capacity (Reference)2.1 L (2.2 qt., 1.8 Imp. qt.)
Gear oil type“TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” or equivalent
NOTICE
■Manual transmission gear oil type
●Please be aware that depending on the particular characteristic s of the gear oil used or the operating conditions, idle sound, shift feeling and /or fuel efficiency may be different or affected and, in the worst case, damage to the vehicle’s
transmission. Toyota recommends to use “TOYOTA Genuine Manual Transmission Ge ar Oil LV GL-4 75W” to achieve optimal performance.
●Your Toyota vehicle is filled with “TOYOTA Genuine Manual Trans mission Gear Oil LV GL-4 75W” at the factory.
Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oi l LV GL- 4 75W” or an equivalent oil of matching quality that satisfies the above specifica-
tions. Please contact any authorized Toyota retailer or Toyota authori zed repairer, or any reliable repairer for further details.
Clutch (Manual transmission)
Pedal free play3  15 mm (0.1  0.6 in.)
Fluid typeSAE J1704 or FMVSS No.116 DOT 4
Brakes
Pedal clearance*187 mm (3.4 in.) Min.
Pedal free play1  6 mm (0.04  0.24 in.)

476
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
If you have a flat tire........... 415, 426
If you lose your keys .................. 436
If you think something is wrong.. 401
If your vehicle becomes stuck .... 444
If your vehicle has to be stopped in
an emergency .......................... 394
If your vehicle needs to be towed
................................................. 397
If your vehicle overheats ............ 442
Engine ........................................... 449
ACC ................................... 173, 177
Compartment ............................. 354
Engine switch ..................... 173, 174
Fuel pump shut off system ......... 402
Hood .......................................... 351
How to start the engine ...... 173, 174
Identification number.................. 449
If the engine will not start ........... 435
If your vehicle has to be stopped in
an emergency .......................... 394
Ignition switch (engine switch) . 173,
174
Overheating ............................... 442
Tachometer .................... 85, 89, 109
Engine coolant .............................. 356
Capacity ..................................... 452
Checking .................................... 356
Preparing and checking before win-
ter ............................................ 307
Engine coolant temperature gauge
................................................. 85, 89
Engine immobilizer system ........... 75
Engine oil ...................................... 354
Capacity ..................................... 450
Checking .................................... 354
Preparing and checking before win-
ter ............................................ 307
Warning light .............................. 404
Engine oil maintenance data ....... 356
Engine switch........................ 173, 174
Auto power off function .............. 177
Changing the engine switch modes
......................................... 173, 177
If your vehicle has to be stopped in
an emergency .......................... 394
EPS (Electric Power Steering) ..... 301
Warning light .............................. 406
Extended headlight lighting function
..................................................... 194
F
Flat tire
Tire pressure warning system .... 364
Vehicles with a spare tire ........... 426
Vehicles without a spare tire ...... 415
Floor mats ....................................... 32
Fluid
Brake .......................................... 453
Clutch ......................................... 453
Multidrive .................................... 452
Washer ....................................... 362
Fog lights
Switch......................................... 204
Wattage ...................................... 455
Front fog lights
Switch......................................... 204
Wattage ...................................... 455
Front position lights
Replacing light bulbs ..................387
Wattage ...................................... 455
Front seat center airbags ............... 38
Front seats .................................... 141
Adjustment ................................. 141
Cleaning ..................................... 345
Correct driving posture ................. 33
Head restraints ........................... 144
Seat heaters ............................... 322

616
CV Owner's Manual_Europe_M52N20_en

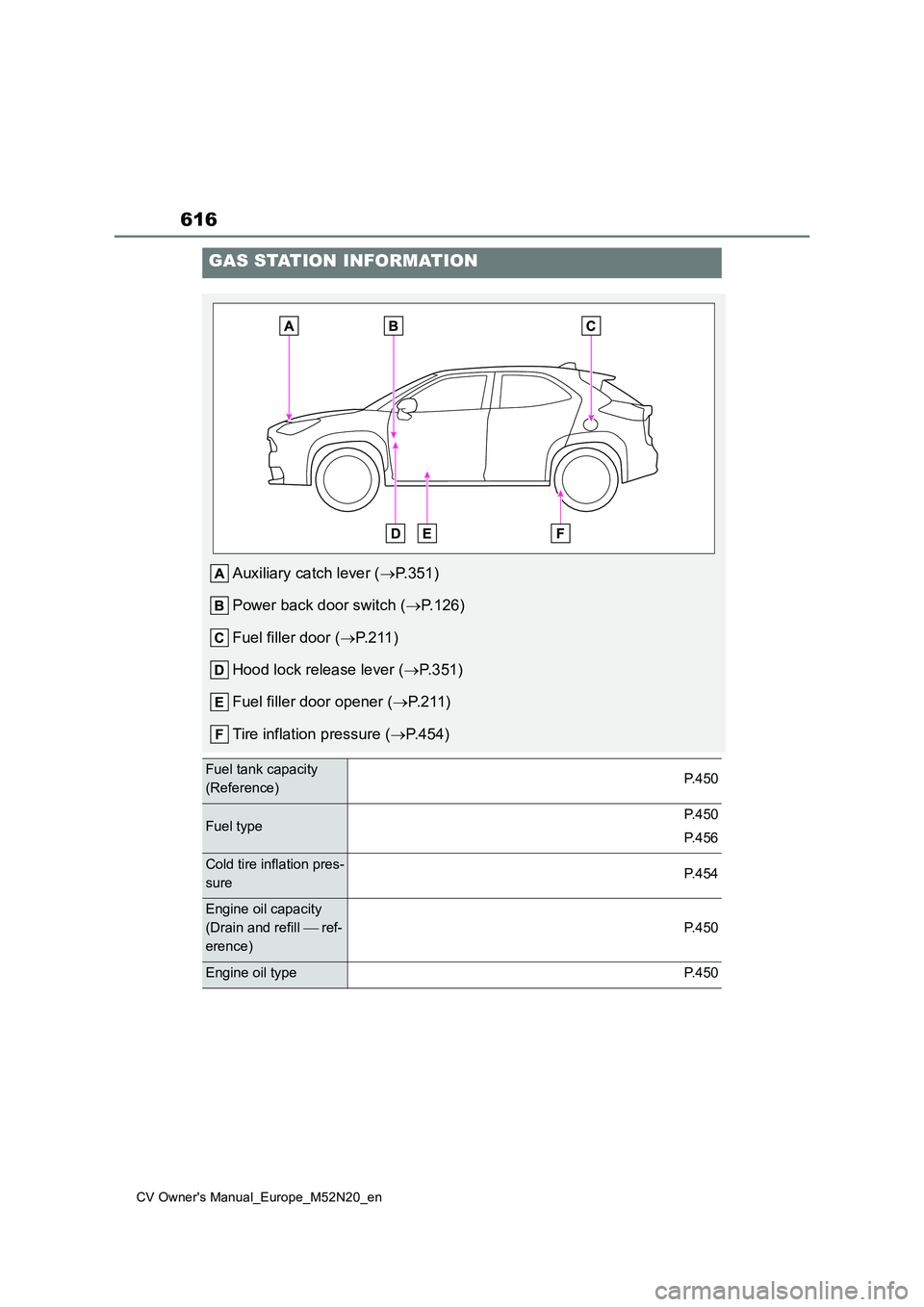

GAS STATION INFORMATION
Auxiliary catch lever (P.351)
Power back door switch ( P.126)
Fuel filler door ( P. 2 1 1 )
Hood lock release lever ( P.351)
Fuel filler door opener ( P.211)
Tire inflation pressure ( P.454)
Fuel tank capacity
(Reference)P. 4 5 0
Fuel typeP. 4 5 0
P. 4 5 6
Cold tire inflation pres-
sureP. 4 5 4
Engine oil capacity
(Drain and refill  ref-
erence)
P. 4 5 0
Engine oil typeP. 4 5 0
