2022 TOYOTA YARIS CROSS gas type

40
CV Owner's Manual_Europe_M52N20_en
1-1. For safe use
“PASSENGER AIR BAG” indicator
Airbag sensor assembly
The main SRS airbag system components are shown above. The SRS air-
bag system is controlled by the airbag sensor assembly. As the airbags
deploy, a chemical reaction in the inflators quickly fills the airbags with non-
toxic gas to help restrain the motion of the occupants.
■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from SRS airbags,
due to the extremely high speed deployment (inflation) by hot gases.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the front seats, parts of the
front and rear pillars, and roof side rails, may be hot for several minutes.
The airbag itself may also be hot.
●The windshield may crack.
●The brakes and stop lights will be con- trolled automatically. ( P.301)
●The interior lights will turn on automat- ically. ( P.325)
●The emergency flashers will turn on automatically. ( P.394)
●Fuel supply to the engine will be stopped. ( P.402)
●Vehicles with eCall: If any of the fol-
lowing situations occur, the system is
designed to send an emergency call* to the eCall control center, notifying them of the vehicle’s location (without
needing to push the “SOS” button) and an agent will attempt to speak with the occupants to ascertain the
level of emergency and assistance required. If the occupants are unable to communicate, the agent automati-
cally treats the call as an emergency and helps to dispatch the necessary emergency services. ( P.65)
• An SRS airbag is deployed. • A seat belt pretensioner is activated.
• The vehicle is involved in a severe rear-end collision.*: In some cases, the call cannot be
made. ( P. 6 6 )
■SRS airbag deployment conditions (SRS front airbags)
●The SRS front airbags will deploy in the event of an impact that exceeds
the set threshold level (the level of force corresponding to an approxi-mately 20 - 30 km/h [12 - 18 mph]
frontal collision with a fixed wall that does not move or deform).
However, this threshold velocity will be considerably higher in the following situ-ations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact
• If the vehicle is involved in an under- ride collision, such as a collision in which the front of the vehicle “under-
rides”, or goes under, the bed of a truck
●Depending on the type of collision, it is possible that only the seat belt pretensioners will activate.
■SRS airbag deployment conditions
(SRS side and curtain shield air- bags and SRS front seat center air-bags)
●The SRS side and curtain shield air-bags and SRS front seat center air-
bags will deploy in the event of an impact that exceeds the set threshold level (the level of force corresponding
to the impact force produced by an approximately 1500 kg [3300 lb.] vehi-cle colliding with the vehicle cabin

70
CV Owner's Manual_Europe_M52N20_en
1-3. Emergency assistance
2. INFORMATION ON DATA PROCESSING
2.1.
Any processing of personal data through the 112-
based eCall in-vehicle system shall comply with
the personal data protection rules provided for in
Directives 95/46/EC and 2002/58/EC, and in par-
ticular, shall be based on the necessity to protect
the vital interests of the individuals in accordance
with Article 7(d) of Directive 95/46/EC.
O
2.2.
Processing of such data is strictly limited to the
purpose of handling the emergency eCall to the
single European emergency number 112.
O
2.3. Types of data and its recipients
2.3.1.
The 112-based eCall in-vehicle system may col-
lect and process only the following data: Vehicle
Identification Number, Vehicle type (passenger
vehicle or light commercial vehicle), Vehicle pro-
pulsion storage type (gasoline/die-
sel/CNG/LPG/electric/hydrogen), Vehicle last
three locations and direction of travel, Log file of
the automatic activation of the system and its
timestamp, Any additional data (if applicable)
O
2.3.2.
Recipients of data processed by the 112-based
eCall in-vehicle system are the relevant public
safety answering points designated by the
respective public authorities of the country on
which territory they are located, to first receive
and handle eCalls to the single European emer-
gency number 112. Additional information (if
available):
O
Implementing Regulation Annex1 PART3 User InformationConformity

210
CV Owner's Manual_Europe_M52N20_en

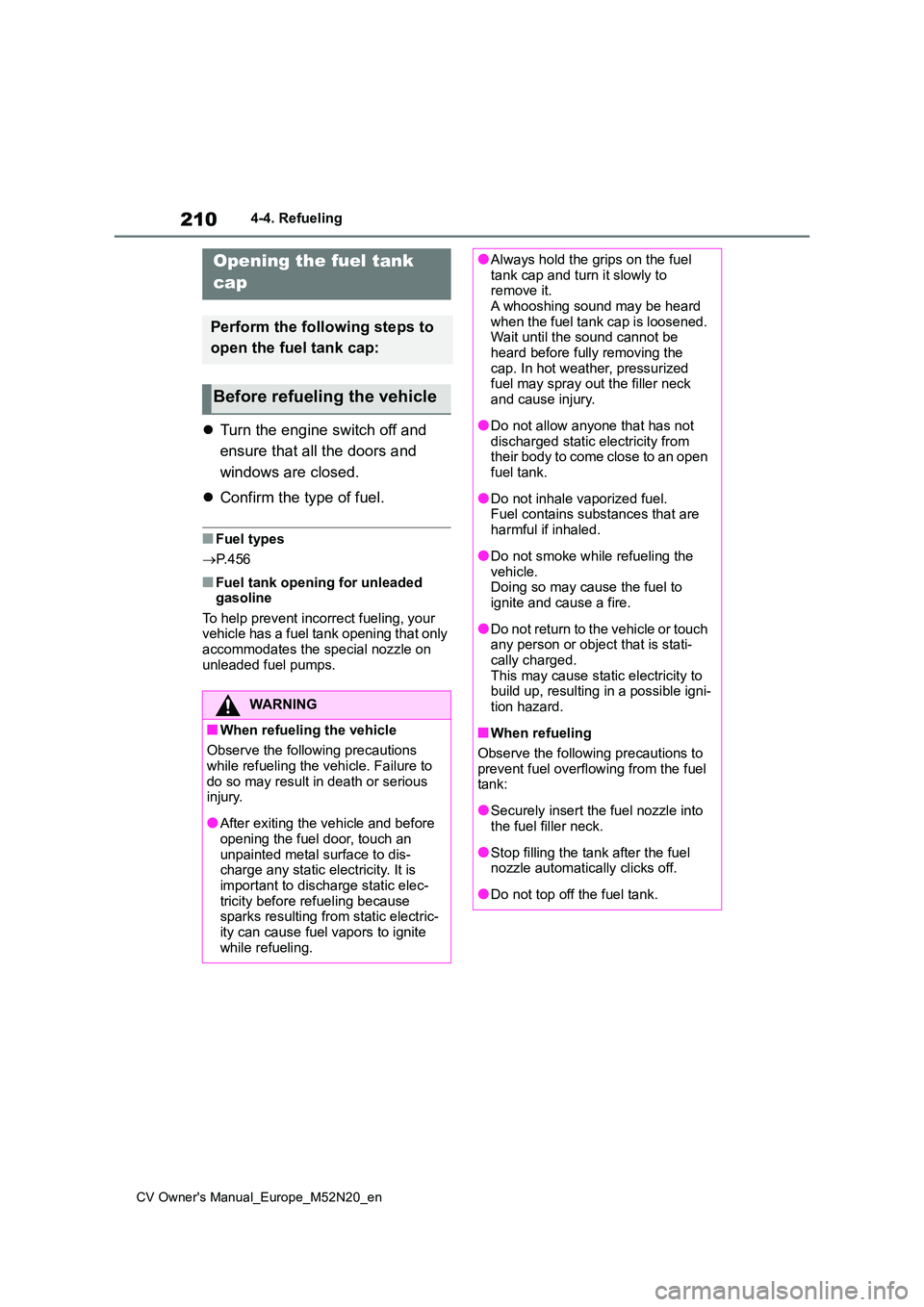

4-4. Refueling
4-4.Refuelin g
Turn the engine switch off and
ensure that all the doors and
windows are closed.
 Confirm the type of fuel.
■Fuel types
 P. 4 5 6
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only accommodates the special nozzle on
unleaded fuel pumps.
Opening the fuel tank
cap
Perform the following steps to
open the fuel tank cap:
Before refueling the vehicle
WARNING
■When refueling the vehicle
Observe the following precautions
while refueling the vehicle. Failure to do so may result in death or serious injury.
●After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to dis- charge any static electricity. It is important to discharge static elec-
tricity before refueling because sparks resulting from static electric-ity can cause fuel vapors to ignite
while refueling.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until the sound cannot be
heard before fully removing the cap. In hot weather, pressurized fuel may spray out the filler neck
and cause injury.
●Do not allow anyone that has not
discharged static electricity from their body to come close to an open fuel tank.
●Do not inhale vaporized fuel.Fuel contains substances that are
harmful if inhaled.
●Do not smoke while refueling the
vehicle. Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is stati-
cally charged. This may cause static electricity to build up, resulting in a possible igni-
tion hazard.
■When refueling
Observe the following precautions to prevent fuel overflowing from the fuel tank:
●Securely insert the fuel nozzle into the fuel filler neck.
●Stop filling the tank after the fuel nozzle automatically clicks off.
●Do not top off the fuel tank.

300
CV Owner's Manual_Europe_M52N20_en
4-5. Using the driving support systems
*: If equipped
■If “Exhaust Filter Full See Owner’s Manual” is shown on the multi-
information display
●The message may be displayed while
high load driving with particulate mat- ter accumulating.
●Engine output (engine speed) is restricted when a certain amount of particulate matter accumulates, how-
ever, it is possible to drive the vehicle unless the malfunction indicator lamp comes on.
●Particulate matter can accumulate more quickly if the vehicle is fre-
quently driven short trips or at low speeds, or if the engine is regularly started in an extremely cold environ-
ment. Excessive accumulation of par- ticulate matter can be prevented by periodically driving long distances
continuously with intermittent releas- ing of the accelerator pedal, such as when driving on highways and free-
ways.
■If the malfunction indicator lamp comes on or “Engine Maintenance Required Visit Your Dealer” is
shown on the multi-information display
The amount of accumulated particulate
matter has exceeded a certain level. Have the vehicle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer immediately.
GPF (Gasoline Particu-
late Filter) system*
The GPF system collects par-
ticulate matter in the exhaust
gas by using an exhaust gas
filter.
The system will operate to
regenerate the f ilter automati-
cally, depending on the vehicle
conditions.
NOTICE
■To prevent the GPF system from
not operating properly
●Do not use fuel other than the spec- ified type
●Do not modify the exhaust pipes

345
6
CV Owner's Manual_Europe_M52N20_en

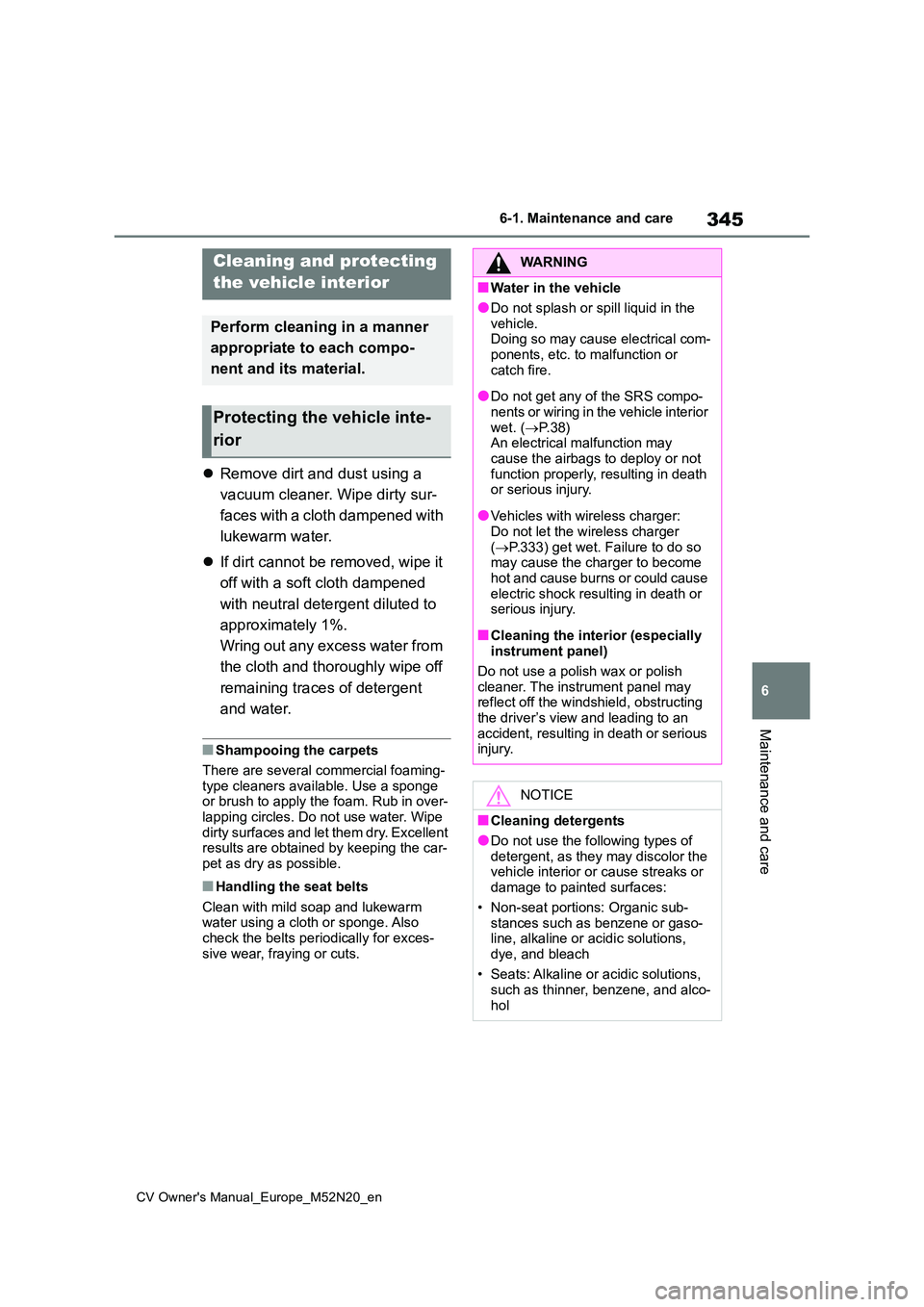

6-1. Maintenance and care
Maintenance and care
Remove dirt and dust using a
vacuum cleaner. Wipe dirty sur-
faces with a cloth dampened with
lukewarm water.
 If dirt cannot be removed, wipe it
off with a soft cloth dampened
with neutral detergent diluted to
approximately 1%.
Wring out any excess water from
the cloth and thoroughly wipe off
remaining traces of detergent
and water.
■Shampooing the carpets
There are several commercial foaming-
type cleaners available. Use a sponge or brush to apply the foam. Rub in over-lapping circles. Do not use water. Wipe
dirty surfaces and let them dry. Excellent results are obtained by keeping the car-pet as dry as possible.
■Handling the seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the belts periodically for exces-
sive wear, fraying or cuts.
Cleaning and protecting
the vehicle interior
Perform cleaning in a manner
appropriate to each compo-
nent and its material.
Protecting the vehicle inte-
rior
WARNING
■Water in the vehicle
●Do not splash or spill liquid in the
vehicle. Doing so may cause electrical com-ponents, etc. to malfunction or
catch fire.
●Do not get any of the SRS compo-
nents or wiring in the vehicle interior wet. ( P.38) An electrical malfunction may
cause the airbags to deploy or not function properly, resulting in death or serious injury.
●Vehicles with wireless charger:Do not let the wireless charger
( P.333) get wet. Failure to do so may cause the charger to become hot and cause burns or could cause
electric shock resulting in death or serious injury.
■Cleaning the interior (especially instrument panel)
Do not use a polish wax or polish
cleaner. The instrument panel may reflect off the windshield, obstructing the driver’s view and leading to an
accident, resulting in death or serious injury.
NOTICE
■Cleaning detergents
●Do not use the following types of
detergent, as they may discolor the vehicle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic sub- stances such as benzene or gaso-line, alkaline or acidic solutions,
dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-
hol

450
CV Owner's Manual_Europe_M52N20_en
8-1. Specifications
■Oil capacity (Drain and refill
[Reference*])
*: The engine oil capacity is a reference
quantity to be used when changing
the engine oil. Warm up and turn off
the engine, wait more than 5 minutes,
and check the oil level on the dip-
stick.
■Engine oil selection
Gasoline Engine 
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual-
ity can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserv-
ing”, SN PLUS “Resource-Conserv-
ing” or SP “Resource-Conserving”;
or ILSAC GF-6B multigrade engine
oil
0W-20 and 5W-30:
API grade SM “Energy-Conserv-
ing”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving”
or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)42.0 L (11.0 gal., 9.2 Imp. gal.)
Lubrication system
With filter3.4 L (3.6 qt., 3.0 Imp. qt.)
Without fil-
ter3.2 L (3.4 qt., 2.8 Imp. qt.)

456
CV Owner's Manual_Europe_M52N20_en

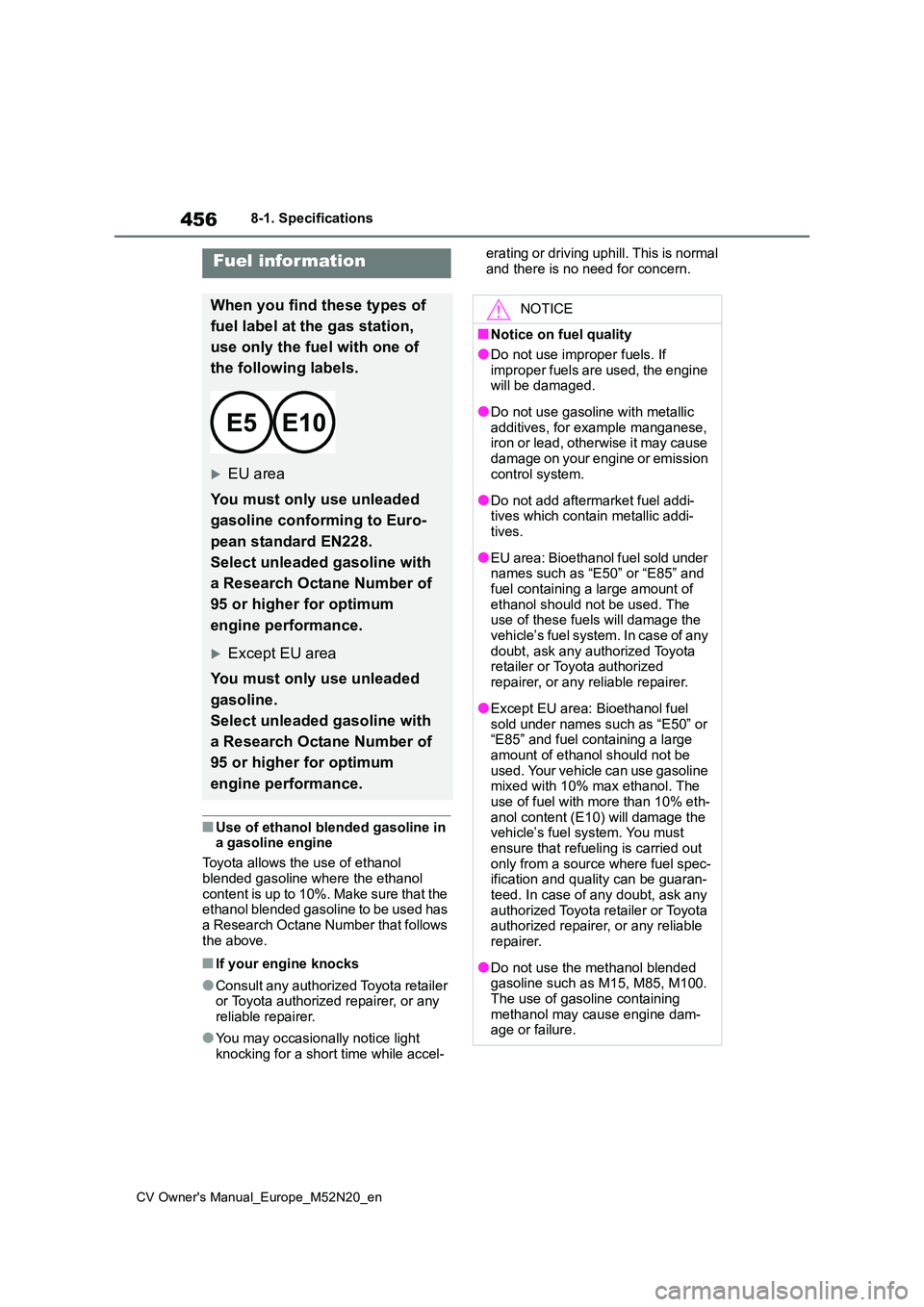

8-1. Specifications
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol
blended gasoline where the ethanol content is up to 10%. Make sure that the ethanol blended gasoline to be used has
a Research Octane Number that follows the above.
■If your engine knocks
●Consult any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●You may occasionally notice light
knocking for a short time while accel-
erating or driving uphill. This is normal
and there is no need for concern.Fuel information
When you find these types of
fuel label at the gas station,
use only the fuel with one of
the following labels.
EU area
You must only use unleaded
gasoline conforming to Euro-
pean standard EN228.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
Except EU area
You must only use unleaded
gasoline.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If
improper fuels are used, the engine will be damaged.
●Do not use gasoline with metallic additives, for example manganese, iron or lead, otherwise it may cause
damage on your engine or emission control system.
●Do not add aftermarket fuel addi-tives which contain metallic addi-tives.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of these fuels will damage the
vehicle’s fuel system. In case of any doubt, ask any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
●Except EU area: Bioethanol fuel
sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be
used. Your vehicle can use gasoline mixed with 10% max ethanol. The use of fuel with more than 10% eth-
anol content (E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried out
only from a source where fuel spec- ification and quality can be guaran-teed. In case of any doubt, ask any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine dam-age or failure.

477
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Front turn signal lights ................ 186
Replacing light bulbs .......... 387, 388
Turn signal lever ........................ 186
Wattage ...................................... 455
Fuel ................................................ 210
Capacity ..................................... 450
Fuel gauge ............................. 85, 89
Fuel pump shut off system ......... 402
Information ................................. 456
Refueling .................................... 210
Type ........................................... 450
Warning light .............................. 406
Fuel consumption
Average fuel economy ......... 96, 101
Current fuel consumption ..... 96, 101
Fuel economy ......................... 96, 101
Fuel filler door .............................. 210
Refueling .................................... 210
Fuel gauge ................................ 85, 89
Fuel pump shut off system .......... 402
Fuses ............................................. 381
G
Gauges ...................................... 85, 89
Gear Shift Indicator ...................... 185
Glove box ...................................... 327
GPF (Gasoline Particulate Filter)
system ......................................... 300
H
Hands Free Power Back Door ..... 128
Head restraints ............................. 144
Head-up display ............................ 106
Driving information display area. 106
Driving support system display area
................................................. 108
Eco Driving Indicator .................. 109
Navigation system-linked display
area .......................................... 108
Pop-up display ........................... 108
Settings ...................................... 107
Headlights
Adaptive High-beam System...... 197
Automatic High Beam system .... 201
Extended headlight lighting function
................................................. 194
Light switch ................................ 192
Replacing light bulbs ..................387
Wattage ...................................... 455
Heated steering wheel ..................322
Heaters
Automatic air conditioning system
................................................. 316
Heated steering wheel ............... 322
Heater system ............................ 312
Manual air conditioning system .. 312
Outside rear view mirrors ... 313, 318
Seat heaters ............................... 322
High mounted stoplight
Replacing light bulbs ..................387
Hill-start assist control ................. 301
Hood............................................... 351
Open .......................................... 351
Hooks
Coat hooks ................................. 339
Retaining hooks (floor mat) .......... 32
Horn ............................................... 148
I
Identification
Engine ........................................449
Vehicle........................................448
