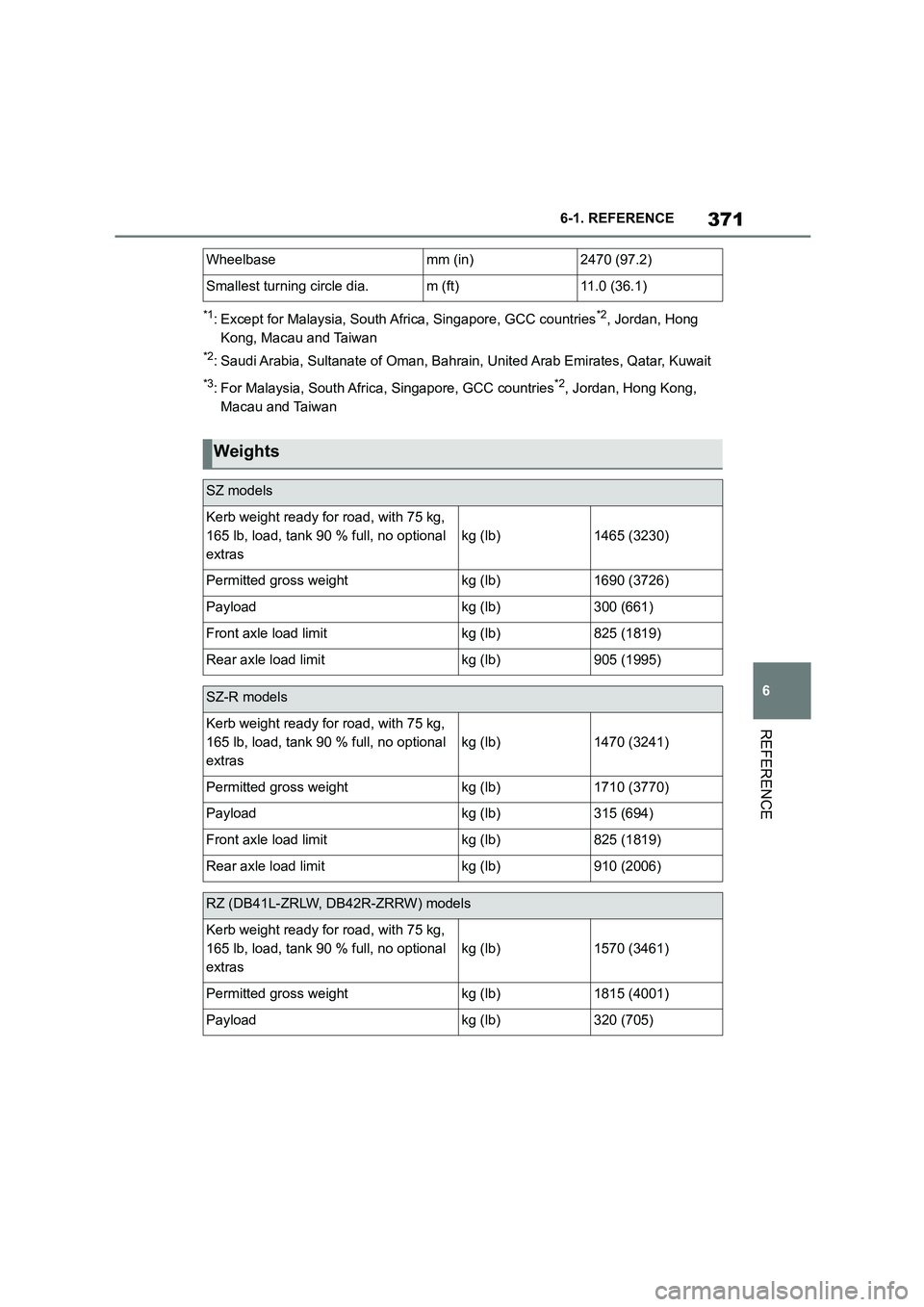

371
6
6-1. REFERENCE
REFERENCE
*1: Except for Malaysia, South Africa, Singapore, GCC countries*2, Jordan, Hong
Kong, Macau and Taiwan
*2: Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar, Kuwait
*3: For Malaysia, South Africa, Singapore, GCC countries*2, Jordan, Hong Kong,
Macau and Taiwan
Wheelbasemm (in)2470 (97.2)
Smallest turning circle dia.m (ft)11.0 (36.1)
Weights
SZ models
Kerb weight ready for road, with 75 kg,
165 lb, load, tank 90 % full, no optional
extras
kg (lb)1465 (3230)
Permitted gross weightkg (lb)1690 (3726)
Payloadkg (lb)300 (661)
Front axle load limitkg (lb)825 (1819)
Rear axle load limitkg (lb)905 (1995)
SZ-R models
Kerb weight ready for road, with 75 kg,
165 lb, load, tank 90 % full, no optional
extras
kg (lb)1470 (3241)
Permitted gross weightkg (lb)1710 (3770)
Payloadkg (lb)315 (694)
Front axle load limitkg (lb)825 (1819)
Rear axle load limitkg (lb)910 (2006)
RZ (DB41L-ZRLW, DB42R-ZRRW) models
Kerb weight ready for road, with 75 kg,
165 lb, load, tank 90 % full, no optional
extras
kg (lb)1570 (3461)
Permitted gross weightkg (lb)1815 (4001)
Payloadkg (lb)320 (705)

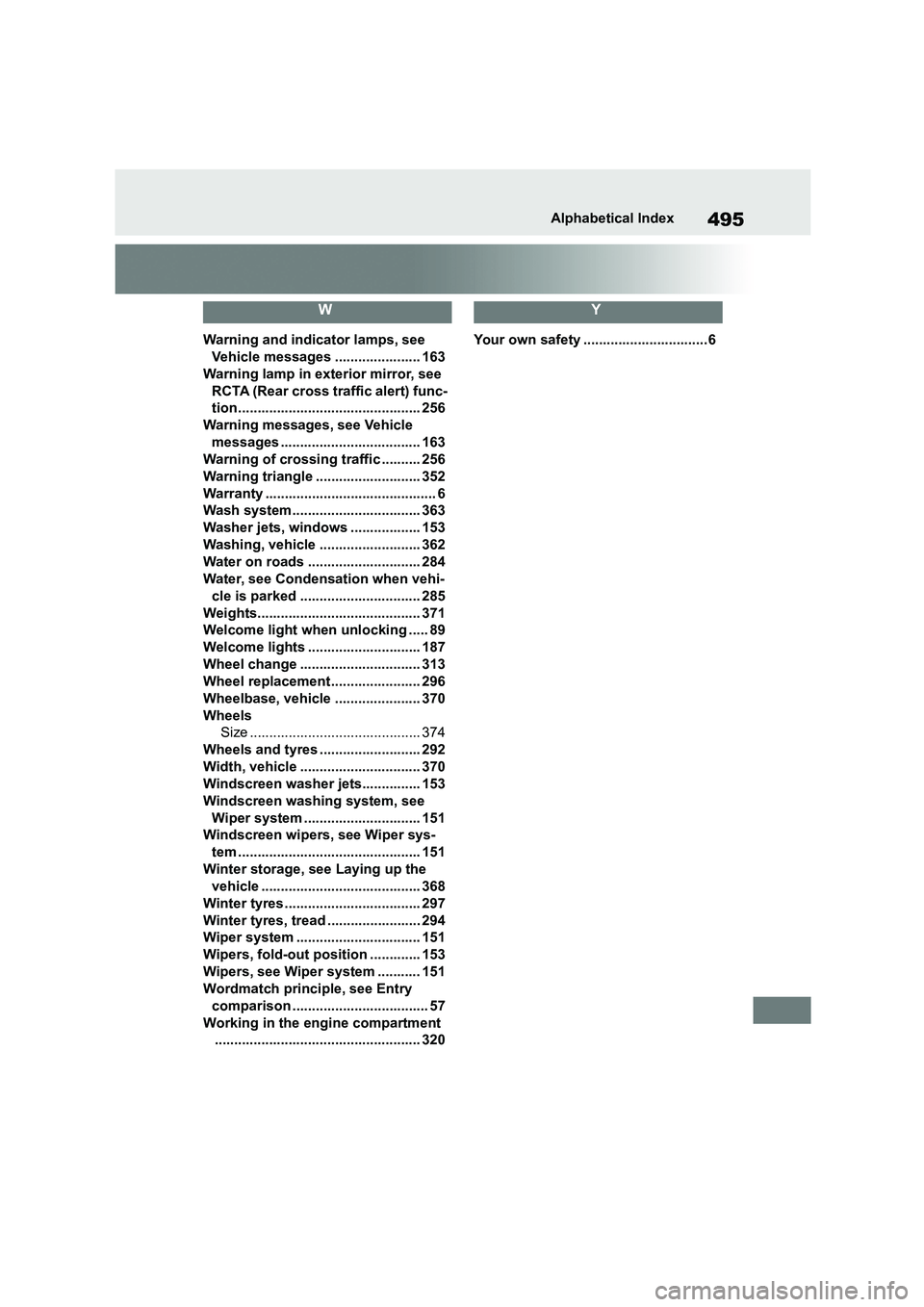

495Alphabetical Index
W
Warning and indicator lamps, see
Vehicle messages ...................... 163
Warning lamp in exterior mirror, see
RCTA (Rear cross traffic alert) func-
tion............................................... 256
Warning messages, see Vehicle
messages .................................... 163
Warning of crossing traffic .......... 256
Warning triangle ........................... 352
Warranty ............................................ 6
Wash system................................. 363
Washer jets, windows .................. 153
Washing, vehicle .......................... 362
Water on roads ............................. 284
Water, see Condensation when vehi-
cle is parked ............................... 285
Weights.......................................... 371
Welcome light when unlocking ..... 89
Welcome lights ............................. 187
Wheel change ............................... 313
Wheel replacement ....................... 296
Wheelbase, vehicle ...................... 370
Wheels
Size ............................................ 374
Wheels and tyres .......................... 292
Width, vehicle ............................... 370
Windscreen washer jets............... 153
Windscreen washing system, see
Wiper system .............................. 151
Windscreen wipers, see Wiper sys-
tem ............................................... 151
Winter storage, see Laying up the
vehicle ......................................... 368
Winter tyres ................................... 297
Winter tyres, tread ........................ 294
Wiper system ................................ 151
Wipers, fold-out position ............. 153
Wipers, see Wiper system ........... 151
Wordmatch principle, see Entry
comparison ................................... 57
Working in the engine compartment
..................................................... 320
Y
Your own safety ................................ 6
