523-1. CONTROLS
• At steep crests/hilltops or dips.
A Check Control message may be
displayed if the system has failed.
*: if equipped
The physical limits of ultrasound
measurement may be reached
when detecting objects in situations
including the following:
• If the sensors are contaminated.
• If the sensors are obscured, for
example by stickers.
• If the sensor is not correctly
aligned, for example following
parking damage.
• After work performed incorrectly
on the vehicle paintwork near to
the sensors.
• Small children and animals.
• Persons wearing certain types of
clothing, for example a coat.
• If there is external interference
with the ultrasonic sound, for
example by passing vehicles,
loud machines or other ultra-
sonic sources.
• Certain weather conditions: for
example, high humidity, wet con-
ditions, snowfall, cold, extreme
heat or strong wind.
• Trailer drawbars and tow hitches
of other vehicles.
• Thin or wedge-shaped objects.
• Moving objects.
• Higher protruding objects, for
example projecting walls.
• Objects with corners, edges and
smooth surfaces.
• Objects with fine surfaces or
structures, for example fences.
• Objects with porous surfaces.
• Small and low objects such as
boxes.
• Soft obstacles or obstacles cov-
ered in foam.
• Plants or shrubs.
• In washing bays and car washes.
• On uneven surfaces, for exam-
ple speed bumps.
• In the presence of dense
exhaust fumes.
• The ultrasonic sensors do not
take into accoun t loads project-
ing beyond the outline of the
vehicle.
A Check Control message may be
displayed if the system has failed.
Ultrasonic sensors
Ultrasonic sensors in the
front/rear bumpers*
Ultrasonic sensors of the
Parking Sensor, for exam-
ple in the bumpers.
System limits of the ultra-
sonic sensors

315
5
5-1. MOBILITY
MOBILITY
cial coding. The bolts can only be
released with the adapter that
matches the coding.
The adapter of the locking wheel
bolts can be found in the on-board
tool kit or in an oddments tray in the
on-board tool kit.
• Locking wheel bolt, arrow 1.
• Adapter, arrow 2.
1 Place the adapter on the locking
wheel bolt.
2 Unscrew the locking wheel bolt.
3 After unscrewing the wheel bolt,
remove the adapter again.
1 Place the adapter on the locking
wheel bolt. If necessary, turn the
adapter until it fi ts on the locking
wheel bolt.
2 Screw on the locking wheel bolt.
The tightening torque is 140
Nm, 101 lb ft.
3 After screwing on the wheel bolt,
remove the adapter again and
stow it.
• Park the vehicle on firm and
non-slip ground at a safe dis-
tance from traffic.
• Switch on the hazard warning
lights.
• Apply the parking brake.
• Engage a gear or select selector
lever position P.
• As soon as the traffic permits,
have all vehicle occupants get
out of the vehicle and guide them
out of the danger area, for exam-
ple behind the crash barrier.
• Depending on the equipment,
take the wheel change tools and,
if necessary, the emergency
wheel out of the vehicle.
• If applicable, set up warning tri-
angle or flashing light at the cor-
rect distance.
• Additionally protect the vehicle
against rolling away.
• Undo the wheel studs by half a
turn.
Overview
Unscrewing
Screwing on
Preparing the vehicle

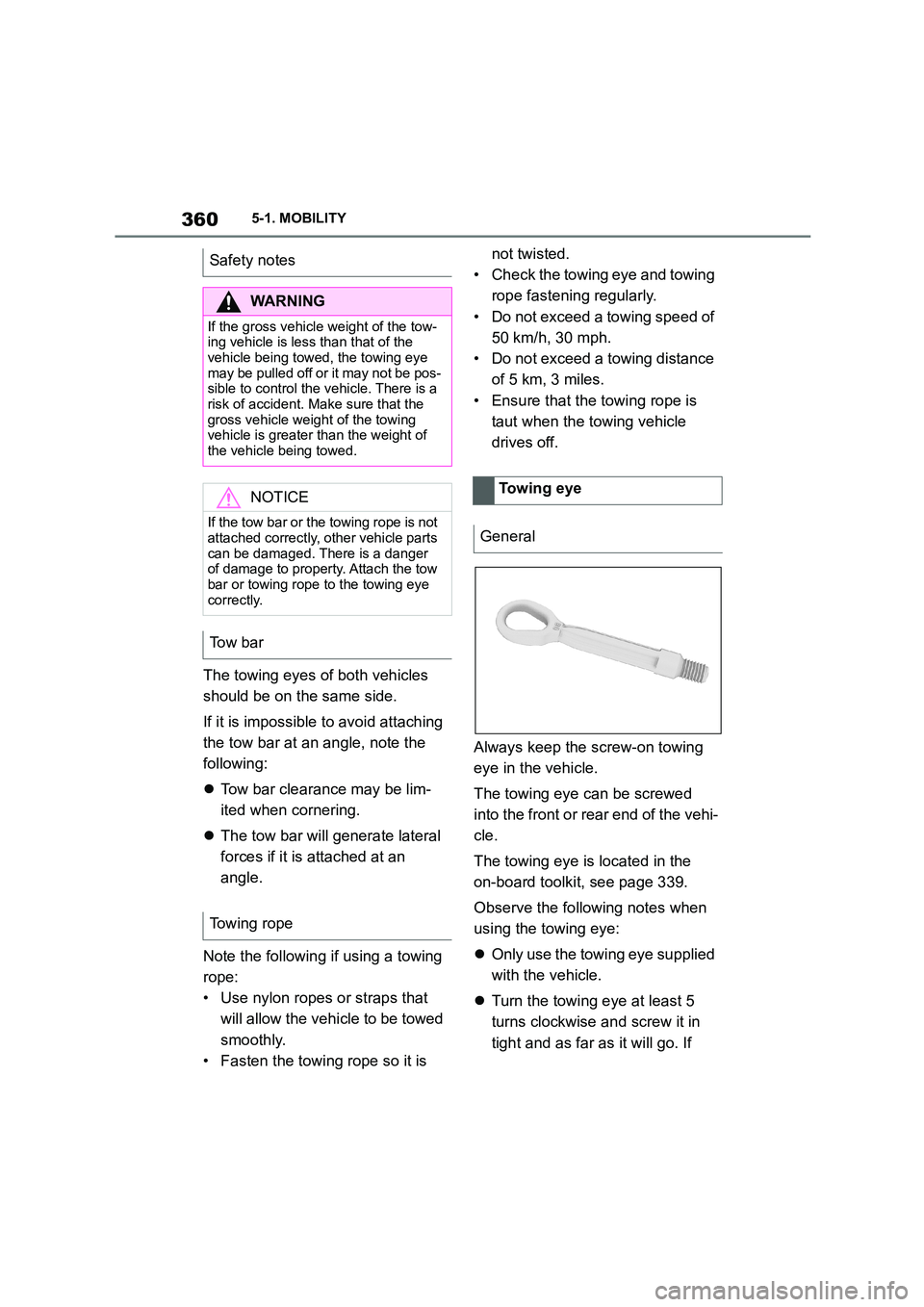

3605-1. MOBILITY
The towing eyes of both vehicles
should be on the same side.
If it is impossible to avoid attaching
the tow bar at an angle, note the
following:
 Tow bar clearance may be lim-
ited when cornering.
 The tow bar will generate lateral
forces if it is attached at an
angle.
Note the following if using a towing
rope:
• Use nylon ropes or straps that
will allow the vehi cle to be towed
smoothly.
• Fasten the towing rope so it is
not twisted.
• Check the towing eye and towing
rope fastening regularly.
• Do not exceed a towing speed of
50 km/h, 30 mph.
• Do not exceed a towing distance
of 5 km, 3 miles.
• Ensure that the towing rope is
taut when the towing vehicle
drives off.
Always keep the screw-on towing
eye in the vehicle.
The towing eye can be screwed
into the front or rear end of the vehi-
cle.
The towing eye is located in the
on-board toolkit, see page 339.
Observe the following notes when
using the towing eye:
 Only use the towing eye supplied
with the vehicle.
 Turn the towing eye at least 5
turns clockwise an d screw it in
tight and as far as it will go. If
Safety notes
WA R N I N G
If the gross vehicle weight of the tow-
ing vehicle is less than that of the vehicle being towed, the towing eye
may be pulled off or it may not be pos-
sible to control the vehicle. There is a risk of accident. Ma ke sure that the
gross vehicle weight of the towing
vehicle is greater than the weight of
the vehicle being towed.
NOTICE
If the tow bar or the towing rope is not
attached correctly, other vehicle parts can be damaged. There is a danger
of damage to property. Attach the tow
bar or towing rope to the towing eye correctly.
To w b a r
Towing rope
Towing eye
General

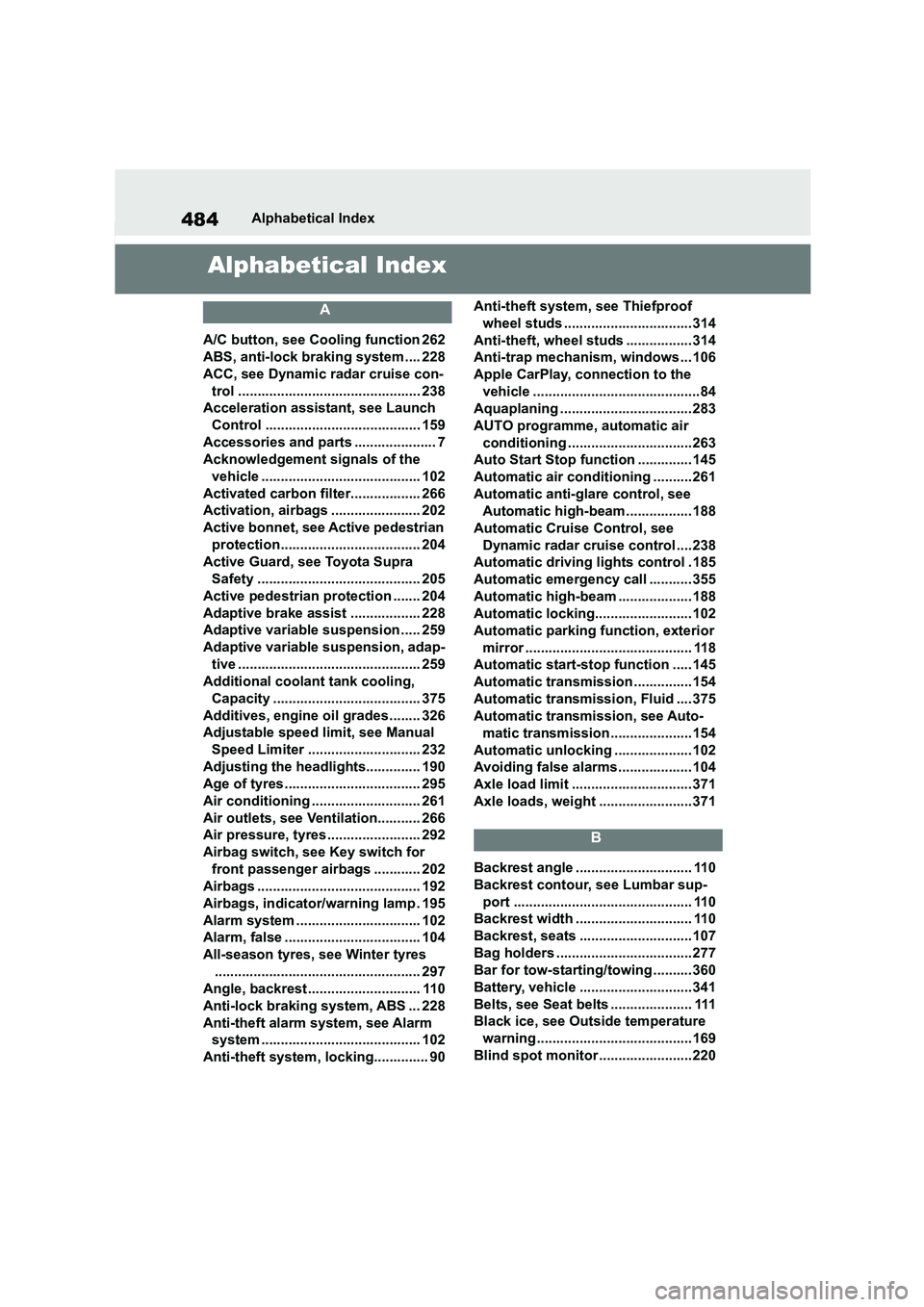

484Alphabetical Index
Alphabetical Index
A
A/C button, see Cooling function 262
ABS, anti-lock braking system .... 228
ACC, see Dynamic radar cruise con-
trol ............................................... 238
Acceleration assistant, see Launch
Control ........................................ 159
Accessories and parts ..................... 7
Acknowledgement signals of the
vehicle ......................................... 102
Activated carbon filter.................. 266
Activation, airbags ....................... 202
Active bonnet, see Active pedestrian
protection.................................... 204
Active Guard, see Toyota Supra
Safety .......................................... 205
Active pedestrian protection ....... 204
Adaptive brake assist .................. 228
Adaptive variable suspension ..... 259
Adaptive variable suspension, adap-
tive ............................................... 259
Additional coolant tank cooling,
Capacity ...................................... 375
Additives, engine oil grades........ 326
Adjustable speed limit, see Manual
Speed Limiter ............................. 232
Adjusting the headlights.............. 190
Age of tyres................................... 295
Air conditioning ............................ 261
Air outlets, see Ventilation........... 266
Air pressure, tyres........................ 292
Airbag switch, see Key switch for
front passenger airbags ............ 202
Airbags .......................................... 192
Airbags, indicator/warning lamp . 195
Alarm system ................................ 102
Alarm, false ................................... 104
All-season tyres, see Winter tyres
..................................................... 297
Angle, backrest ............................. 110
Anti-lock braking system, ABS ... 228
Anti-theft alarm system, see Alarm
system ......................................... 102
Anti-theft system, locking.............. 90
Anti-theft system, see Thiefproof
wheel studs ................................. 314
Anti-theft, wheel studs ................. 314
Anti-trap mechanism, windows ... 106
Apple CarPlay, connection to the
vehicle ........................................... 84
Aquaplaning .................................. 283
AUTO programme, automatic air
conditioning ................................263
Auto Start Stop function .............. 145
Automatic air conditioning ..........261
Automatic anti-glare control, see
Automatic high-beam................. 188
Automatic Cruise Control, see
Dynamic radar cruise control .... 238
Automatic driving lights control .185
Automatic emergency call ........... 355
Automatic high-beam ................... 188
Automatic locking......................... 102
Automatic parking function, exterior
mirror ........................................... 118
Automatic start-sto p function ..... 145
Automatic transmission ...............154
Automatic transmission, Fluid .... 375
Automatic transmission, see Auto-
matic transmission.....................154
Automatic unlocking .................... 102
Avoiding false alarms................... 104
Axle load limit ............................... 371
Axle loads, weight ........................371
B
Backrest angle .............................. 110
Backrest contour, see Lumbar sup-
port .............................................. 110
Backrest width .............................. 110
Backrest, seats .............................107
Bag holders ...................................277
Bar for tow-starting/towing ..........360
Battery, vehicle .............................341
Belts, see Seat belts ..................... 111
Black ice, see Outside temperature
warning........................................169
Blind spot monitor ........................220

490Alphabetical Index
Luggage compartment lid, see Boot
lid ................................................. 100
Lumbar support ............................ 110
M
Maintenance.................................. 330
Scheduled maintenance ............ 334
Maintenance requirement, see CBS
Condition Based Service ........... 330
Maintenance System .................... 330
Maintenance, see Service require-
ments........................................... 170
Make-up mirror ............................. 269
Malfunction indications, see Vehicle
messages .................................... 163
Malfunction, remote control .......... 93
Manual operation, Automatic trans-
mission........................................ 154
Manual operation, fuel filler flap . 291
Matt paintwork .............................. 364
Maximum cooling effect............... 263
Maximum speed of winter tyres .. 297
Maximum speed, display, see Speed
Limit Info ..................................... 173
Memory function........................... 119
Menu, instrument cluster, see Selec-
tion lists ...................................... 177
Messages ........................................ 74
Messages, see Vehicle messages
..................................................... 163
Microfilter ...................................... 266
Minimum tread depth, tyres......... 295
Mirror, see Memory function ....... 119
Mirror, vanity ................................. 269
Mobile communication in the vehicle
..................................................... 282
Mobile devices, managing ............. 86
Mobile Service, see Breakdown
assistance ................................... 353
Mobility System ............................ 299
Moisture in the headlights, see Head-
light glass ................................... 340
Monitor, see Control Display ......... 59
Mounting child restraints............. 123
Multifunction steering wheel, but-
tons ................................................ 46
N
Net, boot ........................................277
Neutral cleaner, light alloy wheels
..................................................... 366
New wheels and tyres ..................296
No Passing Information ...............173
NORMAL, see Sport mode switch160
Notes ..................................................4
Number plate light, see Bulbs and
lights ............................................340
Nylon rope for tow-starting/towing
..................................................... 360
O
OBD on-board diagnosis .............332
Obstacle marking, rear-view camera
..................................................... 255
Octane number, see Petrol grade 323
Oil ................................................... 323
Oil change .....................................327
Oil change interval, see Service
requirements............................... 170
Oil filler neck ................................. 325
Oil grades for topping up, engine326
On-board diagnosis OBD .............332
On-board monitor, see Control Dis-
play ................................................ 59
On-board tool kit ...........................339
Opening and closing ...................... 88
Operating menus, see Toyota Supra
Command ...................................... 57
Operation by touchscreen ............. 65
Operation via Controller................. 62
Outlets, see Ventilation ................266
Outside temperature.....................169
Overheating of the engine, see Cool-
ant temperature ..........................169

494Alphabetical Index
Tourist function, see
Left-hand/right-hand traffic ....... 190
Tow bar .......................................... 360
Tow fitting, see Towing eye ......... 360
Towing away ................................. 359
Towing eye .................................... 360
Towing rope .................................. 360
Towing, see Tow-starting and towing
..................................................... 359
Tow-starting .................................. 359
Toyota Supra Command ................ 57
Toyota Supra Command operating
principle ........................................ 57
Toyota Supra Safety ..................... 205
TPM Tyre Pressure Monitor ......... 304
Traction control ............................ 230
Traction mode ............................... 230
TRACTION, driving dynamics ..... 230
Trailer tow hitch, rear-view camera
..................................................... 255
Transmission lockout, unlocking
electronically .............................. 158
Tread, tyres ................................... 294
Triple turn signal .......................... 150
Turn indicator, indicator lamp ..... 167
Turn indicators, replacing Bulbs, see
Bulbs and lights ......................... 340
Turning circle ................................ 370
Turning circle lines, rear-view cam-
era ................................................ 255
Tyre damage.................................. 295
Tyre inflation pressure ................. 292
Tyre makes, recommendation ..... 297
Tyre pressure ................................ 292
Tyre Pressure Monitor TPM ......... 304
Tyre repair kit, see Mobility System
..................................................... 299
Tyre replacement .......................... 296
Tyre sealant, see Mobility System
..................................................... 299
Tyre settings ................................. 305
Tyre tread ...................................... 294
Tyres and wheels .......................... 292
Tyres with emergency running prop-
erties............................................ 298
U
Ultrasonic sensors, see Sensors of
the vehicle ..................................... 50
Units of measure............................. 73
Unloaded weight ...........................371
Unlock-button, Automatic transmis-
sion ..............................................154
Unlocking the fuel filler flap manu-
ally ............................................... 291
Unlocking with the remote control 89
Unlocking, automatic ................... 102
Unlocking, see Opening and closing
....................................................... 88
Unlocking, settings.......................101
USB connection .............................. 83
USB port, position in the vehicle 270
Use, intended ....................................6
V
Vanity mirror.................................. 269
Vehicle battery ..............................341
Vehicle breakdown, see Breakdown
Assist...........................................352
Vehicle care ...................................364
Vehicle equipment ............................4
Vehicle identification number ........ 22
Vehicle key, see Remote control ... 88
Vehicle messages ......................... 163
Vehicle paintwork ......................... 364
Vehicle position, vehicle positioning
....................................................... 73
Vehicle Stability Control VSC ...... 229
Vehicle status ................................181
Vehicle wash ................................. 362
Vehicle, running in ........................280
Ventilation......................................266
VIN, see Vehicle identification num-
ber .................................................. 22
Voice control system ...................... 68
VSC Vehicle Stability Control ...... 229
