2022 TOYOTA SIENNA HYBRID Owners Manual

5137-2. Steps to take in an emergency
7
When trouble arises
1Stop the hybrid system. Set
the parking brake and shift
the shift lever to P.
2 Remove the mud, snow or
sand from around the stuck
tire.
3 Place wood, stones or some
other material to help provide
traction under the tires.
4 Restart the hybrid system
5 Shift the shift lever to D or R
and release the parking
brake. Then, while exercising
caution, depress the acceler-
ator pedal.
■When it is difficult to free the
vehicle
Press to turn off TRAC.
(  P.336)
If the vehicle becomes
stuck
Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:
Recovering procedure
WARNING
■When attempting to free a
stuck vehicle
If you choose to push the vehicle
back and forth to free it, make
sure the surrounding area is clear
to avoid striking other vehicles,
objects or people. The vehicle
may also lunge forward or lunge
back suddenly as it becomes free.
Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift
lever with the accelerator pedal
depressed.
This may lead to unexpected
rapid acceleration of the vehicle
that may cause an accident
resulting in dea th or serious
injury.
NOTICE
■To avoid damaging the trans-
mission and other compo-
nents
●Avoid spinning the wheels and
depressing the accelerator
pedal more than necessary.
●If the vehicle remains stuck
even after these procedures are
performed, the vehicle may
require towing to be freed.

5147-2. Steps to take in an emergency

515
8
8
Vehicle specifications
Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .................. 516
Fuel information .......... 526
Tire information ........... 528
8-2. Customization Customizable features 538
8-3. Initialization Items to initialize ......... 551

5168-1. Specifications
8-1.Specifications

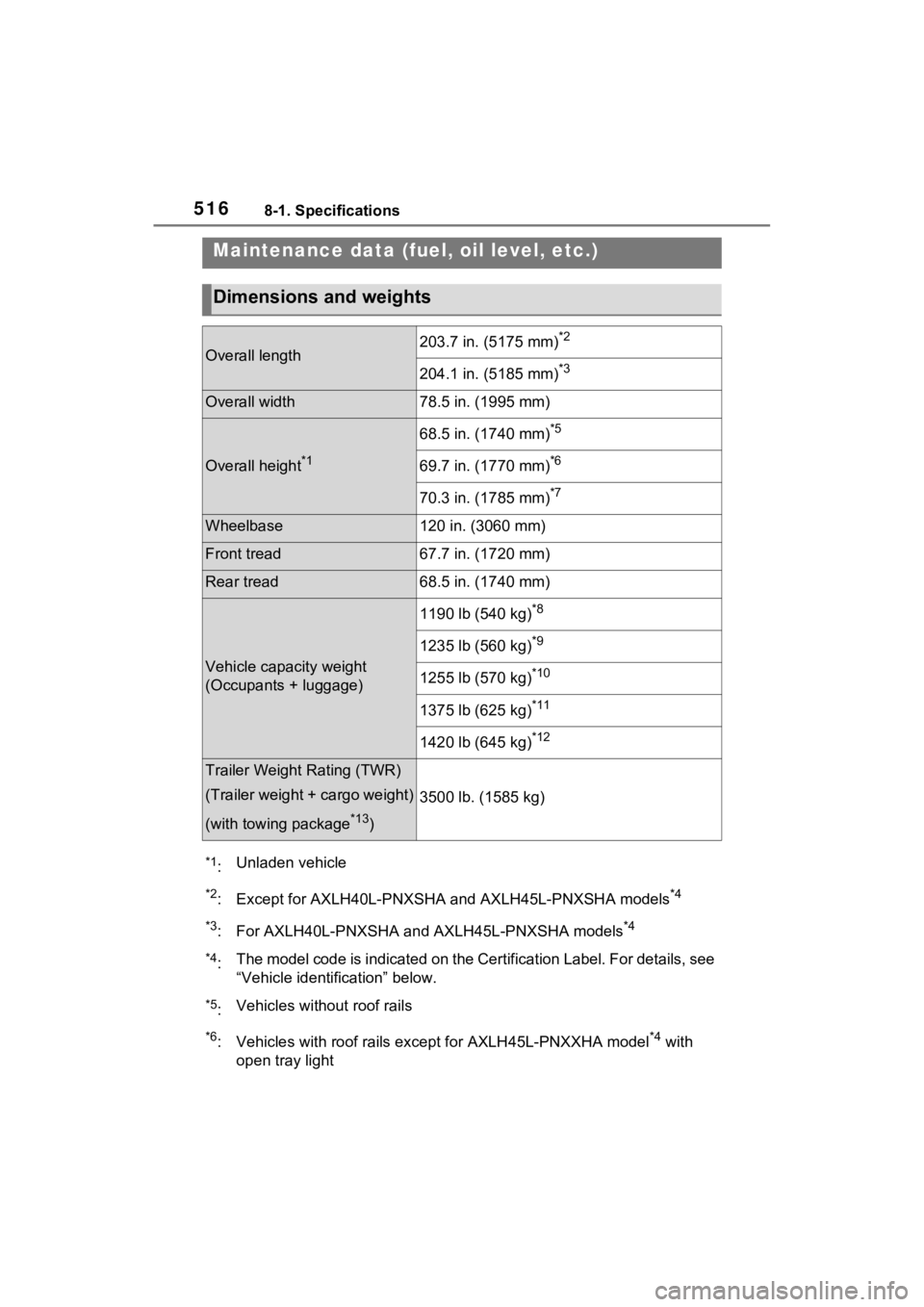

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length203.7 in. (5175 mm)*2
204.1 in. (5185 mm)*3
Overall width78.5 in. (1995 mm)
Overall height*1
68.5 in. (1740 mm)*5
69.7 in. (1770 mm)*6
70.3 in. (1785 mm)*7
Wheelbase120 in. (3060 mm)
Front tread67.7 in. (1720 mm)
Rear tread68.5 in. (1740 mm)
Vehicle capacity weight
(Occupants + luggage)
1190 lb (540 kg)*8
1235 lb (560 kg)*9
1255 lb (570 kg)*10
1375 lb (625 kg)*11
1420 lb (645 kg)*12
Trailer Weight Rating (TWR)
(Trailer weight + cargo weight)
(with towing package
*13)
3500 lb. (1585 kg)
*1:Unladen vehicle
*2:Except for AXLH40L-PNXSHA and AXLH45L-PNXSHA models*4
*3:For AXLH40L-PNXSHA and AXLH45L-PNXSHA models*4
*4:The model code is indicated on the Certification Label. For det ails, see
“Vehicle identification” below.
*5:Vehicles without roof rails
*6:Vehicles with roof rails e xcept for AXLH45L-PNXXHA model*4 with
open tray light

5178-1. Specifications
8
Vehicle specifications
■Vehicle identification num-
ber
The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.
This number is on the top left of
the instrument panel. This number is also on the Certi-
fication Label.

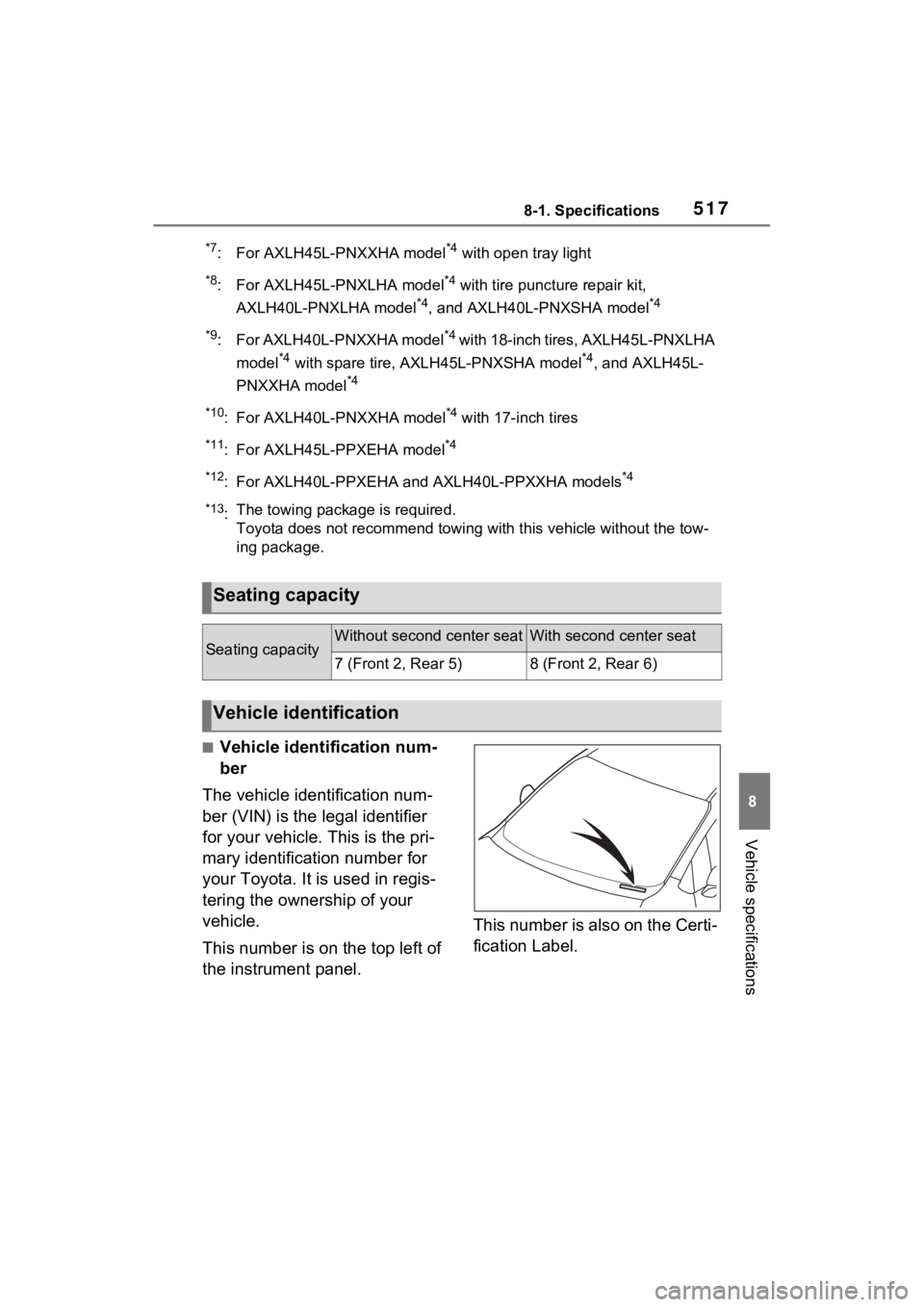

*7:For AXLH45L-P
NXXHA model*4 with open tray light
*8:For AXLH45L-PNXLHA model*4 with tire puncture repair kit,
AXLH40L-PNXLHA model
*4, and AXLH40L-PNXSHA model*4
*9:For AXLH40L-PNXXHA model*4 with 18-inch tires, AXLH45L-PNXLHA
model
*4 with spare tire, AXL H45L-PNXSHA model*4, and AXLH45L-
PNXXHA model
*4
*10:For AXLH40L-P NXXHA model*4 with 17-inch tires
*11:For AXLH45L-PPXEHA model*4
*12:For AXLH40L-PPXEHA and AXLH40L-PPXXHA models*4
*13:The towing package is required.
Toyota does not r ecommend towing with this vehicle without the tow-
ing package.
Seating capacity
Seating capacityWithout second center seatWith second center seat
7 (Front 2, Rear 5)8 (Front 2, Rear 6)
Vehicle identification

5188-1. Specifications
■Engine number
The engine number is stamped on the engine block as shown.
Front
Engine
Model2.5 L 4-cylinder (A25A-FXS)
Type4-cylinder in line
, 4-cycle, gasoline
Bore and stroke3.44  4.07 in. (87.5  103.4 mm)
Displacement151.8 cu. in. (2487 cm3)
Valve clearanceAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or
higher
Fuel tank capacity (Reference)18 gal. (68.2 L, 15 Imp.gal.)
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum output134 kW
Maximum torque199 ft•lbf (270 N•m, 27.5 kgf•m)

5198-1. Specifications
8
Vehicle specifications
Rear (AWD models)
■Oil capacity (Drain and refill
 reference
*)
*: The engine oil capacity is a refer-
ence quantity to be used when
changing the engine oil. Warm up
the engine and turn off the hybrid
system, wait more than 5 min-
utes, and check the oil level on
the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is
used in your Toyota vehicle.
Use Toyota approved “Toyota
Genuine Motor Oil” or equiva-
lent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-6B multigrade engine
oil
Recommended viscosity:
SAE 0W-16
SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.
TypePermanent magnet synchronous motor
Maximum output40 kW
Maximum torque89.2 ft•lbf (121 N•m, 12.3 kgf•m)
Hybrid battery (traction battery)
TypeNickel-Metal hy
dride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity40 modules
Nominal voltage288 V
Lubrication system
With filter4.8 qt. (4.5 L, 4.0 Imp.
qt.)
Without fil-
ter4.4 qt. (4.2 L, 3.7 Imp.
qt.)

5208-1. Specifications
Outside temperature
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if the vehicle is operated at high
speeds, or under extreme
load conditions.

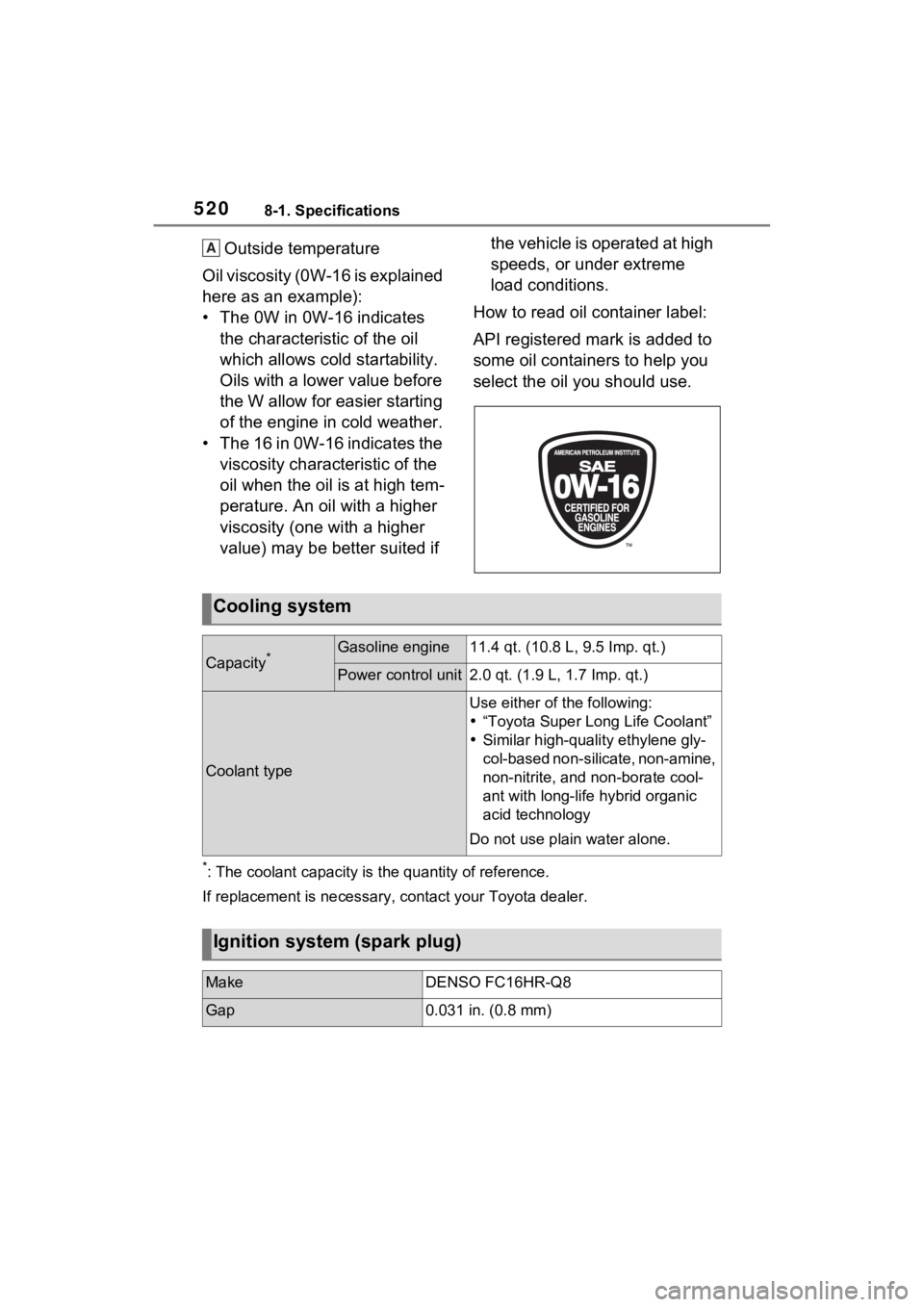

How to read oil container label:
API registered mark is added to
some oil containers to help you
select the oil you should use.
*: The coolant capacity is the quantity of reference.
If replacement is ne cessary, contact your Toyota dealer.
A
Cooling system
Capacity*Gasoline engine11.4 qt. (10.8 L, 9.5 Imp. qt.)
Power control unit2.0 qt. (1.9 L, 1.7 Imp. qt.)
Coolant type
Use either of the following:
“Toyota Super Long Life Coolant”
 Similar high-quality ethylene gly-
col-based non-silicate, non-amine,
non-nitrite, and non-borate cool-
ant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-Q8
Gap0.031 in. (0.8 mm)
