2653. Instrument cluster
3
Instrument cluster
■History
If a screen other than “History” is displayed, select “History”.
Best recorded fuel consump-
tion
Latest fuel consumption
Previous fuel consumption
record
Displays the daily average fuel
consumption. (Instead of the
date, “Trip 1” through “Trip 5” will
be displayed.)
Updating the latest fuel consumption data
Resetting the history data
The average fuel consumption history is divided by color into p ast
averages and the average fuel con sumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual
conditions.
■ Updating the history data
Update the latest fuel consumption by selecting “Update” to mea sure the cur-
rent fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumptio n. As a
result, the actual distance that can be driven may differ from that displayed.
■ Home screen
The average fuel consumption and distance to empty can be displ ayed on the
home screen of the multimedia system screen.
For details of the home screen, refer to the ““MULTIMEDIA OWNER ’S MAN-
UAL””.
1
2
3
4
5

266
PRIUS PRIME_OM_OM47E74U_(U)
3. Instrument cluster
Energy monitor/consumption screen/detail
screen (vehicles with 11.6-inch display)
Navigation system screen
“MENU” button
■Display of navigation screen during charging
After the power switch is turned to ON mode during charging, th e power
switch will automatically turn off after approximately 100 seconds.
The energy monitor can be used to check the vehicle drive statu s,
hybrid system operation status and energy regeneration status.
The flow of electric energy during charging is displayed when
charging from an external power source.
■Display procedure Press the “MENU” button.
Select “Info” on the screen.
Select “Energy” on the “Information” screen.
Press the “HOME” button and select “Info” on the screen. You ca n
select “Energy”.
The state of the hybrid system can be viewed on the navigation
system screen.
The energy monitor and fuel consumption screen can also be
displayed on the multi- information display.
For information regarding the multi-information display, refer to
P. 220.
System components
1
2
Energy monitor
1
2
3

PRIUS PRIME_OM_OM47E74U_(U)
2673. Instrument cluster
3
Instrument cluster

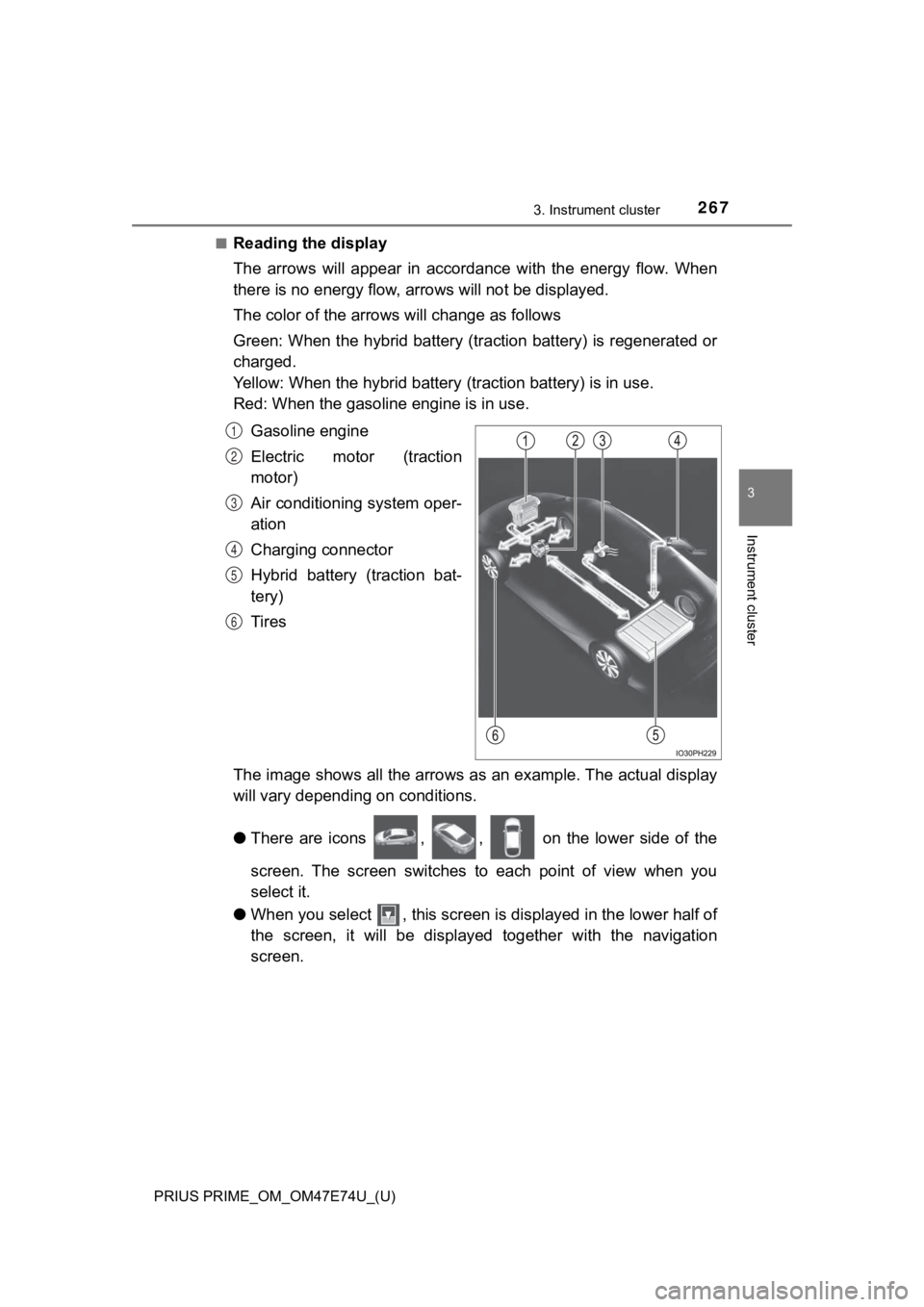

■Reading the display
The arrows will appear in accordance with the energy flow. When
there is no energy flow, arrows will not be displayed.
The color of the arrows will change as follows
Green: When the hybrid battery (tr action battery) is regenerated or
charged.
Yellow: When the hybrid battery (traction battery) is in use.
Red: When the gasolin e engine is in use.
Gasoline engine
Electric motor (traction
motor)
Air conditioning system oper-
ation
Charging connector
Hybrid battery (traction bat-
tery)
Tires
The image shows all the arrows as an example. The actual displa y
will vary dependin g on conditions.
● There are icons , , on the lower side of the
screen. The screen switches to each point of view when you
select it.
● When you select , this screen is displayed in the lower half of
the screen, it will be displayed together with the navigation
screen.
1
2
3
4
5
6

268
PRIUS PRIME_OM_OM47E74U_(U)
3. Instrument cluster
■Hybrid battery (traction battery) status
P. 271
■ Remaining charge amount warning of hybrid battery (traction battery)
●The buzzer sounds intermittently when the hybrid battery (traction battery)
remains without charging while the shift position is in N, or t he remaining
charge amount drops below a certain level. If the remaining cha rge amount
drops further, the buzzer sounds continuously.
● When a warning message is shown on the multi-information display and the
buzzer sounds, follow the instructions displayed on the screen to perform
troubleshooting.
■ Color of the hybrid battery (tract ion battery) on the navigation system
screen
It will be green when the hybrid battery (traction battery) is being charged,
and yellow when the hybrid battery (traction battery) is being used.
■ Color of the gasoline engine on the navigation system screen
It will be blue when the engine is warming up, and it will turn to yellow when
the warming up is finished.

PRIUS PRIME_OM_OM47E74U_(U)
2693. Instrument cluster
3
Instrument cluster
■Display procedurePress the “MENU” button.
Select “Info” on the screen.
Select “Past Recor d” on the “Information” screen.
Press the “HOME” button and select “Info” on the screen. You ca n
select “Past Record”.
■
Trip information
If a screen other than “Trip Information” is displayed, select “Trip
Information”.
Previous fuel consumption
per minute
Current fuel consumption
Reset the trip information
data
Regenerated energy in the
past 15 minutes
One symbol indicates 30
Wh.
Up to 5 symbols are shown.
“Past Record” screen appears
Cruising range
Elapsed time
Average vehicle speed
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode.
Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual
conditions.
Consumption screen
1
2
3
1
2
3
4
5
6
7
8

270
PRIUS PRIME_OM_OM47E74U_(U)
3. Instrument cluster
■Past record
If a screen other than “Past Record” is displayed, select “Past
Record”.Best recorded fuel consump-
tion
Average fuel consumption
Current fuel consumption
Previous fuel consumption
record
Reset the past record data
Update the past record data
“Trip Information” screen appears
The image is an example only, and may vary slightly from actual
conditions.
■ Updating the past record data
Update the latest fuel consumption by selecting “Update” to mea sure the cur-
rent fuel consumption again.
Also, the average fuel consumption displayed in the multi-infor mation display
will be reset at the same time.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumptio n. As a
result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5
6
7

PRIUS PRIME_OM_OM47E74U_(U)
2713. Instrument cluster
3
Instrument cluster
Displays information about each selected item.
■Display procedure
Press the “MENU” button.
Select “Info” on the screen.
Select “Energy” on the “Information” screen.
Press the “HOME” button and select “Info” on the screen. You ca n
select “Energy”.
Select on the upper right screen.
Select “ ” to close the screen.
■
Select “Battery”
● Display of battery charging state
Displayed when charging from an external power supply.
Display of charge status
The remaining time until
the charging completed
The remaining hybrid bat-
tery (traction battery)
capacity of the HV mode
The remaining hybrid bat-
tery (traction battery)
capacity of the EV mode
● Display the “Next Charging Event”
It appears when the charging
schedule function is waiting
to charge the external power
source.
Detail screen
1
2
3
4
1
2
3
4

272
PRIUS PRIME_OM_OM47E74U_(U)
3. Instrument cluster
●Regenerated amount of energy
It appears during driving or
parked.
Shows the energy regen-
erated every minute.
Shows the energy being
regenerated while hybrid
system is operating.
Every time the power switch
is turned to off, the value is
reset.
■
Select “Engine”
Display of the engine status.
■Select “Climate”
Display the power consump-
tion of the air conditioner
1
2
