2022 TOYOTA HILUX automatic transmission

3754-6. Driving tips
4
Driving
HILUX_OM_OM0K513E_(EE)
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.
O Park the vehicle and move the shift lever to P (automatic transmis-
sion) or 1 or R (manual transmission) without setting the parking
brake. The parking brake may freeze up, preventing it from being
released. If the vehicle is parked without setting the parking brake,
make sure to block the wheels.
Failure to do so may be dangerous because it may cause the vehi-
cle to move unexpectedly, possibly leading to an accident.
O Vehicles with automatic transmission: If the vehicle is parked with-
out setting the parking brake, confirm that the shift lever cannot be
moved out of P*.
*: The shift lever will be locked if it is attempted to be shifted from P to any
other position without depressing the brake pedal. If the shift lever can be
shifted from P, there may be a problem with the shift lock system. Have the
vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Use the correct tire chain size when mounting the snow chains.
Chain size is regulated for each tire size.
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.
When driving the vehicle
When parking the vehicle (in the winter time or in the cold lati-
tudes)
Selecting tire chains
Regulations on the use of tire chains

5618-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using cables or chains secured to the emergency
towing hooks. This should only be attempted on hard surfaced roads
for at most 80 km (50 miles) at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Securely attach cables or
chains to the towing hooks.
Take care not to damage the vehi-
cle body.
Enter the vehicle being towed and start the engine.
If the engine does not start, turn the engine switch to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system).
Vehicles with Stop & Start system:
Before towing the vehicle, turn the engine switch to the “LOCK” position
(vehicles without smart entry & start system) or off (vehicles with smart
entry & start system) once, and then start the engine.
4WD models: Turn the front-wheel drive control switch to H2.
( P. 331)
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted (automatic transmission):
 P. 2 3 7
Emergency towing
Emergency towing procedure
1
2
3
4

5678-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
(Flashes or illuminates)
Malfunction indicator lamp (warning buzzer)
Indicates the followings if the warning light comes on or
flashes:
• Malfunction in the emission control system. (if equipped)
• Malfunction in the electronic engine control system.
• Malfunction in the electronic automatic transmission
control system. (if equipped)
• The boost pressure in the turbocharger is abnormally
high.*3 (diesel engine)
• Malfunction in DPF system. (if equipped)
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The seat belt pretensioner system; or
• The front passenger occupant classification system (if
equipped)
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system (vehicles with VSC system)
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Power steering system warning light (warning buzzer)
(if equipped)
Indicates a malfunction in the power steering system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightWarning light/Details/Actions

5818-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
If you have a flat tire
OStop the vehicle in a safe place on a hard, flat surface.
O Set the parking brake.
O Shift the shift lever to P (automatic transmission) or R (manual
transmission).
O Stop the engine.
O Turn on the emergency flashers. (P. 554)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 5 0 7
WARNING
QIf you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
Location of the spare tire

5998-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises

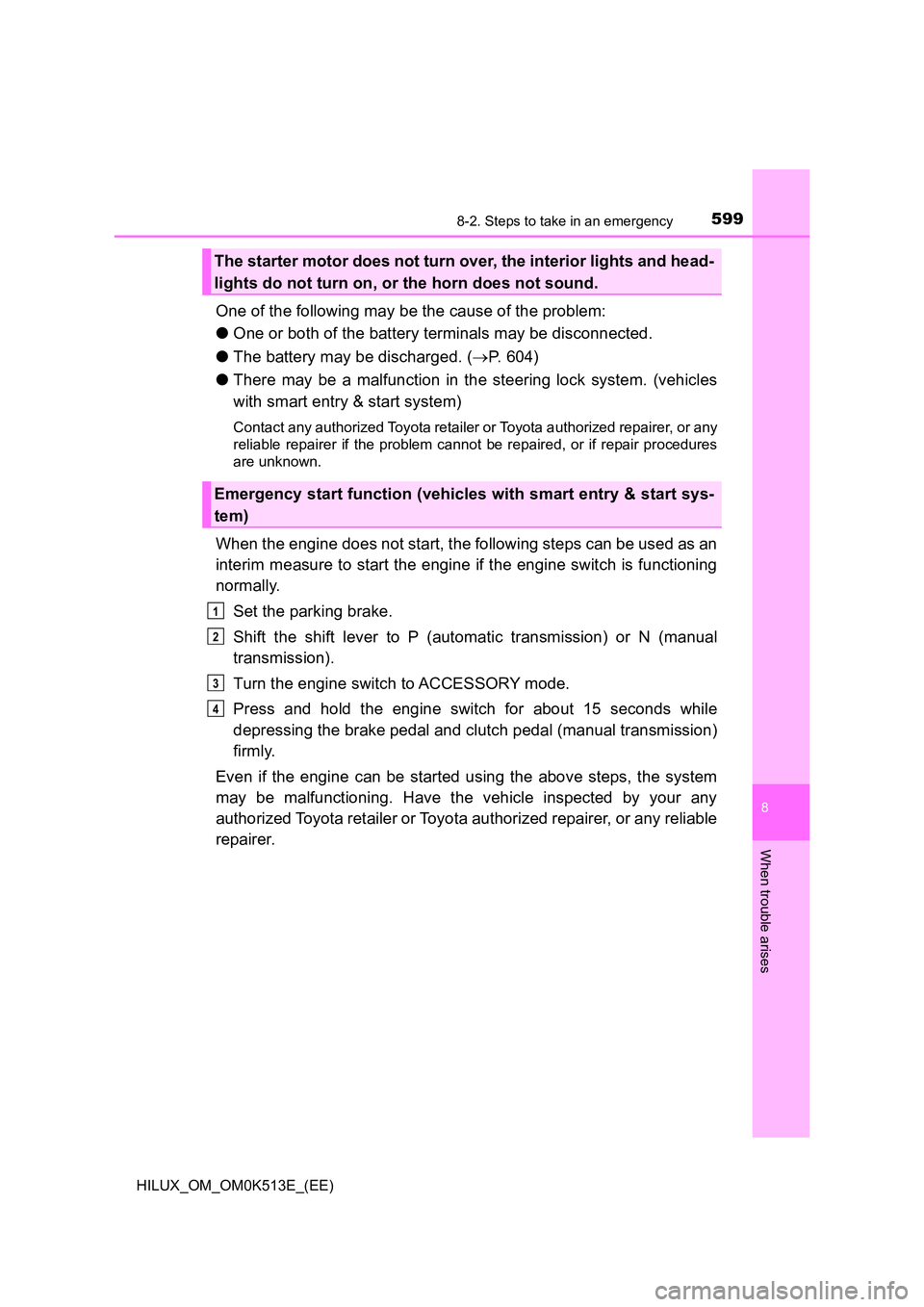

One of the following may be the cause of the problem:
O One or both of the battery terminals may be disconnected.
O The battery may be discharged. (P. 604)
O There may be a malfunction in the steering lock system. (vehicles
with smart entry & start system)
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer if the problem cannot be repaired, or if repair procedures
are unknown.
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally.
Set the parking brake.
Shift the shift lever to P (automatic transmission) or N (manual
transmission).
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while
depressing the brake pedal and clutch pedal (manual transmission)
firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by your any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
Emergency start function (vehicles with smart entry & start sys-
tem)
1
2
3
4

6018-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
Automatic transmission
Ensure that the shift lever is in P and depress the brake pedal.
Touch the area behind the lock
button and unlock button on the
electronic key to the engine
switch.
When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When the smart entry & start sys-
tem is deactivated in customization
setting, the engine switch will turn
to ACCESSORY mode.
Firmly depress the brake pedal.
A message indicating how to start the engine will be displayed on the
multi-information display.
Press the engine switch.
In the event that the engine still cannot be started, contact any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
Starting the engine
1
2
3
4

6038-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
QStopping the engine
Shift the shift lever to P (automatic transmission) or N (manual transmission)
and press the engine switch as you normally do when stopping the engine.
Q Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
( P. 516)
Q Alarm (vehicles with alarm for models for model code destination W*,
and Kazakhstan)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key and is opened when the alarm
system is set, the alarm may be triggered.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
Q Changing engine switch modes
Release the brake pedal (automatic transmission) or clutch pedal (manual
transmission) and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed. ( P. 226)
Q When the electronic key does not work properly
O Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features: P. 646)
O Check if battery-saving mode is set. If it is set, cancel the function.
( P. 164)
3

6068-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
as soon as possible.
Q Starting the engine when the battery is discharged (vehicles with auto-
matic transmission)
The engine cannot be started by push-starting.
Q To prevent battery discharge
O Turn off the headlights and the audio system while the engine is off.
(Vehicles with Stop & Start system: Except when the engine is stopped due
to the Stop & Start system)
O Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
Q When the battery is removed or discharged
O Information stored in the ECU is cleared. When the battery is depleted, have
the vehicle inspected at any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
O The power windows may not close normally. In this case, initialize the power
windows. (if equipped) ( P. 187)
O If it is necessary to initialize the panoramic view monitor (if equipped), refer
to “Navigation and multimedia system Owner’s manual” or “Multimedia
Owner’s Manual”.
Q Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
6
