2022 TOYOTA HILUX warning lights

1222. Instrument cluster
HILUX_OM_OM0K513E_(EE)
War ning lights and indicators
Vehicles without multi-information display
Vehicles with multi-information display
The positions of some warning lights and indicators differ depending on
vehicles.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

1232. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)

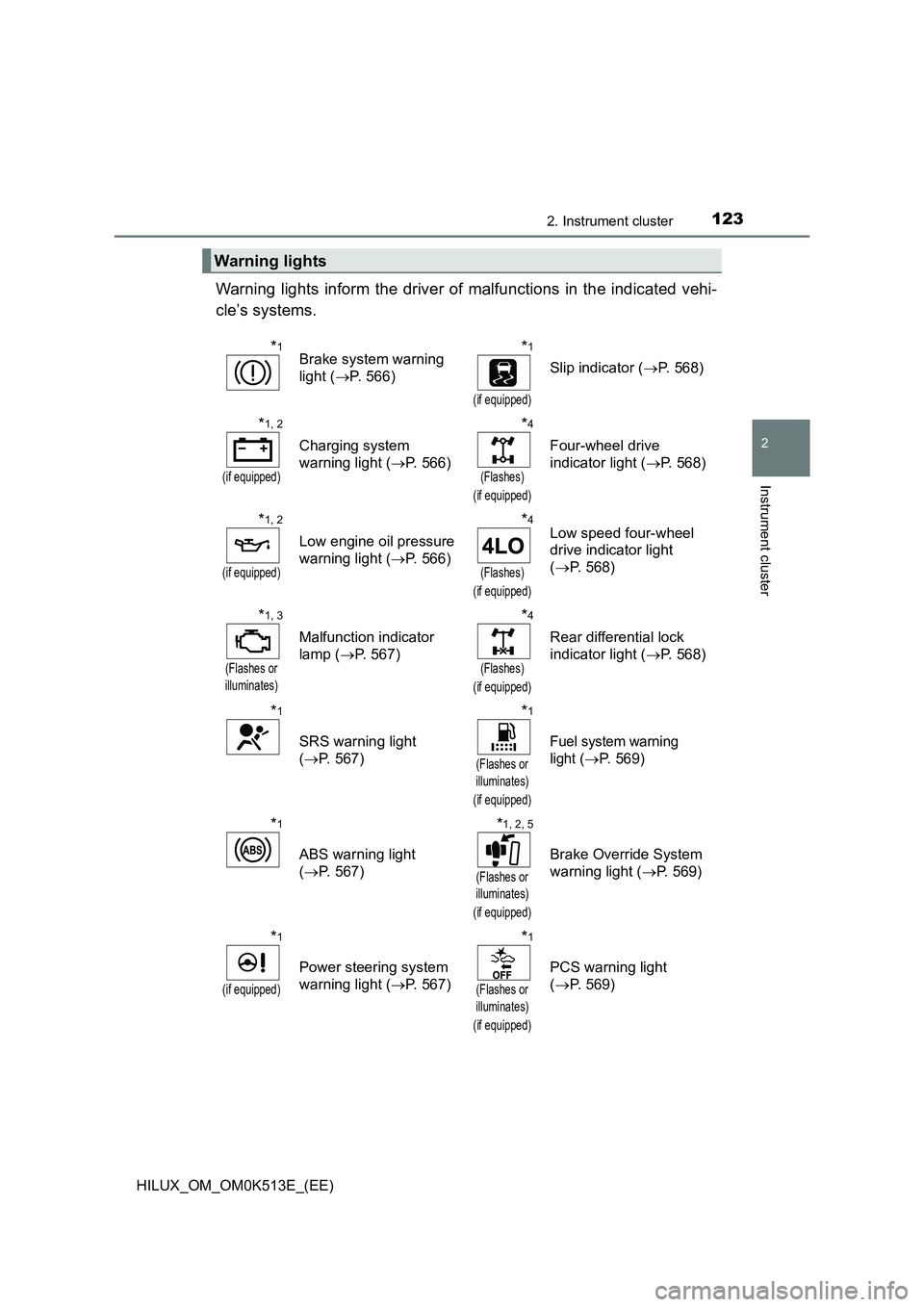

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light ( P. 566)
*1
(if equipped)
Slip indicator (P. 568)
*1, 2
(if equipped)
Charging system
warning light ( P. 566)
*4
(Flashes)
(if equipped)
Four-wheel drive
indicator light ( P. 568)
*1, 2
(if equipped)
Low engine oil pressure
warning light ( P. 566)
*4
(Flashes)
(if equipped)
Low speed four-wheel
drive indicator light
( P. 568)
*1, 3
(Flashes or
illuminates)
Malfunction indicator
lamp ( P. 567)
*4
(Flashes)
(if equipped)
Rear differential lock
indicator light ( P. 568)
*1
SRS warning light
( P. 567)
*1
(Flashes or
illuminates)
(if equipped)
Fuel system warning
light ( P. 569)
*1
ABS warning light
( P. 567)
*1, 2, 5
(Flashes or
illuminates)
(if equipped)
Brake Override System
warning light ( P. 569)
*1
(if equipped)
Power steering system
warning light ( P. 567)
*1
(Flashes or
illuminates)
(if equipped)
PCS warning light
( P. 569)

1242. Instrument cluster
HILUX_OM_OM0K513E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with multi-information display: a indicator is displayed on the
multi-information display.
(Yellow)
(if equipped)
LDA indicator ( P. 570)
*1
(if equipped)
Low engine oil level
warning light ( P. 570)
*6
(if equipped)
Cruise control indicator
( P. 569)
*1
(Flashes or
illuminates)
(if equipped)
Master warning light
( P. 570)
*2
(if equipped)
Open door warning light
( P. 570)
*1, 5
(Flashes)
(if equipped)
Stop & Start cancel
indicator ( P. 570)
(Flashes or
illuminates)
Driver’s and front
passenger’s seat belt
reminder light ( P. 570)
Parking brake indicator
light ( P. 571)
*7
(Flashes or
illuminates)
(if equipped)
Rear passengers’ seat
belt reminder lights
( P. 570)(if equipped)
Low AdBlue™ level
warning light ( P. 571)
Low fuel level warning
light ( P. 570)
*1
(Flashes)
(if equipped)
“AUTO LSD” indicator
( P. 571)
(if equipped)
Go to service warning
light ( P. 571)

1272. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: The light turns on when the system is turned off.
*3: The light flashes to indicate that the system is operating.
*4: Depending on the operating condition, the color and illuminating/flashing
state of the light change.
*5: The light illuminates on the center panel.
*6: The light turns to green.
(if equipped)
“PWR” indicator
( P. 233, 240)(if equipped)
Low outside
temperature indicator
( P. 131)
(if equipped)
“iMT” indicator
( P. 241)
Parking brake indicator
light ( P. 247)
*1, 2
(if equipped)
PCS warning light
( P. 273)
*1
(if equipped)
“AUTO LSD” indicator
( P. 367)
*4
(if equipped)
LDA indicator (P. 290)
*1, 5
(if equipped)
“PASSENGER AIR
BAG” indicator
( P. 57, 62)

1813-4. Adjusting the steering wheel and mirrors
3
Operation of each component
HILUX_OM_OM0K513E_(EE)
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
The function will set to ON mode
each time the engine switch is
turned to “ON” position (vehicles
without smart entry & start system)
or IGNITION ON mode (vehicles
with smart entry & start system).
Pressing the button turns the function to OFF mode. (The indicator also
turns off.)
Q To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

2604-3. Operating the lights and wipers
HILUX_OM_OM0K513E_(EE)
Washer/wiper dual
operation
Pulling the lever operates the
wipers and washer.
The wipers will automatically
operate a couple of times after
the washer squirts.
If the headlights are on, the
headlight cleaners will operate
once.
And then, the headlight cleaners
will operate every five times you
pull the lever. (if equipped)
Q The windshield wipers and washer can be operated when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
Q If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
7
WARNING
Q Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
Q When the windshield is dry
Do not use the wipers, as they may damage the windshield.
Q When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
Q When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

2704-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
WARNING

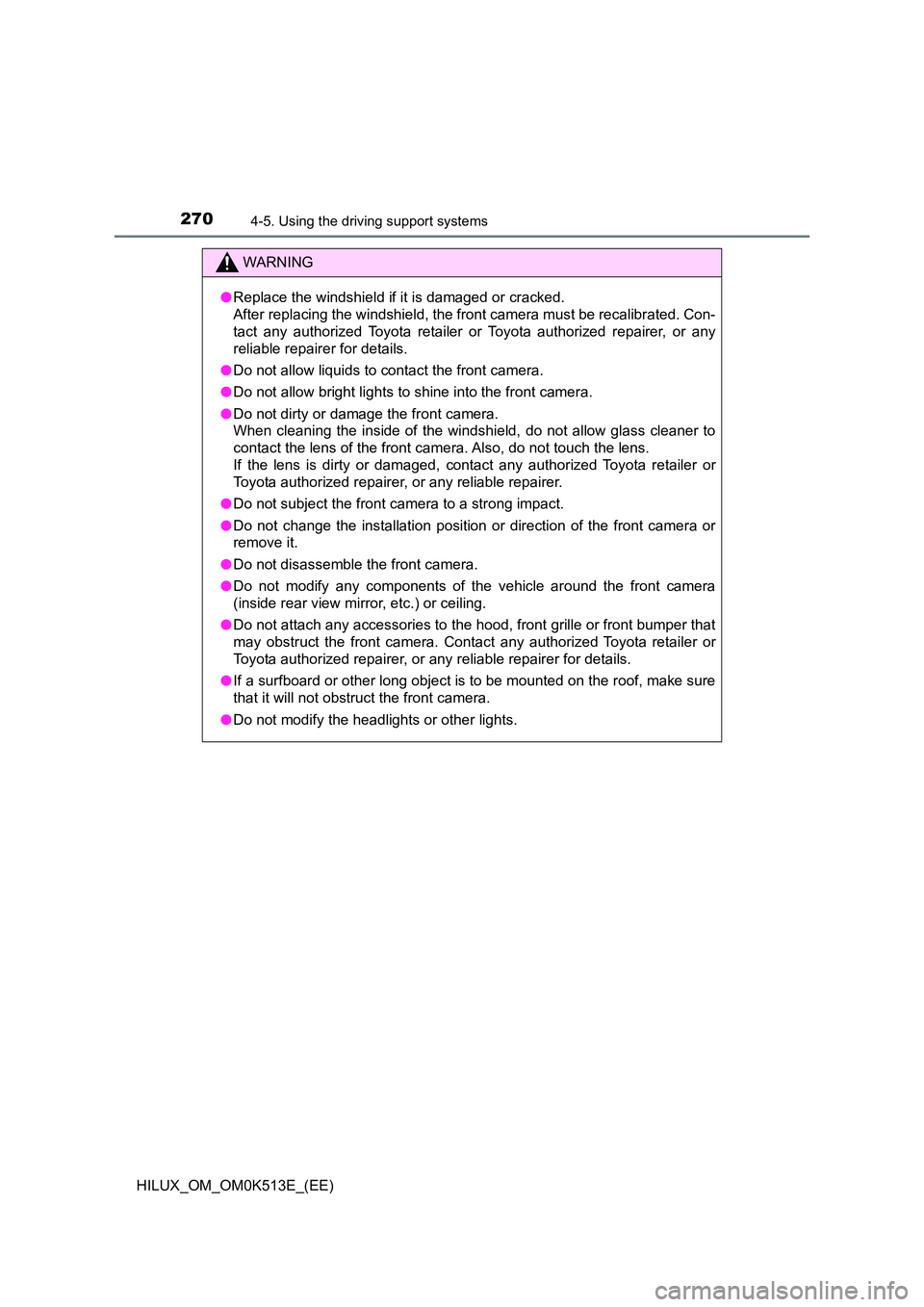

OReplace the windshield if it is damaged or cracked.
After replacing the windshield, the front camera must be recalibrated. Con-
tact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer for details.
O Do not allow liquids to contact the front camera.
O Do not allow bright lights to shine into the front camera.
O Do not dirty or damage the front camera.
When cleaning the inside of the windshi eld, do not allow glass cleaner to
contact the lens of the front camera. Also, do not touch the lens.
If the lens is dirty or damaged, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
O Do not subject the front camera to a strong impact.
O Do not change the installation position or direction of the front camera or
remove it.
O Do not disassemble the front camera.
O Do not modify any components of the vehicle around the front camera
(inside rear view mirror, etc.) or ceiling.
O Do not attach any accessories to the hood, front grille or front bumper that
may obstruct the front camera. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for details.
O If a surfboard or other long object is to be mounted on the roof, make sure
that it will not obstruct the front camera.
O Do not modify the headlights or other lights.

2854-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
WARNING
QSituations unsuitable for LDA system
In the following situations, use the LDA switch to turn the system off. Failure
to do so may lead to an accident, resulting in death or serious injury.
O Vehicle is driven on a road surface which is slippery due to rainy weather,
fallen snow, freezing, etc.
O Vehicle is driven on a snow-covered road.
O White (yellow) lines are difficult to see due to rain, snow, fog, dust, etc.
O A spare tire, tire chains, etc. are equipped.
O When the tires have been excessively worn, or when the tire inflation pres-
sure is low.
O When your vehicle is towing a trailer (with towing hitch) or during emer-
gency towing.
Q Preventing LDA system malfunctions and operations performed by
mistake
O Do not modify the headlights or place stickers, etc. on the surface of the
lights.
O Do not modify the suspension etc. If the suspension etc. needs to be
replaced, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
O Do not install or place anything on the hood or grille. Also, do not install a
grille guard (bull bars, kangaroo bar, etc.).
O If your windshield needs repairs, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
